Teknologi MYT: Pakar Keamanan Cerdas Global
Indonesian
Teknologi MYT: Pakar Keamanan Cerdas Global
| Tempat asal: | CINA |
|---|---|
| Nama merek: | MYT |
| Sertifikasi: | CNAS、CMA、CAL、ILAC-MRA |
| Nomor model: | DR400-D |
| Dokumen: | Brosur Produk PDF |
| Kuantitas min Order: | 1 |
| Harga: | Pricing is negotiable based on order quantity |
| Kemasan rincian: | 212mm*137mm*41mm |
| Waktu pengiriman: | 10 hari kerja |
| Syarat-syarat pembayaran: | TT, LC |
| Menyediakan kemampuan: | 1000 unit per bulan |
| Radius deteksi: | ≥ 1,5 km (garis pandang, lingkungan elektromagnetik bersih) | Metode alarm: | Suara, getaran, dan cahaya |
|---|---|---|---|
| Kapasitas Penyimpanan Video: | ≥32 GB kartu memori; MAKS 256GB | Ukuran layar: | Layar sentuh 7-inci |
| Kapasitas baterai: | 7000mAh | Catu daya: | Didukung oleh baterai litium |
| Menyoroti: | portable FPV detection device,drone video transmission capture,handheld drone detector with storage |
||

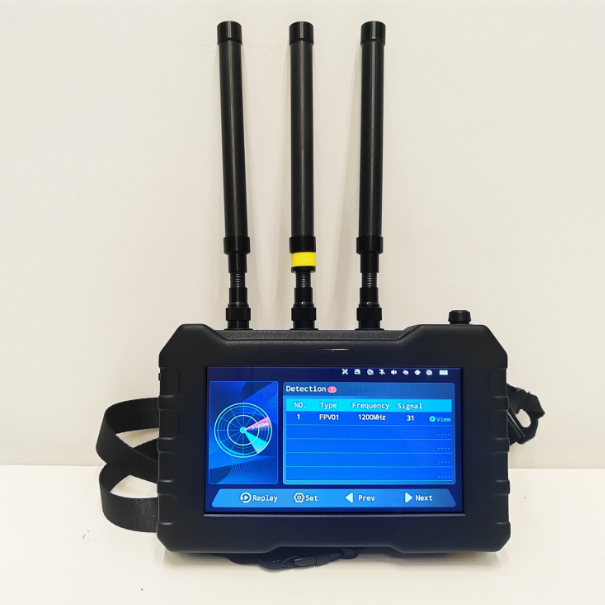

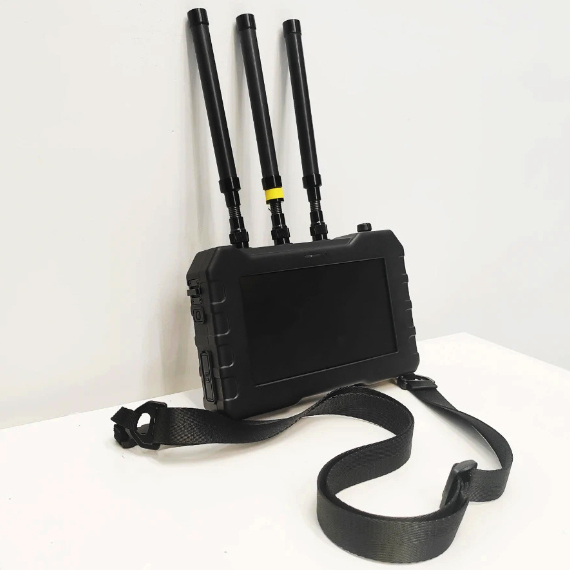

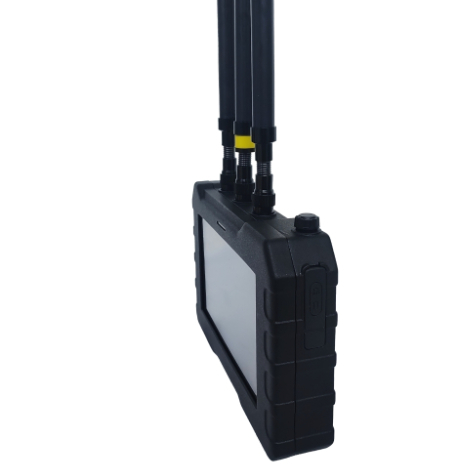

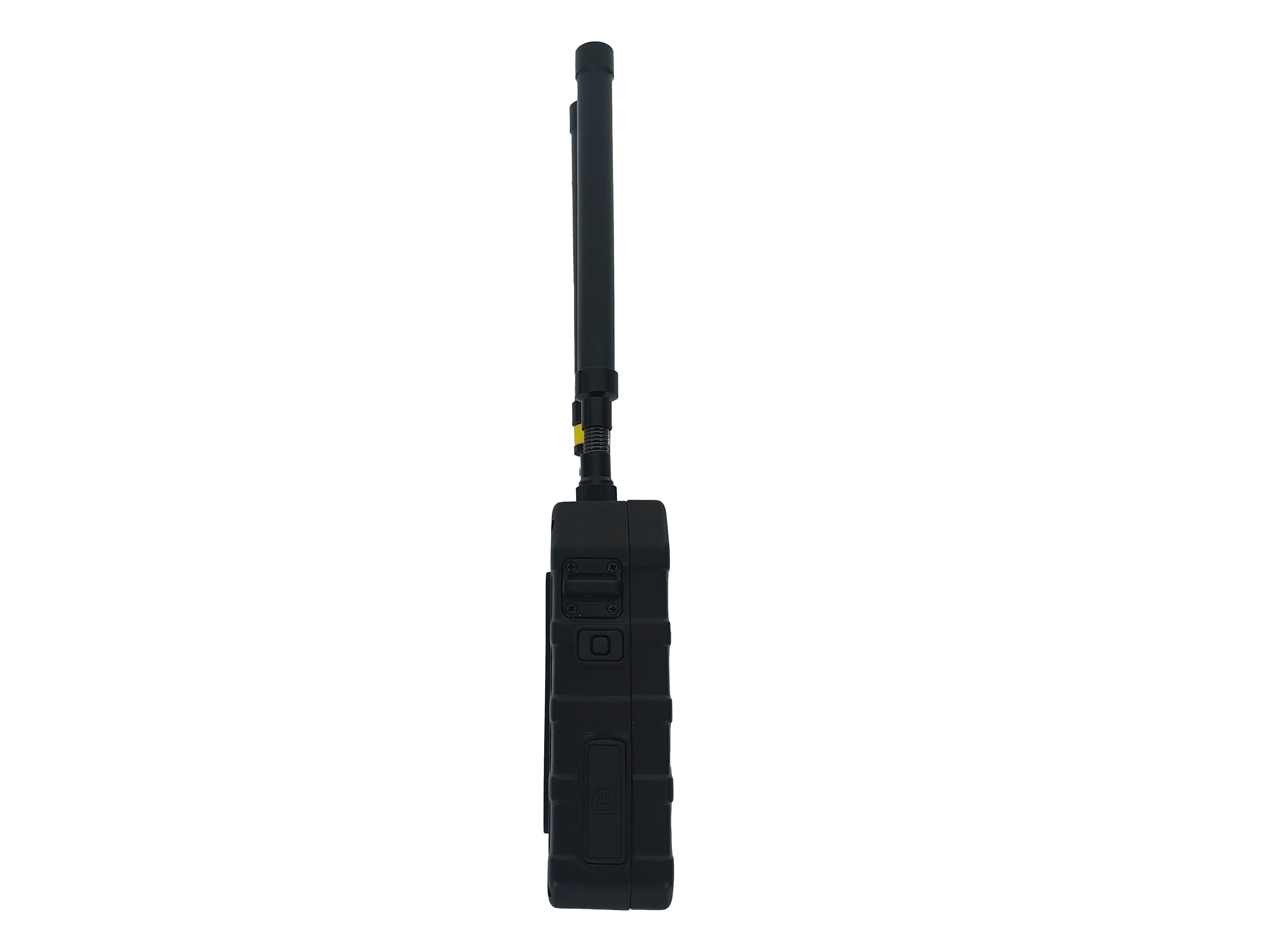

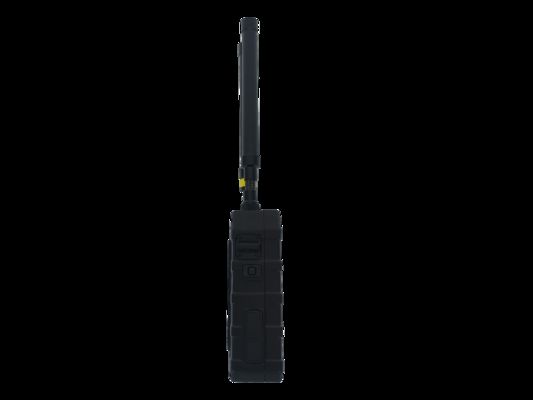

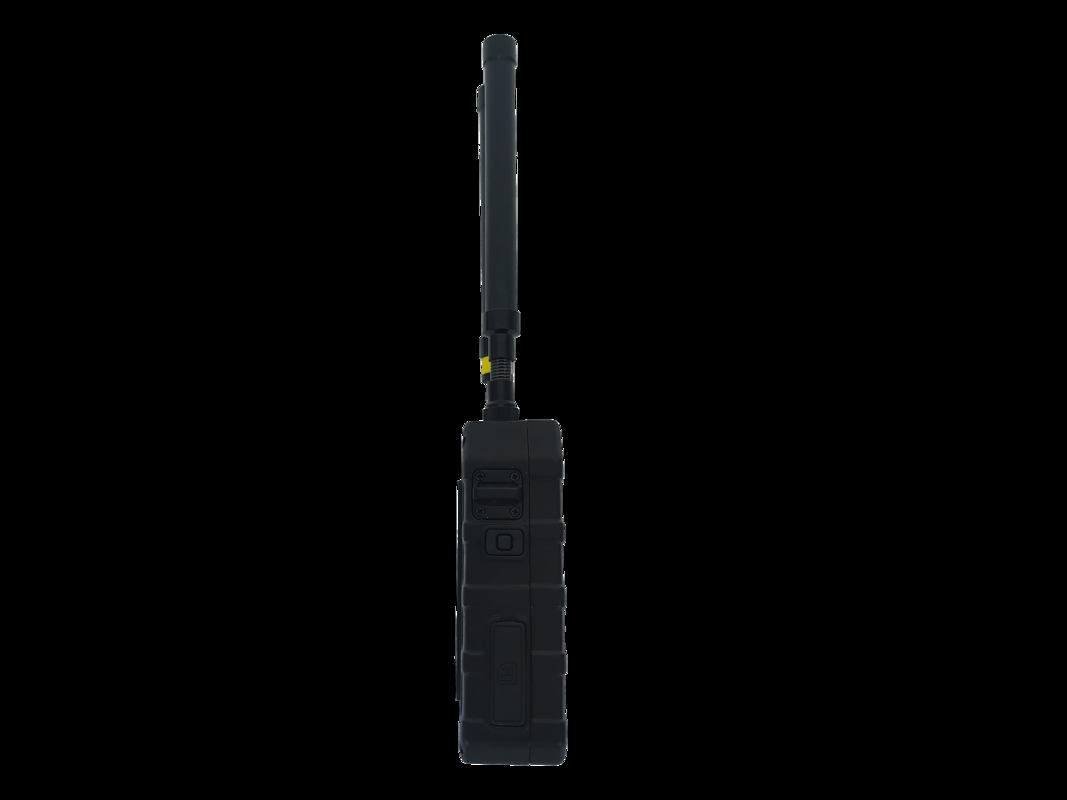

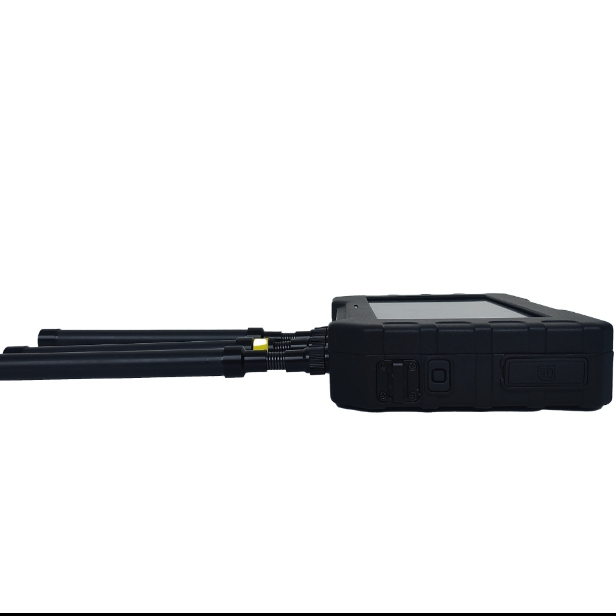

DR400-D Portable FPV Detection and Video
1, Equipment Overview
The portable FPV detection and video transmission capture device integrates detection, video interception, and video storage into one system. It has full-band detection, FPV analog video transmission detection, video interception, display control, video storage and other functions. In complex electromagnetic environments, it can accurately identify quadcopters drones, DIY models drones, and FPV drones, and provide sound, light, and vibration alarms. This device is suitable for scenarios such as routine patrols, critical target protection, unit-level operations, and investigation and evidence collection.
2, Specification
|
Name |
Specifications |
|
Identification types |
Supports mainstream drones such as DJI, Autel, Hubsan, as well as FPV racing drones and DIY drones |
|
Frequency range |
Supports customizable from 70 MHz to 6.2 GHz.Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
|
FPV video transmission detection |
Supports detection of all analog video transmissions within the 500 MHz–6 GHz frequency range |
|
Detection radius |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
Video capture distance |
≥ 1.5 km (line-of-sight, clean electromagnetic environment). |
|
Video storage capacity |
≥32 GB memory card;MAX 256GB |
|
Detection response time |
≤3s(8 bands)；≤5s(12 bands) |
|
Battery Life |
≥5 hours (with default screen brightness and operating mode) |
|
Alarm modes |
Sound, vibration, and light |
|
Screen size |
7-inch touchscreen |
|
Power supply |
Powered by lithium battery |
|
Battery capacity |
7000mAh |
|
Device weight |
≤ 1.2kg |
|
Device size |
Length × Width × Height:212mm×137mm×41mm |
3, Certification Certificate
4, Company profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our mission is to enable intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments. By transitioning from passive to active defense strategies and fostering a paradigm shift from partial to comprehensive protection, we aim to elevate anti-intrusion security systems to new heights.
8, Paking and Delivery
