1.2 1.3 1.5GHz Anti Drone Module Shield Jamming Module For GPSL1 GPSL2 Glonass

Brand Name: MYT
Model Number: 1.2 1.3 1.5GHz Jamming Module
MOQ: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 10 work days
Payment Terms: TT, LC
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CNAS、CMA、CAL、ILAC-MRA
Document:
Product Brochure PDF
Frequency:
Customized
Work Temperature:
-40~+65℃
Max Output Power:
200W
Work Voltage:
24/28/32 V
Supply Ability:
1000units per month
Highlight:

1.5GHz Anti Drone Module

,

Shield Anti Drone Module

,

Shield Jamming Module

Product Description

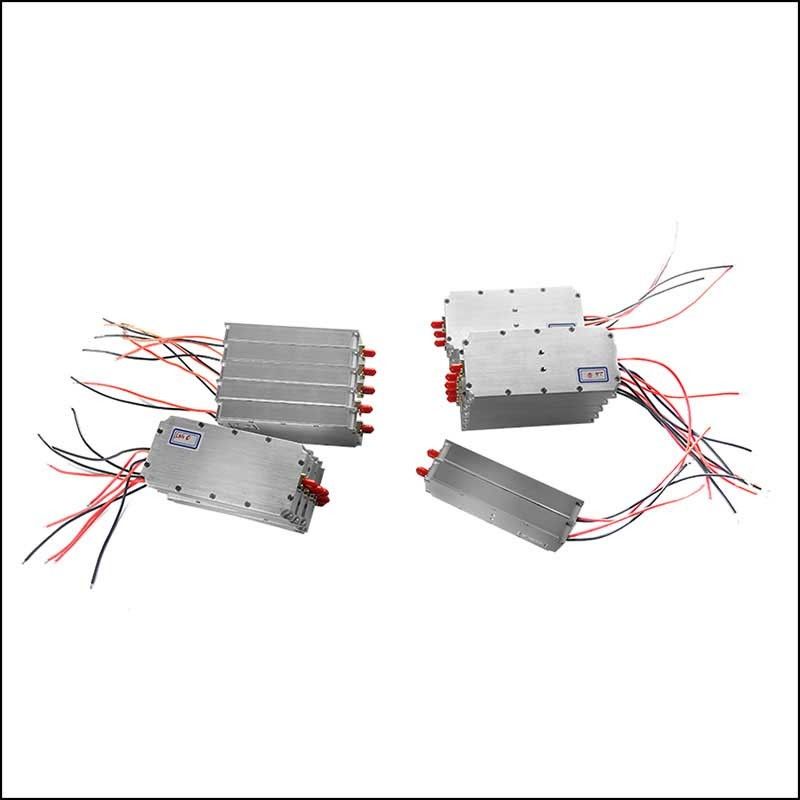

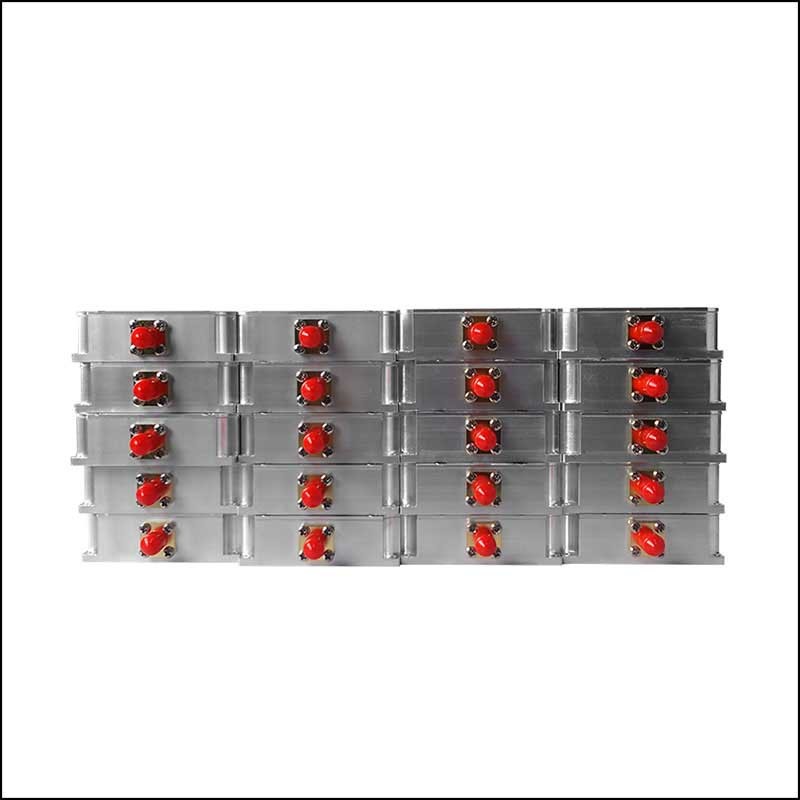

1.2 1.3 1.5GHz Anti Drone Shield Jamming Module for GPSL1 GPSL2 Glonass



1, Product Introduction

  MYT develops this Mini size drone jamming module as customer reflects their need of smaller size and light weight for jammer module, especially when the jammer module is used in the portable drone jammer such as anti drone gun, man pack drone Jammer and movable drone signal jammer. We also offer the 5W 10W 20W 30W 40W 50W 100W signal jammer module for other frequency of anti drone, also the phone jamming, WiFi jamming and GPS jamming.

2, Anti Drone Shield Jamming Module Specification

No. Item Data Unit Notes
1 Frequency Customized MHZ
2 Work Temperature -40~+65 ℃
3 Max Output Power 200 W
4 Work Voltage 24/28/32 V
5 Max Gain 40 dB
6 Flatness ±3 dB
7 Max Current 0.9 A
8 Output VSWR ≤1.5
9 Output Connector SMA/F 50Ω   customized
10 Power Amplifier Efficiency 43   when Max Output
11 Switch Control high low level current V 0V off /0.6 on
12 Size 97*43*17 mm
13 Weight 0.102 Kg



1.2 1.3 1.5GHz Anti Drone Module Shield Jamming Module For GPSL1 GPSL2 Glonass 01.2 1.3 1.5GHz Anti Drone Module Shield Jamming Module For GPSL1 GPSL2 Glonass 1
