Place of Origin: | China |
---|---|
Brand Name: | MYT |
Model Number: | Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module |
Document: | Product Brochure PDF |
Minimum Order Quantity: | 1 unit |
Supply Ability: | 1000units per month |
Highlight: | 40w drone counter module,840 drone counter module,840 signal jamming module |
---|

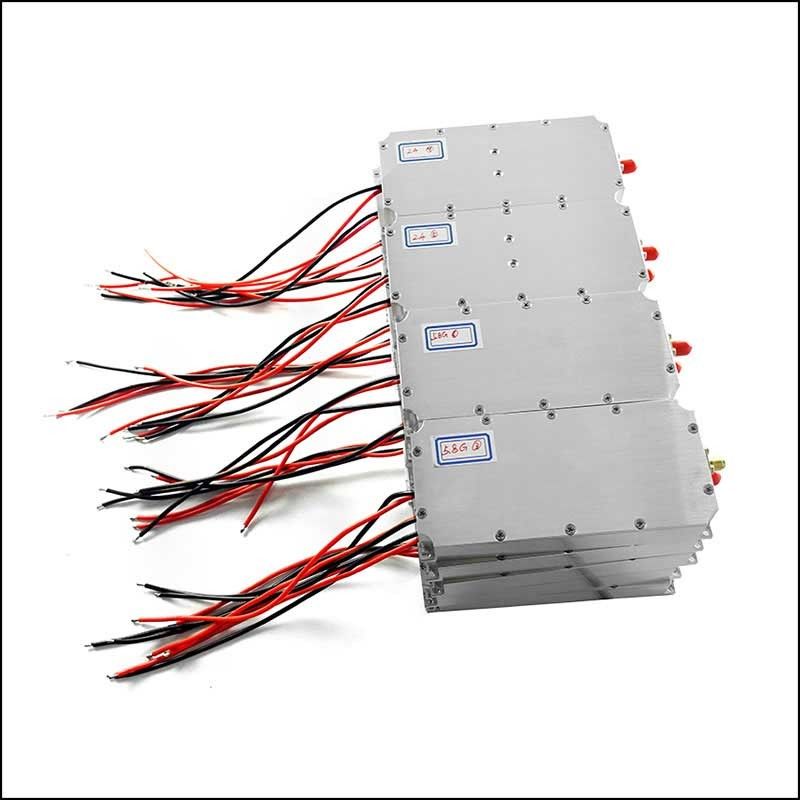

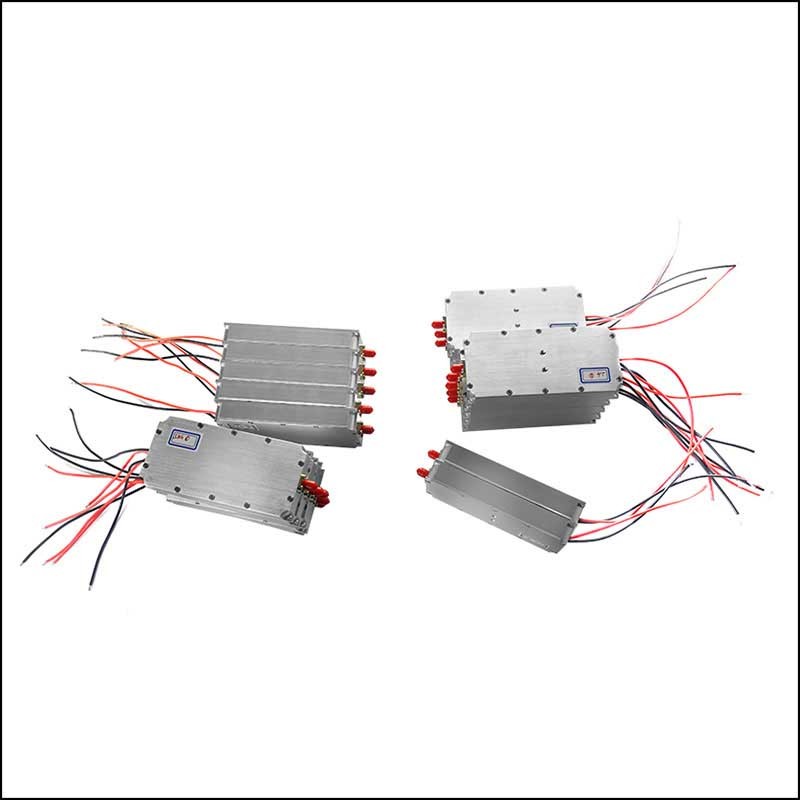

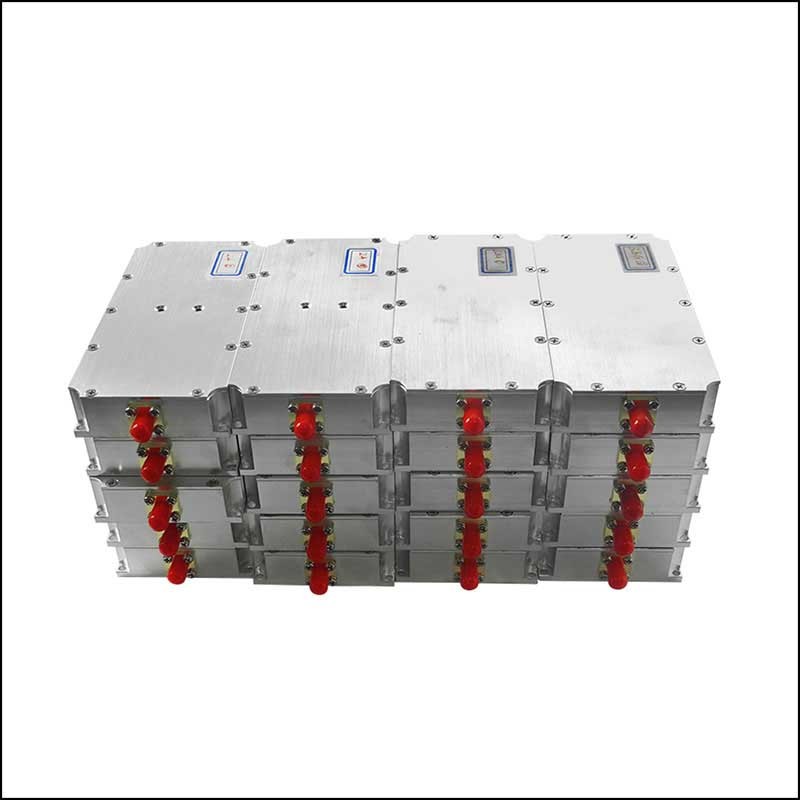

Analog 840 930 MHz 40W Drone Counter CUAS Signal Jamming Module
The drone Counter Signal jamming module is customized for Frequency and Output. The frequency is from 20MHz to 6GHz (WIFI 6 GHz is available too. ) The output power is customized 5W to 100W. We will do 100% spectrum analyzer tests before delivery to ensure its qualification. If customer need, we can offer the test sheet and paste the data of each module on a sticker. The jammer module is packed in a durable and neutral kraft paper box to ensure its safety in transportation.
Drone Counter Signal jamming module Specification
No. | Item | Data | Unit | Notes |
1 | Frequency | Customized | MHZ | |
2 | Work Temperature | -40~+65 | ℃ | |
3 | Output Power | 40 | W | |
4 | Work Voltage | 24/28/32 | V | |
5 | Max Gain | 46 | dB | |
6 | Flatness | ±3 | dB | |
7 | Max Current | 3.2 | A | |
8 | Output VSWR | ≤1.5 | ||
9 | Output Connector | N/F 50Ω | customized | |
10 | Power Amplifier Efficiency | 43 | when Max Output | |
11 | Switch Control | high low level current |
V | 0V off /0.6 on |
12 | Size | 134*59*19 | mm | |
13 | Weight | 0.249 | Kg |
