Drone Detection Device with Ultra-Wideband Digital Receiving Technology for 3km Detection Range and Spectrum Scanning

Drone Detection Device with Ultra-Wideband Digital Receiving Technology for 3km Detection Range and Spectrum Scanning

Brand Name:	MYT
Model Number:	DR400-A
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Frequency Band:

Supports 70MHz-6GHz Custom Scanning, Default 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

Detection Range:

≥3km

Detection Principle:

Spectrum Scanning And Spectrum Feature Recognition

Alarm Method:

Sound, Vibration, Light

Supply Ability:

1000units per month

Highlight:

vision linked perimeter intrusion detection system

perimeter intrusion detection system e bomb

vision linked perimeter detection systems

Product Description

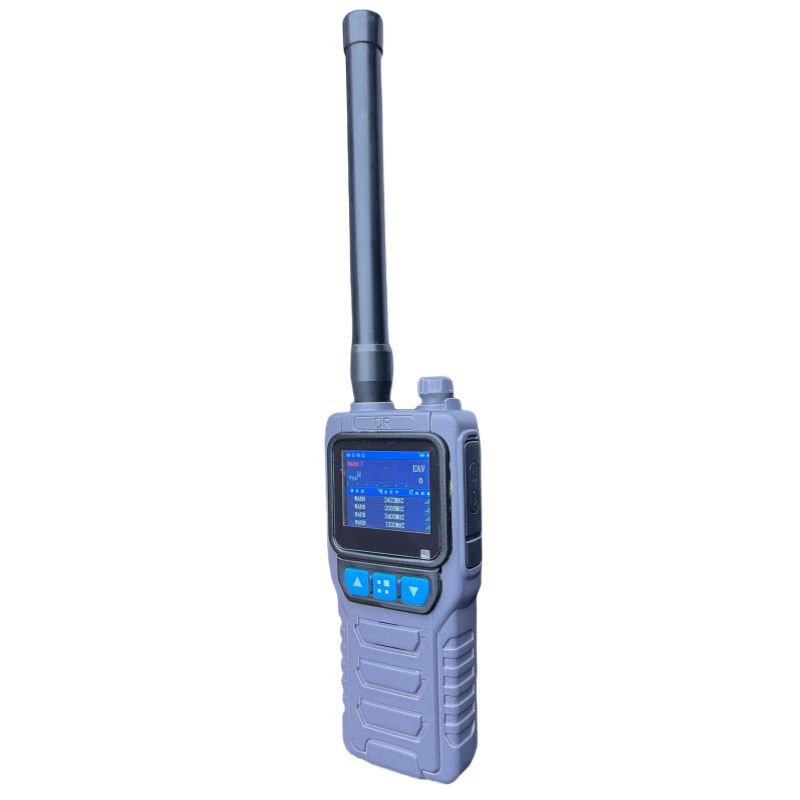

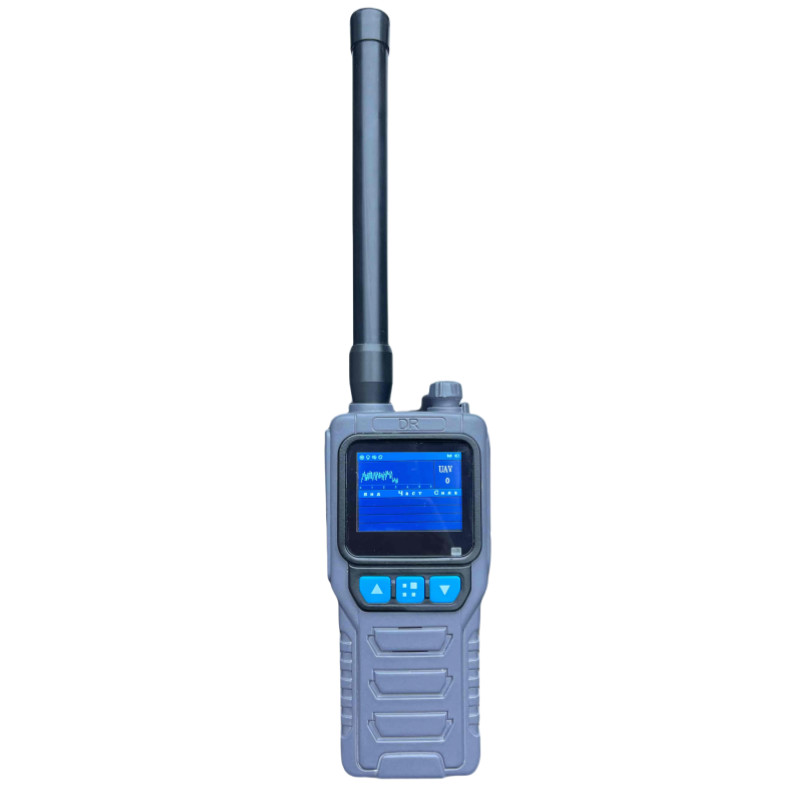

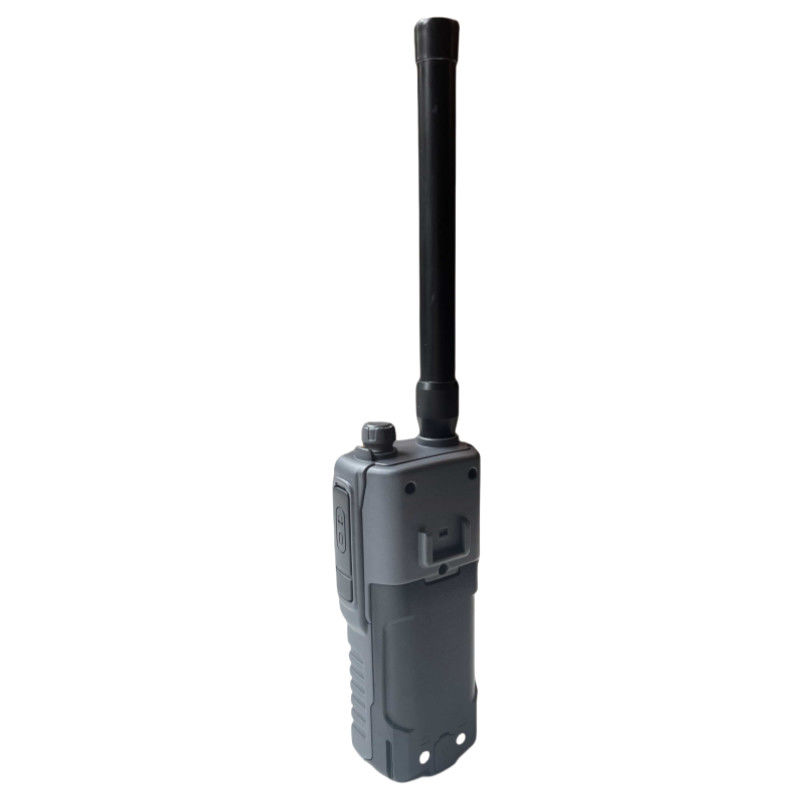

Drone Detection Device Perimeter Defense System

Advanced Ultra-Wideband Digital Receiving Technology

Our handheld drone detection device integrates advanced spectrum sensing technology to effectively detect and identify various types of drones. Utilizing self-developed low-power ultra-wideband digital receiving technology, sophisticated signal detection algorithms, and advanced drone identification algorithms paired with an efficient ultra-wideband antenna, this system achieves an extremely low false alarm rate in complex electromagnetic environments.

Key Features

Team Synchronization Alarm: Main unit detection triggers light and vibration alerts on terminal equipment
1+N Team Operation: Parent-child machine design with encrypted communication supports team collaboration
Dual-Mode Detection: Switch freely between frequency power detection and spectrum feature matching detection
Full Frequency Coverage: Comprehensive coverage of 70MHz to 6.2GHz with 8-12 key detection frequency bands
FPV Super Strong Pre-alarm: Unique baseband signal analysis for quick pre-alarm of quadcopters, fixed-wing, DIY, and FPV drones

Technical Specifications

Detection Type	Supports most mainstream brand drones and most FPV drones
Detection Frequency Band	Supports 70MHz-6GHz custom scanning, default 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range	≥3km
Detection Response Time	≤3s
Detection Principle	Spectrum scanning and spectrum feature recognition
Alarm Method	Sound, vibration, light
Power Supply	Removable lithium battery
Continuous Operation Time	Detection main unit: ≥6h, Team terminal: ≥10h
Operating Temperature	-20℃ to +50℃
Supported Languages	Chinese, English, Russian (supports multi-language customization)

Why Choose Our Drone Detection System

Business Partners

Frequently Asked Questions

How far is the detection range?

Under normal circumstances, it is two kilometers, but the monitoring distance may vary depending on the radio environment.

Can the alarm for detecting a drone be communicated to other team members?

The detection alarm can be conveyed to other team members simultaneously through the equipped communication devices.

Does the device can locate the position of the drone?

The device can locate the position of the drone, and it will be displayed on the device screen.

Can the product be customized?

Yes, we can customize including the logo, size, color, and functions.
