MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR400-A |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 units per month |
| Size: | 199mm75mm40mm (excluding Antenna) | Detection Radius: | ≥3km |
|---|---|---|---|
| Highlight: | hd wide field camera,hd ptz camera outdoor,real time wide field camera |
||

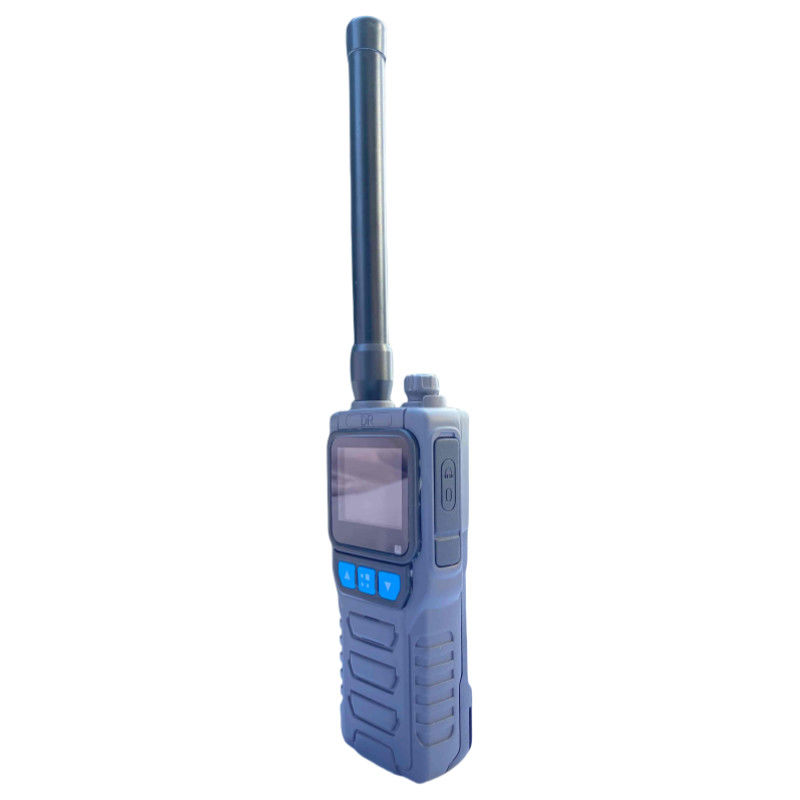

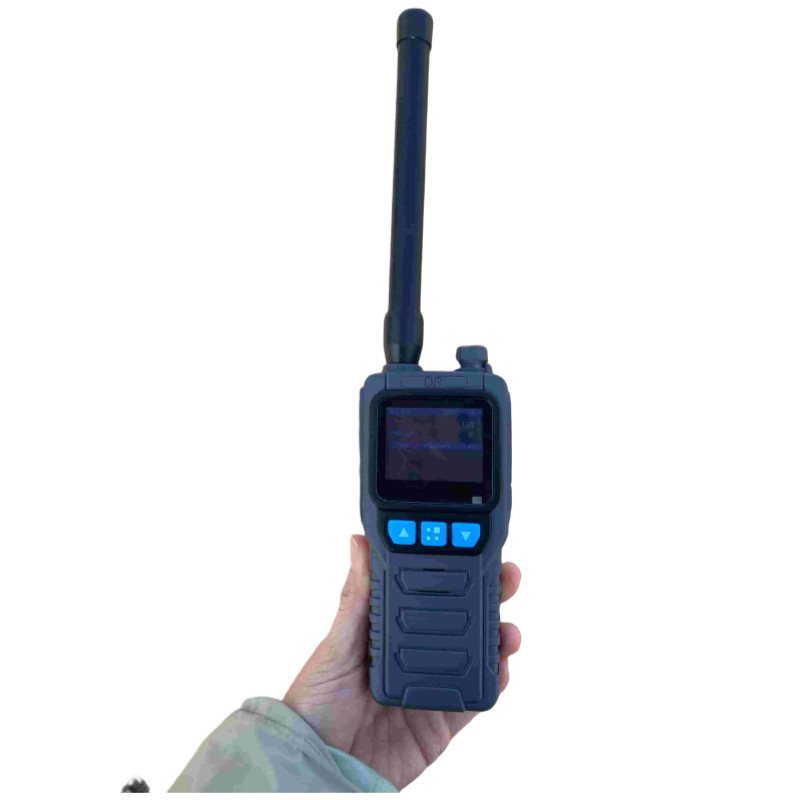

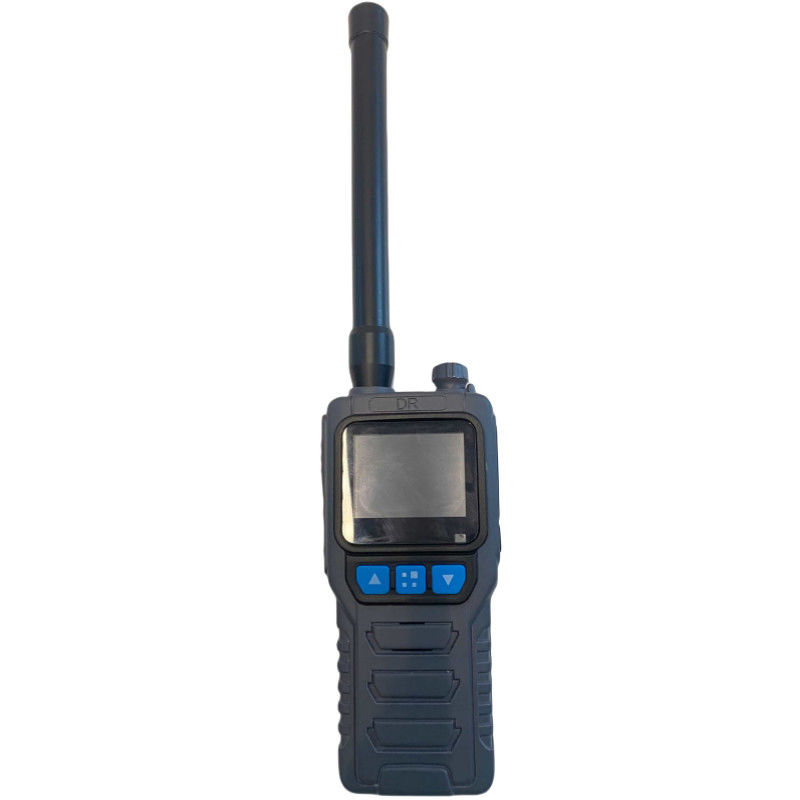

Advanced Drone Detector Compact Design for Personal Small Group Protection with Dual-Mode Operation
1, Product Introduction
The device integrates spectrum sensing technology, with reconnaissance and display control functions. It uses self-developed low-power ultra-wideband digital reception technology, signal detection algorithms, and drone identification algorithms, with an external ultra-wideband antenna. It can achieve an extremely low false alarm rate in complex electromagnetic environments, accurately identify quadcopters, fixed-wing, DIY, FPV, and other types of drones, and issue audio, light, and vibration alerts.
2, Functional highlight
1) Dual-Mode Detection
Spectrum power detection and spectrum feature matching detection can be switched freely between two modes.
2) FPV Ultra-Strong Early Warning
Unique baseband signal analysis and identification technology for rapid early warning of various DIY and FPV drones.
3) Full Frequency Coverage
Full coverage of mainstream frequency bands from 70MHz to 6.2GHz, with 8-12 key detection frequency bands.
4) Wide Range of Detected Drone Models
Accurately identifies mainstream commercial drones such as DJI, Autel, and Hubsan, as well as FPV racers and DIY drones.
5) Low False Alarm Rate
Spectrum signal detection can reduce the rate of missed reports, achieving an extremely low false alarm rate even in complex electromagnetic environments.
3, Specification
| Feature | Description |
|---|---|
| Identified Models | DJI, Autel, Hubsan, and most mainstream drones, FPV, DIY drones, etc. |
| Detection Frequency | Supports custom scanning from 70MHz to 6.2GHz, default bands include 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (other bands can be customized) |
| Detection Radius | ≥3km (line of sight, clean electromagnetic environment) |
| Detection Response Time | ≤3s (8 bands); ≤5s (12 bands) |
| Detection Principle | Spectrum feature recognition, Spectrum power recognition |
| Alarm Mode | Sound, vibration, light |
| Power Supply | Removable Lithium Battery |
| Battery Life | ≥6 hours (single battery) |
| Screen Size | 3.5 inches |
| Device Size | 199mm75mm40mm (excluding antenna) |
| Operating Temperature | -20℃ to +50℃ |
4, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
