MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR400-E |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 units |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500units per month |
| Size: | 199mm75mm40mm (LWH) | Frequency Band Range: | 70MHz-6.2GHz |
|---|---|---|---|
| Detection Distance: | ≥3km | Wrist Watch Reception Distance: | ≥500m |
| Highlight: | waterproof perimeter fence security systems,waterproof perimeter fence security alarm,outdoor perimeter fence security alarm |
||
Advanced Portable Drone Detection and Wristband Information Receiving Terminal with Spectrum Sensing Technology
1, Product Introduction

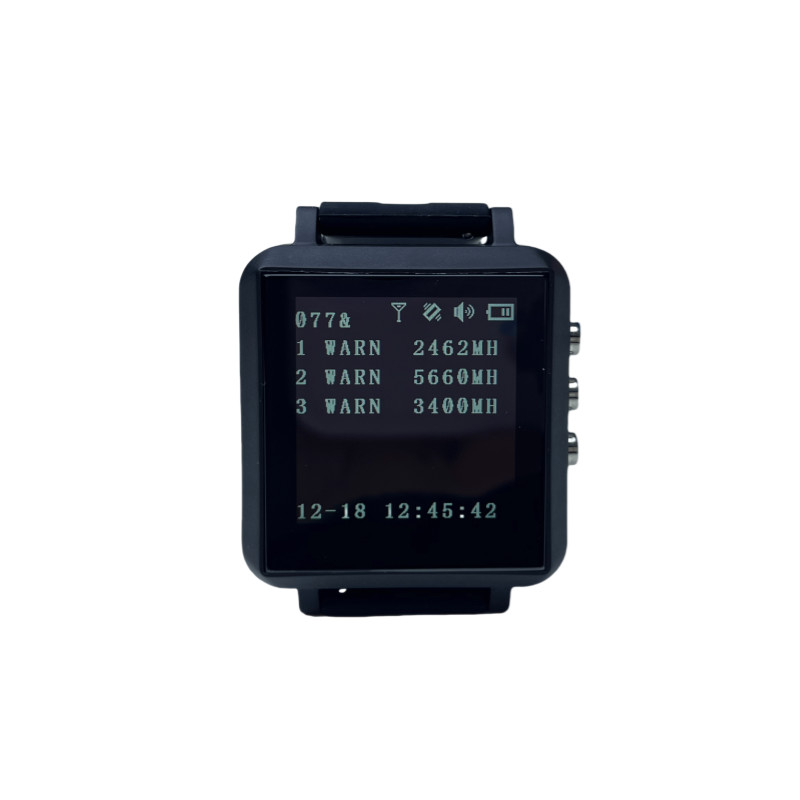

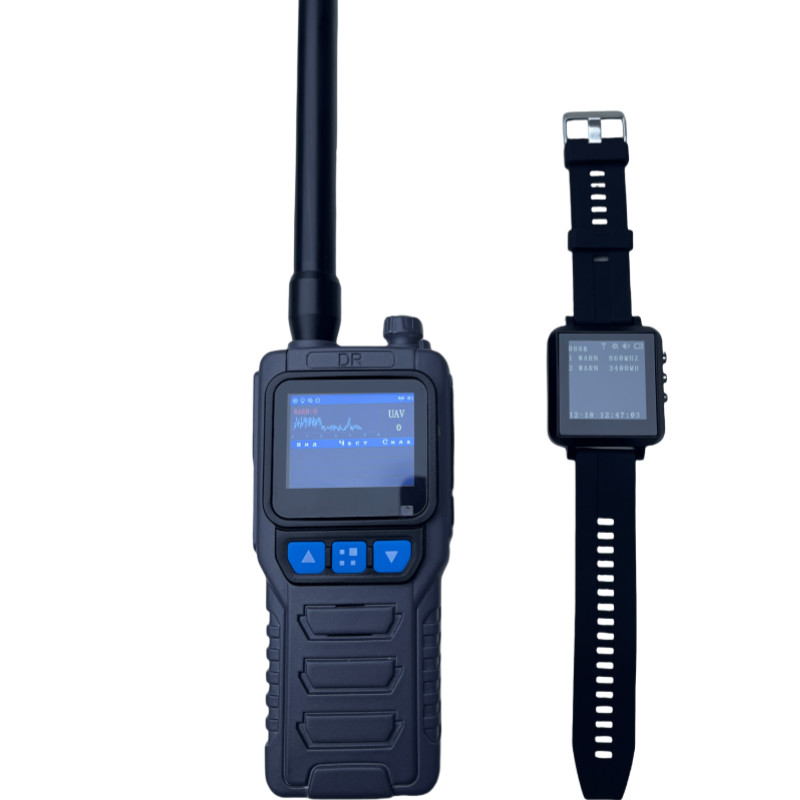

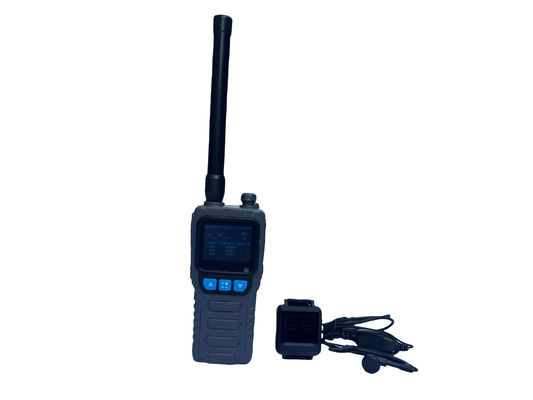

Portable drone detection devices are primarily composed of a detection host unit and a wristband information receiving terminal. These devices integrate spectrum sensing technology and offer functionalities such as reconnaissance, display control, and team coordination. They are capable of effectively detecting and identifying various types of drones and sending out alarm signals. The product employs low-power ultra-wideband digital reception technology, signal detection algorithms, and drone identification algorithms. With the use of an external high-efficiency ultra-wideband antenna, it can accurately recognize different types of drones, including quadcopters, fixed-wing, DIY, and FPV models, in complex electromagnetic environments. The device is designed to generate audio, visual, and vibration alerts.
2, Specification
| Feature | Details |
|---|---|
| Identified Drone Types | Mainstream drones and most FPV, DIY drones, etc. |
| Detection Frequency Bands | Supports customized scanning of 70MHz-6.2GHz, default bands include 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (others can be customized) |
| Detection Radius | ≥1.5km (good views and electromagnetic environment) |
| Wrist Watch Reception Distance | ≥500m (open and unobstructed environment) |
| Detection Response Time | ≤3s (8 frequency bands) |
| Detection Principle | Spectrum scan and spectrum feature identification |
| Alarm Mode | Sound, vibration, light |
| Screen Size | 2.0 inches |
| Power Supply Mode | Removable lithium battery |
| Battery Life | ≥6h (host) ≥12h (wrist watch) |
| Device Size | 142mm63mm38mm (LengthWidthHeight) |
Test Objective:
To verify if the equipment has a drone detection range of over 3KM.
Principle of the Device:The device detects the video transmission signals emitted by drones.
TIPS:The video transmission (VT) signal is emitted by the drone, and the drone controller serves as the receiving unit for the VT signal. To verify the authenticity of the video, it is necessary to place both the handheld detection device and the remote controller in the same video. The detected frequency range in the video is 5700MHz-5850MHz, which is a standard VT signal frequency band. Therefore, the drone controller does not emit signals.
2, Performance Indicators
| Feature | Details |
|---|---|
| Identified Drone Types | Mainstream drones and most FPV, DIY drones, etc. |
| Detection Frequency Bands | Supports customized scanning of 70MHz-6.2GHz, default bands include 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (others can be customized) |
| Detection Radius | ≥3km (good views and electromagnetic environment) |
| Wrist Watch Reception Distance | ≥500m |
| Detection Response Time | ≤3s (8 frequency bands) |
| Detection Principle | Spectrum scan and spectrum feature identification |
| Alarm Mode | Sound, vibration, light |
| Screen Size | 2.0 inches |
| Power Supply Mode | Removable lithium battery |
| Battery Life | ≥6h (host) ≥12h (wrist watch) |
| Device Size | 142mm63mm38mm (LengthWidthHeight) |
3, Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
4, Why Choose Us
5, After Sales
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
This PI is applicable to the DDP shipping agreement.
6,FAQ
Q:How far is the detection range?
A:Under normal circumstances, it is two kilometers, but the monitoring distance may vary depending on the radio environment.Q:Can the alarm for detecting a drone be communicated to other team members?A:The detection alarm can be conveyed to other team members simultaneously through the equipped communication devices.Q:Dose the device can locate the position of the drone.A:The device can locate the position of the drone, and it will be displayed on the device screen.Q:Can the product be customized?Yes, we can customize including the logo, size, color, and functions.
