Portable UAV Detector System with 6 Band Frequency and 2KM Detection Range for Public Security

Portable UAV Detector System with 6 Band Frequency and 2KM Detection Range for Public Security

Brand Name:	MYT
Model Number:	DR300-1(6 frequency bands)
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Weight:

≤5kg (including The Battery)

Size:

661mm * 88mm * 250mm (length * Width * Height)

Detection Distance:

≥2km

Countermeasure Distance:

≥2km

Supply Ability:

1000units per month

Highlight:

Portable UAV Detector System

2KM Drone Signal Detector

6 Band Drone Signal Detector

Product Description

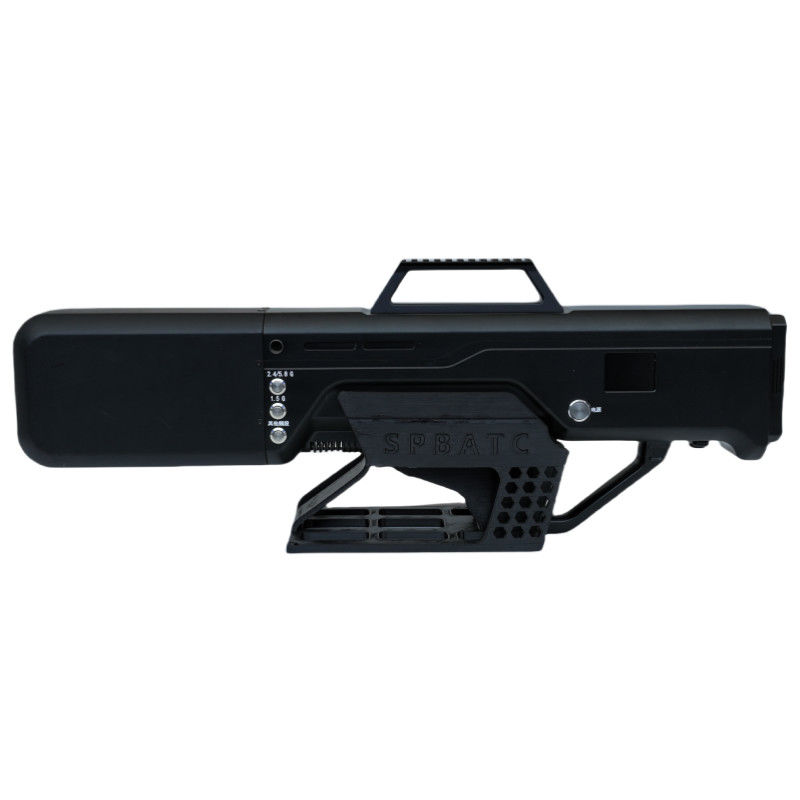

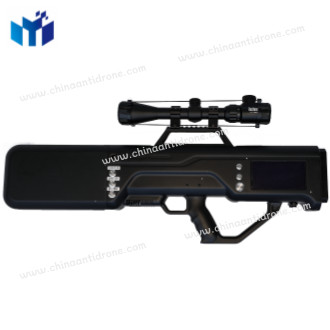

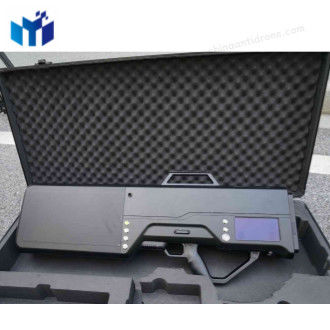

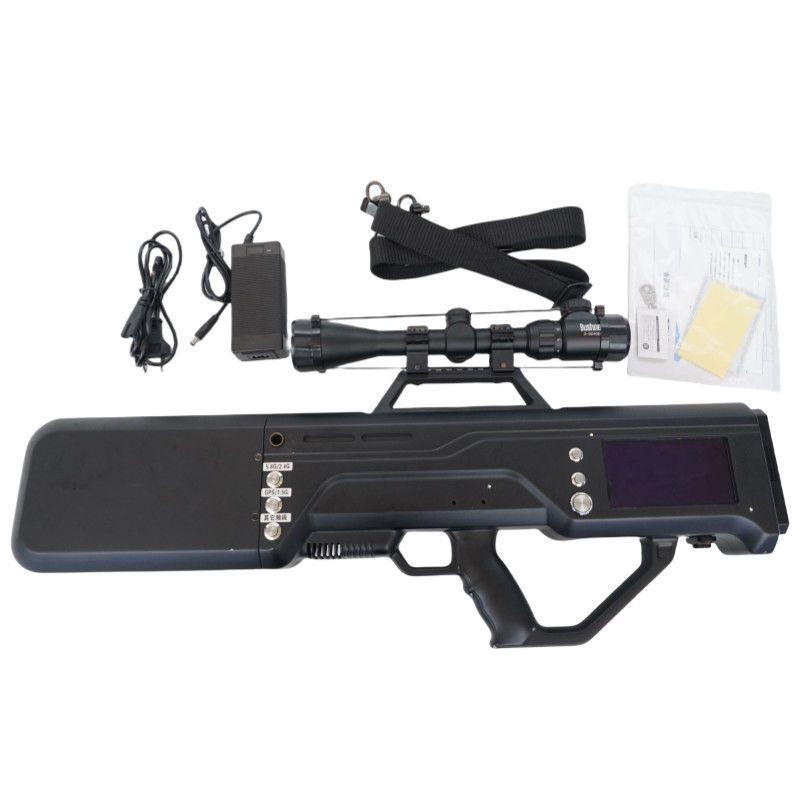

Portable UAV Detector System - 6 Band 2KM Drone Signal Detector

Advanced drone detection and countermeasure system DR300-1 with 6 frequency bands for comprehensive public security applications.

Product Overview

Through radio frequency scanning, feature recognition, and decoding, this system effectively detects illegally intruding small, low, and slow drones. Efficient countermeasures enable interference with drone remote control, image transmission, and navigation signals, forcing drones to return or make emergency landings.

Key Features

400MHz-6GHz key frequency band detection
2km long-distance strike capability
1+N collaborative linkage system
Strong environmental adaptability
Customized 1V1 service solutions

System Characteristics

Full frequency band detection coverage
Precise and efficient strike capability
Strong system scalability
Military-grade quality construction
Integrated design for portability
Customized service options

Technical Specifications

Detection Frequency Band	400MHz-1500MHz, 2400-2485MHz, 5150-5950MHz
Detection Distance	≥2km (depends on working conditions)
Countermeasure Frequency Band	800MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz
Countermeasure Distance	≥2km (depends on working conditions)
Battery Life	≥24 hours
Working Temperature	-40°C to +60°C
Battery	Two built-in low temperature resistant lithium batteries
Weight	≤5kg (including battery)
Size	661mm × 88mm × 250mm (length × width × height)
Languages	Chinese, English, Russian

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management solutions. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products, accumulating various technical patents.

Our products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems. This enables cost savings, reduced human resource allocation, and ensures the safety of clients' lives and property.
