| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | 5.8G 100W GaN Anti Drone Module |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 units per month |
| Frequency: | 433mhz,800mhz,900mhz, 1.2G,1.4G,1.5G,2.4G,5.2G,5.8G | Power: | 20W,30W,40W, 50W,100W |
|---|---|---|---|
| Supply Voltage: | DC 27-28V+ | Dimensions: | 170*94*26.5mm |
| Highlight: | anti drone module 5.8g,5.8g drone counter module,100w anti drone module |
||

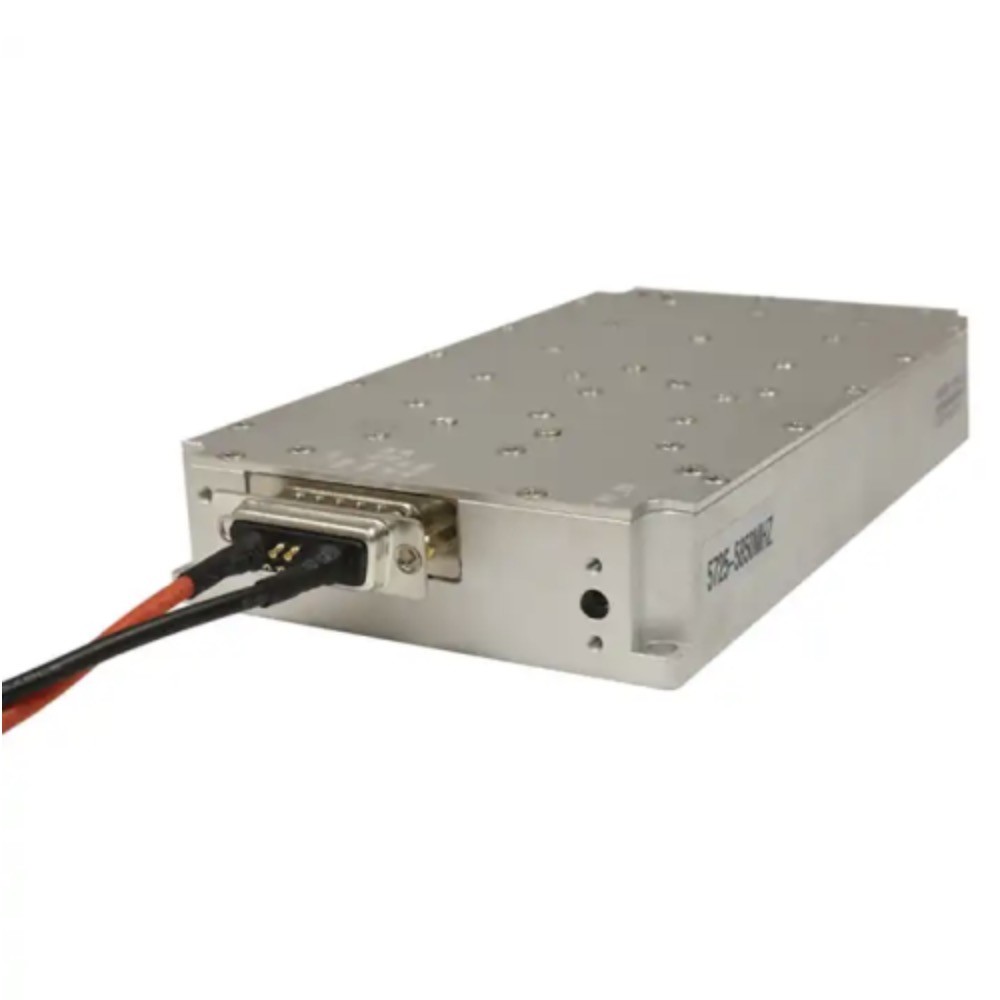

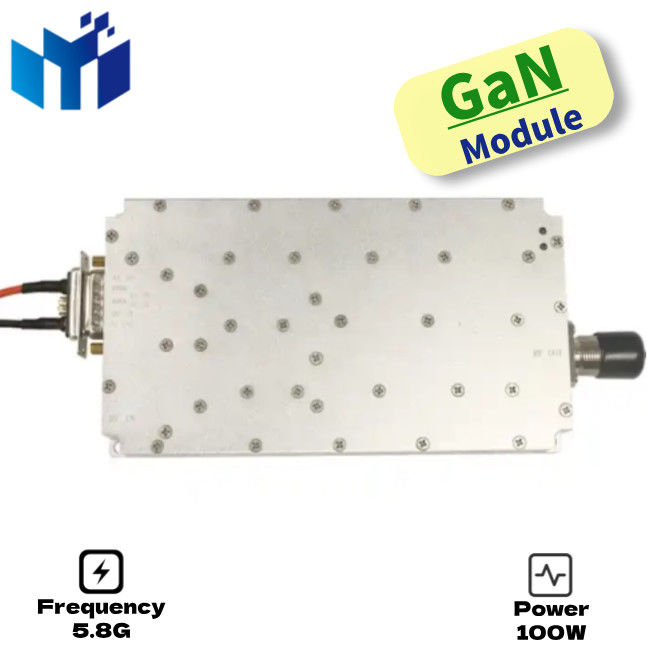

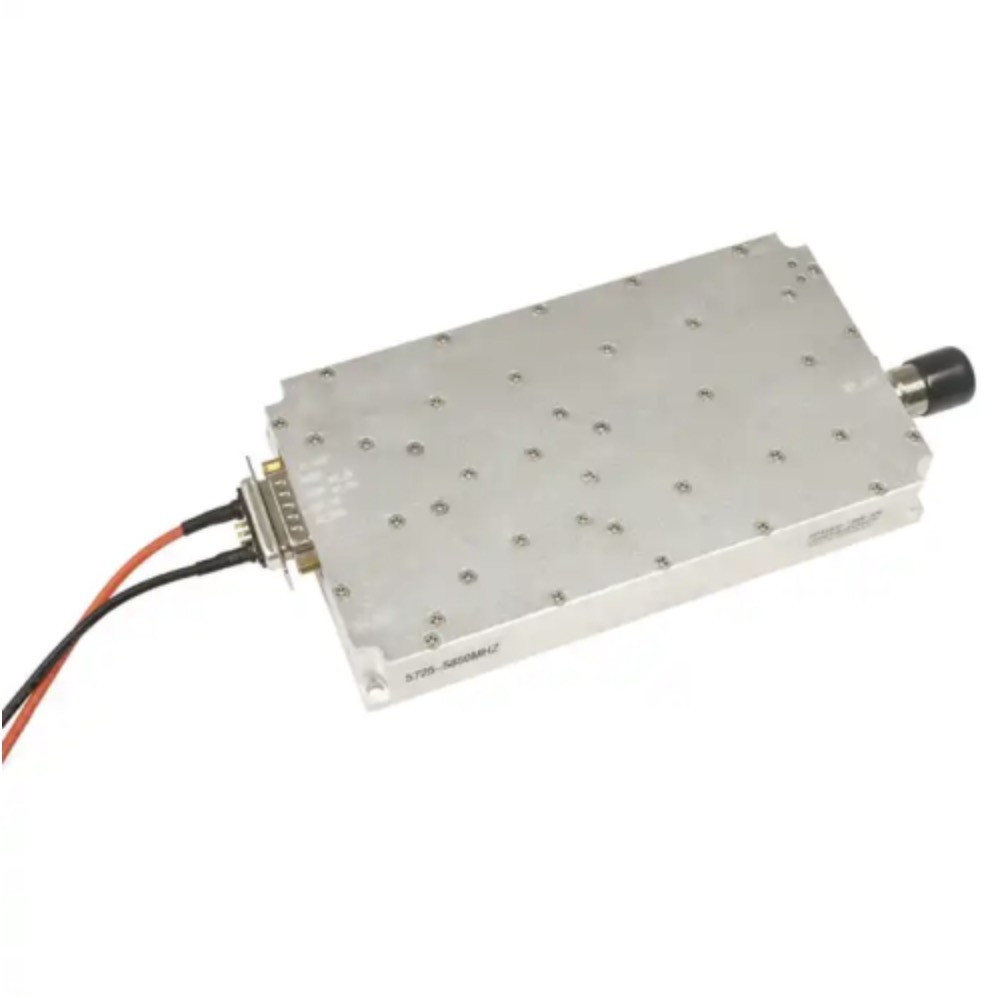

5.8G 100W GaN Anti Drone Module
1, Functional highlight
Interface form:
1) Power supply conditions: +3oV power supply: 7W2 (male)
2) RF input interface: SMA-KFD (optional)

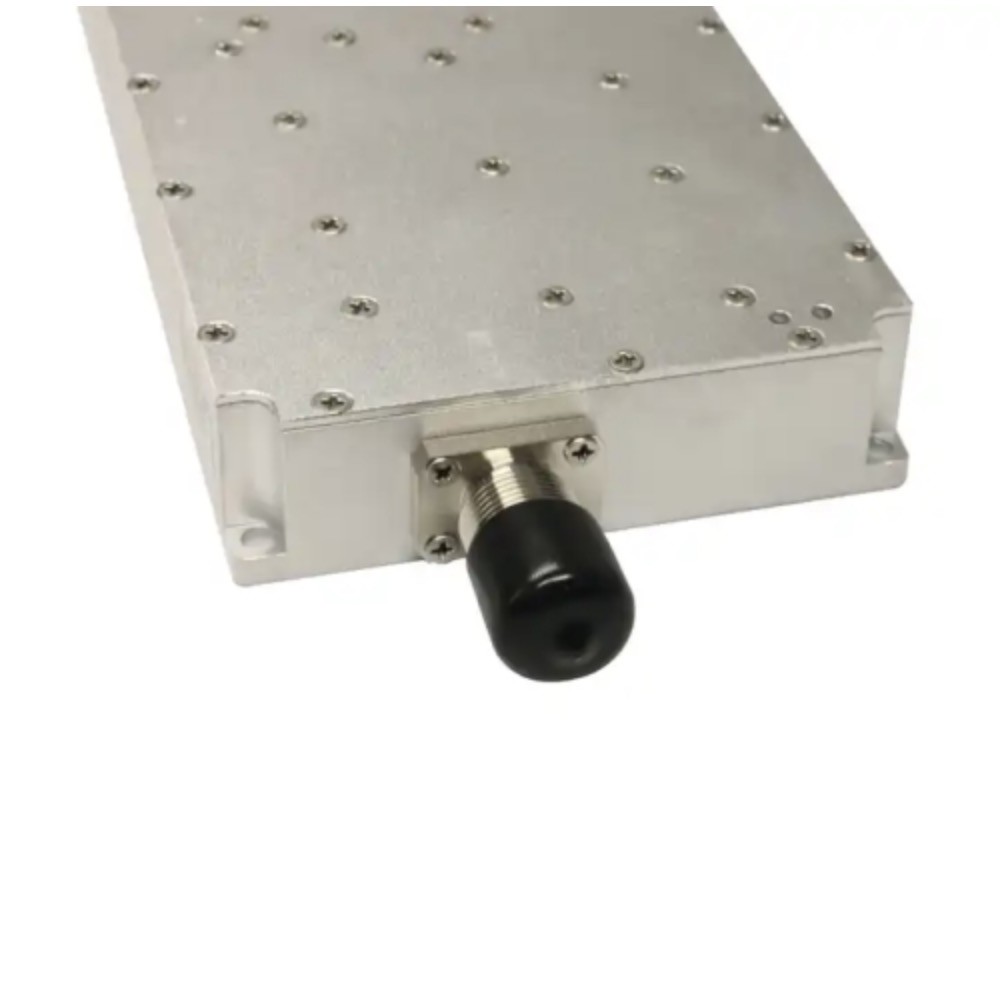

3) RF output interface: N-KFD

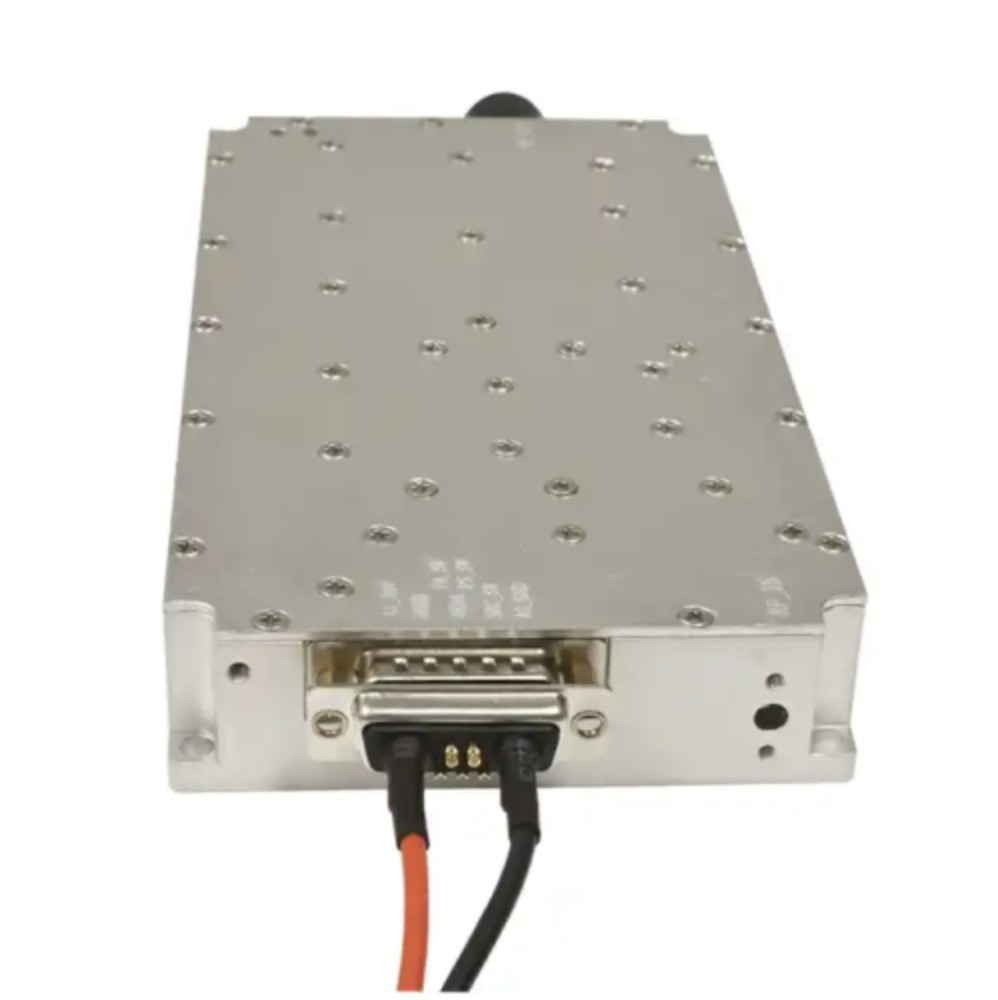

4) Control interface:
a. 7W2 (male) socket: The first pin is connected to the power amplifier enable PA_sw (high level 5V/3.3V power amplifier turns on, low level or floating, the power amplifier turns off)
b. Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level 5V/3.3V switch to external source)
Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws
2, Specification
| Frequency | 5725-5850Mhz |
| Output Power (dBm) | 50dBm |
| In-band group delay | ≤1µs |
| Power Gain | 45±1.0 (external input 9dBm, power amplifier output 50dBm) |
| In-band fluctuation (dB) | ≤2.5 (peak-to-peak value) |
| Input voltage standing wave ratio | ≤1.35 |
| Output voltage standing wave ratio | ≤1.3 |
| Supply voltage Typical | +30Vdc |
| Supply voltage Range | 24-36V |
| Supply current | +30Vdc@100W≤6.5A |
| Output RF connector | N-50KFD |
| Size | 170x94x26.5mm (excluding connectors) |
| Built-in feature | High-efficiency modulation sweep |
| Input signal source | Internal signal source, which can also be connected to external sources |
| Power input and GND | A1 is the 30V power input, A2 is GND |
| PA_SW power amplifier enable | The first pin of 7W2 is the PA_SW |
| Through-core capacitors (SRC_SW and PS_SW) | Upper: SRC_SW (internal signal source switch, high-on, low-off), Lower: PS_SW (internal and external source switch, high: external source; low: built-in source) |
3, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
4, Certification Certificate
