900Mhz 20W GAN Power Anti Drone Module for Counter FPV and C-UAS Systems

Name: 900Mhz 20W GAN Power Anti Drone Module for Counter FPV and C-UAS Systems
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: 900Mhz 20W GaN anti drone module
Price: 50,100.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	900Mhz 20W GaN anti drone module
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Frequency:

433mhz,800mhz,900mhz, 1.2G,1.4G,1.5G,2.4G,5.2G,5.8G

Power:

20W,30W,40W, 50W,100W

Supply Voltage:

DC 27-28V+

Product Size:

29.7*131*15.5mm

Supply Ability:

1000units per month

Highlight:

900mhz anti drone module

900mhz drone jamming module

20w anti drone module

Product Description

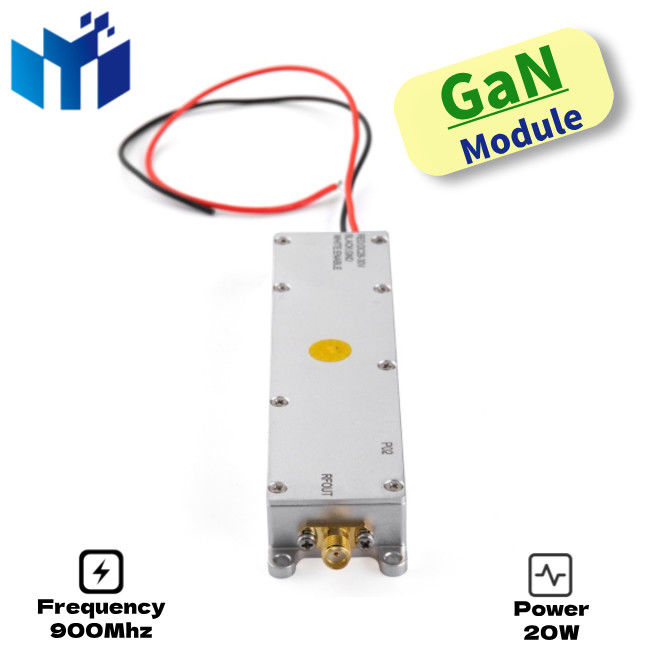

900MHz 20W GaN Power RF Detection Module for Anti-Drone Systems

This advanced RF detection module is designed for counter-UAS applications, specifically targeting Autel Mavic, FPV, and DJI drones. The 900MHz 20W GaN power amplifier provides effective countermeasure capabilities for comprehensive drone defense systems.

Functional Highlights

Customizable frequency bands and power output
Precise signal modulation for effective FPV remote signal countermeasures
Efficient power amplification generating wireless interference signals
Compact design suitable for seamless machine integration

Technical Specifications

Parameter	Specification
Frequency	900MHz
Power	20W
Supply Voltage	DC 27-28V
Power Flatness	1-1.5dB
Input/Output VSWR	1.5dB
Supply Current	1-1.1A
Size	1203015mm
Weight	105g
Operating Temperature	-20℃ to 80℃
RF Connector	SMA
Connection Wiring	RED: DC28-30V, BLACK: GND, WHITE: ENABLE

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online support, with customizable colors and language options available.
