1.2 1.3 1.5GHz Mini Size Anti Drone Module with Customizable Power for GPSL1 GPSL2 Glonass

Name: 1.2 1.3 1.5GHz Mini Size Anti Drone Module with Customizable Power for GPSL1 GPSL2 Glonass
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: 1.2 1.3 1.5GHz Anti Drone
Price: 50,100.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	1.2 1.3 1.5GHz Anti Drone
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Frequency:

1.2G, 1.3G, 1.5G. 433mhz-5GHz Customized

Power:

5W, 10W, 20W, 30W, 40W, 50W, 100W

Supply Voltage:

24/28/32 V

Product Size:

97*43*17mm

Supply Ability:

1000units per month

Highlight:

10w jamming module

20w jamming module

10w drone counter module

Product Description

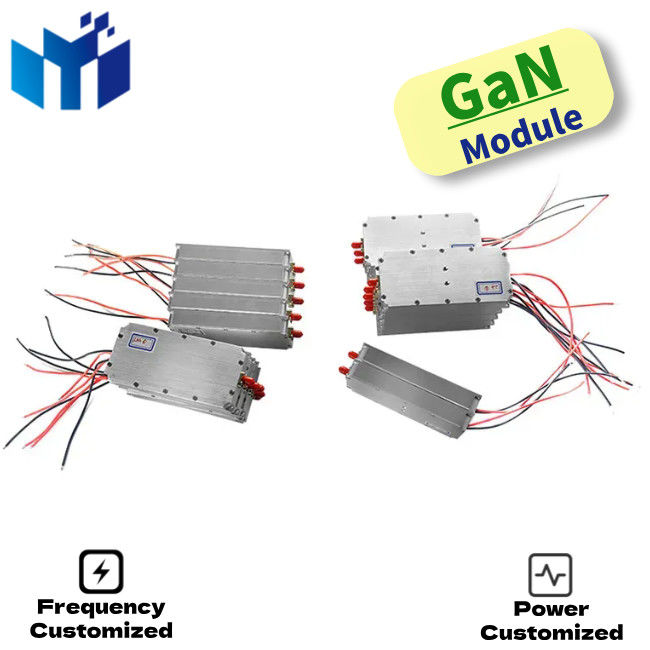

1.2 1.3 1.5GHz Anti Drone Shield Jamming Module

High-performance GPS L1, GPS L2, and Glonass jamming module designed for anti-drone applications. Available for manufacturers, suppliers, and wholesale distribution.

Compact Design & Functional Highlights

This miniaturized drone jamming module addresses the industry demand for smaller size and lighter weight, making it ideal for portable anti-drone systems including anti-drone guns, man-pack jammers, and mobile signal jammers.

Compact dimensions optimized for portable applications
Available in multiple power outputs: 5W, 10W, 20W, 30W, 40W, 50W, and 100W
Compatible with various anti-drone frequency requirements

Technical Specifications

Parameter	Value	Unit
Frequency	Customized	MHz
Work Temperature	-40 to +65	℃
Max Output Power	10	W
Work Voltage	24/28/32	V
Max Gain	40	dB
Flatness	±3	dB
Max Current	0.9	A
Output VSWR	≤1.5
Output Connector	SMA/F 500 (customized)
Power Amplifier Efficiency	43%	at Max Output
Switch Control	0V off / 0.6V on	level current
Size	974317	mm
Weight	0.102	Kg

Certification & Compliance

Company Profile

Chongqing Miao Yitong Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established advanced research laboratories and accumulated numerous technical patents.

Our products provide comprehensive unmanned automatic management solutions for various defense and perimeter applications, including AI anti-drone systems and AI unmanned vehicle patrol systems. These integrated systems combine optoelectronics, radar, vibration detection, thermal imaging, facial recognition, and radio frequency management technologies to deliver 24-hour uninterrupted anti-drone defense and ground perimeter security.
