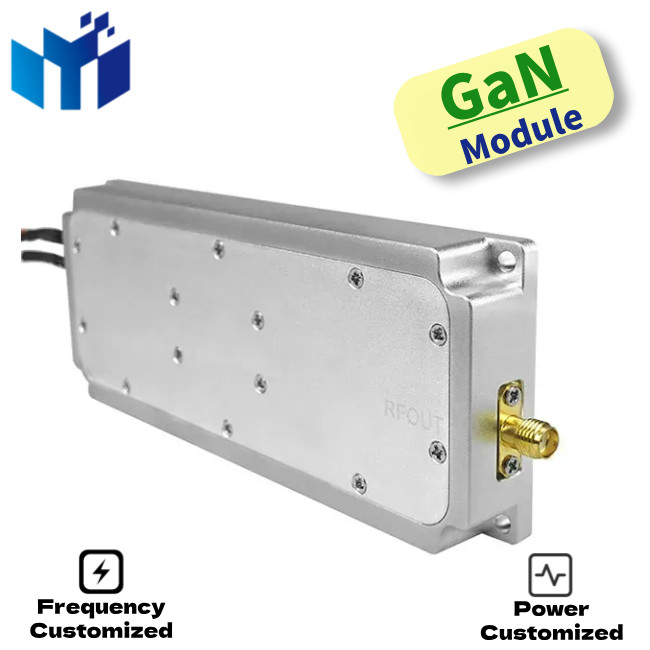

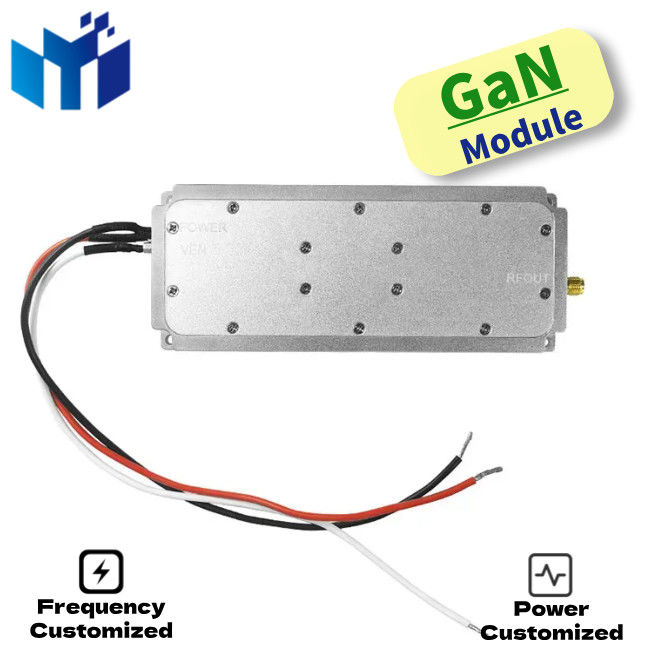

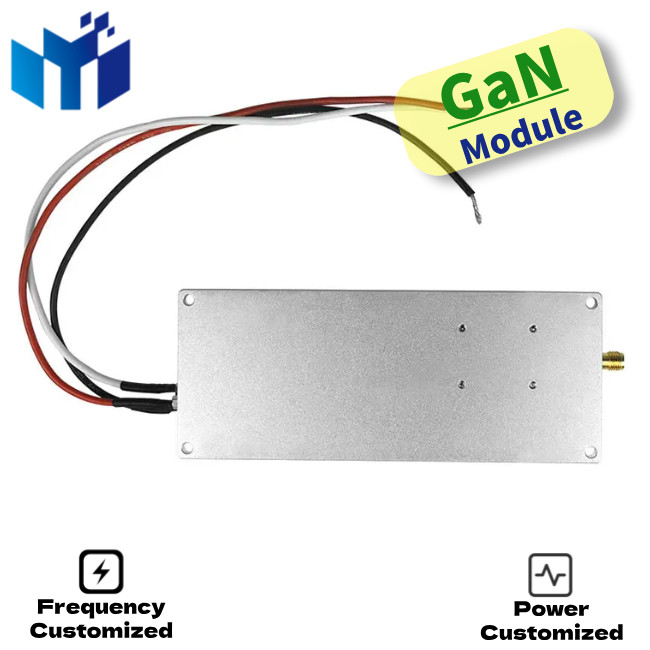

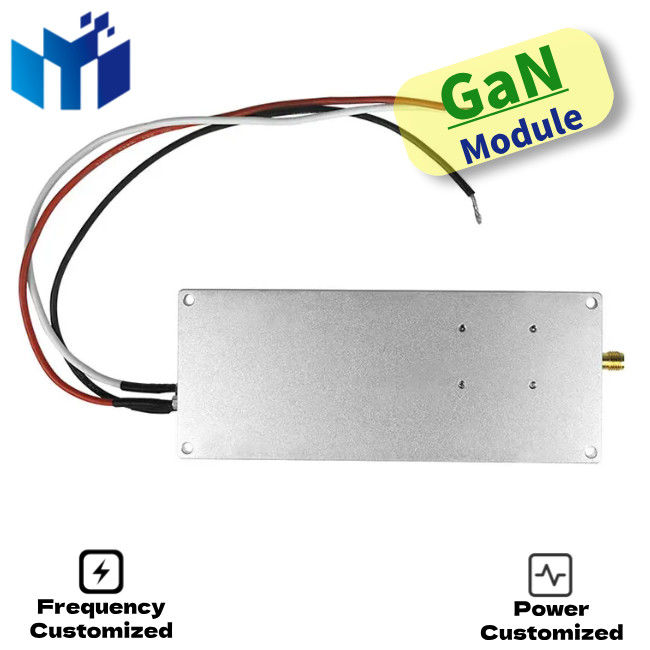

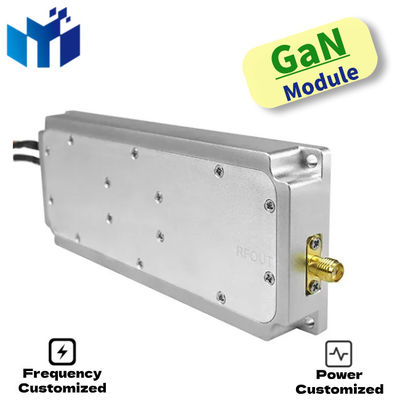

5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming

Name: 5.2GHz 5.8GHz 20W 30W Anti Drone Module with Customizable Frequency for UAV GPS Signal Jamming
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: 5.2GHz 5.8GHz 20W 30W Anti Drone Module
Price: 50,100.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	5.2GHz 5.8GHz 20W 30W Anti Drone Module
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Frequency:

433mhz, 800mhz, 900mhz, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, 5.8G

Power:

10W, 20W, 30W, 40W, 50W, 100W

Supply Voltage:

24/28/32 V

Product Size:

140*53*16mm

Supply Ability:

1000units per month

Highlight:

20w anti drone module

20w drone jamming module

gps anti drone module

Product Description

Product Overview

High-performance 5.2GHz/5.8GHz 20W/30W Anti-Drone UAV GPS Signal Jammer Blocker Module from professional manufacturers and suppliers.

Key Features

Customizable frequency range from 5000-6000MHz
Comprehensive 100% aging testing before delivery
Additional frequency options: 433MHz, 900MHz, 1.2GHz, 1.3GHz, 1.5GHz, 2.4GHz, WIFI6G, FPV special frequency
Cost-effective drone jamming solutions
Professional anti-drone signal jammer module technology

Technical Specifications

Parameter	Value	Unit/Notes
Frequency	Customized	5GHz
Work Temperature	-40~+65	℃
Max Output Power	20	W
Work Voltage	24/28/32	V
Max Gain	43	dB
Flatness	±3	dB
Max Current	1.9	A
Output VSWR	≤1.5
Output Connector	SMA/F 502	customized
Power Amplifier Efficiency	43.8%	when max output
Switch Control	0V off /0.6 on	level current
Size	1405316	mm
Weight	0.243	Kg

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.

The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, achieving 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.

Partnership Portfolio

Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

Packaging and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
