| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | 5.2G 5.8G 20W-50W anti drone module |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | TT, LC |
| Supply Ability: | 10000 units per month |
| Frequency: | 433MHz-5.8GHz Customized | Power: | 5W, 10W, 20W, 30W, 40W, 50W, 100W, 200W |
|---|---|---|---|
| Highlight: | 5.8g drone jamming module,5.8g signal jammer module,20w drone jamming module |
||

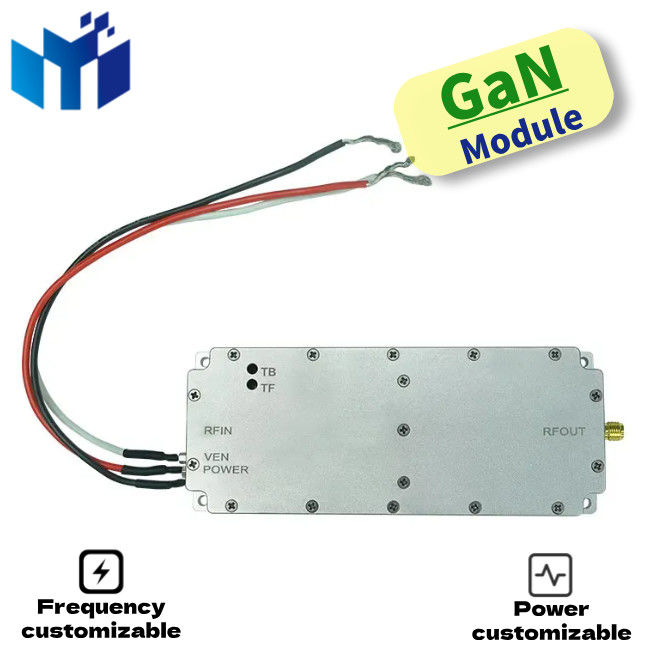

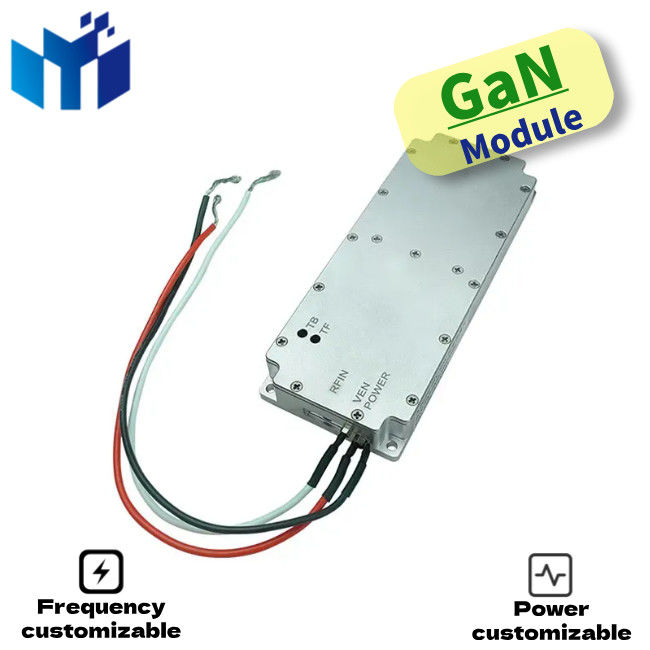

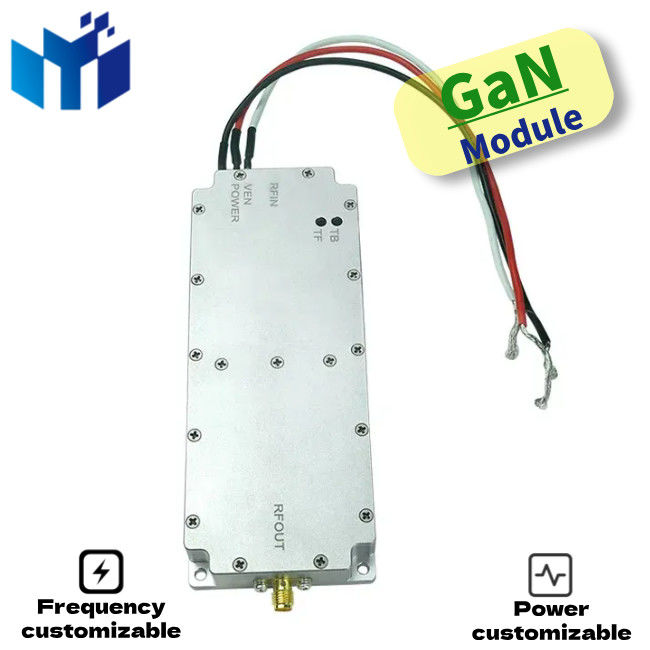

5.2G 5.8G 20W 30W 40W 50W Drone Counter Signal Jammer Module Manufacturers Suppliers Wholesale Factory in stock
1, Functional highlight
This signal jammer module is widely used on the counter UAV equipment with a stable output power and jamming effect. Its frequency is customized within the wide range of 20MHz to 6GHz. It will help to eliminate the drone threat in a long distance effective area.
2, Specification
| 20W | |||
|---|---|---|---|
| No. | Item | Data | Unit |
| 1 | Frequency | 5725-5850 | MHz |
| 2 | Work Temperature | -10~+75 | °C |
| 3 | Output Power | 20 | W |
| 4 | Work Voltage | DC24-28 | V |
| 5 | Max Gain | 43 | dB |
| 6 | Flatness | ±3 | dB |
| 7 | Max Current | 1.9 | A |
| 8 | Output VSWR | ≤1.5 | |
| 9 | Output Connector | SMA/Female | |
| 10 | High low level current | Switch Control | |
| 11 | Size | 140*53*18 | mm |
| 12 | Weight | 210 | g |
| 30W | |||
|---|---|---|---|
| No. | Item | Data | Unit |
| 1 | Frequency | 5725-5850 | MHZ |
| 2 | Work Temperature | -10~+75 | ℃ |
| 3 | Output Power | 30 | W |
| 4 | Work Voltage | DC24-28 | V |
| 5 | Max Gain | 45 | dB |
| 6 | Flatness | ±3 | dB |
| 7 | Max Current | 2.2 | A |
| 8 | Output VSWR | ≤1.5 | |
| 9 | Output Connector | SMA/Female | |
| 10 | High low level current | - | |
| 11 | Switch Control | V | (OV off /0.6 on) |
| 12 | Size | 140*53*18 | mm |
| 13 | Weight | 210 | g |
| 40W | |||
|---|---|---|---|
| No. | Item | Data | Unit |
| 1 | Frequency | 5725-5850 | MHZ |
| 2 | Work Temperature | -10~+75 | |
| 3 | Output Power | 40 | W |
| 4 | Work Voltage | DC24-28 | V |
| 5 | Max Gain | 46 | dB |
| 6 | Flatness | ±3 | dB |
| 7 | Max Current | 3.2 | A |
| 8 | Output VSWR | ≤1.5 | |
| 9 | Output Connector | SMA/Female | |
| 10 | High low level current | - | |
| 11 | Switch Control | > | (OV off /0.6 on) |
| 12 | Size | 1405318 | mm |
| 13 | Weight | 210 |
g |
| 50W | |||
|---|---|---|---|
| No. | Item | Data | Unit |
| 1 | Frequency | 5725-5850 | MHz |
| 2 | Work Temperature | -10~+75 | |
| 3 | Output Power | 50 | W |
| 4 | Work Voltage | DC24-28V | V |
| 5 | Max Gain | 47 | dB |
| 6 | Flatness | ±3 | dB |
| 7 | Max Current | 4.0 | A |
| 8 | Output VSWR | ≤1.5 | |
| 9 | Output Connector | SMA/Female | |
| 10 | High low level current | - | |
| 11 | Switch Control | > | (OV off /0.6 on) |
| 12 | Size | 140*53*18 | mm |
| 13 | Weight | 210 | g |
3, Certification Certificate
4, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
5, Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.
6, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
