5.8G 5W Anti Drone Signal Jammer Module with Customized Frequency for Drone Jamming

5.8G 5W Anti Drone Signal Jammer Module with Customized Frequency for Drone Jamming

Brand Name:	MYT
Model Number:	5.8G 5W anti drone module
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Frequency:

433mhz-5.8G Customized

Power:

5W-200W Customized

Supply Voltage:

DC24-28V

Product Size:

92*48*20mm

Supply Ability:

1000units per month

Highlight:

5.8g drone jamming module

5.8g signal jammer module

433mhz drone jamming module

Product Description

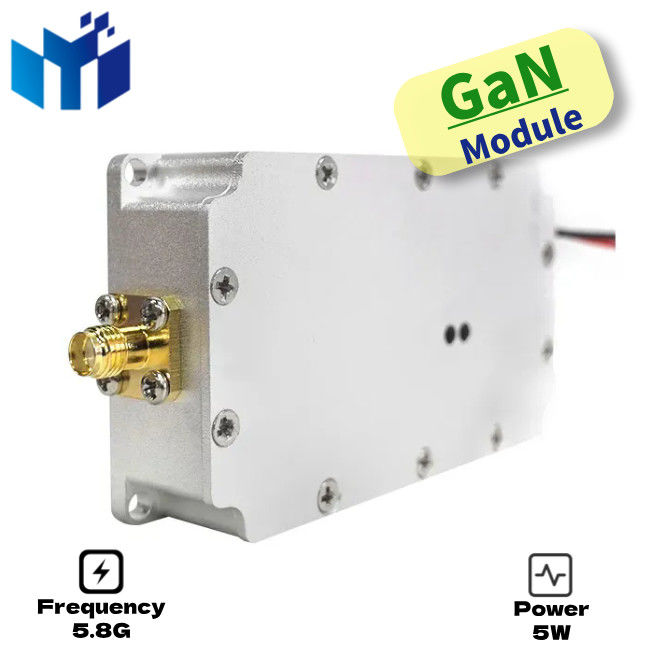

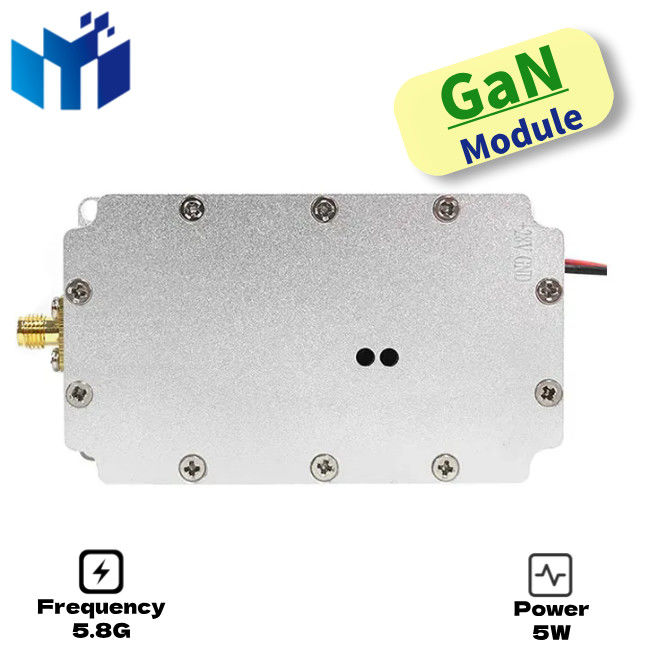

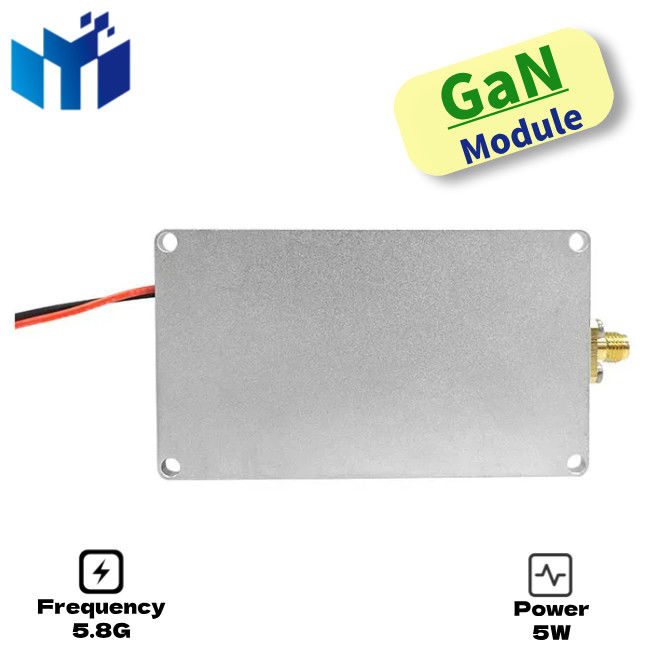

5725-5850MHz 5.8G 5W Anti Drone Signal Jammer Module

High-performance 5.8GHz signal jammer module with 5W output power, designed for anti-drone applications. Custom power options available from 10W to 100W in the same frequency band.

Technical Specifications

Parameter	Value	Unit
Frequency Range	5725-5850	MHz
Operating Temperature	-10 to +75	℃
Output Power	5	W
Operating Voltage	DC 24-28	V
Maximum Gain	37	dB
Flatness	±3	dB
Operating Current	0.7	A
Output VSWR	≤1.5
Output Connector	SMA/Female
Switch Control	High/Low Level (0V off / 0.6V on)
Dimensions	924820	mm
Weight	127	g

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products and accumulated various technical patents.

Our products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, providing 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.

Our solutions help clients achieve cost savings, reduce human resource allocation, and ensure the safety of lives and property. The outstanding security system has earned us an excellent reputation and created higher value for our partners.
