100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming

100W 1.5G 5.8G Anti Drone Module and Signal Jammer Module for UAV Jamming

Brand Name:	MYT
Model Number:	1.5g 2.4g 5.8g 100W anti drone module
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Frequency:

433mhz, 800mhz, 900mhz, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, 5.8G

Power:

10W, 20W, 30W, 40W, 50W, 100W

Supply Voltage:

24/28/32 V

Product Size:

200*110*24mm

Supply Ability:

1000units per month

Highlight:

1.5g anti drone module

1.5g drone jamming module

2.4g anti drone module

Product Description

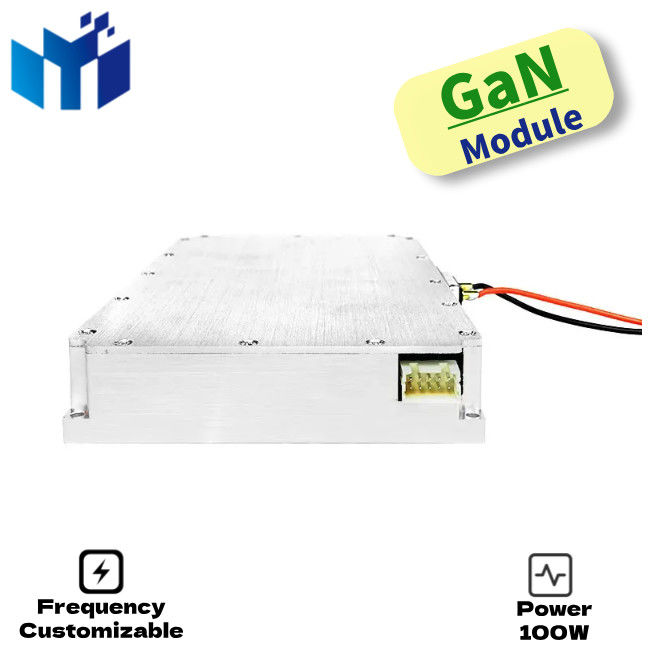

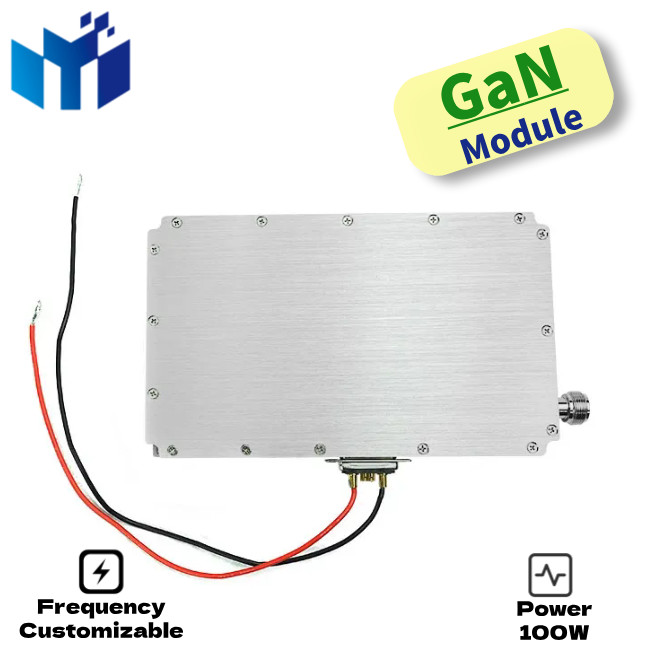

100W UAV Signal Jammer Module

This high-power 100W anti-UAV signal jammer module offers customizable output power and frequency configurations for professional drone defense applications.

Technical Specifications

Item	Data	Unit	Notes
Frequency	1560-1620	MHz
Work Temperature	-20~+70	℃
Max Output Power	100	W
dBm	0-10dbm		Optional. Regular type with VCO inside no need input power
Work Voltage	24-28	V
Max Gain	50	dB
Max Current	10	A
Impedance	500
Output Connector	N/F		Customized
Power Amplifier Efficiency	45%		When Max Output
Switch Control	high/low	V	24-28V level current Or Customized
Standing Wave	OK		Protection
Temperature Protection	75°	℃
Size	20011024	mm
Weight	0.88	Kg

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.
