MYT technology: Global Intelligent Security Expert
English
MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DR400-B |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Pricing is negotiable based on order quantity |
| Delivery Time: | 3 work days |
| Payment Terms: | TT, LC |
| Supply Ability: | 2000 units per month |
| Size: | 199mm*75mm*40mm (L*W*H) (host Device), 117mm*56mm*37mm (L*W*H) (terminal Device) | Working Temperature:: | -20℃-+50℃ |
|---|---|---|---|
| Team Communication Distance: | ≥1km (open Space) | Detection Radius: | ≥3km |
| Highlight: | drone detector handheld,3km drone detector |
||
Drone Detector Handheld Device with Advanced Technology for Accurate Identification of Drones in Complex Environments
1, Device Overview

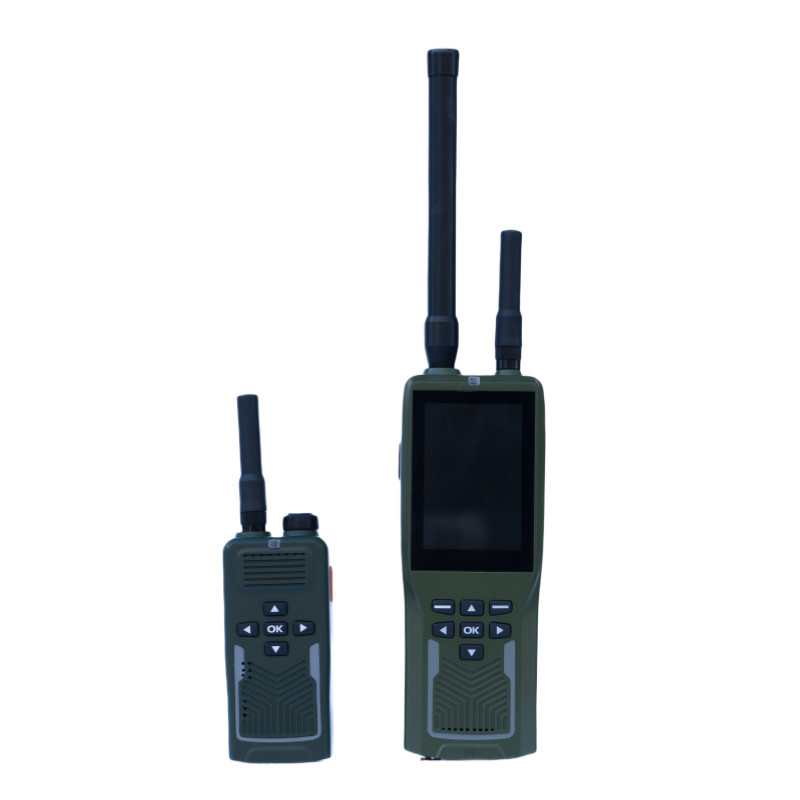

The handheld drone detection & communication device is composed of a host device and terminal devices. It is an integrated spectrum sensing technology. It has functions such as reconnaissance, display, control, and team collaboration. It can effectively detect and identify various types of drones and send alarm signals. The product adopts low-power ultra-wideband digital receiving technology, signal detection algorithm and drone identification algorithm, and is connected with an efficient ultra-wideband antenna. It can accurately identify quad-rotor, fixed-wing, DIY, FPV and other drones in complex electromagnetic environments, and generate sound, light and vibration alarm.
2, Device Usage
The handheld drone detection & communication device integrates spectrum sensing technology and has functions such as reconnaissance, display, and control. It can effectively detect and identify various types of drones and send alarm signals. It can be used for urban security, border patrol, and battlefield individual (team) protection.
Test Objective:
To verify if the equipment has a drone detection range of over 3KM.
3, Specification
| Idengtification Type | Most mainstream brand drones and FPV drones |
| Detection Frequency | Supports 400MHz-6GHz customized scanning,by default 400MHz,800MHz,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection Range | 3KM |
| Detection Response Time | ≤3S |
| Detection Principle | Spectrum feature identfication |
| Alarm method | Audio,vibration,light |
| Coummunication Distance | 1KM + |
| Intercom Distance | 3KM(open and unobstructed) |
| Battery life | Main device≥8 hours,auxiliary device≥12 hours |
| Working temperature | -20℃~+50℃ |
4, Business Partner
Afreican Parks Counter-UAV Strategic Partnership
4, After-Sales service
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
6, Certification Certificate
7, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
8, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
