Handheld Drone Detector with 3KM Detection Range and 400MHz-6GHz Frequency Detection Using Spectrum Feature Identification

Name: Handheld Drone Detector with 3KM Detection Range and 400MHz-6GHz Frequency Detection Using Spectrum Feature Identification
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR400-A
Price: 600.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR400-A
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Idengtification Type:

Most Mainstream Brand Drones And FPV Drones

Detection Frequency:

Supports 400MHz-6GHz Customized Scanning，by Default 400MHz，800MHz，900MHz，1.2GHz，1.4GHz，2.4GHz，5.2GHz，5.8GHz

Detection Range:

3KM

Detection Response Time:

≤3S

Detection Principle:

Spectrum Feature Identfication

Alarm Method:

Audio，vibration，light

Intercom Distance:

3KM（open And Unobstructed）

Battery Life:

Main Device≥8 Hours，auxiliary Device≥12 Hours

Working Temperature:

-20℃~+50℃

Supply Ability:

1000units per month

Highlight:

6ghz handheld drone detector

6ghz portable drone detector

1.2ghz handheld drone detector

Product Description

Handheld Anti-Drone Detector with 3KM Range

This advanced handheld drone detection device integrates spectrum sensing technology to effectively detect and identify various types of drones. Utilizing self-developed low-power ultra-wideband digital receiving technology, sophisticated signal detection algorithms, and advanced drone identification capabilities, the device connects with an efficient ultra-wideband antenna to deliver exceptional performance.

The system achieves an extremely low false alarm rate in complex electromagnetic environments and can accurately identify quadcopters, fixed-wing aircraft, DIY drones, FPV drones, and more, generating sound, light, and vibration alerts. The equipment features two scanning modes: full-band scanning and key-band scanning, supported by the industry's most comprehensive database of drone models and their operating frequencies for precise identification.

Detection Capabilities

The device detects video transmission signals emitted by drones with a verified detection range exceeding 3KM. Operating on the principle that drones emit video transmission (VT) signals while drone controllers serve as receiving units, the system detects frequencies in the 5700MHz-5800MHz range, which represents standard VT signal bands.

Key Features

Dual-mode detection: Spectrum power detection and spectrum characteristic matching detection modes
Wide detection range: Accurately identifies drones from mainstream brands including DJI, Autel, Hubsan, and most FPV and DIY drones
Comprehensive frequency coverage: Full coverage of 70MHz-6.2GHz with 8-12 key detection frequency bands
Advanced FPV early warning: Unique baseband signal analysis and identification technology for rapid detection of DIY and FPV drones
Low false alarm rate: Spectrum signal detection minimizes false alarms even in complex electromagnetic environments

Technical Specifications

Identification Type	Most mainstream brand drones and FPV drones
Detection Frequency	Supports 400MHz-6GHz customized scanning, default: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range	≥2KM
Detection Response Time	≤3 seconds
Detection Principle	Spectrum feature identification
Alarm Methods	Audio, vibration, light
Intercom Distance	3KM (open and unobstructed)
Battery Life	Main device ≥8 hours, auxiliary device ≥12 hours
Working Temperature	-20℃ to +50℃

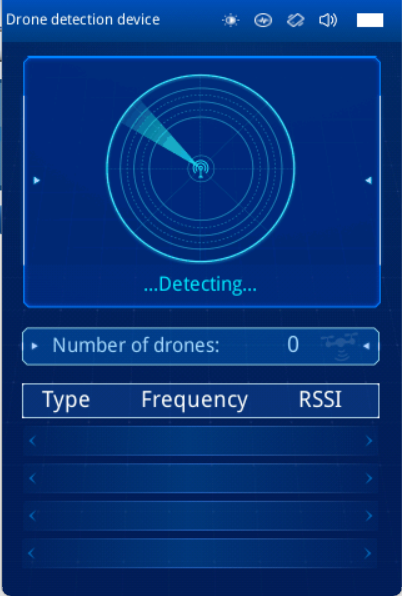

Display Information

Display Element	Information Shown
Detection Status Indicator	Detection signal type
Red Light Alarm Icon	Displayed when red light alarm function is active
Frequency Sweep Icon	Displayed when frequency sweep function is active
Signal Strength Indicator	Detection signal strength
Vibration Alarm Icon	Displayed when vibration alarm function is active
Sound Alarm Icon	Displayed when sound alarm function is active
Battery Power Display	Current battery level
Target Counter	Number of targets detected by the device

After-Sales Service

24-hour customer service and technical support
Online technical support for usage or quality issues
3-month return policy from dispatch date for unsatisfactory products
Full refund for undamaged returns or product modification options

Business Partnerships

African Parks Counter-UAV Strategic Partnership

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture that facilitates seamless integration of electromagnetic, optoelectronic, visual, and location data into comprehensive three-dimensional defense systems.

Our signal jammers are widely used across various industries, particularly for countermeasures against drones. We continuously evolve our products based on actual conditions, maintaining industry leadership in research and development of jamming modules for drone countermeasures.

Certifications

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
