Directional Anti-Drone UAV System with 5km Detection Radius Integrated Radar and Optical Sensors Military-Grade Certified

Directional Anti-Drone UAV System with 5km Detection Radius Integrated Radar and Optical Sensors Military-Grade Certified

Brand Name:	MYT
Model Number:	Falco
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Effective Detection Radius:

≥5km

Countermeasure Range:

≥5km

Size:

850mm*850mm*1700mm

Weight:

250kg

Supply Ability:

1000units per month

Highlight:

Directional Anti Drone UAV System

Integrated Radar Anti Drone System

Optical Sensors Anti Drone System

Product Description

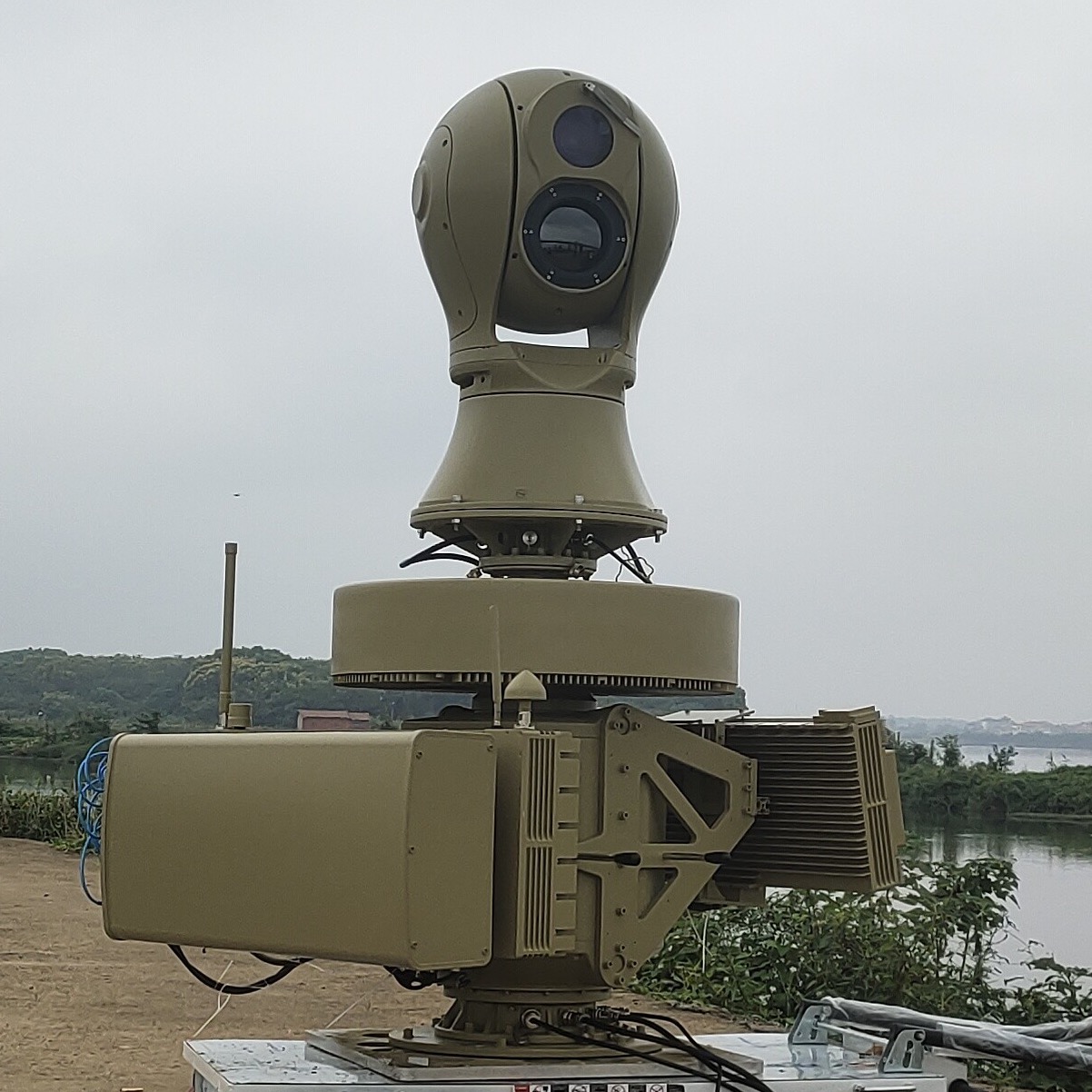

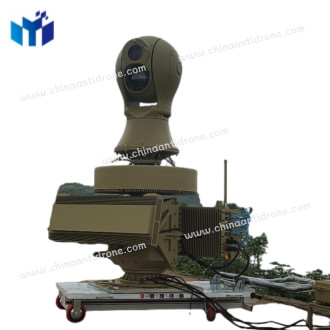

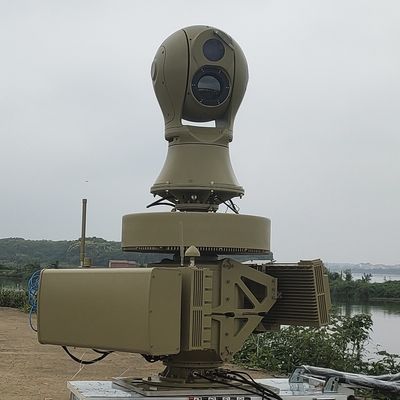

Directional Anti-Drone UAV System

Integrated Radar, Laser Optical Sensors & Electronic Countermeasure System

System Introduction

This comprehensive anti-drone system integrates radar, optical sensors, and electronic countermeasure devices into a unified structure. The system combines radar detection with passive frequency detection, linking to optical target recognition display, dynamic analysis, and decision-making processes for real-time drone detection, tracking, and jamming capabilities.

System Features

High Integration: Advanced anti-drone equipment technology ensures stable and reliable performance
Multi-Source Detection: Combines radar and passive frequency detection for comprehensive drone model coverage
Precise Targeting: Achieves accurate strikes and effective control over target drones
Advanced Guidance & Jamming: Employs spoofing solutions and magnetic interference with minimal environmental impact

Technical Specifications

Parameter	Specification
Detection Type	All types of drones
Active Frequency Band	9400MHz ~ 9600MHz
Passive Frequency Band	2400-2500MHz, 5725-5850MHz (expandable)
Spoofing Frequency Band	1575.42MHz ± 1.023MHz (GPS-L1), 1602MHz + N*5625kHz + 511kHz (GLONASS-L1), 1560-1620MHz, 2400-2500MHz, 5150-5850MHz (expandable)
Detection Range	360°
Effective Detection Radius	≥5km
Countermeasure Range	≤5km
Size (when opened)	850mm * 850mm * 1700mm
Weight	250kg
Wind Resistance	Level 10
Operating Temperature	-40 ~ 55°C
Storage Temperature	-45 ~ 65°C
Operating Humidity	≤95%
Data Interface	RJ45
Power Supply	220V
Total Power Consumption	≤450W (detection mode), <1000W (countermeasure mode)
Platform Functions	Black and white lists, real-time detection, optical tracking, automatic tracking, manual countermeasures, GIS mapping

Application Fields

Nuclear Power Plants
Private Estates
Military Installations

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products, accumulating various technical patents. Our products provide unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, delivering 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems. This enables cost savings, reduced human resource allocation, and ensures client safety and property protection.

Certification & Compliance

Our product has obtained dual certification from the Ministry of Public Security and the National Security Center, capable of adapting to various severe incidents with military-grade quality assurance.
