Convenient Handheld Drone Detector with Spectrum Sensing Technology and Wristband Receiver for Quick Detection

Convenient Handheld Drone Detector

Spectrum Sensing Technology and Wristband Receiver for Quick Detection

1, Description:

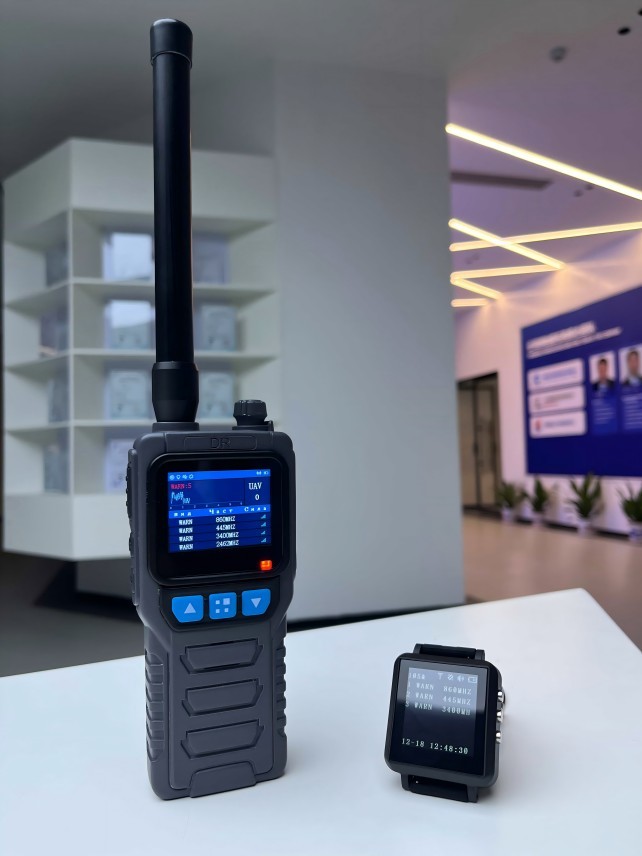

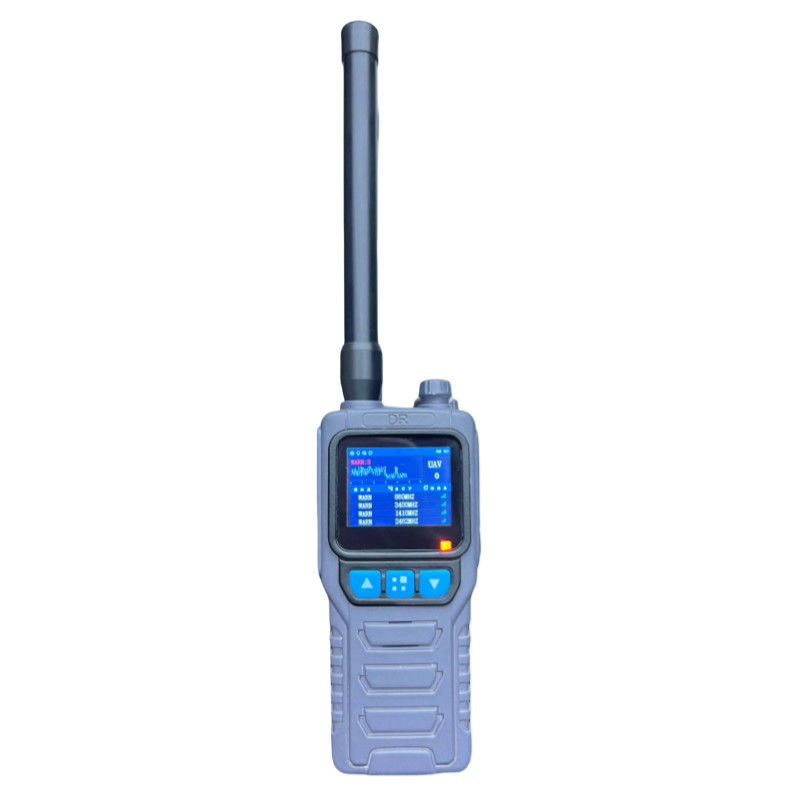

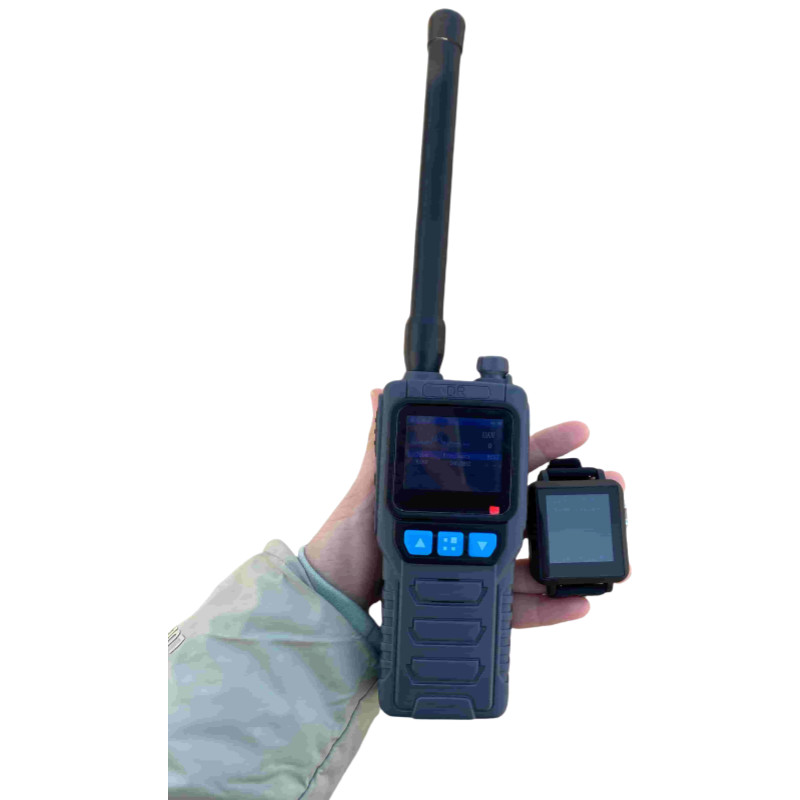

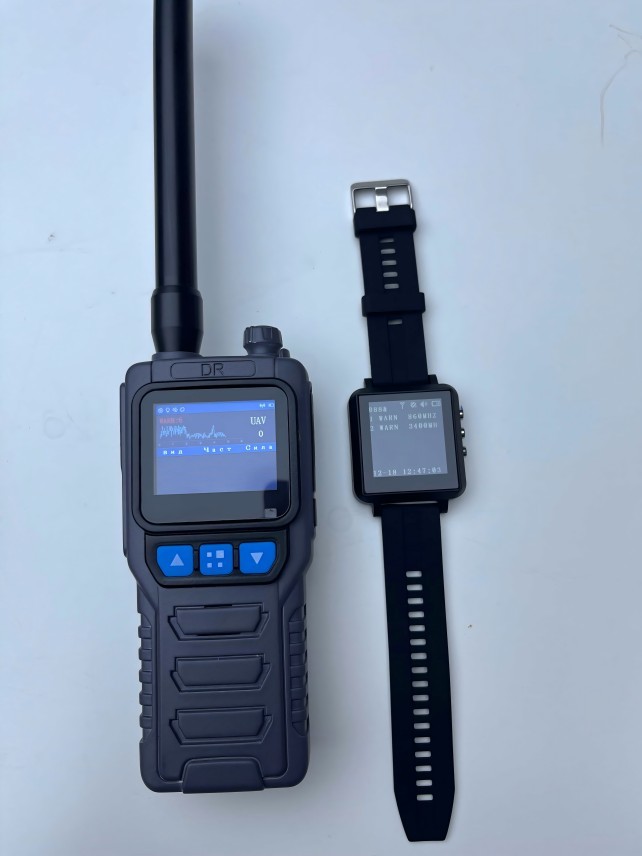

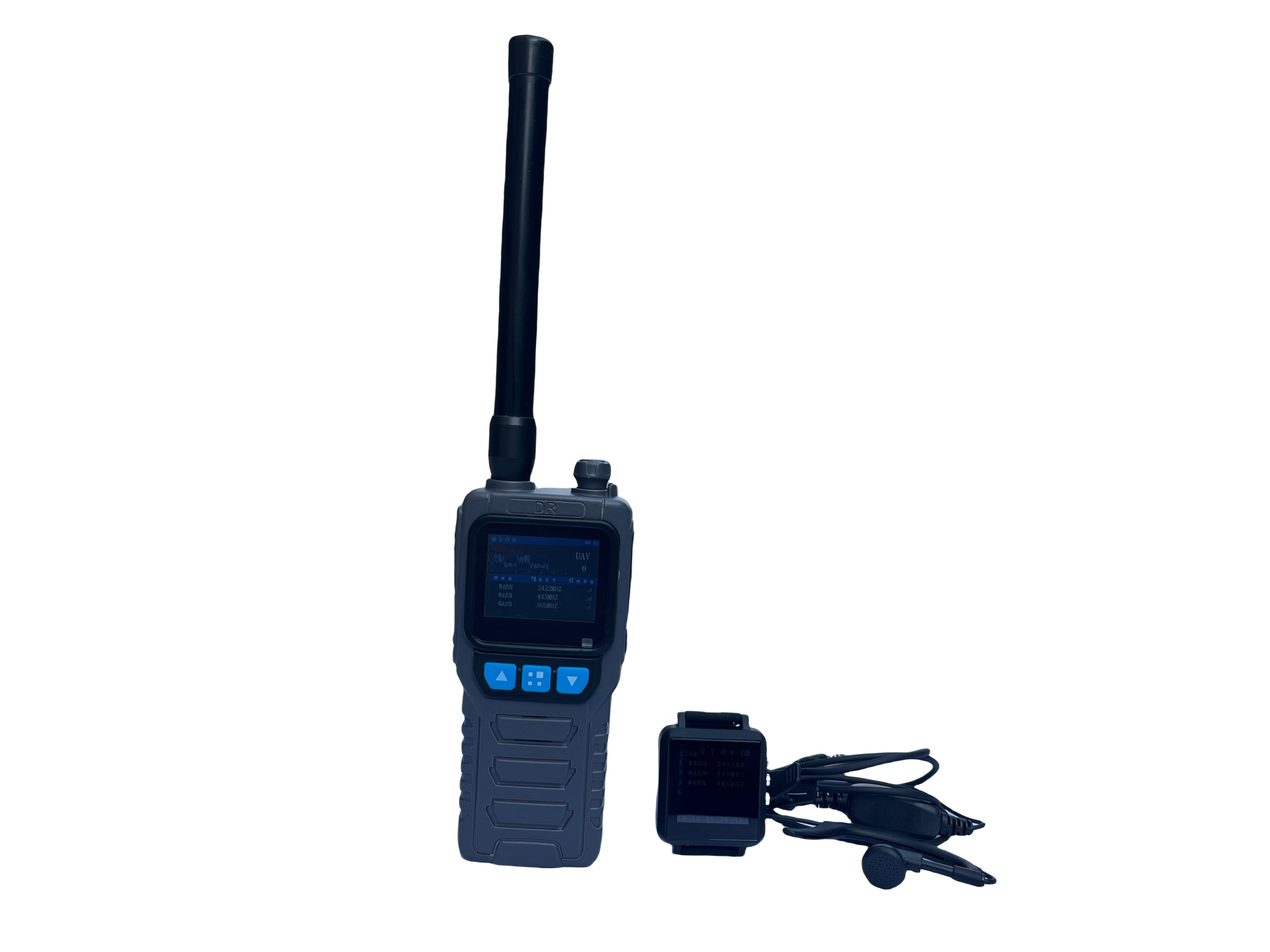

  The portable drone detection system is comprised of a detection master unit and a wristband information receiving terminal. It integrates spectrum sensing technology and is equipped with capabilities for reconnaissance, display control, and team coordination, enabling effective detection, identification, and alarm signaling of various types of unmanned aerial vehicles (UAVs). The system employs low-power ultra-wideband digital reception technology, advanced signal detection algorithms, and proprietary UAV identification algorithms, coupled with an external high-efficiency ultra-wideband antenna. This setup allows for precis identification of UAVs, including quadcopters, fixed-wing aircraft, DIY models, and first-person view (FPV) drones, in complex electromagnetic environments, and triggers auditory, visual, and haptic alarms. This product stands out as a unique and innovative solution globally, offering effective counter-UAV operations to mitigate the escalating threat of illicit drone activities.

2, Features

1) Dual-mode detection:

Free switching between spectrum scanning detection and key frequency band feature matching detection modes.

2) Wide range of detectable drones:

Accurately identifies mainstream drones such as DJI, Autel, and Hubsan, as well as FPV racing drones, DIY drones, etc.

3) Broad detection frequency coverage:

Full coverage of mainstream frequency bands from 70MHz to 6.2GHz, with 8-12 key detection frequency bands.

4) FPV ultra-strong early warning:

Unique baseband signal analysis and recognition technology for rapid early warning of various DIY and FPV drones.

5) Low false alarm rate:

Spectrum signal detection can reduce the rate of missed detections. In complex electromagnetic environments, the integration of frequency scanning technology and feature analysis comparison technology results in a low rate of missed detections and false alarms.

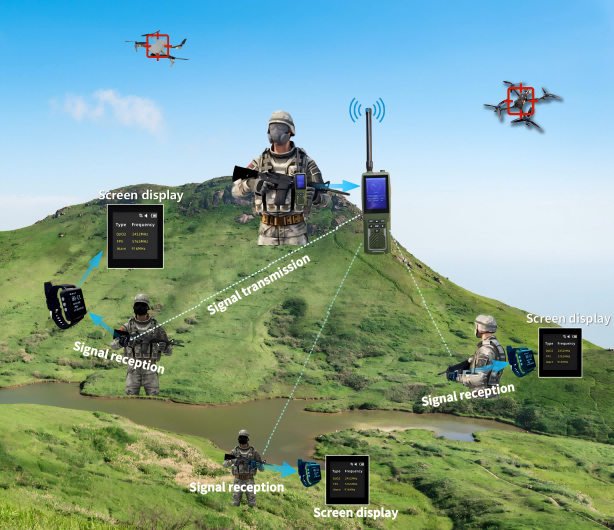

6) 1+N team coordination:

Supports team collaboration.

Test Objective:

To verify if the equipment has a drone detection range of over 3KM.

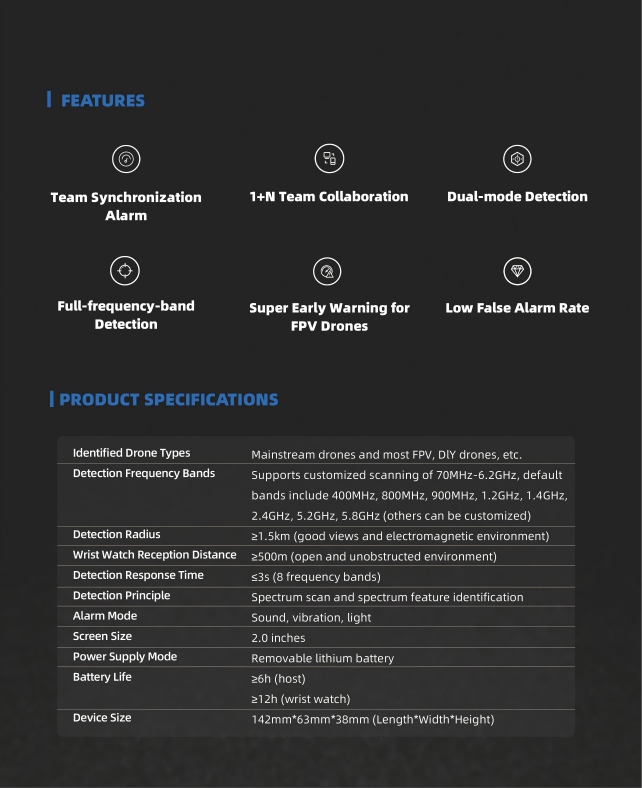

3, Product Performance Specifications:

1) Identification Types:

Mainstream drones such as DJI, Autel, and Hubsan, as well as FPV racing drones, DIY drones, etc.;

2) Frequency Range:

Supports custom scanning from 70MHz to 6.2GHz (Default detection frequency bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other frequency bands can be customized);

3) Detection Radius:

≥1.5km (line of sight, clean electromagnetic environment);

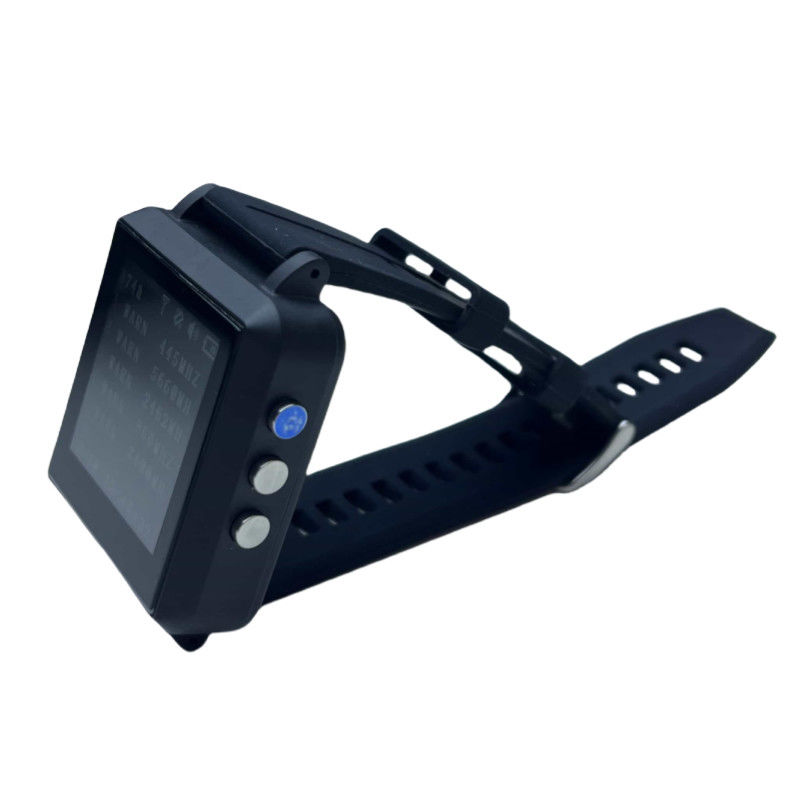

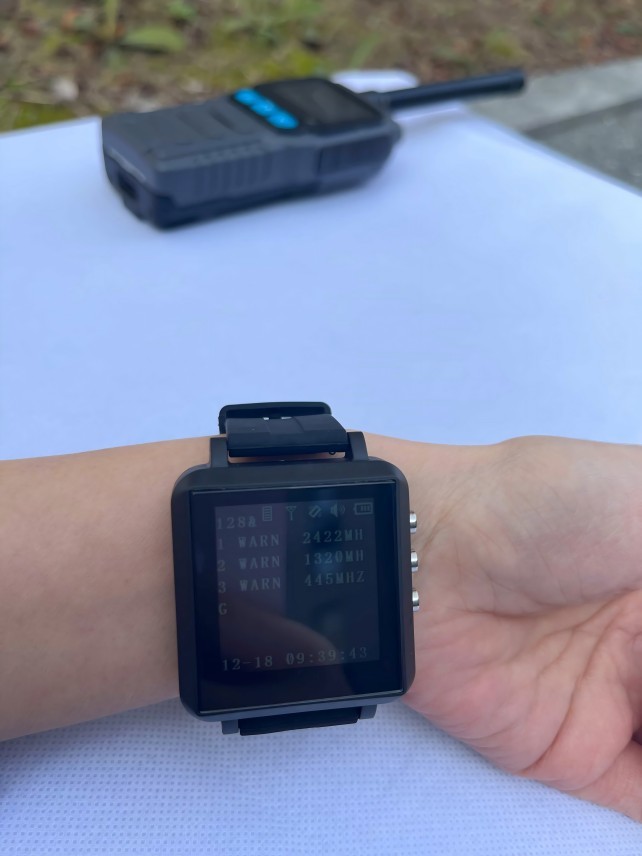

4) Wristband Information Receiving Terminal Communication Distance:

≥500m (open and unobstructed);

5) Detection Response Time:

≤3s (for 8 frequency bands); ≤5s (for 12 frequency bands);

6) Detection Principle:

Spectrum scanning and spectrum feature recognition;

7) Alarm Methods:

Audible sound, vibration, and light;

8) Screen Size:

2.0 inches;

9) Power Supply:

Lithium battery powered (removable);

10) Battery Life:

≥6 hours (main unit); ≥12 hours (wristband);

11) Device Dimensions:

142mm63mm38mm (LWH);

12) Operating Temperature:

-20℃ to +50℃.

6,FAQ

Q:How far is the detection range?
