Handheld Drone Detector with Spectrum Sensing Technology for >2km Detection Radius and ≥6 Hours Battery Life

Handheld Drone Detector with Spectrum Sensing Technology for >2km Detection Radius and ≥6 Hours Battery Life

Brand Name:	MYT
Model Number:	DR400-E
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Radius:

>2km

Detection Frequency Band:

70MHz-6GHz Customized

Alarm Method:

Audible Sound, Vibration, And Light

Battery Life:

≥6 Hours For The Main Unit; ≥12 Hours For The Wristband

Supply Ability:

1000units per month

Highlight:

Handheld Drone Detector

Effective Drone Detector

Spectrum Sensing Drone Detector

Product Description

Handheld Drone Detector with Spectrum Sensing Technology

Advanced portable system for effective drone detection and identification using spectrum sensing technology.

Device Overview

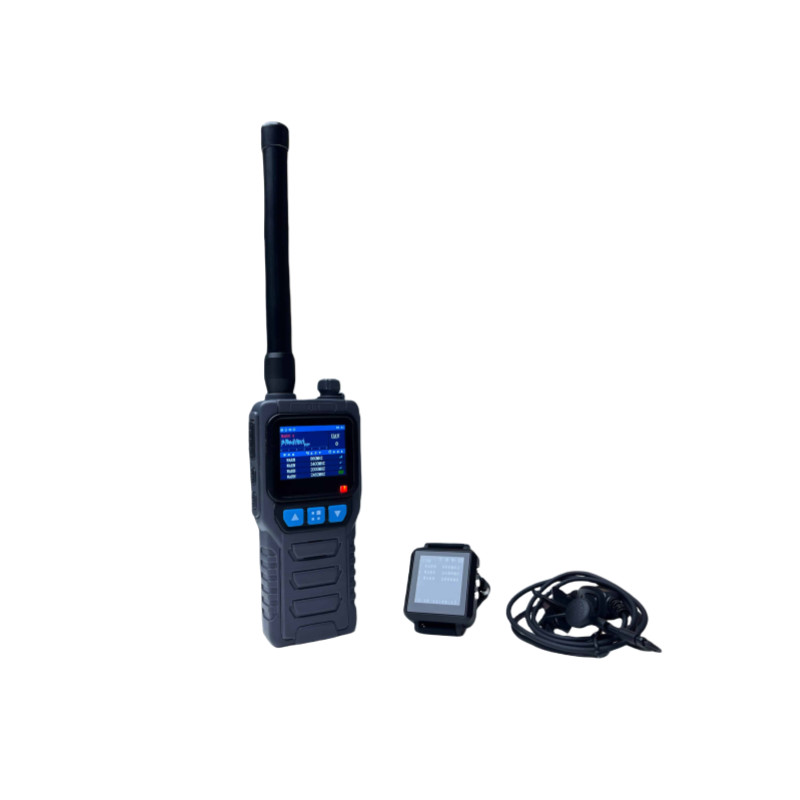

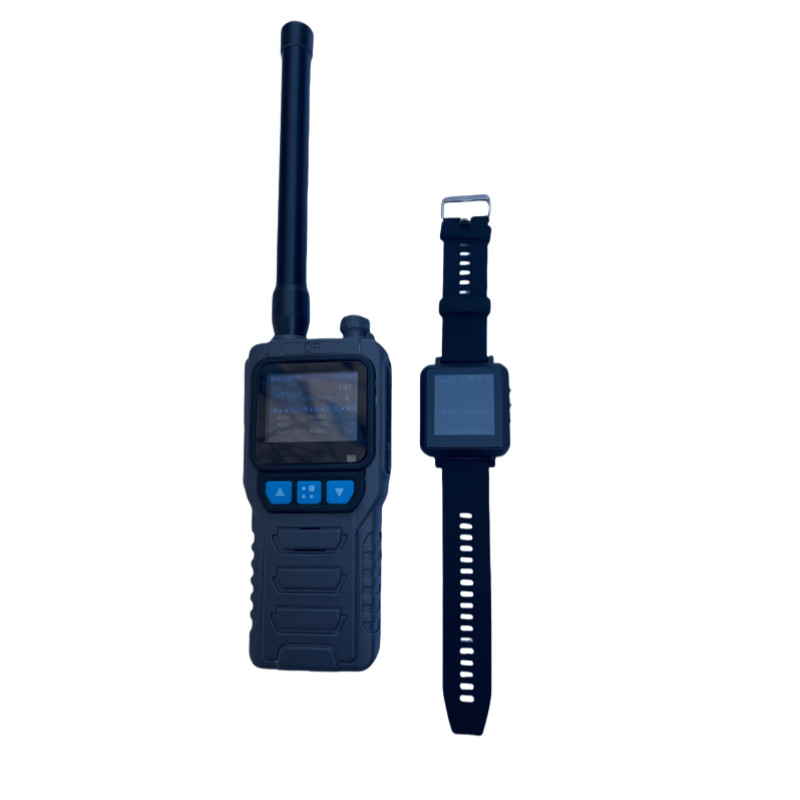

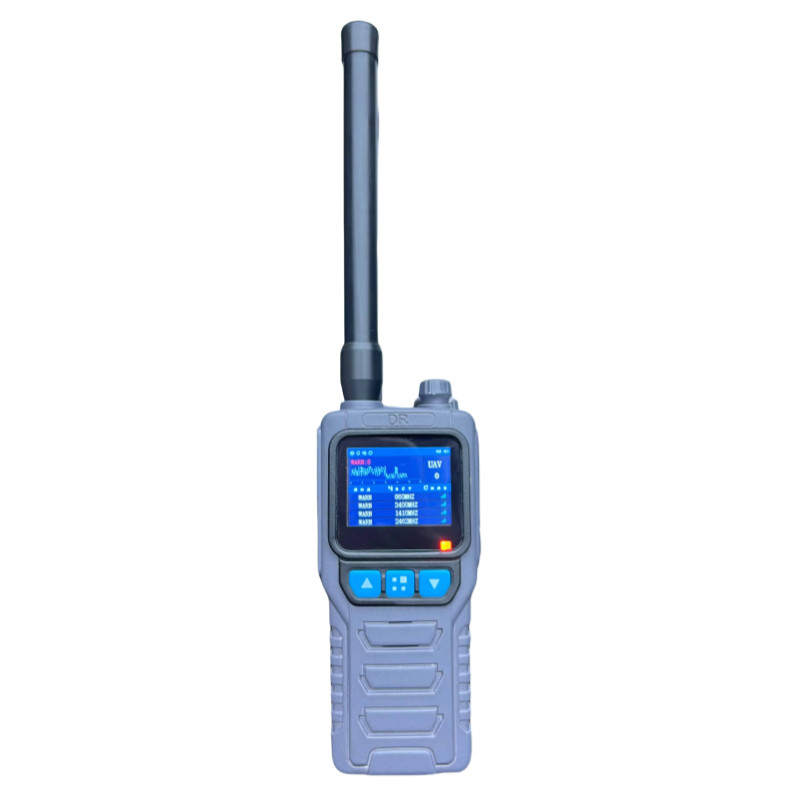

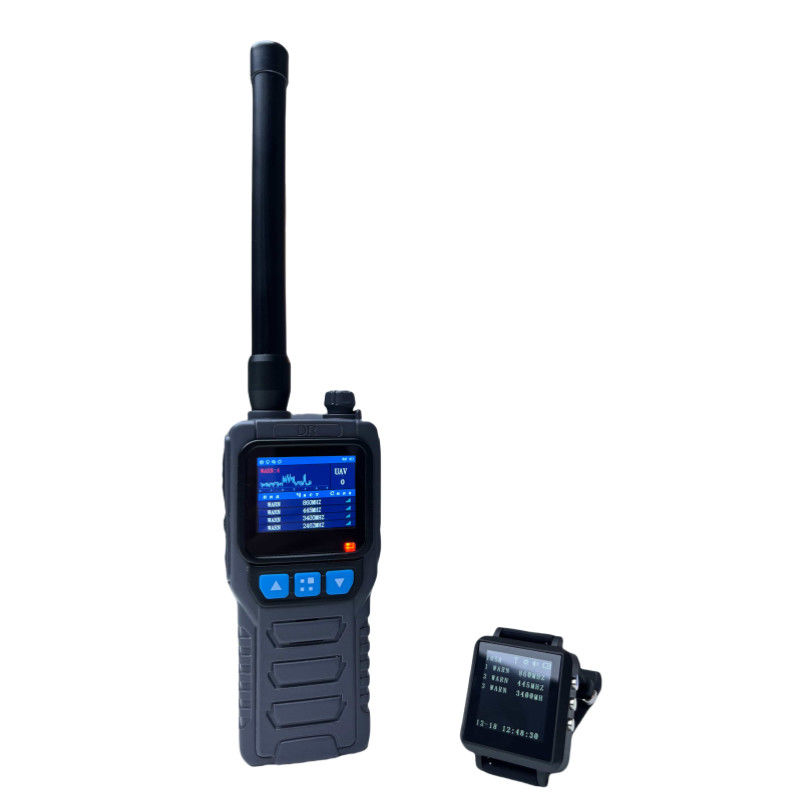

The portable drone detection system consists of a main detection unit and multiple data terminals, including the DR400E electronic tablet with transmission capabilities exceeding 1 kilometer. This integrated solution combines spectrum sensing technology with reconnaissance, display control, and team coordination functions for comprehensive drone detection, identification, and alarm signaling.

Utilizing low-power ultra-wideband digital receiving technology with advanced signal detection and drone identification algorithms, the system works with an external high-efficiency ultra-wideband antenna to accurately identify various drone types including quadcopters, fixed-wing aircraft, DIY drones, and FPV drones in complex electromagnetic environments, providing auditory, visual, and vibration alarms.

Key Features and Highlights

Advanced Detection Capabilities: Identifies mainstream drones from DJI, Autel, Hubsan, plus FPV racing drones and DIY models
Broad Frequency Range: Custom scanning from 70MHz to 6.2GHz with default coverage of 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, and 5.8GHz bands
Extended Detection Radius: Minimum 1.5km range in clear line-of-sight and clean electromagnetic environments
Long-Range Communication: Wristband terminal communicates up to 500m in open, unobstructed settings
Rapid Response Times: Detection response under 3 seconds for 8 frequency bands, under 5 seconds for 12 bands
Detection Principles: Advanced spectrum scanning and spectrum feature recognition technology
Multiple Alarm Methods: Immediate audio, vibration, and visual alerts upon detection

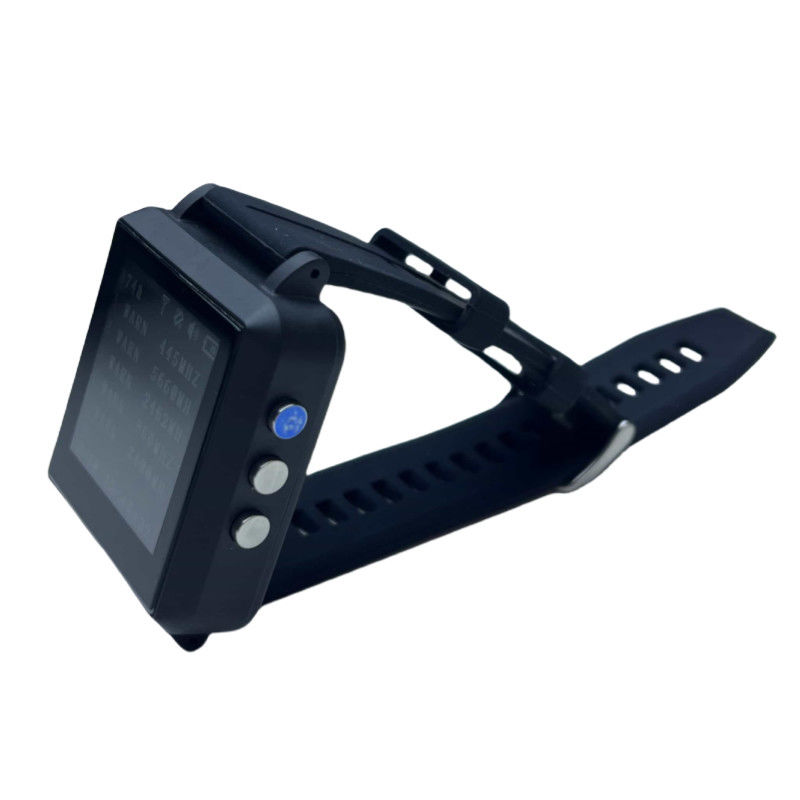

User Interface: Clear 2.0-inch screen on wristband terminal
Power Supply: Removable lithium battery for operational flexibility
Extended Battery Life: Main unit: 6+ hours; Wristband terminal: 12+ hours
Compact Design: Portable dimensions of 142mm * 63mm * 38mm (L * W * H)
Robust Operating Range: Functions in temperatures from -20℃ to +50℃

Technical Specifications

Feature	Description
Detection Types	Mainstream drones (DJI, Autel, Hubsan), FPV racers, DIY drones
Frequency Range	70MHz to 6.2GHz custom scanning (default: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz)
Detection Radius	≥1.5km (line of sight, clean electromagnetic environment)
Wristband Communication Range	≥500m (open and unobstructed)
Detection Response Time	≤3s for 8 frequency bands; ≤5s for 12 frequency bands
Detection Principle	Spectrum scanning and spectrum feature recognition
Alarm Methods	Audible sound, vibration, and light
Screen Size	2.0 inches
Power Supply	Removable lithium battery
Battery Life	≥6 hours (main unit); ≥12 hours (wristband)
Device Dimensions	142mm * 63mm * 38mm (L * W * H)
Operating Temperature	-20℃ to +50℃

Testing Information

Test Objective: Verify equipment drone detection range exceeding 3KM.

Detection Principle: Device detects video transmission signals emitted by drones.

The video transmission (VT) signal is emitted by the drone, with the drone controller serving as the receiving unit. For video verification, both the handheld detection device and remote controller must be placed in the same video. The detected frequency range of 5700MHz-5850MHz represents standard VT signal frequencies. The drone controller does not emit signals.

After-Sales Service

24-hour after-sales service support
Online technical support for usage or quality issues
3-month return policy from dispatch date for undamaged products
Full refund or product modification options available
DDP shipping agreement applicable

Business Partnerships

African Parks Counter-UAV Strategic Partnership

Certifications

Company Profile

Chongqing Miao Yitong Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management solutions. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products, accumulating various technical patents.

Our products provide comprehensive unmanned automatic management solutions for defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These integrated systems incorporate optoelectronics, radar, vibration sensing, thermal imaging, facial recognition, and radio frequency management technologies, delivering 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems that reduce client costs, optimize human resource allocation, and ensure safety of lives and property.
