MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR400-D |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 units per month |
| Recognition Type: | Supports Mainstream Drones Such As DJI, Daotong, And Haboson, As Well As FPV Racing Drones And DIY Drones. | Frequency Range: | 70MHz To 6.2GHz |
|---|---|---|---|
| Detection Distance: | ≥3km | Video Capture Distance: | ≥1.5km |
| Highlight: | Portable Drone Detector,Full-Band Drone Detector,Customizable Scanning Drone Detector |
||

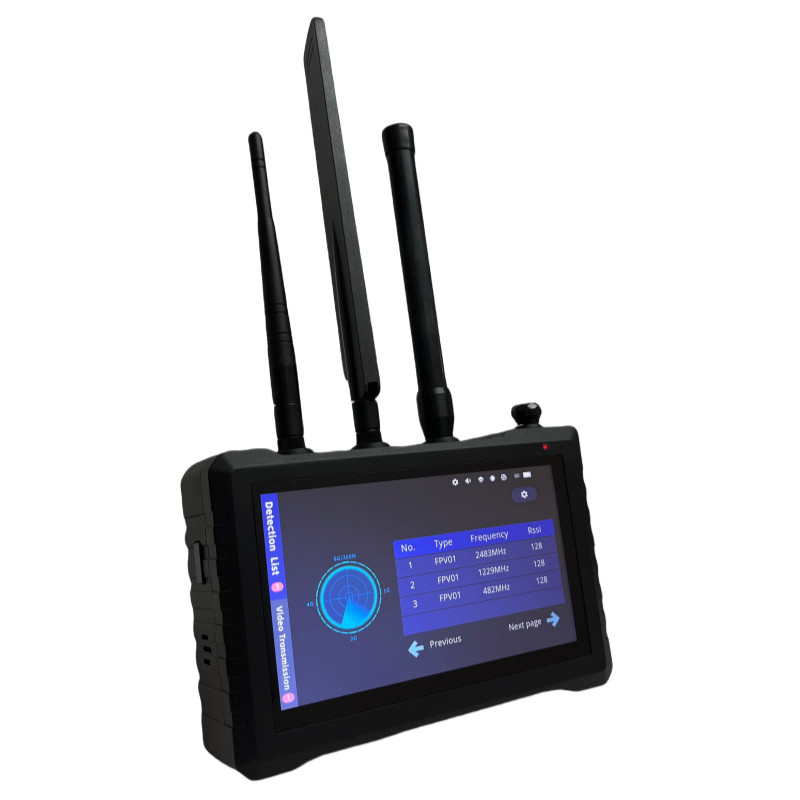

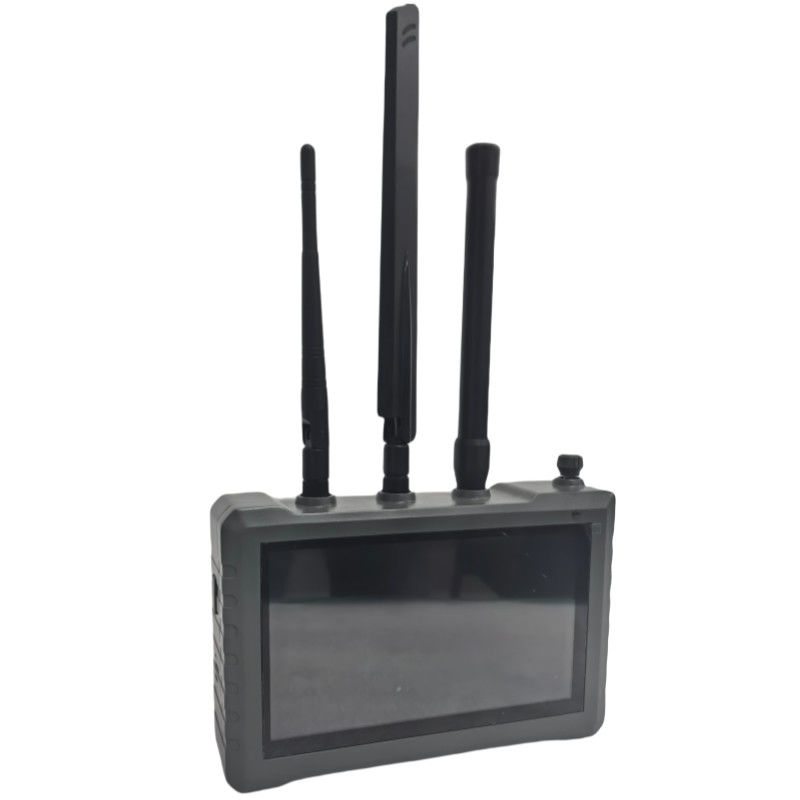

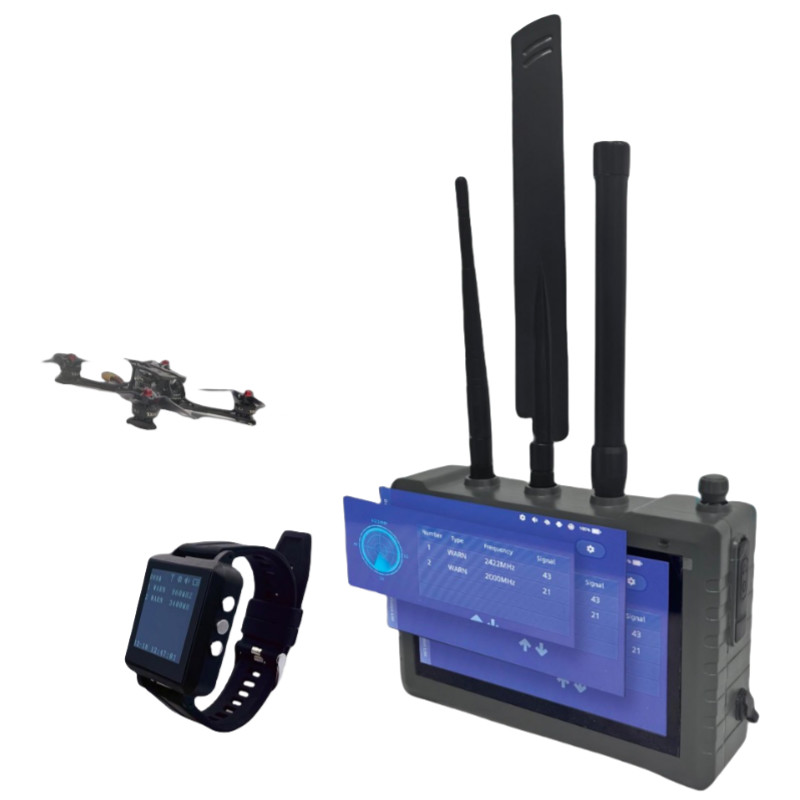

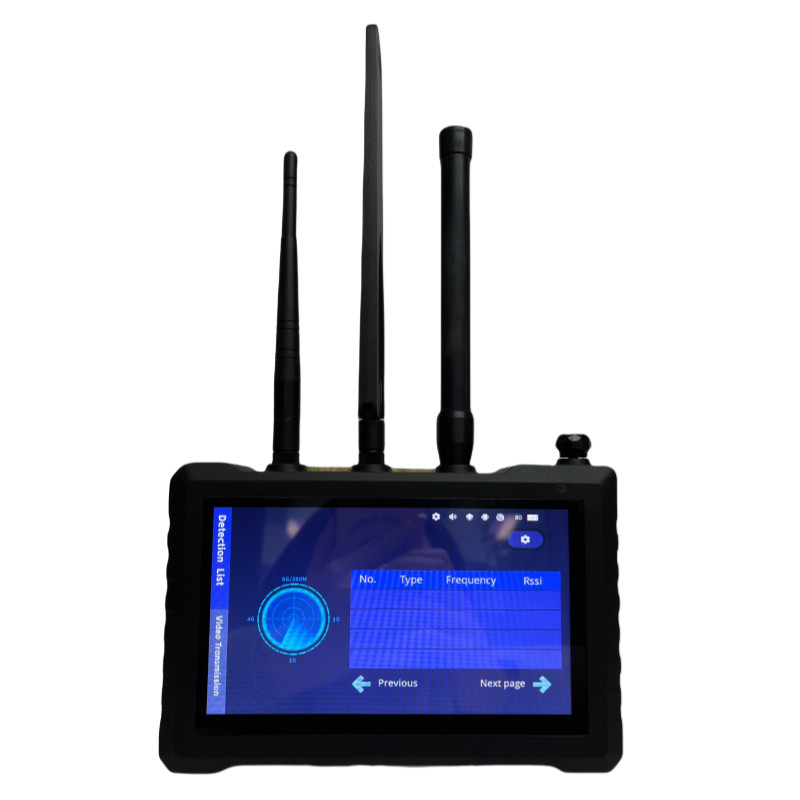

Portable Drone Detector with Full-Band Detection and Customizable Scanning Options
1, Equipment Overview
The portable FPV signal acquisition and detection device integrates functions such as detection, video acquisition, and video storage. It features capabilities like full-band detection, FPV analog signal detection, video acquisition, display and control, and video storage. The device can accurately identify various types of drones, including quadcopters, fixed-wing drones, DIY drones, and FPV drones, even in complex electromagnetic environments. It generates alarms through sound, light, and vibration. This equipment is designed for applications such as routine patrols, protection of critical targets, squad operations, and evidence collection.
2, Specification
| Serial No. | Name | Performance Indicators |
|---|---|---|
| 1 | Recognition Type | Supports mainstream drones such as DJI, Daotong, and Haboson, as well as FPV racing drones and DIY drones. |
| 2 | Frequency Range | Supports customizable scanning from 70MHz to 6.2GHz (default detection bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other bands can be customized). |
| 3 | FPV Transmission Detection | Supports detection of all analog transmissions within the 300MHz-6GHz frequency range (user customizable). |
| 4 | Detection Radius | ≥3km (line of sight, clean electromagnetic environment) |
| 5 | Video Capture Distance | ≥1.5km (line of sight, clean electromagnetic environment) |
| 6 | Video Storage Space | 32G storage card |
| 7 | Detection Response Time | ≤3s (8 frequency bands); ≤5s (12 frequency bands) |
| 8 | Alarm Methods | Sound, vibration, light |
| 9 | Screen Size | 7-inch touchscreen |
| 10 | Power Supply Method | Powered by lithium battery |
| 11 | Battery Capacity | 7000mAh |
| 12 | Device Weight | ≤2kg |
| 13 | Device Dimensions | LengthWidthHeight: 200mm130mm40mm |
