C Band Low Altitude Security Radar with 100m-3km Detection Range and Modular Design for Border Protection

C Band Low Altitude Security Radar with 100m-3km Detection Range and Modular Design for Border Protection

Brand Name:	MYT
Model Number:	3100C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Working Band:

C Band

Detection Range:

100m-3km

Workingng Temperature:

-20°-55° (Customized)

Weight:

18kg

Packaging Details:

800mm*600mm*280mm

Supply Ability:

1000units per month

Highlight:

Effective Response Low Altitude Security Radar

Effective Detection Low Altitude Security Radar

Border Protection Low Altitude Security Radar

Product Description

Low Altitude Security Radar for Border Protection

Advanced electronic sentinel system providing effective detection and response capabilities for border security operations.

Equipment Overview

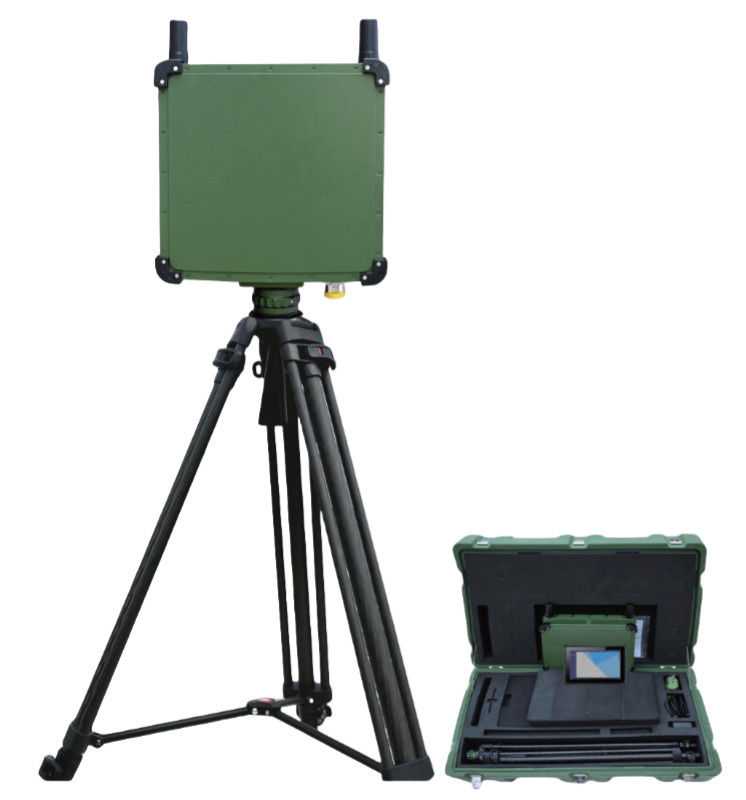

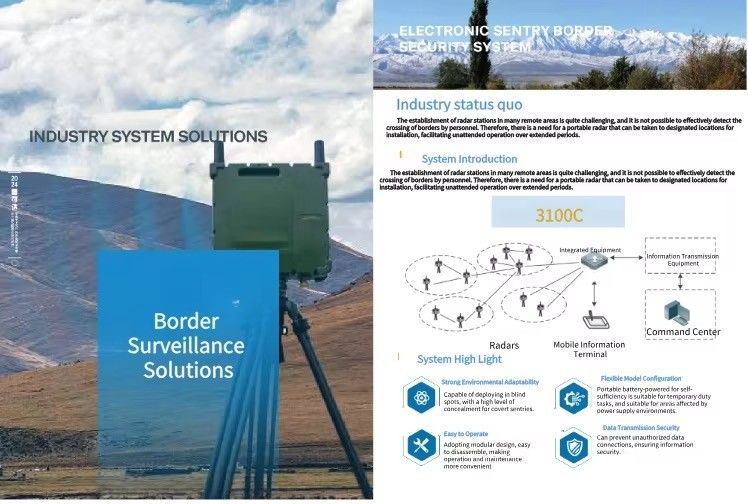

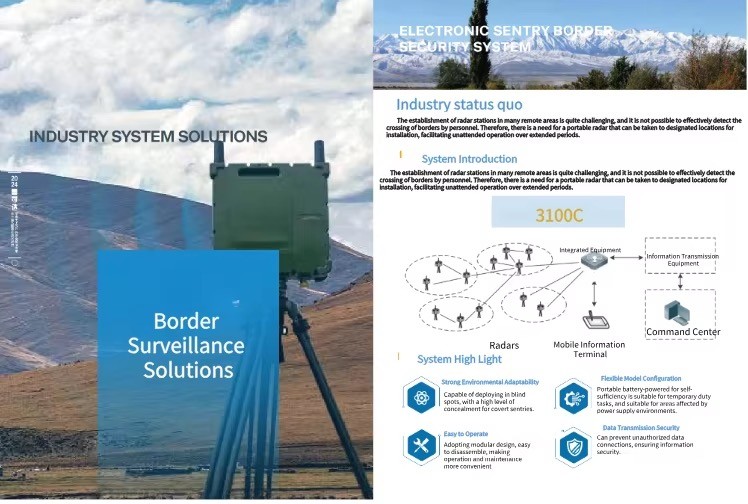

The unattended electronic sentinel consists of detection equipment, aggregation devices, and mobile terminals. It is an intelligent security system integrating detection, perception, and response. It features low power consumption, no reliance on external support, long standby time, self-wake-up, rapid deployment, high reliability, and concealment.

Deployed in key control areas such as mountain passes, channels, and uninhabited islands, it is used to prevent illegal border crossings, smuggling, infiltration, and other disruptive activities.

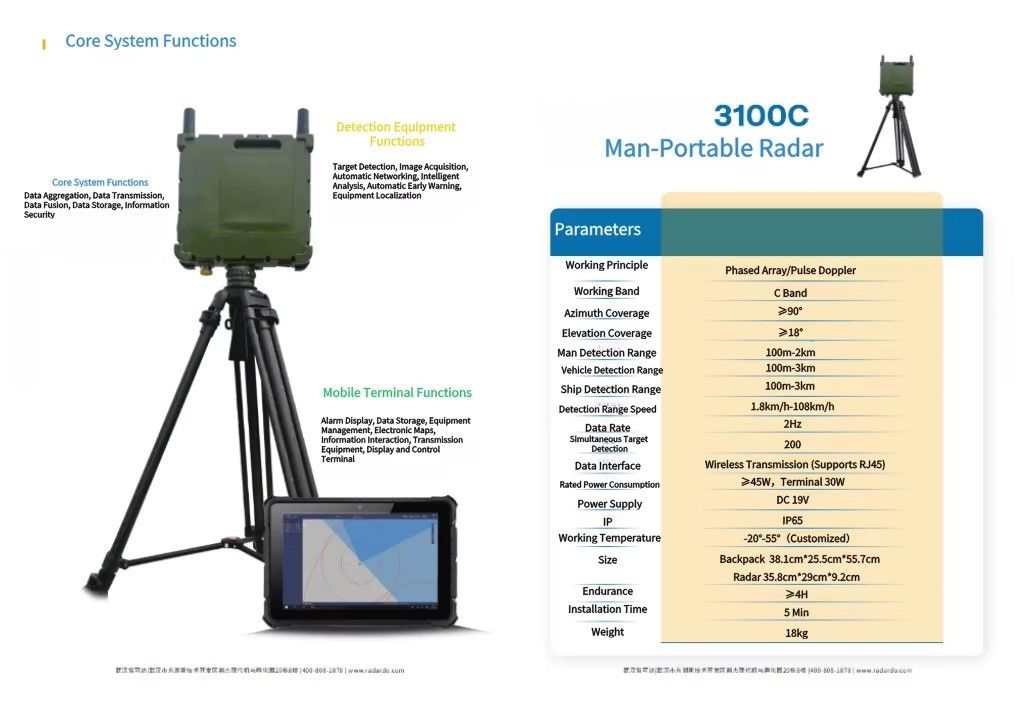

Technical Specifications

Parameter	Value
Working Band	C Band
Azimuth Coverage	≥90°
Elevation Coverage	≥18°
Man Detection Range	100m-2km
Vehicle Detection Range	100m-3km
Ship Detection Range	100m-3km
Detection Range Speed	1.8km/h-108km/h
Data Rate	2Hz
Simultaneous Target Detection	200
Data Interface	Wireless Transmission (Supports RJ45)
Rated Power Consumption	≥45W, Terminal 30W
Power Supply	DC 19V
IP Rating	IP65
Working Temperature	-20°-55° (Customized)
Size (Backpack)	38.1cm25.5cm55.7cm
Size (Radar)	35.8cm29cm9.2cm
Endurance	≥4H
Installation Time	5 Min
Weight	18kg

Application Characteristics

Strong environmental adaptability: Meets the needs of border and coastal defense monitoring points, mobile deployment of sleeper posts, and difficult deployment in harsh environments.
Modular composition and operation: Modular design enables easy product maintenance, testing, parts replacement and display control software independent testing, making management and maintenance convenient and fast.
Flexible model configuration: Plateau type for altitude ≥3000m regions; Ordinary type for altitude < 3000m areas; Portable type self-powered by battery for temporary duty tasks; Fixed type for areas with power supply and transmission conditions.
Data transmission security: Includes security measures to prevent illegal device access and information leakage.

After-Sales Service

24-hour after-sales service support
Online technical support for usage or quality issues to diagnose problem causes
3-month return policy from dispatch date for undamaged products with full refund or product modification options
