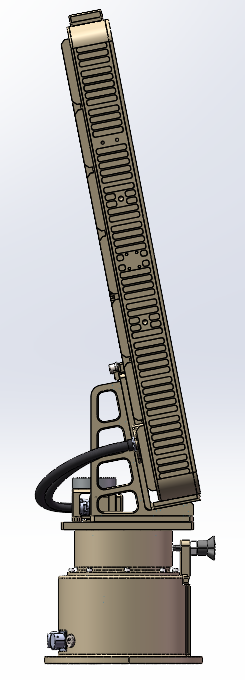

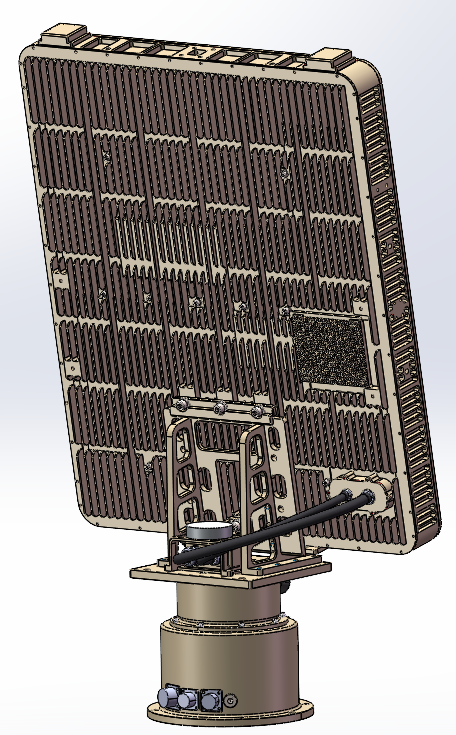

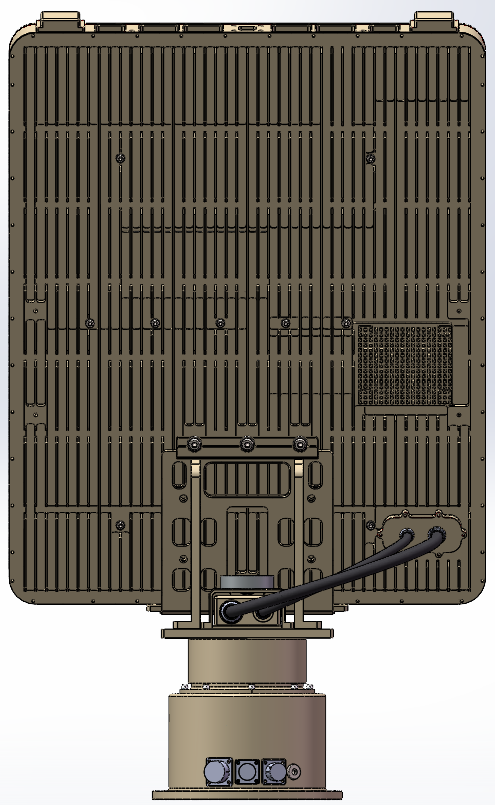

DD-R8 low-altitude surveillance radar
1, Product Introduction
The DD-R8 series low-altitude surveillance radar is a special radar system for monitoring low-altitude targets. It can effectively detect and track low-flying aircraft, unmanned aerial vehicles, birds, cruise missiles and other targets, while taking into account ground and surface targets. The radar integrates digital beamforming (DBF) technology, with low equivalent isotropic radiated power, high measurement accuracy, strong multi-target processing, excellent anti-interference ability, and stable operation in complex environments. It has a wide range of applications, which can provide important support for air traffic control, key site protection, low-altitude economy, airport bird exploration, battlefield 'anti-none', border and coastal defense, etc., and can provide a solid guarantee for low-altitude safety and order.
2, Product characteristics
1). Extensive Coverage with Cost Efficiency
Utilizing 360° azimuth mechanical scanning and elevation Digital Beamforming (DBF), this system delivers wide-area surveillance (up to 64° pitch) without compromising affordability.
2). High Refresh Rate for Superior Maneuvering Target Detection
DBF technology boosts the data refresh rate to 1s/2s/3s (vs. traditional low-altitude radar’s 6s), enabling real-time tracking of high-speed targets up to 150m/s.
3). High Detection Accuracy with Minimal False Alarms
Advanced adaptive clutter suppression significantly reduces false alarms while effectively mitigating ground, sea, and weather clutter—expanding usable scenarios.
4). Lightweight & User-Friendly Design
As a continuous wave radar, it eliminates bulky high-power pulse circuits, reducing size, weight, and power consumption. Features include:
Single-person portability
Intuitive human-machine interface for low learning curves
5). Near-Zero Blind Zone & Multi-Target Tracking
Unlike pulsed radar, its uninterrupted signal transmission avoids blind zones, enabling:
Real-time monitoring of birds/drones near runways
Simultaneous tracking of 300+ targets with high-precision positioning
6). Low Probability of Intercept (LPI)
Continuous wave operation ensures:
Low transmission power
Uniform spectral distribution (no pulse spikes)
High stealth against enemy interceptors
7). Precision Tracking Capabilities
With a 1Hz spatial scan rate and advanced algorithms, it delivers real-time, stable tracking of agile targets.
8). Seamless System Integration
Equipped with open data interfaces and modular design for easy integration into multi-sensor C-UAS (Counter-UAS) networks.
3, Product Specifications
Radar overlay slices
| No. | Items | Index | |||
| Qualification | |||||
| 1 | Operating frequency band | X | |||
| 2 |
Space Coverage |
Pitch | -4°～60° | ||
| Azimuth | 360° | ||||
| Range | 15km | ||||
| Blind spots | 50m | ||||
| Height | 2000m | ||||
| 3 | Detection distance | Small rotary-wing UAVs (RCS=0.01 m²) | ≥8km | ||
| Medium-sized fixed-wing UAVs (RCS=1 m²) | ≥15km | ||||
| Personnel | ≥14km | ||||
| Helicopters/vehicles | ≥15km | ||||
| 4 |
Measure Accuracy |
Distance | ≤5m(RMS) | ||
| Azimuth | ≤0.4°(RMS) | ||||
| Pitch | ≤0.4°(RMS) | ||||
| 5 | Antenna Rotation Speed | 20rpm(3s) | |||
| 30rpm(2s) | |||||
| 60rpm (1 s) (upgradable) | |||||
| 6 | Max Tracked Targets | ≥300 | |||
| 7 |
Tracing Velocity scope |
1m/s～150m/s | |||
| Power & Interfaces | |||||
| 1 | Power Supply | DC 36~52V(with AC220V-DC48V adapter) | |||
| 2 | Communication | Gigabit Ethernet aviation plug | |||
| 3 | Power Dissipation | ≤330W | |||
| environmental suitability | |||||
| 1 | Operating Temperature | -40℃～+55℃ | |||
| 2 | Humidity | ≯90% | |||
| 3 | Protection Level | IP66 (host: IP67) | |||
|
Weight & Size
|
|||||
| 1 |
weight (kg) |
monomer | Host | 16 | |
| rotating platform | 13.5 | ||||
| tripod | 12 | ||||
| packing | Host | 26 | |||
| rotating platform | 26 (with accessories) | ||||
|
tripod
|
15 | ||||
| 2 |
size (mm) |
monomer | Host | 675*540*85 | |
| rotating platform | 400*228*216 | ||||
| tripod | 940*230*230 | ||||
| packing | Host | 750*630*170 | |||
| rotating platform | 500*480*400 | ||||
|
tripod
|
1140*290*290 | ||||
Rotorcraft UAV detection and tracking
Helicopter detection and tracking
Raylink (visible light/infrared/radar)
Foreign trade vehicle anti-missile project
Bird-spotting app
Birds are spotted at the airport
