MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Certification: | CNAS、CMA、CAL、ILAC-MRA |
| Model Number: | DR200-AB |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable on Quantity |
| Packaging Details: | 54mm*74mm*40mm, 22.4KG |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500units per month |
| Detection, Identification Distance: | 5km-10km | Neutralization Distance: | 1km-5km |
|---|---|---|---|
| Detection Azimuth: | ≤10°（tracking）；≤ 3°（hovering） | Detection Frequency Range: | 70MHz-6GHz |
| Key Detection Frequencies: | 900MHz、1.5GHz、2.4GHz、5.8GHz | Defense Frequency Bands: | 800 MHz、900MHz、1.2GHz、1.4GHz、1.5GHz、2.4GHz、5.2GHz、5.8GHz |
| Expandable Defense Band Range: | 400M-6GHz Full Band Customizable | Counteraction Distance: | 3km (depending On Conditions) |
| Lateral Accuracy: | 3 | Operating Termperature: | -40℃-+60℃ |
| Weight: | 15kg+25kg | Dimensions: | 666mm^400mm (height’radius),/500mm^460mm^233mm(length^width"height) |
| Highlight: | fixed directional drone jammer,Fixed Drone Defense Equipment,military directional drone jammer |
||

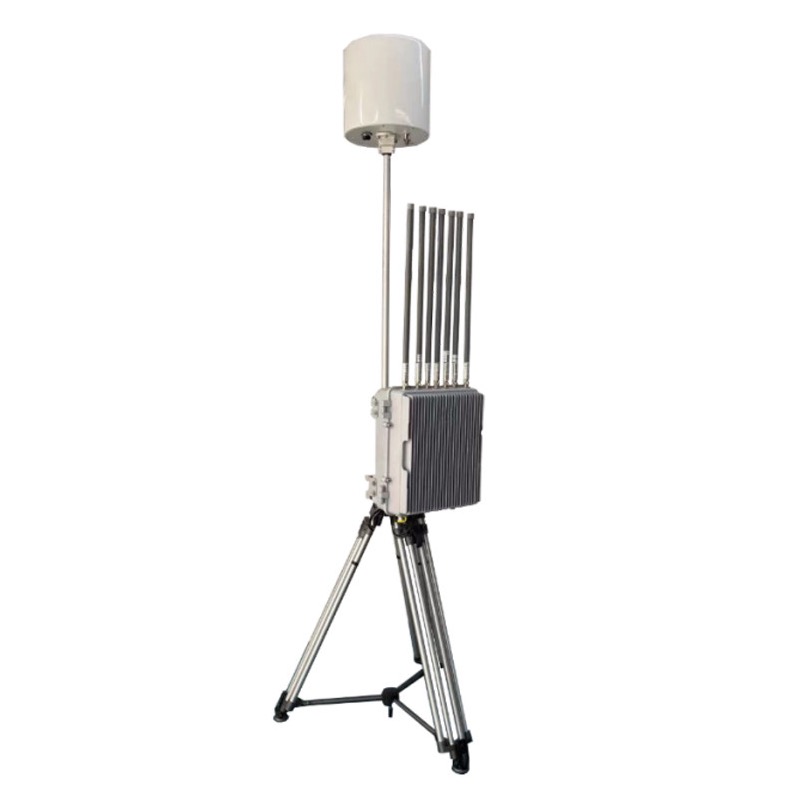

Directional Drone Jammer Fixed Drone Defense Equipment Drone Detection and Positioning System DR200AB
1, Product Introduction
Cognitive Radio Protocol Cracking technology is the fourth generation of UAV defense, by using this technology can accurately demodulate the UAV communication frequency band, channel information and electronic ID through reverse analysis and cracking of UAV communication signals, based on the acquired information, illegal UAVs will be targeted for defense and precise control.
2, Functions
① Use frequency detect UAVs
② It can detect, locate, identify and track the UAV
③ It can detect and discover the UAV automatically within the effective range, and automatically alarm the detected UAVs signal
④ It can realize the joint work of UAVs detection, interference, unattended.
⑤ It able to identify mainstream UAVs manufacturers and models
⑥ It can automatically identify UAVs types according to the built-in sample library, and has the ability of continuous updating
⑦It can automatically interfere with the UAV within the effective range, so that it can land or return, and does not allow it to enter the controlled area;
⑧ The system is not affected by the weather, 7*24 hours work
⑨ Detection equipment can be quickly installed on designated vehicles and can be quickly withdrawn
⑩ Do not interfere with human body and electronic equipment
3, Functional highlight
1) speciat Drone Interference
Latest DDS core algorithm,providing strong frequency modulation and FPv drone interference capabilities
2) comprehensive detection frequency coverage
70MHz-6GHz ful frequency coverage, complete drone model library,meetingthe needs of different customers of domestic and abroad
3) customizable strike Frequencies
8 common and 8 customizable frequencies covering 400-5.8GHz
4) Flexible Networking
Platform can be separated and paired with other detection and strike devices for collaborative operations
5) 1+N Efficient Device Linkage
Free access to the low-altitude defense platform, can integrate radar, navigate devices and observe
6) Al self-Learning
Equipped with a drone signal collection module for autonomous learning and feature library definition
7) Reliable Military-Grade Quality
Aerospace aluminum body,operates in -40C to +60C,suitable for various environments
8) Professional After-Sales service
Lifetime free model library upgrades, customizable colors and languages,24/7online service
4, Specification
| DR200AB Specification (● yes, ○ no) | ||
| Detection, identification distance | 5km-10km | ● |
| Neutralization distance | 1km-5km | ● |
| Detection Azimuth | ≤10°(tracking)；≤ 3°(hovering) | ● |
| Detection frequency range | 70MHz-6GHz | ● |
| Key detection frequencies | 900MHz,1.5GHz,2.4GHz,5.8GHz | ● |
| Defense frequency bands | 700-840MHz,840-930MHz,1050-1280MHz,1350-1450MHz,1550-1620MHz,2400-2485MHz,5150-5350MHz,5725-5850MHz | ● |
| Expandable defense band range | 400M-6GHz full band customizable | ● |
| Counteraction distance | 3km (depending on conditions) | ● |
| Lateral accuracy | 3 | ● |
| Operating termperature | -40℃-+60℃ | ● |
| Weight | 15kg+25kg | ● |
| Dimensions | 666mm^400mm (height’radius),/500mm^460mm^233mm(length^width"height) | ● |
5, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
6, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
7, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
8,Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.
9, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
