Directional Drone Jammer with 6GHz Operating Frequency 5km Detection Distance and IP65 Protection Level Vehicle-mounted Drone Defense Equipment

Name: Directional Drone Jammer with 6GHz Operating Frequency 5km Detection Distance and IP65 Protection Level Vehicle-mounted Drone Defense Equipment
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR100
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR100
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	7-20 DAYS
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Working Mode:

Radio Detection And Interference

Action Object:

UAV Map Transmission, Flight Control Link, Navigation Signal

Operating Frequency:

100MHz~6GHz

Detection Distance:

≥5km（Open And Accessible Areas）

Number Of Simultaneous Detections:

≥10（5 Different Manufacturers）

Detection Refresh Time:

≤2s

Power Consumption:

≤50W

Operating Frequency Band:

(890~940)±10MH Z (43±2)dBm ，(1550~1625)±10 MHz (40±2)dBm ， (2400~2500)±10 MHz (40±2)dBm ， (5700~5850)±10 MHz (40±2)dBm

Counter Distance:

≥2km

Countermeasure Frequency Band:

System Power Consumption:

≤1000W

Size:

φ*H:850mm*485mm

Weight:

≤50kg

Protection Level:

IP65

Working Temperature:

-20℃~55℃

Storage Temperature:

-60℃~125℃

System Power Supply:

220V AC

System Interface:

100/1000M Ethernet

Full Working Time:

≥1h

Packaging Details:

85cm*85cm*46.5cm，67.19kg

Supply Ability:

1000units per month

Highlight:

directional drone detector

2km drone detector

2km directional drone jammer

Product Description

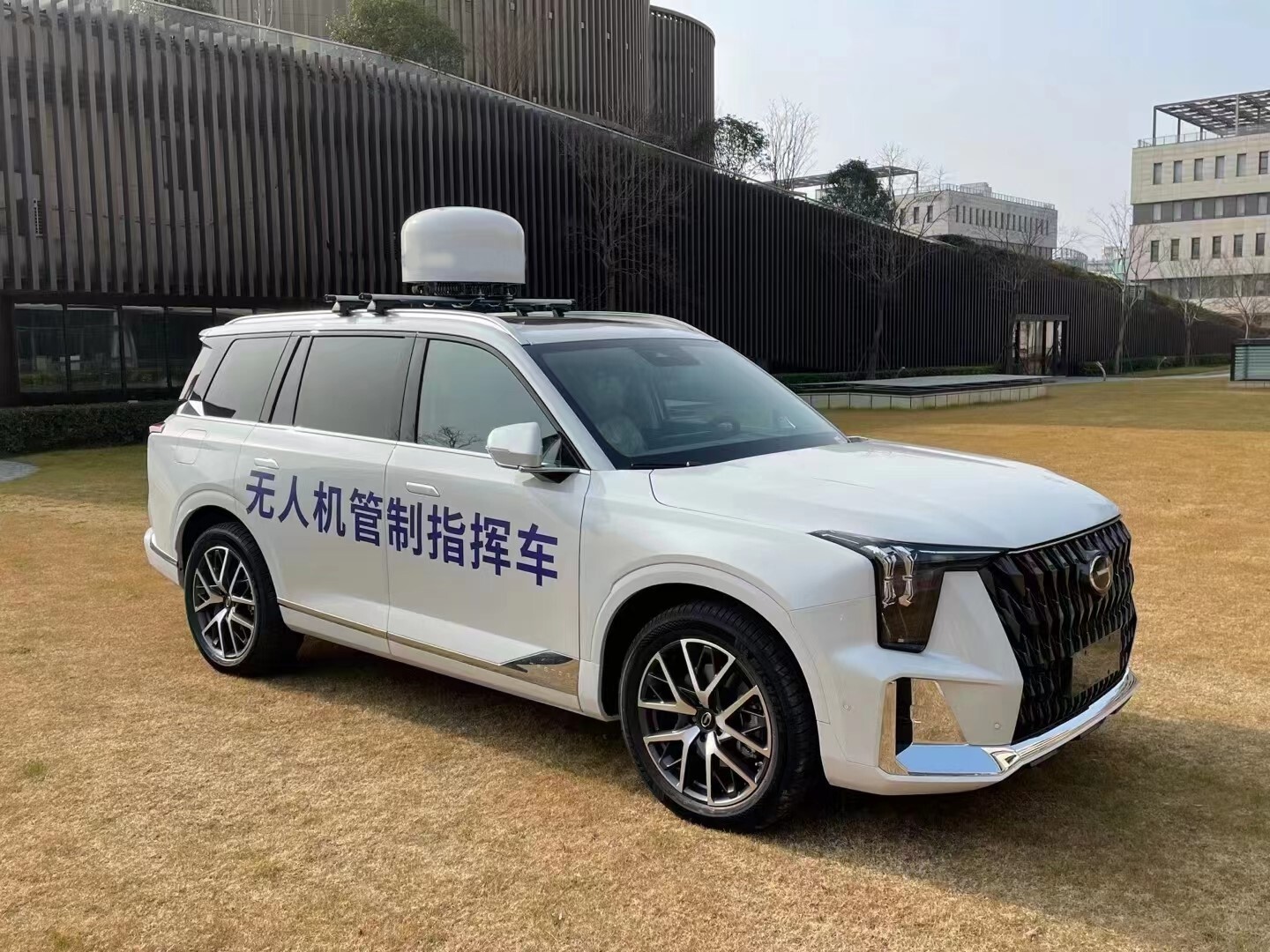

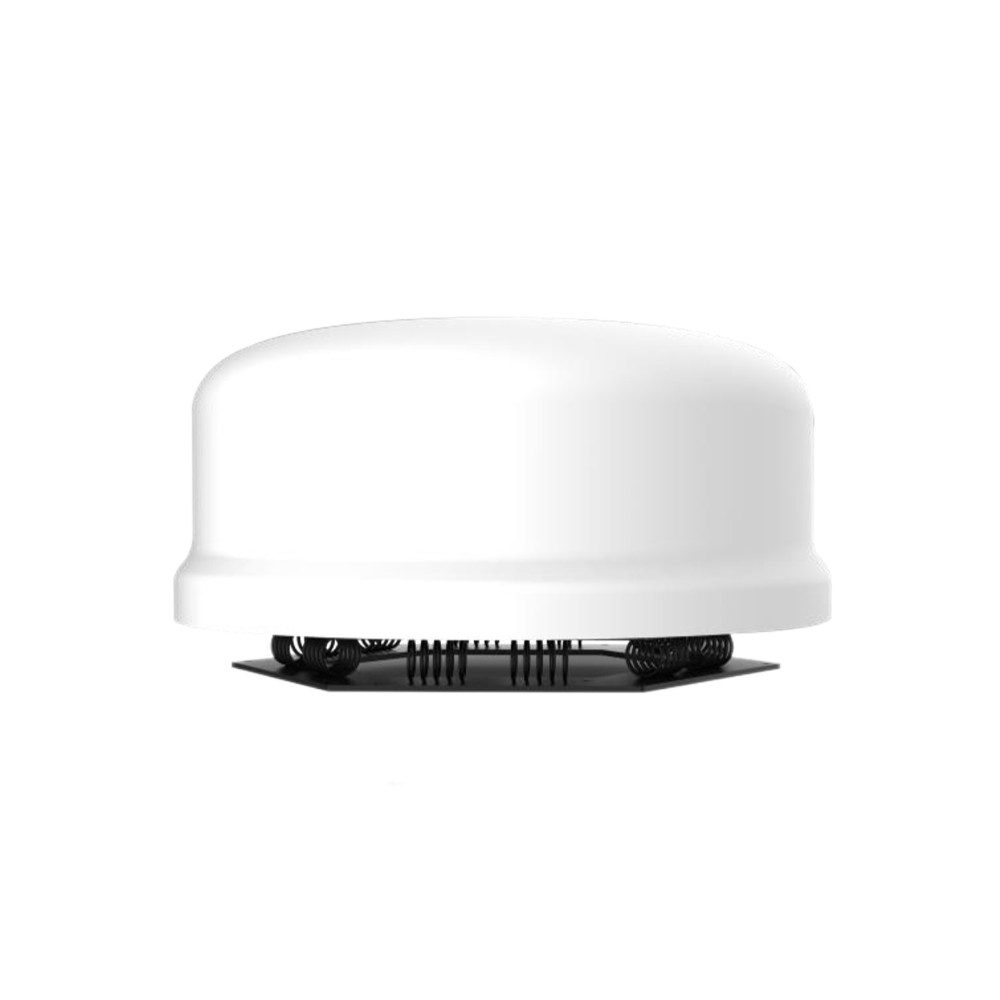

Directional Drone Jammer Vehicle-mounted Drone Defense Equipment-Vehicle-mounted detection and countermeasures DR100

DR100 vehicle-mounted detection and countermeasures equipment for UAV detection, identification and countermeasures. The system incorporates a variety of technologies such as spectrum sensing and machine learning to achieve detection and identification of drones using the received map signals between the drones and the remote control. It uses radio jamming and blocking technology for countermeasures, and can select directional or omnidirectional countermeasure modes as needed to achieve effective control of black-flying drones. The system can well meet the needs of sports events, major conferences and temporary events such as celebrations. Directional Drone Jammer with 6GHz Operating Frequency 5km Detection Distance and IP65 Protection Level Vehicle-mounted Drone Defense Equipment 1

System Features

Integrated detection and countermeasures design with all working modules housed in a protective cover featuring low wind resistance profile design for stability and safety during high-speed vehicle movement
Capability of UAV detection and countermeasures while in high-speed motion
Adaptable to different vehicle types without requiring vehicle modifications
Modular design with high extensibility, open external interfaces, and support for third-party system integration
Multiple devices can be networked for accurate positioning and tracking of drones
Detection unit equipped with direction finding capability, linking with directional countermeasure modules for precise and efficient strikes against illegal-flying UAVs
Countermeasure unit supports multiple working modes including efficient directional linkage countermeasures and stable omnidirectional dead-angle countermeasures
Utilizes no signal detection technology that doesn't affect normal use of wireless communication devices
Wide monitoring range with real-time spectrum analysis and electromagnetic spectrum management across 100MHz~6GHz frequency band
Power supply system uses stable, long-lasting high-performance vehicle power source

System Functions

Supports real-time updates of the UAV database
Features drone intrusion logging functionality
Monitors and displays spectrum of UAV signals received by detection unit in real-time
Supports online or offline GIS system with compatibility for Google, Bing, Gaode and other electronic maps
Supports sending location and equipment status information to designated servers for remote control and unified management
Unattended function with integrated inspection and countermeasures - automatically transmits interference signals upon drone detection
Provides information, icons, sound and light alarm prompts upon drone detection; can push drone invasion information to users via SMS
