MX330 330T High Speed Drone with 30m/s Flight Speed 1.5KG Payload and 50min Endurance Carbon Fiber Body

Name: MX330 330T High Speed Drone with 30m/s Flight Speed 1.5KG Payload and 50min Endurance Carbon Fiber Body
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: MX330 330T
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	MX330 330T
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Number Of Axis:

4 Quad

Not Equipped With Blade Size:

369*313*80.5mm

Symmetric Motor Wheelbase:

430mm

After Install Blade Size:

578.5*528.7*80.5mm

Flight Speed:

30m/s

Weight(battery-free):

950g

Cell Voltage:

26.4V

Blade Size:

10inch

Battery Life Time (empty Load):

50min

Battery Capacity:

8000mAh

Continuous Load:

1.5kg

Battery Weight:

815g

Video Transmission Range:

15KM

Supply Ability:

1000units per month

Highlight:

high speed drone 30m/s

carbonfiber body high speed drone

30m/s fpv drone high speed

Product Description

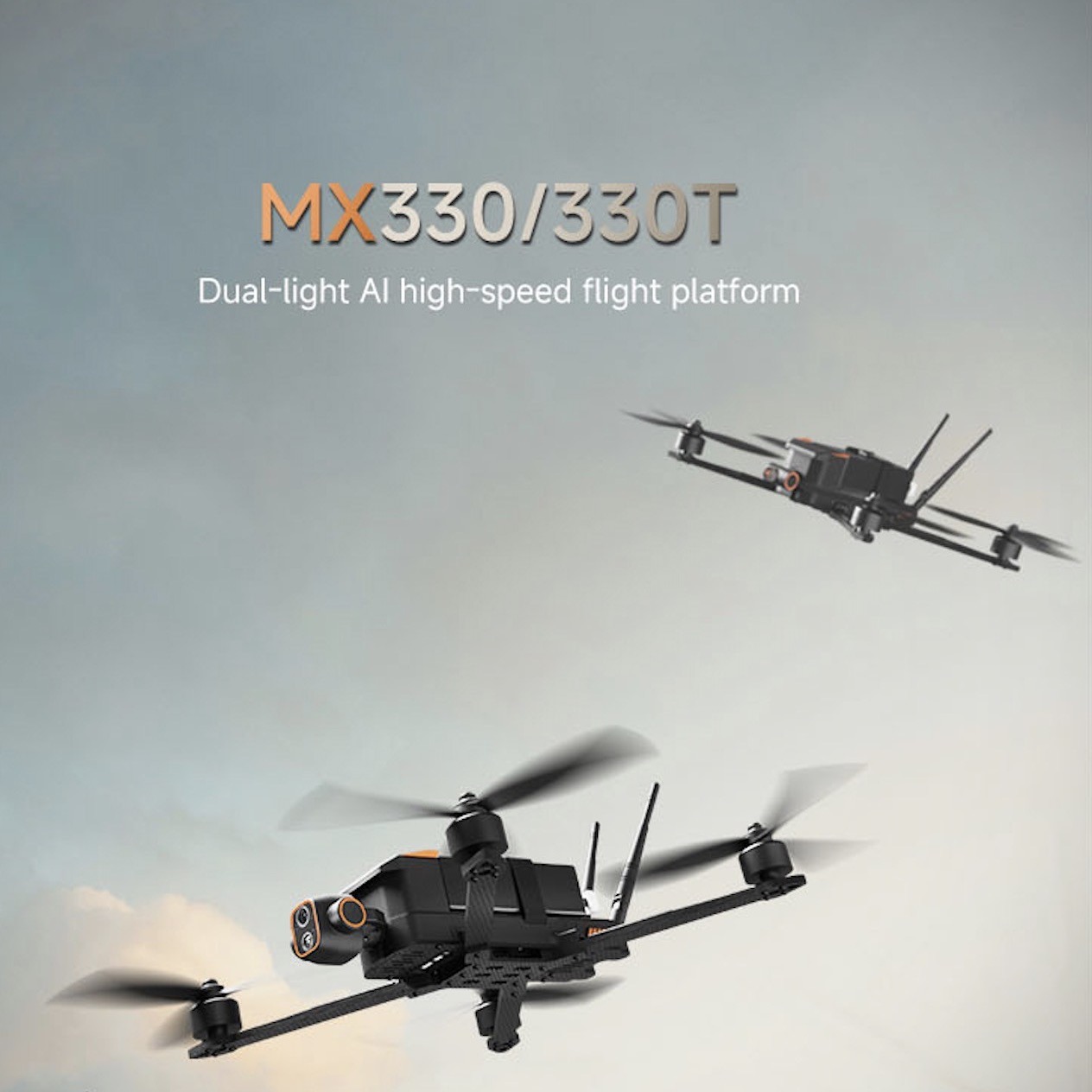

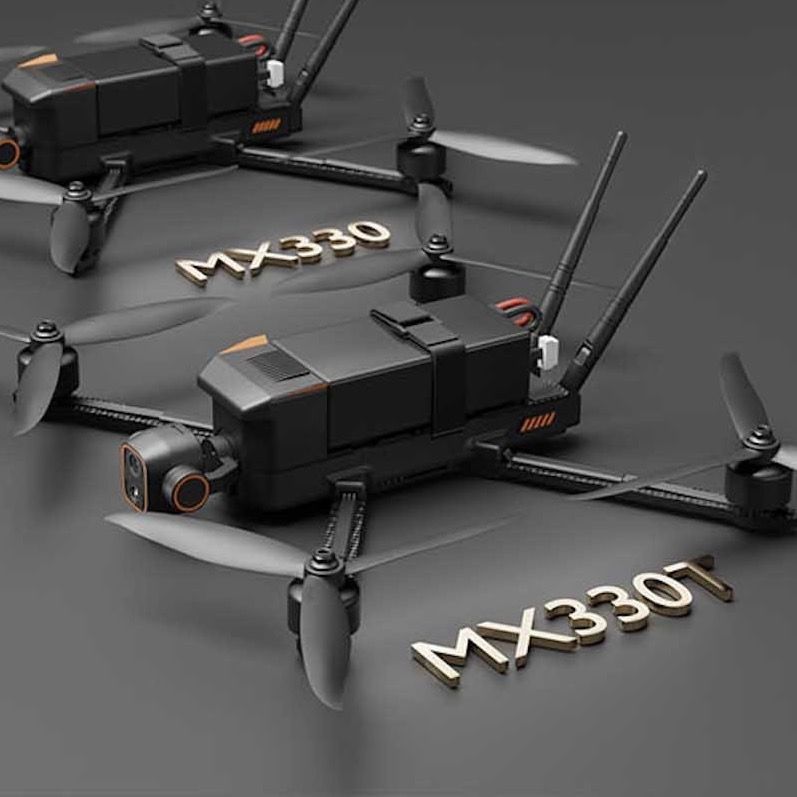

MX330/330T High-Speed Carbon Fiber Drone

High-speed drone with carbon fiber body, 50-minute endurance, and 1.5KG payload capacity. Features 30m/s flight speed and advanced imaging capabilities.

Product Overview

The MX330/330T is an AI-powered high-speed flight platform featuring a high-strength carbon fiber body. With up to 50 minutes of flight time (empty payload) and 15 minutes under 1.5KG load, this drone achieves precision flight at speeds up to 30m/s. When paired with the H12 Pro controller, it offers 15KM control range with 1080P HD video transmission, route planning, automatic execution, and AI dynamic tracking capabilities.

Camera Systems

MX330 Single Light Gimbal: Equipped with 2K high-definition distortion-free camera for realistic FPV perspective.

MX330T Dual Light Gimbal: Integrates 2K high-definition visible light camera with high-resolution thermal imaging for heat source detection.

Key Features

Carbon Fiber Frame

High-strength carbon fiber construction reduces weight while enhancing stability for operation in various environments.

Extended Endurance

8000 mAh battery provides up to 50 minutes of flight time with empty payload, outperforming traditional drones.

Heavy Payload Capacity

Superior power system supports 1.5KG payload with 15 minutes of flight time under full load.

High-Precision Flight

30m/s flight speed with 10-inch blades and built-in M10 high-precision GPS chip for accurate positioning.

Long-Range Control

H12 Pro remote control enables 15KM telemetry with real-time HD digital image transmission.

Single Light Camera (MX330)

2K ultra-clear distortion-free camera with 1080P real-time digital video transmission.

Dual-Light Camera (MX330T)

Combines high-definition visible camera with thermal imaging sensor for comprehensive field analysis.

Route Planning

Ground station integration enables automated route planning, destination flight, and automatic return home.

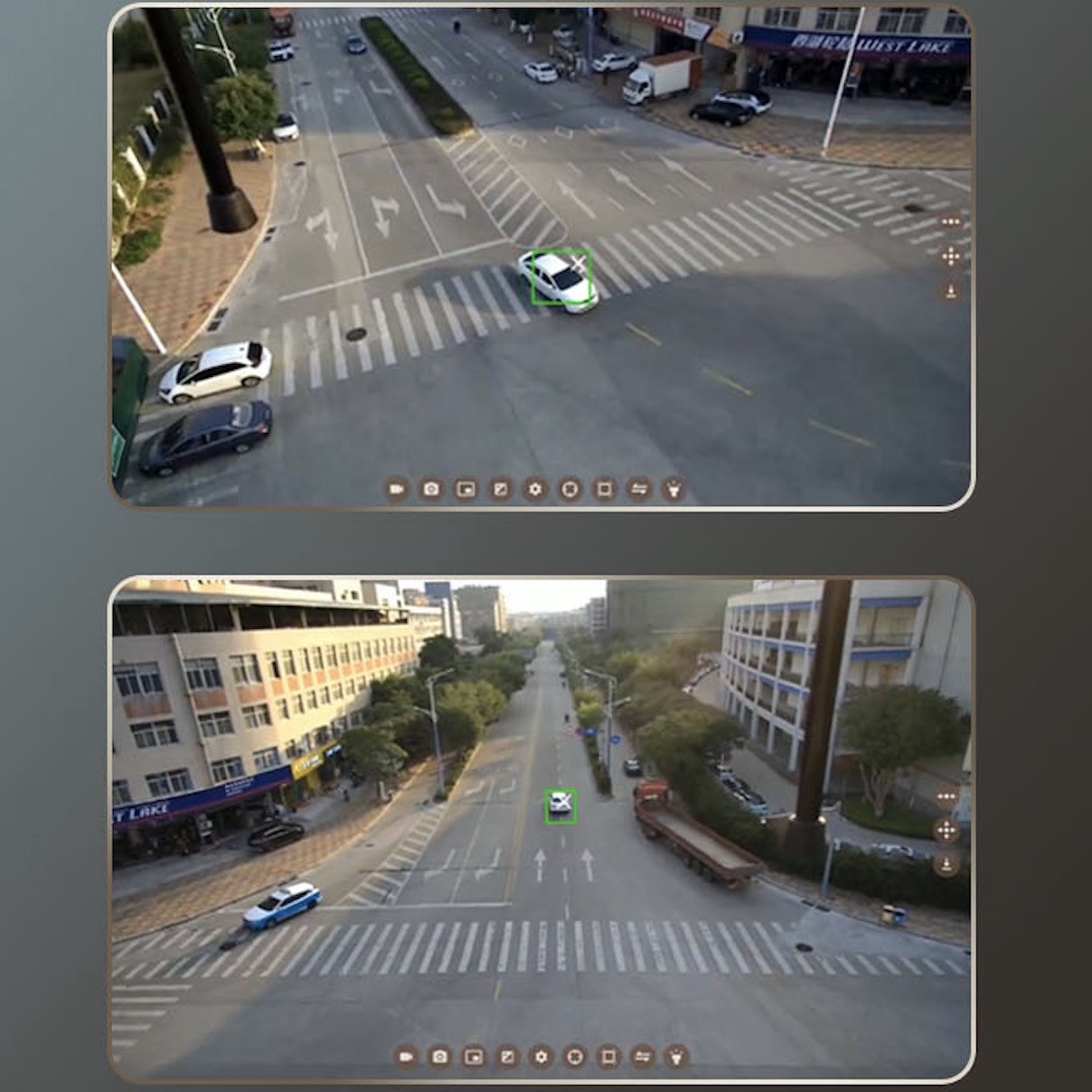

Dynamic Tracking

Intelligent algorithms with Skydroid FPV enable real-time target tracking and capture capabilities.

Technical Specifications

MX330/330T Drone Specifications

Parameter	Specification
Model	MX330/330T
Number of Axis	4 Quad
Size (without blades)	369×313×80.5mm
Symmetric Motor Wheelbase	430mm
Size (with blades)	578.5×528.7×80.5mm
Flight Speed	30m/s
Weight (battery-free)	950g
Cell Voltage	26.4V
Blade Size	10 inch
Battery Lifetime (empty load)	50min
Battery Capacity	8000mAh
Continuous Load	1.5kg
Battery Weight	815g
Video Transmission Range	15KM

Single Light Camera Specifications (MX330)

Parameter	Specification
Lens Specification	1/2.7 sensor EFL=2.4mm
Focal Length	f=3.38~14.41mm
Resolution	2K
Pixel	Effective pixel: 200W
Image Transmission Resolution	1080P
Video Recording Storage	Supports Micro SD storage (up to 32GB)

Dual-Light Camera Specifications (MX330T)

Visible Light Camera Parameters

Parameter	Specification
Lens Resolution	500w
Focal Length	f=3.5~4.75mm
Aperture	F2.0
HFOV/VFOV/DFOV	100°/52°/122°
Image Transmission Resolution	1280×720
Video Record Resolution	2560×1440
Storage Support	Supports Micro SD storage (up to 256GB)
File System	FAT32

Thermal Imaging Camera Parameters

Parameter	Specification
Resolution	384×288
Frame Rate	≤25Hz
Thermal Time Constant	<10ms
Focal Length	7mm
Aperture	F1.0
FOV	24.8×18.7
Pixel Spacing	12μm
Spectral Range	8~14μm

After-Sales Service

Lifetime free model library upgrades
Professional 24/7 online service
Customizable colors and languages
