Military Grade Fixed Drone Jammer and Anti Drone System with 5km-10km Detection and Passive Detection

Name: Military Grade Fixed Drone Jammer and Anti Drone System with 5km-10km Detection and Passive Detection
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200A
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200A
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection, Identification Distance:

5km-10km

Neutralization Distance:

1km-5km

Detection Azimuth:

≤10°（tracking）；≤ 3°（hovering）

Detection Frequency Range:

70MHz-6GHz

Key Detection Frequencies:

900MHz、1.5GHz、2.4GHz、5.8GHz

Defense Frequency Bands:

800 MHz、900MHz、1.2GHz、1.4GHz、1.5GHz、2.4GHz、5.2GHz、5.8GHz

Expandable Defense Band Range:

400M-6GHz Full Band Customizable

Counteraction Distance:

3km (depending On Conditions)

Lateral Accuracy:

Operating Termperature:

-40℃-+60℃

Weight:

15kg

Dimensions:

666mm^400mm (height’radius)

Packaging Details:

40mm*44mm*60mm, 22.4KG

Supply Ability:

1000units per month

Highlight:

fixed directional drone jammer

military fixed drone jammer

military directional drone jammer

Product Description

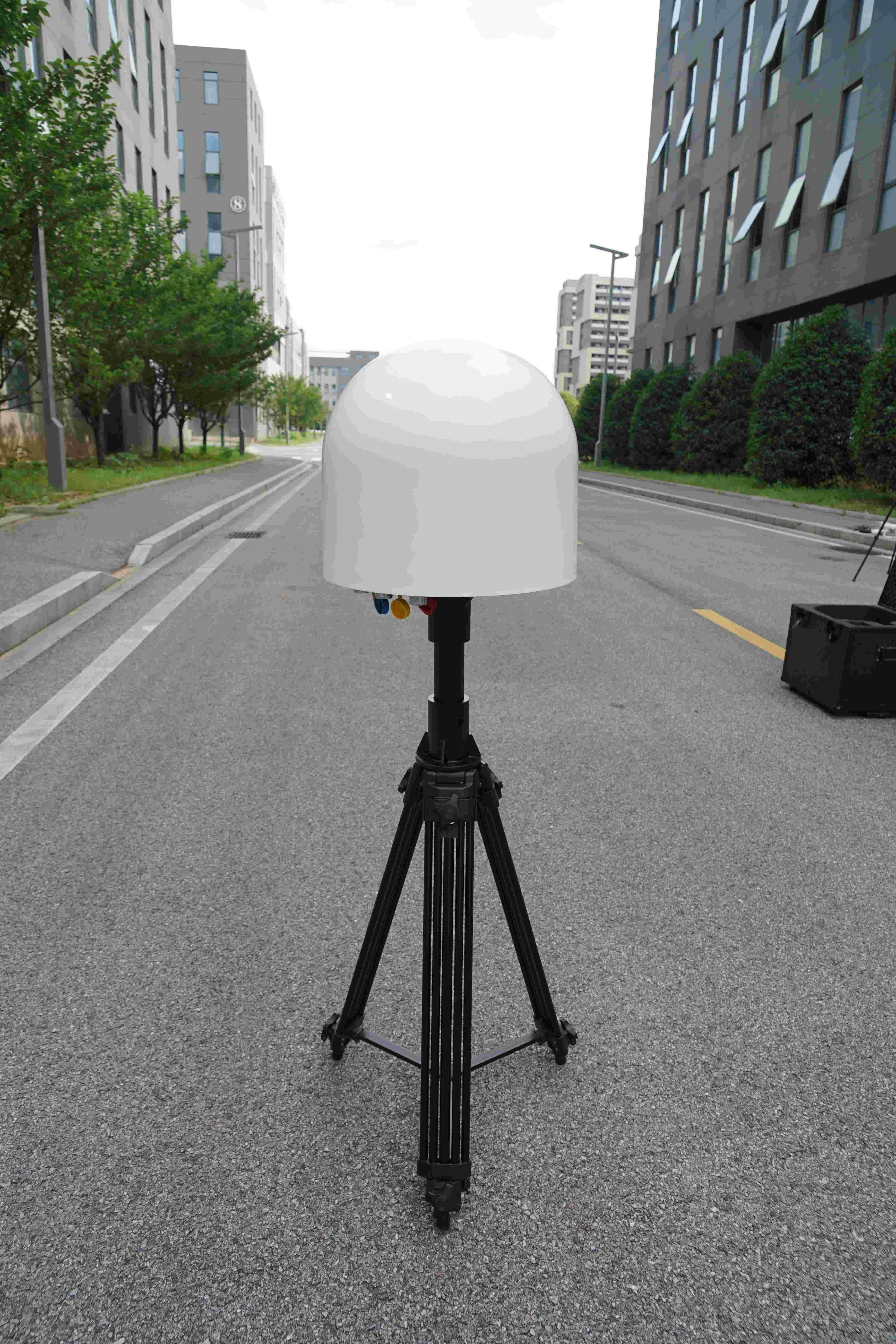

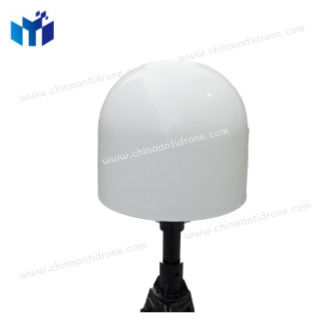

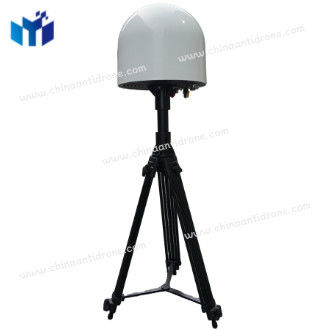

DR200A Fixed Military Grade Anti-Directional Drone Jammer & Positioning System

Directional Drone Jammer Fixed Drone Defense Equipment - Advanced Drone Detection and Positioning System DR200A

Product Overview

Detects various types of drone remote control and image transmission radio signals, identifying drone types and electronic fingerprints. Achieves comprehensive detection, early warning identification, and positioning tracking of drones, providing precise intelligence for defense operations.

Key Features

Passive Detection: Operates without emitting electromagnetic signals, ensuring no environmental interference
Precise Identification: Identifies and distinguishes multiple drones within the same frequency band
Unmanned Operation: Autonomous 24/7 continuous operation without human intervention
Black and White List: One-click management of authorized and unauthorized drones
Network Positioning: Supports coordinated positioning with multiple equipment sets
Comprehensive Model Library: Covers all mainstream consumer drone brands and models
Military-Grade Quality: Aerospace aluminum body, operates in -40°C to +60°C environments
Professional Support: Lifetime free model library upgrades, 24/7 online service

Technical Specifications

Specification	Value	Status
Detection & Identification Distance	3km-10km	●
Neutralization Distance	1km-5km	●
Detection Azimuth	≤10° (tracking); ≤3° (hovering)	●
Detection Frequency Range	70MHz-6GHz	●
Key Detection Frequencies	900MHz, 1.5GHz, 2.4GHz, 5.8GHz	●
Lateral Accuracy	3	●
Operating Temperature	-40°C to +60°C	●
Response Time	≤2S	●
Horizontal Azimuth	360°	●
Vertical Range	-45° to 90°	●
Minimum Height	0m	●
Defense Frequency Bands	800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz	○
Expandable Defense Band Range	400MHz-6GHz full band customizable	○
Counteraction Distance	3km (depending on conditions)	○
Weight	15kg	●
Dimensions	666mm × 400mm (height × radius)	●

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online technical support, customizable colors and language interfaces.

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging robust scientific research capabilities and industry expertise, MYT technology pioneers advancements in national security through IoT and artificial intelligence technologies. Our focus lies in AIoT research and development, creating an independent AIoT cloud+edge computing system architecture that integrates heterogeneous perception information including electromagnetic, optoelectronic, visual, and location data for comprehensive three-dimensional defense systems.

Our mission enables intelligent detection, behavior analysis, situation assessment, and precise response across ground and low-altitude environments, transitioning from passive to active defense strategies.

Certifications

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, capable of adapting to various severe incidents with military-grade quality assurance.

Partnership Portfolio

Our products are designed for various public safety scenarios and have long provided customized product services to military and public safety departments, earning excellent reputation in practical operations.

Packaging and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering 90% of global regions with reliable distribution networks.
