Directional Fixed Drone Jammer Anti Drone System with 3km Counteraction Distance Military-Grade Quality and Full Band Customizable

Name: Directional Fixed Drone Jammer Anti Drone System with 3km Counteraction Distance Military-Grade Quality and Full Band Customizable
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200B
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200B
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Key Detection Frequencies:

900MHz、1.5GHz、2.4GHz、5.8GHz

Defense Frequency Bands:

800 MHz、900MHz、1.2GHz、1.4GHz、1.5GHz、2.4GHz、5.2GHz、5.8GHz

Expandable Defense Band Range:

400M-6GHz Full Band Customizable

Counteraction Distance:

3km (depending On Conditions)

Lateral Accuracy:

Operating Termperature:

-40℃-+60℃

Weight:

28kg

Dimensions:

500mm^460mm^233mm(length^width"height)

Packaging Details:

54mm*74mm*40mm, 28KG

Supply Ability:

1000units per month

Highlight:

fixed drone countermeasure

3km drone countermeasure

3km fixed drone jammer

Product Description

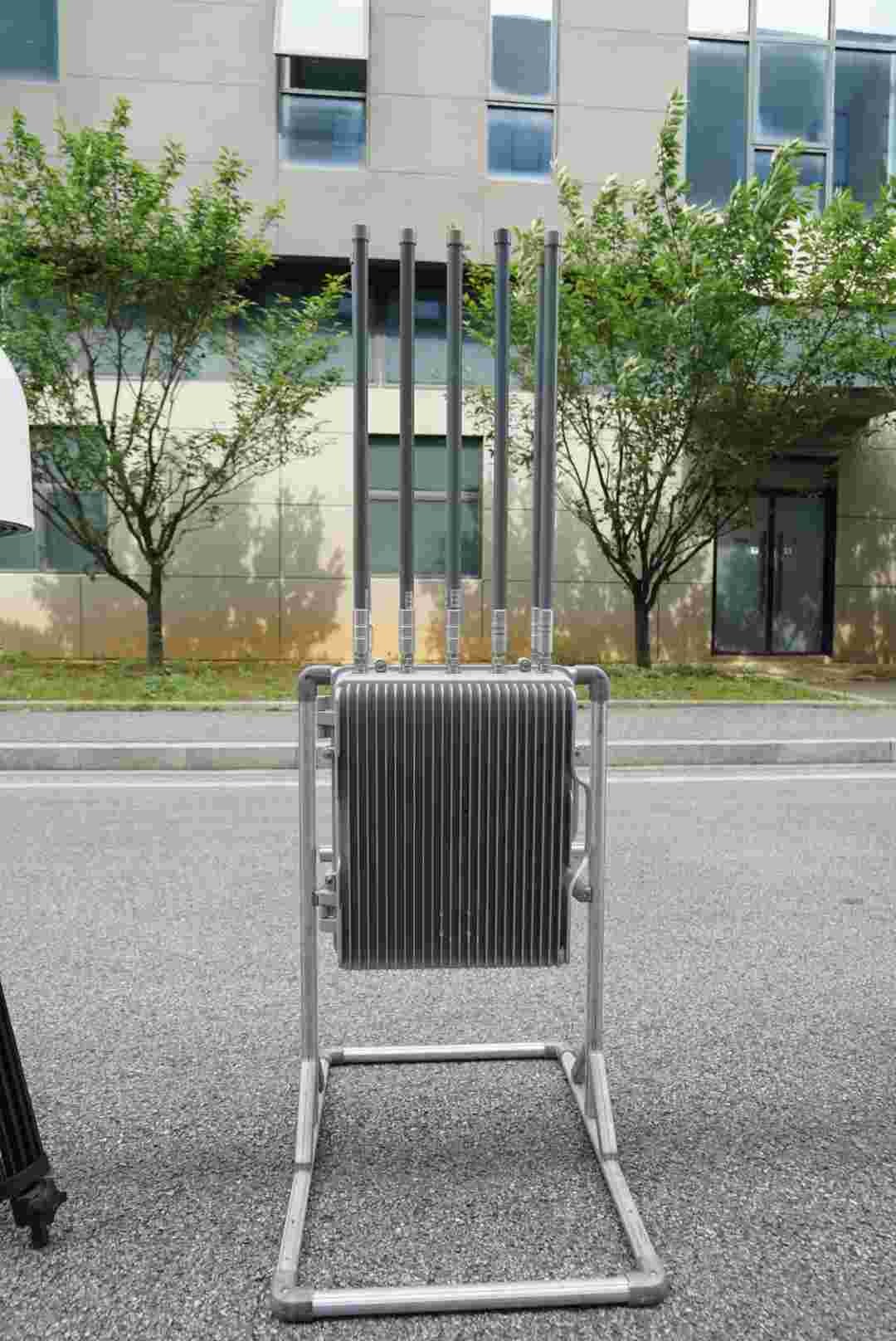

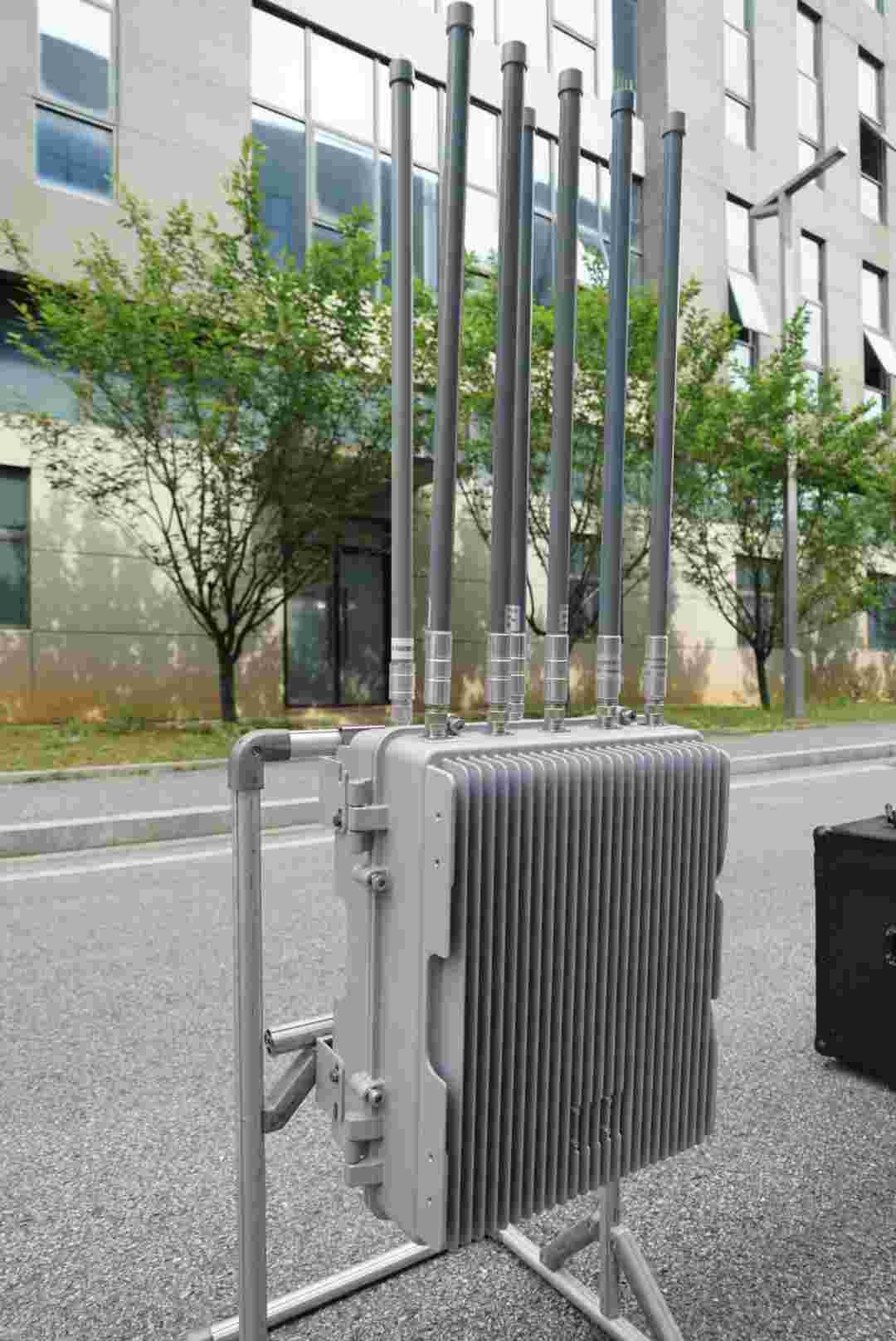

Directional Fixed Drone Jammer Defense Equipment DR200B

The DR200B Directional Drone Jammer is a fixed drone defense system equipped with multi-frequency interception modules that effectively counter RF-controlled drones. When activated, the system disrupts GPS signals, control signals, and image transmission between drones and their controllers, forcing unauthorized drones to land or return to their origin.

Cognitive Radio Protocol Cracking Technology: This fourth-generation UAV defense technology accurately demodulates drone communication frequency bands, channel information, and electronic IDs through reverse analysis and signal cracking, enabling targeted defense and precise control of unauthorized drones.

Key Features & Capabilities

Precision Identification: Supports expansion for full frequency band coverage
Drone Disruption: Exceptional performance in countering racing drones
Intelligent Management: Simple operation with advanced automation
Customized Services: Tailored countermeasure solutions for diverse requirements
Military-Grade Quality: Aerospace aluminum construction, operational from -40°C to +60°C
Professional Support: Lifetime model library upgrades, 24/7 online service

Technical Specifications

Parameter	Specification	Status
Detection & Identification Distance	5km-10km	○
Neutralization Distance	1km-5km	○
Detection Azimuth	≤10° (tracking); ≤3° (hovering)	○
Detection Frequency Range	70MHz-6GHz	○
Key Detection Frequencies	900MHz, 1.5GHz, 2.4GHz, 5.8GHz	○
Defense Frequency Bands	700-840MHz, 840-930MHz, 1050-1280MHz, 1350-1450MHz, 1550-1620MHz, 2400-2485MHz, 5150-5350MHz, 5725-5850MHz	●
Expandable Defense Range	400M-6GHz full band customizable	●
Counteraction Distance	1km-2km (Omnidirectional); 2km-3km (Directional)	●
Operating Temperature/Humidity	-20℃ to +50℃ / ≤80%	●
Weight	28kg (excluding antennas and mounting hardware)	●
Dimensions	47cm × 38cm × 28cm (excluding antennas and brackets)	●
Antenna Dimensions	750mm length × 32mm diameter	●
Antenna Type	High Gain Omnidirectional Antennas (8 pieces)	●
Power Supply	AC: 110V-240V; DC: 28V	●

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online technical support, and customizable colors and language options.

Manufacturer Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is an advanced enterprise established through collaboration between the Chinese Academy of Sciences IoT Research Center, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team with $12 million investment. Leveraging scientific research capabilities and industry expertise, MYT technology specializes in AIoT research and development, creating an independent cloud+edge computing architecture for comprehensive three-dimensional defense systems against intrusion.

Certifications & Compliance

Certified The DR200B has obtained dual certification from the Ministry of Public Security and the National Security Center, featuring military-grade quality capable of adapting to various severe operational scenarios.

Partnership Portfolio

Our products are designed for diverse public safety applications and have provided customized solutions to military and public safety departments, earning excellent operational reputation in practical deployments.

Packaging & Delivery

Supports multiple logistics methods including shipping, air freight, water transport, and express delivery, covering 90% of global regions with reliable distribution networks.
