60MHz To 6GHz Directional Drone Jammer With 5km Detection Range And Military-Grade Quality Fixed Drone Defense Equipment

Name: 60MHz To 6GHz Directional Drone Jammer With 5km Detection Range And Military-Grade Quality Fixed Drone Defense Equipment
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200AB-1
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200AB-1
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection, Identification Distance:

5km-10km

Neutralization Distance:

1km-5km

Detection Azimuth:

≤10°（tracking）；≤ 3°（hovering）

Detection Frequency Range:

70MHz-6GHz

Key Detection Frequencies:

900MHz、1.5GHz、2.4GHz、5.8GHz

Defense Frequency Bands:

410-480MHz\ 650-850MHz\ 850-1080MHz\ 1080-1200MHz\ 1200-1340MHz\ 1340-1500MHz\ 1560-1620MHz\ 1620-1800MHz\ 1800-2000MHz\ 2000-2300MHz\ 2300-2450MHz\ 2450-2600MHz\ 2600-2800MHz\ 2800-3000MHz\ 3000-3300MHz\ 3400-3600MHz\ 3600-3800MHz\ 3800-4000MHz\ 4200-4600

Expandable Defense Band Range:

400M-6GHz Full Band Customizable

Counteraction Distance:

3km (depending On Conditions)

Lateral Accuracy:

Operating Termperature:

-40℃-+60℃

Weight:

15kg+80kg

Dimensions:

666mm^400mm (height’radius),/500mm^460mm^233mm(length^width"height)

Packaging Details:

54mm*74mm*40mm, 100KG

Supply Ability:

1000units per month

Highlight:

6ghz directional drone jammer

directional drone jammer fixed

military drone countermeasure

Product Description

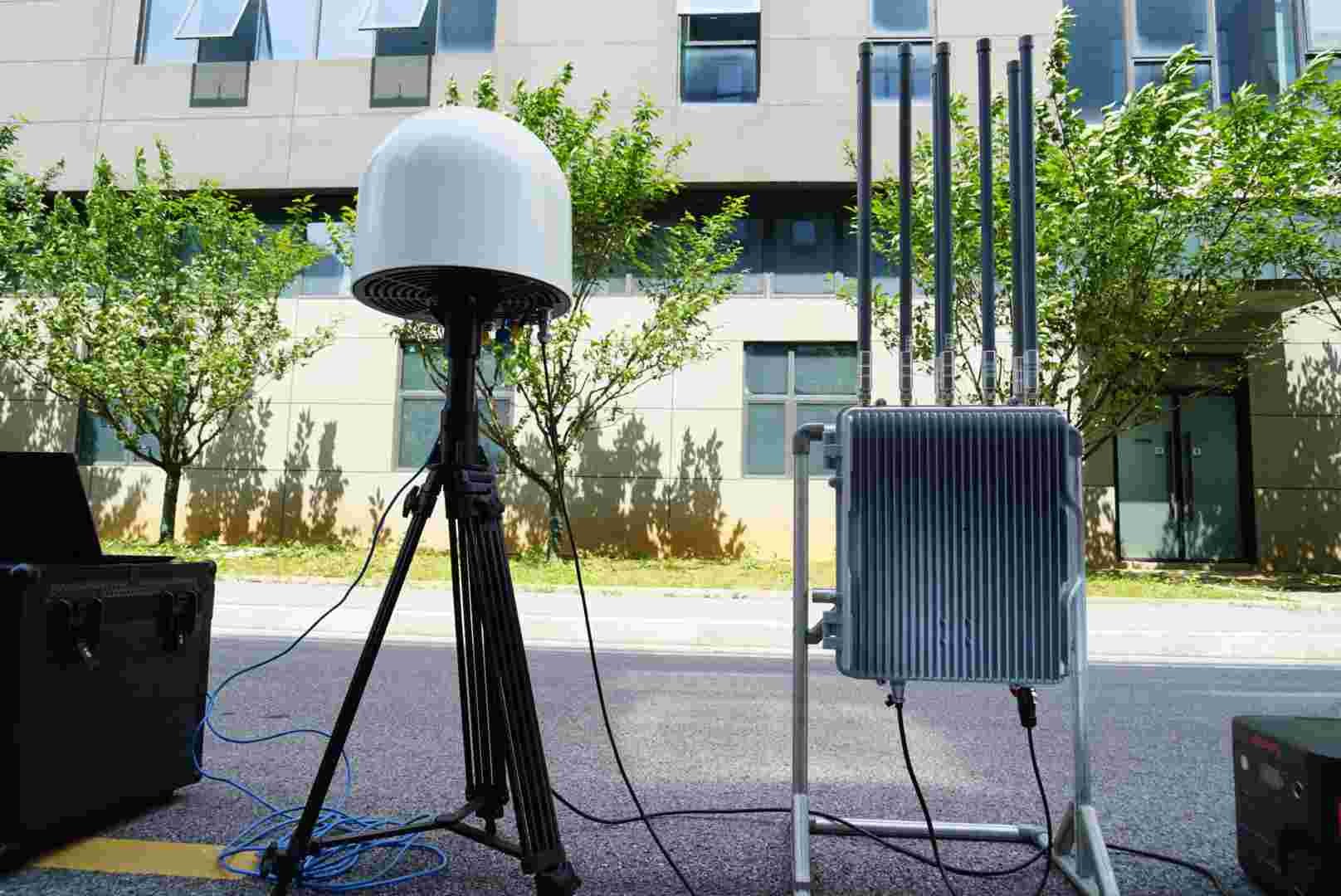

DR200AB1 Fixed Military Drone Jammer & Positioning System

Advanced directional drone jammer operating from 60MHz to 6GHz, designed for military-grade drone countermeasure and positioning applications. This fixed drone defense equipment provides comprehensive detection, identification, and neutralization capabilities for civil low-altitude, slow-moving small drones.

Product Overview

The DR200AB1 system meets international low-altitude security requirements through passive detection, friend-or-foe identification, and precise strike capabilities. Utilizing Cognitive Radio Protocol Cracking technology, this fourth-generation UAV defense system provides comprehensive security for airports, prisons, important bases, sports venues, and major events.

Core Functions

Frequency-based UAV detection across 70MHz-6GHz spectrum
Complete detection, location, identification and tracking capabilities
Automatic detection and alarm triggering within effective range
Integrated UAV detection and interference with unattended operation
Identification of mainstream UAV manufacturers and models
Automatic UAV type recognition with continuous database updates
Automatic interference forcing UAVs to land or return
Weather-resistant 24/7 operation capability
Rapid vehicle installation and deployment
Safe operation without affecting humans or electronic equipment

Technical Highlights

Specialized Drone Interference

Latest DDS core algorithm providing strong frequency modulation and FPV drone interference capabilities

Comprehensive Detection Coverage

70MHz-6GHz full frequency coverage with complete drone model library

Customizable Strike Frequencies

23 frequencies covering 400-6.2GHz spectrum

Flexible Networking

Platform separation and pairing with other detection/strike devices

1+N Efficient Device Linkage

Free access to low-altitude defense platform integrating radar and observation devices

AI Self-Learning

Drone signal collection module for autonomous learning and feature library definition

Military-Grade Quality

Aerospace aluminum body operating in -40°C to +60°C environments

Professional Support

Lifetime model library upgrades and 24/7 technical service

Technical Specifications

Parameter	Specification
Detection, identification distance	5km-10km
Neutralization distance	1km-5km
Detection Azimuth	≤10°(tracking)；≤ 3°(hovering)
Detection frequency range	70MHz-6GHz
Key detection frequencies	900MHz,1.5GHz,2.4GHz,5.8GHz
Defense frequency bands	700-840MHz,840-930MHz,1050-1280MHz,1350-1450MHz,1550-1620MHz,2400-2485MHz,5150-5350MHz,5725-5850MHz
Expandable defense band range	400M-6GHz full band customizable
Counteraction distance	3km (depending on conditions)
Lateral accuracy	3
Operating temperature	-40℃-+60℃
Weight	15kg+25kg / 15kg+80kg
Dimensions	666mm×400mm (height×radius) / 500mm×460mm×233mm (length×width×height)

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online technical support, with customizable colors and language options.

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging robust scientific research capabilities, MYT technology pioneers advancements in national security through IoT and artificial intelligence technologies. Our AIoT research focuses on creating independent cloud+edge computing system architecture that integrates heterogeneous perception information including electromagnetic, optoelectronic, visual, and location data into comprehensive three-dimensional defense systems.

Certification & Compliance

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, capable of adapting to various severe incidents with military-grade quality standards.

Partnership Portfolio

Our products are designed for various public safety scenarios and have long provided customized product services to military and public safety departments, earning excellent reputation in practical operations.

Packaging & Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering 90% of global regions with reliable logistics networks.
