Vehicle Anti UAV FPV Device with 1KM-2KM Interference Range IP65 Protection Level and DDS Core Algorithm for Anti Drone System

Vehicle Anti UAV FPV Device with 1KM-2KM Interference Range IP65 Protection Level and DDS Core Algorithm for Anti Drone System

Brand Name:	MYT
Model Number:	DR100-C8
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Action Object:

Drone Map Transmission,Flight Control Link

Interference Range:

1KM-2KM

Power Consumprion:

≤50W

Dimensions:

700mm*400mm(Radius*Height)

Protection Level:

IP65

Storage Temperature:

-60°-150°

Supply Ability:

1000units per month

Highlight:

compound eye wide field camera

ominamatrix wide field camera

ominamatrix ptz camera outdoor

Product Description

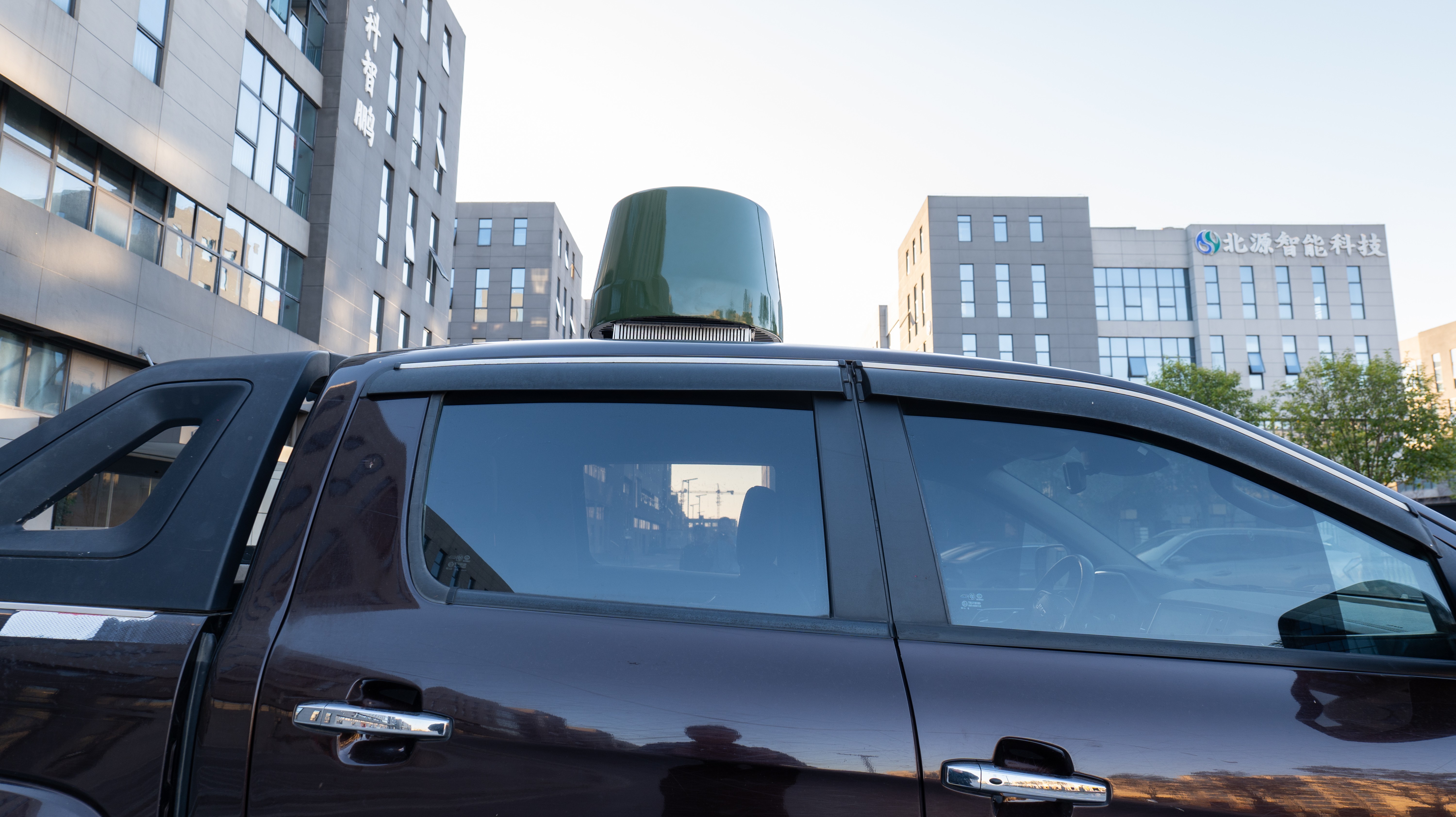

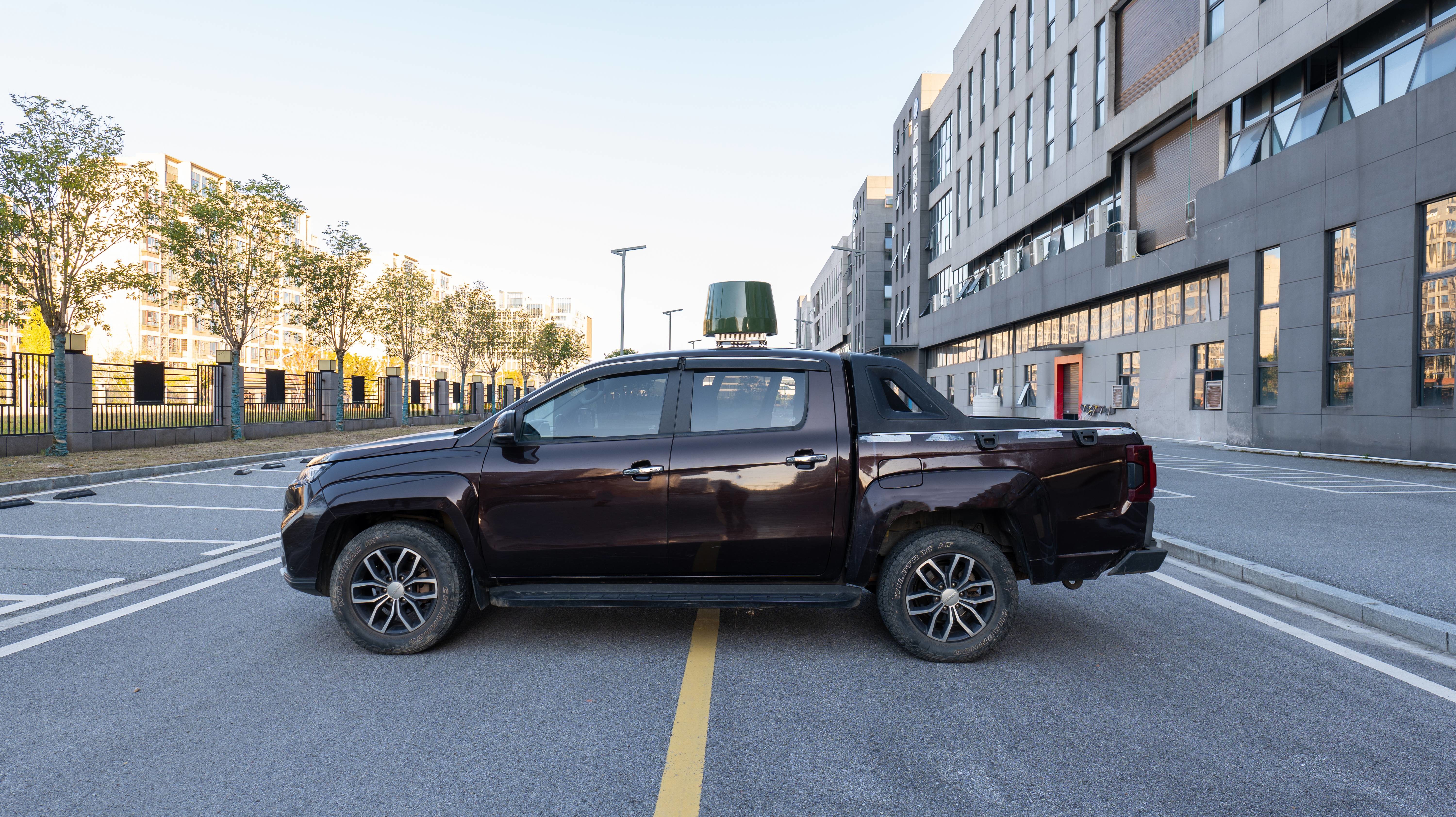

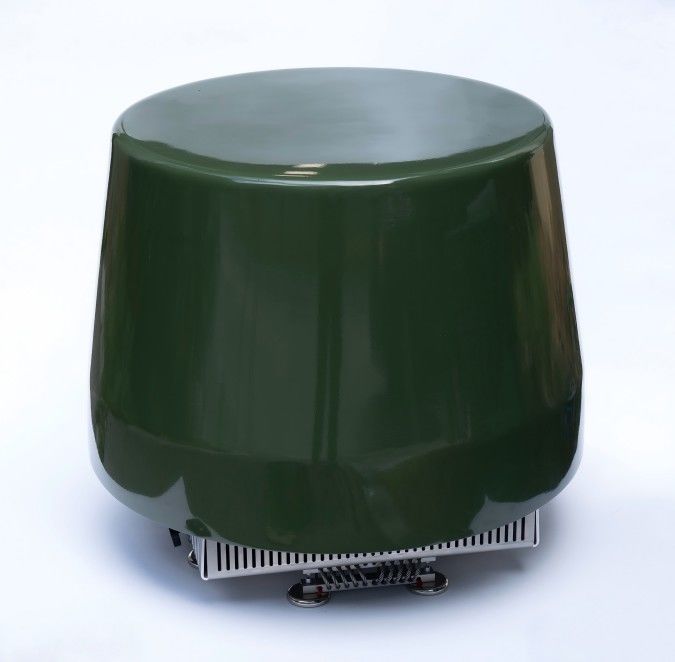

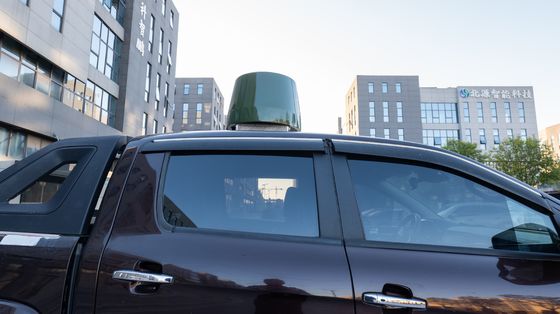

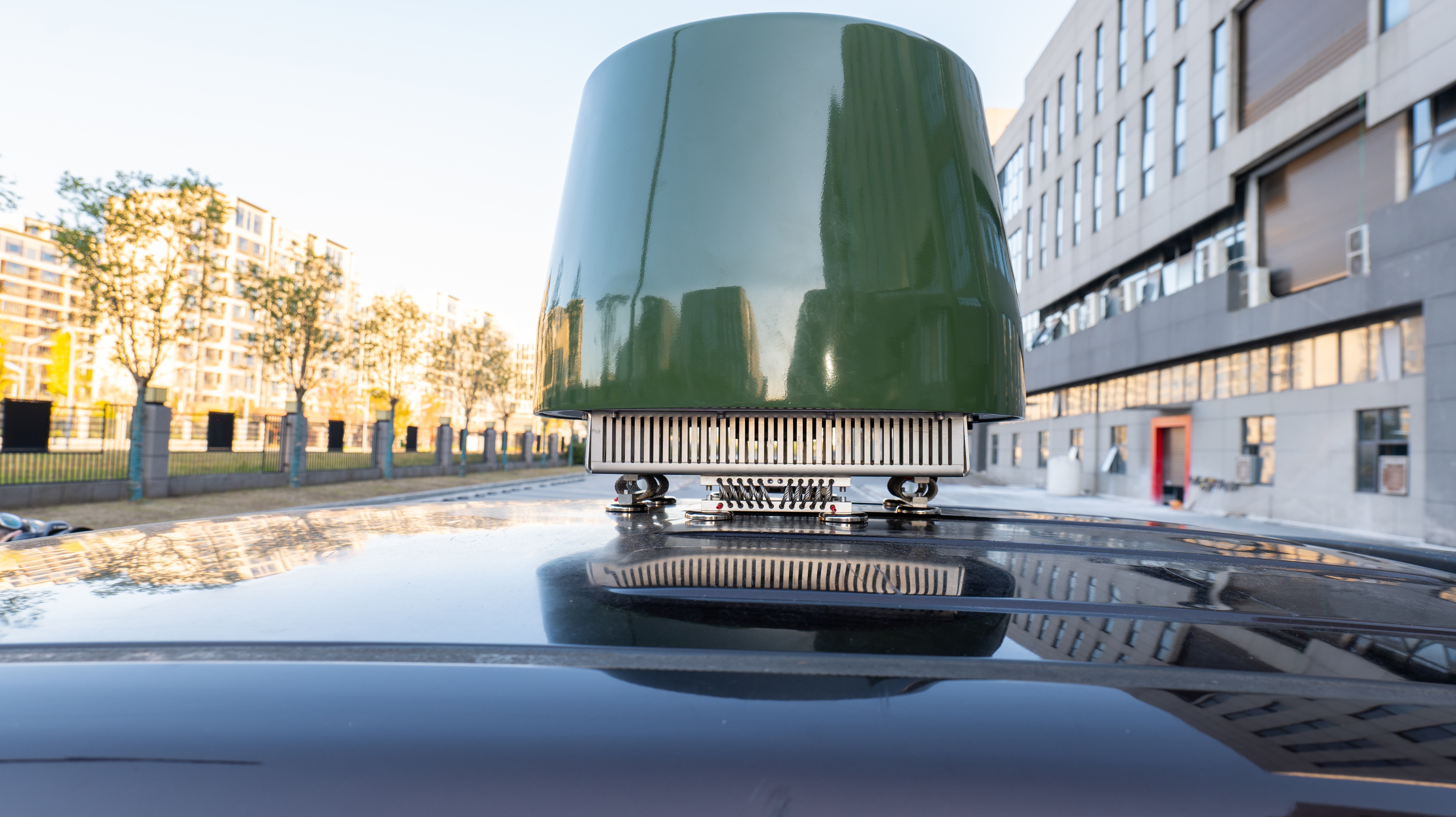

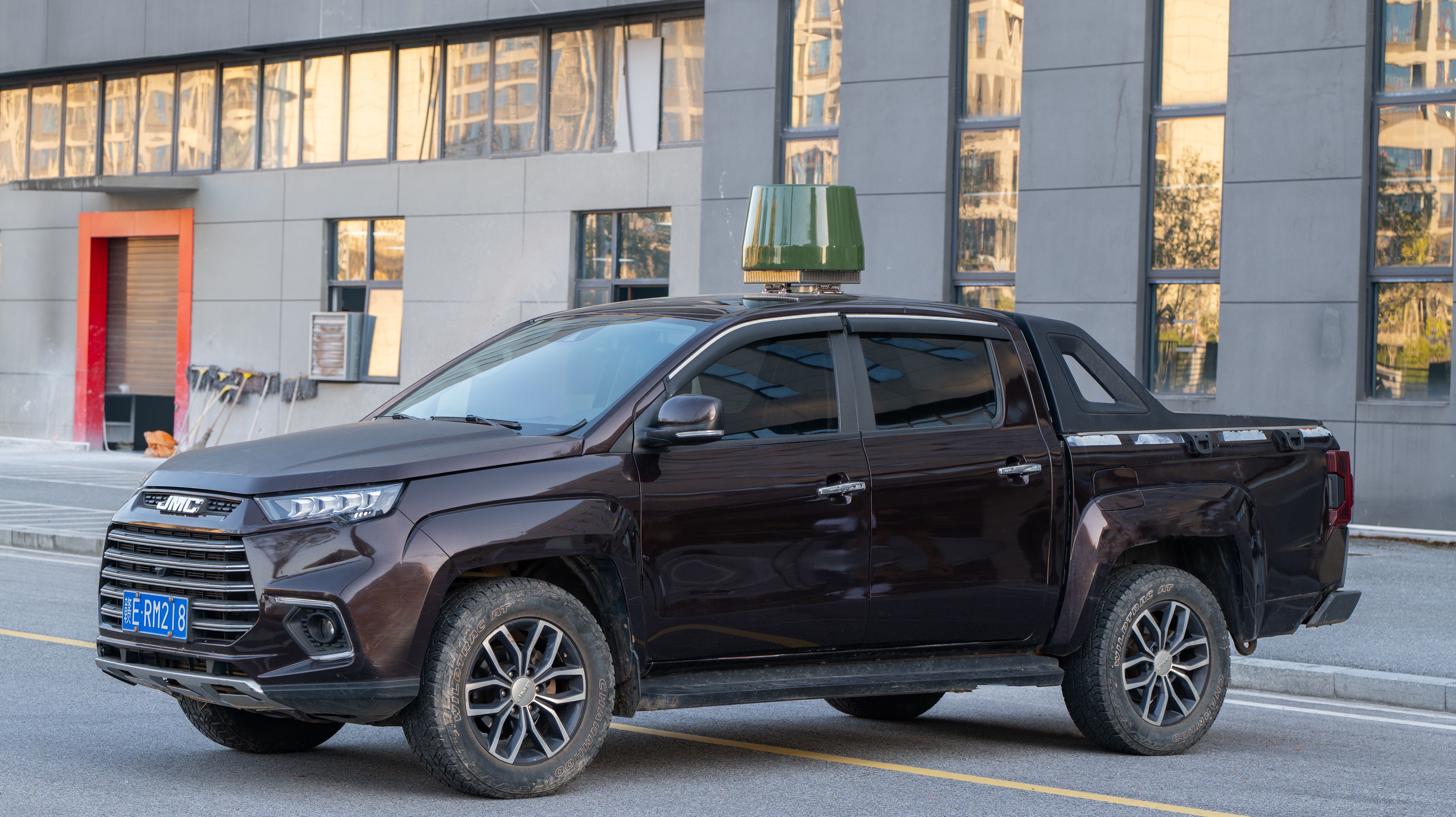

Vehicle-Mounted FPV Drone Defense System

Advanced anti-UAV protection system designed for vehicle installation, providing comprehensive defense against FPV drones through signal jamming technology.

Product Overview

This vehicle-mounted FPV defense system disrupts drone operations by jamming remote control, data transmission, video transmission, and navigation signals, forcing unauthorized drones to lose control and execute emergency landings.

Key Features

Effective FPV Interference: Utilizes DDS core algorithm to disrupt frequency modulation, spread spectrum, and FPV drones
Comprehensive Coverage: Supports 12 interference frequency bands (customizable) for full FPV drone frequency coverage
Flexible Operation: Select individual or multiple frequency bands for targeted interference
Multiple Deployment Modes: Supports both fixed installation and vehicle-mounted operation
System Integration: Compatible with drone detection modules or standalone operation
Military-Grade Construction: High-performance wave transmitting materials with aviation aluminum structure
Extreme Environment Operation: Functions reliably in temperatures from -40℃ to +60℃

Technical Specifications

Place of Origin	China
Product Name	Vehicle-mounted FPV Defense Equipment RF DR100-C8
Action Object	Drone Map Transmission, Flight Control Link
Operating Frequency	400M-500MHz, 630M-780MHz, 770M-900MHz, 890M-1020MHz, 1220M-1360MHz
Interference Range	1KM-2KM
Power Consumption	≤50W
Weight	≤40KG
Protection Level	IP65
Storage Temperature	-60°C to 150°C
Dimensions	700mm * 400mm (Radius * Height)

Internal Structure

After-Sales Service

24/7 technical support and customer service
Online technical support for usage and quality issues
3-month return policy for unsatisfactory products (undamaged items)
Product modification discussions and reshipment options
DDP shipping agreement applicable

Business Partnerships

African Parks Counter-UAV Strategic Partnership

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products and accumulated various technical patents.

Our products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, providing 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.

Certifications

Our products have obtained dual certification from the Ministry of Public Security and the National Security Center, with military-grade quality capable of adapting to various severe operational conditions.
