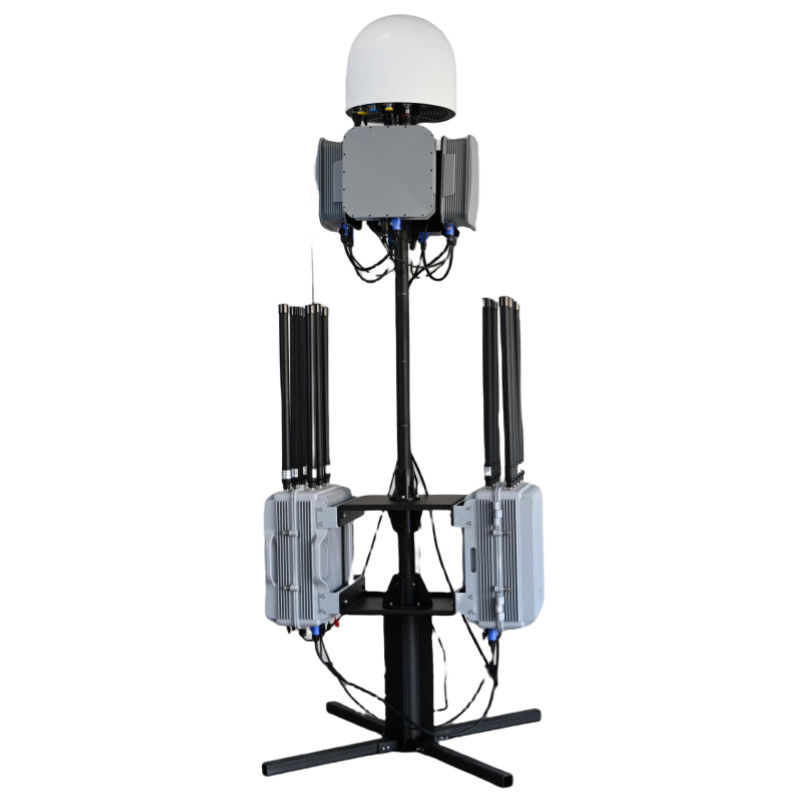

Directional Drone Jammer Fixed Anti Drone Detector Defense Equipment 10km 5km Fixed Drone Detection and Jamming Device

       1

Detection frequency bands

70MHz-6GHz full frequency band scanning, detection and display

       2

Key detection frequency bands

800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

       3

Detection distance

≥10km (depends on working conditions)

       4

Detection range

The horizontal detection angle can reach 360°

Vertical detection range: -90°～90°

       5

Detection response time

The time required from when the equipment is powered on to when it discovers and reports the drone ≤ 10s

       6

Direction finding accuracy

≤±3° (RMS, Under site conditions with no obvious obstructions or obvious electromagnetic interference)

       7

Detection display

Drone distance, flight altitude, speed, position (including longitude and latitude, and required to be accurate to 1 meter), drone model, drone SN code, drone take-off point, drone return point, drone real-time trajectory, etc.

       8

Jamming distance

≥3km (depends on working conditions)

       9

Interference azimuth coverage

The horizontal detection angle can reach 360°

     10

Jamming frequency bands

Omnidirectional jamming frequency bands:

410MHz-480MHz      50W

650MHz-750MHz      50W

750MHz-850MHz      50W

850MHz-1080MHz     50W

1080MHz-1200MHz    50W

1200MHz-1340MHz    50W

1340MHz-1500MHz    50W

1560MHz-1620MHz    50W

4000MHz-4300MHz    50W

5950MHz-6200MHz    50W

5100MHz-5300MHz    50W

5700MHz-5950MHz    100W

2450MHz-2600MHz    100W

     11

Directional jamming frequency bands:

850MHz-1080MHz     50W

240MHz-2450MHz     50W

5750MHz -5850MHz    50W

5100MHz-5200MHz    30W

     12

Jamming response time

≤7s

     13

Cloud platform

(1) Unattended and manual control functions: The system can automatically complete drone detection, identification, alerting, localization, and mitigation. The software automatically activates jamming devices, and based on the drone's location information from monitoring devices, it provides fully automated tracking interference.

(2) Blacklist and whitelist functions

(3) High-definition GIS system: It presents surrounding environment information, device deployment points, and other relevant details.

(4) Equipped with log playback and statistical records: drone intrusion log, the log displays angle, alarm time, frequency information, drone intrusion records can be played back, and drone intrusion statistical reports can be provided;

(5) Positioning and automatic north calibration: The system features GPS positioning, allowing the location to be marked on a map, and it is capable of automatic north calibration.

(6) It has drone signal extraction and addition functions: it can automatically collect unknown drone signals, automatically extract parameters, and add them to the drone feature library through manual confirmation;

(7) It has the ability to display device offline, standby, power-off, and abnormal status.

     14

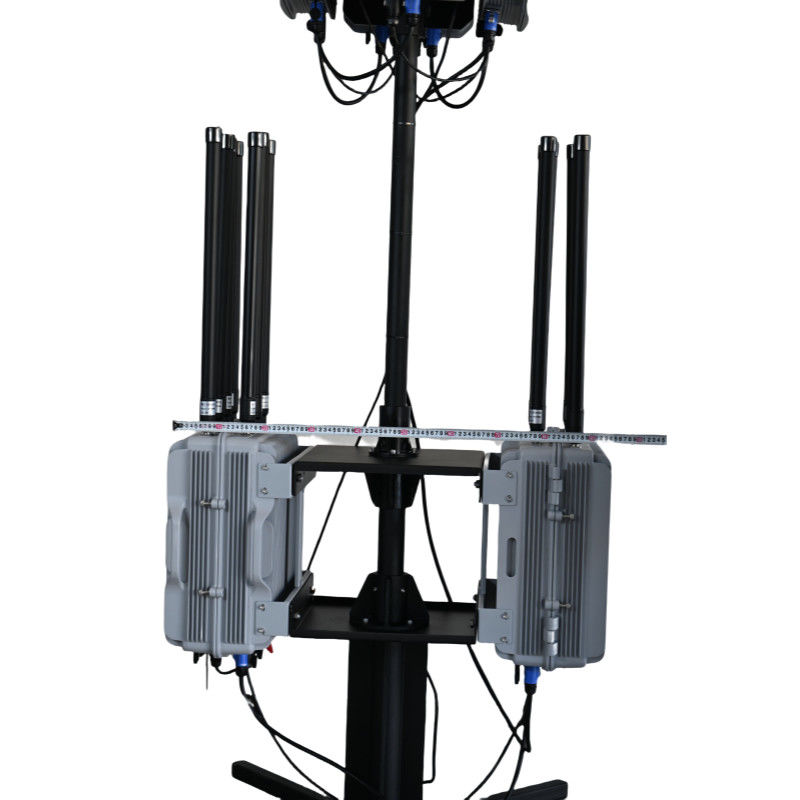

Jamming device (omnidirectional)*2

Weight: single device≤31kg

     15

Size: Length 520mm*width 465mm*height 275mm

     16

Description:

Main device and secondary device (see the logo) to achieve omnidirectional jamming

     17

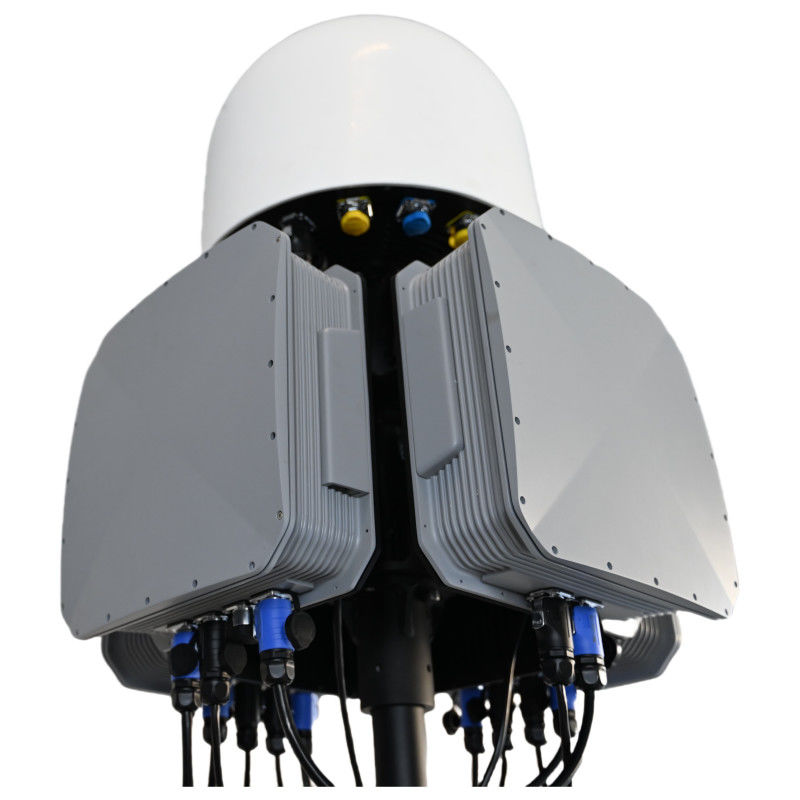

Jamming device (directional)*4

Weight: single device≤5kg

     18

Size: Length320mm*width 320mm*height 110mm

     19

Description:

Divided into four sides, four host devices in total (see the logo), to realize directional jamming in key frequency bands

     20

Detection device weight

≤15kg

     21

Detection device size

Diameter 400mm*height 370mm

     22

Device total weight

≤150kg

     23

Device total size

Diameter 1000mm*height 2400mm

     24

Working temperature

-40℃~60℃
