15kg 360° Anti UAV Drone Jammer System with ≤10° Tracking Azimuth for Precise Detection and Jamming

Brand Name:	MYT
Model Number:	DR200A
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Operating Termperature:

-40℃-+60℃

Expandable Defense Band Range:

400M-6GHz Full Band Customizable

Detection Azimuth:

≤10°（tracking）；≤ 3°（hovering）

Detection Frequency Range:

70MHz-6GHz

Defense Frequency Bands:

800 MHz 900MHz 1.2GHz 1.4GHz 1.5GHz 2.4GHz 5.2GHz 5.8GHz

Counteraction Distance:

3km (depending On Conditions)

Detection, Identification Distance:

5km-10km

Lateral Accuracy:

Packaging Details:

40mm*44mm*60mm, 22.4KG

Supply Ability:

1000units per month

Highlight:

15kg anti uav drone jammer

15kg portable anti drone jammer

3km anti uav drone jammer

Product Description

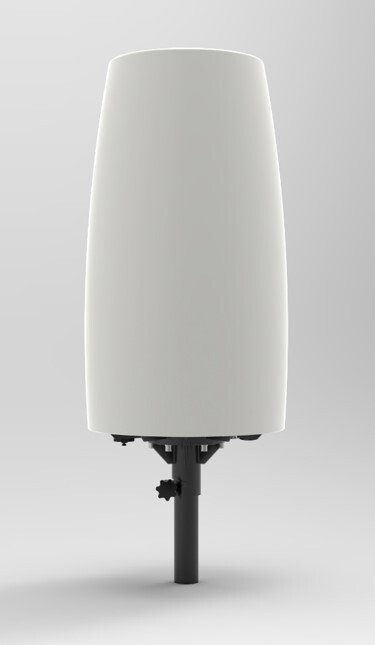

15kg 360° Anti UAV Drone Jammer System

Advanced drone detection and tracking system with ≤10° azimuth tracking precision for comprehensive airspace security.

System Overview

Our advanced anti-UAV system provides comprehensive drone detection, identification, and tracking capabilities. The system identifies drone remote control and image transmission radio signals, including electronic fingerprints, to deliver precise intelligence for defense operations.

Real-time drone movement tracking enables rapid response to security threats through advanced radio signal detection and data analysis technology.

Key Features

Passive detection technology without electromagnetic emissions
Precise identification of multiple drones in same frequency band
24/7 autonomous operation with no human intervention required
One-click black and white list management
Network positioning with multi-equipment support
Comprehensive model library covering mainstream consumer drones
grade aerospace aluminum body (-40°C to +60°C operation)
Lifetime free model library upgrades and 24/7 online support

Technical Specifications

Parameter	Specification
Counteraction Distance	3km (depending on conditions)
Key Detection Frequencies	900MHz, 1.5GHz, 2.4GHz, 5.8GHz
Expandable Defense Band Range	400MHz-6GHz Full Band Customizable
Dimensions	666mm × 400mm (height × radius)
Detection Frequency Range	70MHz-6GHz
Weight	15kg
Operating Temperature	-40°C to +60°C
Detection Azimuth	≤10° (tracking); ≤3° (hovering)
Defense Frequency Bands	800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
Neutralization Distance	1km-5km

Applications

Essential for security agencies, law enforcement, and organizations to protect critical infrastructure, public events, and sensitive areas from drone threats.

Ideal for airports, seaports, prisons, government buildings, bases, and public events with 5km-10km detection range and precise location tracking.

Technical Support & Services

Remote troubleshooting and diagnostics
Technical consultation
Product training and education
Warranty and repair services

Packaging & Shipping

Package Contents

Directional Drone Jammer device
Power adapter
User manual

Shipping Information

Standard ground shipping with 5-7 business day delivery. Free shipping included.
