5km-10km Fixed Directional Drone Jammer Grade with 60MHz to 6GHz Frequency Range Anti Drone System

Name: 5km-10km Fixed Directional Drone Jammer Grade with 60MHz to 6GHz Frequency Range Anti Drone System
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200AB3
Price: 100000 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200AB3
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection, Identification Distance:

5km-10km

Detection Azimuth:

≤10°（tracking）；≤ 3°（hovering）

Detection Frequency Range:

70MHz-6GHz

Expandable Defense Band Range:

400M-6GHz Full Band Customizable

Operating Termperature:

-40℃-+60℃

Weight:

15kg+50kg

Packaging Details:

54mm*74mm*40mm, 70KG

Supply Ability:

1000units per month

Highlight:

fixed directional drone jammer

directional drone jammer

drone jammer 60mhz

Product Description

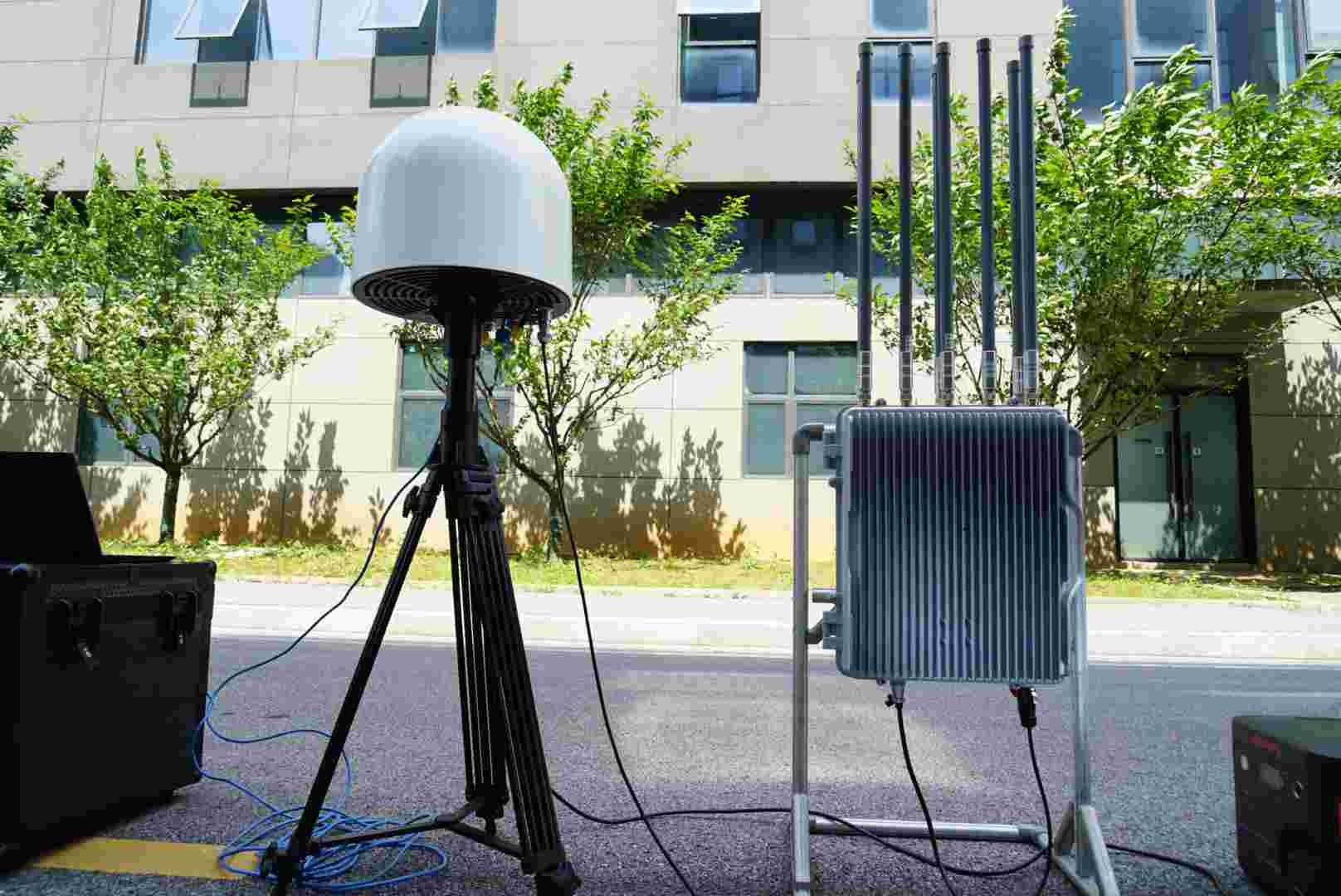

5km-10km Fixed Directional Drone Jammer System

Advanced 13-band fixed directional drone jammer system with radio signal analysis capabilities covering 60MHz to 6GHz frequency range. This grade aircraft detection and countermeasure system provides comprehensive low-altitude defense solutions.

System Overview

Integrated patrol detection and countermeasure system featuring coordinated operations with one detection device plus multiple jamming devices. Constructs comprehensive surveillance and defense positions for domestic and international low-altitude defense needs. Supports free model library upgrades and customizable frequency bands, colors, and languages.

Key Features

Frequency-based UAV detection and identification
Automatic detection, location, identification, and tracking capabilities
Automatic alarm system for detected UAV signals within effective range
Integrated UAV detection, interference, and unattended operation
Identification of mainstream UAV manufacturers and models
Continuous model library updates with automatic UAV type recognition
Automatic interference forcing UAVs to land or return to origin
Weather-resistant operation with 24/7 functionality
Rapid vehicle installation and deployment capabilities
Safe operation without interference to humans or electronic equipment

Technical Specifications

Parameter	Specification	Status	Additional Details
Detection, identification distance	5km-10km	●
Neutralization distance	1km-5km	●
Detection Azimuth	≤10°(tracking)；≤ 3°(hovering)	●
Detection frequency range	70MHz-6GHz	●
Key detection frequencies	900MHz,1.5GHz,2.4GHz,5.8GHz	●
Defense frequency bands	700-840MHz,840-930MHz,1050-1280MHz,1350-1450MHz,1550-1620MHz,2400-2485MHz,5150-5350MHz,5725-5850MHz	○	410-480MHz 650-850MHz 850-1080MHz 1080-1200MHz 1200-1340MHz 1340-1500MHz 1560-1620MHz 2300-2450MHz 2450-2600MHz 4000-4300MHz 5100-5300MHz 5700-5950MHz 5950-6200MHz
Expandable defense band range	400M-6GHz full band customizable	●
Counteraction distance	3km (depending on conditions)	●
Lateral accuracy	3	●
Operating temperature	-40℃-+60℃	●
Weight	15kg+25kg	○	15kg+50kg
Dimensions	666mm^400mm (height'radius),/500mm^460mm^233mm(length^width"height)	●

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online service, with customizable colors and languages to meet specific operational requirements.

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Certification & Compliance

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing grade quality and reliability.

Partnership Portfolio

Our products are designed for various public safety scenarios and have long provided customized product services to and public safety departments, earning an excellent reputation in practical operations worldwide.

Packaging & Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions with reliable and secure transportation solutions.
