Anti Drone System
Created with Pixso. Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1

Brand Name: MYT
Model Number: DR200B1
MOQ: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 20days
Payment Terms: TT, LC
Detail Information
Place of Origin:
China
Certification:
CNAS、CMA、CAL、ILAC-MRA
Key Detection Frequencies:
900MHz、1.5GHz、2.4GHz、5.8GHz
Defense Frequency Bands:
800 MHz、900MHz、1.2GHz、1.4GHz、1.5GHz、2.4GHz、5.2GHz、5.8GHz
Expandable Defense Band Range:
400M-6GHz Full Band Customizable
Counteraction Distance:
3km (depending On Conditions)
Lateral Accuracy:
3
Operating Termperature:
-40℃-+60℃
Weight:
28kg
Dimensions:
500mm^460mm^233mm(length^width"height)
Packaging Details:
54mm*74mm*40mm, 28KG
Supply Ability:
1000units per month
Highlight:

drone signal jammer fixed

,

fixed drone jamming defense system

,

3km drone countermeasure

Product Description

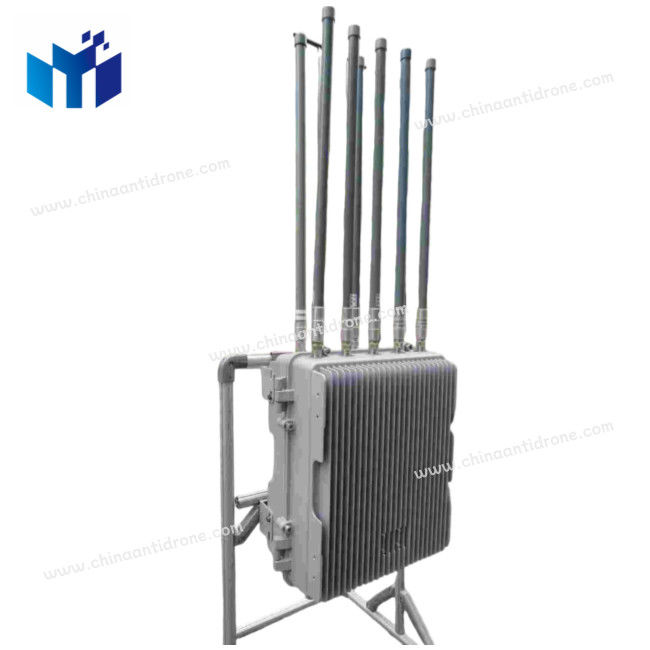

Directional Drone Jammer Fixed Drone Defense Equipment-Drone Countermeasure System DR200B1



1,Product Introduction



  The device is equipped with built-in multi-frequency interception modules that can effectively counteract radio frequency-controlled drones. Drones within the coverage area are unable to receive GPS signals, and their control signals and image transmission signals with the remote controller are disrupted, forcing them to land or return to their base.

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 0

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 1





2, Functional highlight



Customized Countermeasure Frequencies

8 fixed frequency bands + 8 customizable frequency bands, covering 400MHz to 5.8GHz.

Frequency Hopping Spread Spectrum Interference

Stands out in interfering with frequency hopping and spread spectrum drones.

Intelligent Management

Easy to operate, highly intelligent.

Military-grade Quality

Aviation aluminum body, resistant to extreme temperatures, supports operation between -40°C and +60°C.

Unmanned Operation

No human intervention required, provides all-weather defense against intrusion.

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 2

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 3




3, Performance index

DR200B Specification (yes, no)
Detection, identification distance 5km-10km
Neutralization distance 1km-5km
Detection Azimuth ≤10°(tracking);≤ 3°(hovering)
Detection frequency range 70MHz-6GHz
Key detection frequencies 900MHz,1.5GHz,2.4GHz,5.8GHz
Defense frequency bands 700-840MHz,840-930MHz,1050-1280MHz,1350-1450MHz,1550-1620MHz,2400-2485MHz,5150-5350MHz,5725-5850MHz
Expandable defense band range 400M-6GHz full band customizable
Counteraction distance 1km~2km(Omnidirectional Antenna);2km~3km(Directional Panel Antenna)
Operating termperature/humidity -20~+50/≤80%
Weight 28kg (Not including antennas and mounting hardware parts)
Dimensions 47cm*38cm*28cm(length^width"height, Excludes antennas and mounting brackets)
Antenna Dimensions 750mm(Length)32mm(Diameter)
Antenna Type High Gain Omnidirectional Antennas (8 pieces)
Power Supply Method AC:110V~240V DC:28V

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 4



Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 5



4, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.





5, Company profile



Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our mission is to enable intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments. By transitioning from passive to active defense strategies and fostering a paradigm shift from partial to comprehensive protection, we aim to elevate anti-intrusion security systems to new heights.

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 6Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 7Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 8

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 9Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 10Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 11



6, Certification Certificate



The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.



Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 12Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 13Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 14Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 15Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 16Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 17Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 18Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 19Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 20Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 21



7,Partnership Portfolio



Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 22Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 23Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 24Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 25Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 26Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 27Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 28Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 29Drone Signal Jammer Fixed Drone Jamming Defense System Drone Countermeasure System DR200B1 30



8,Paking and Delivery



Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
