MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DP2003 |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 units |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500units per month |
| Highlight: | Long Distance Fence Security Sensor,Accuracy Fence Security Sensor,fence vibration sensor |
||
|---|---|---|---|
Long warning distanceHigh positioning accuracy Strong adaptability Easy to install and calibrate Microwave Radar DP2003
1, Product Introduction

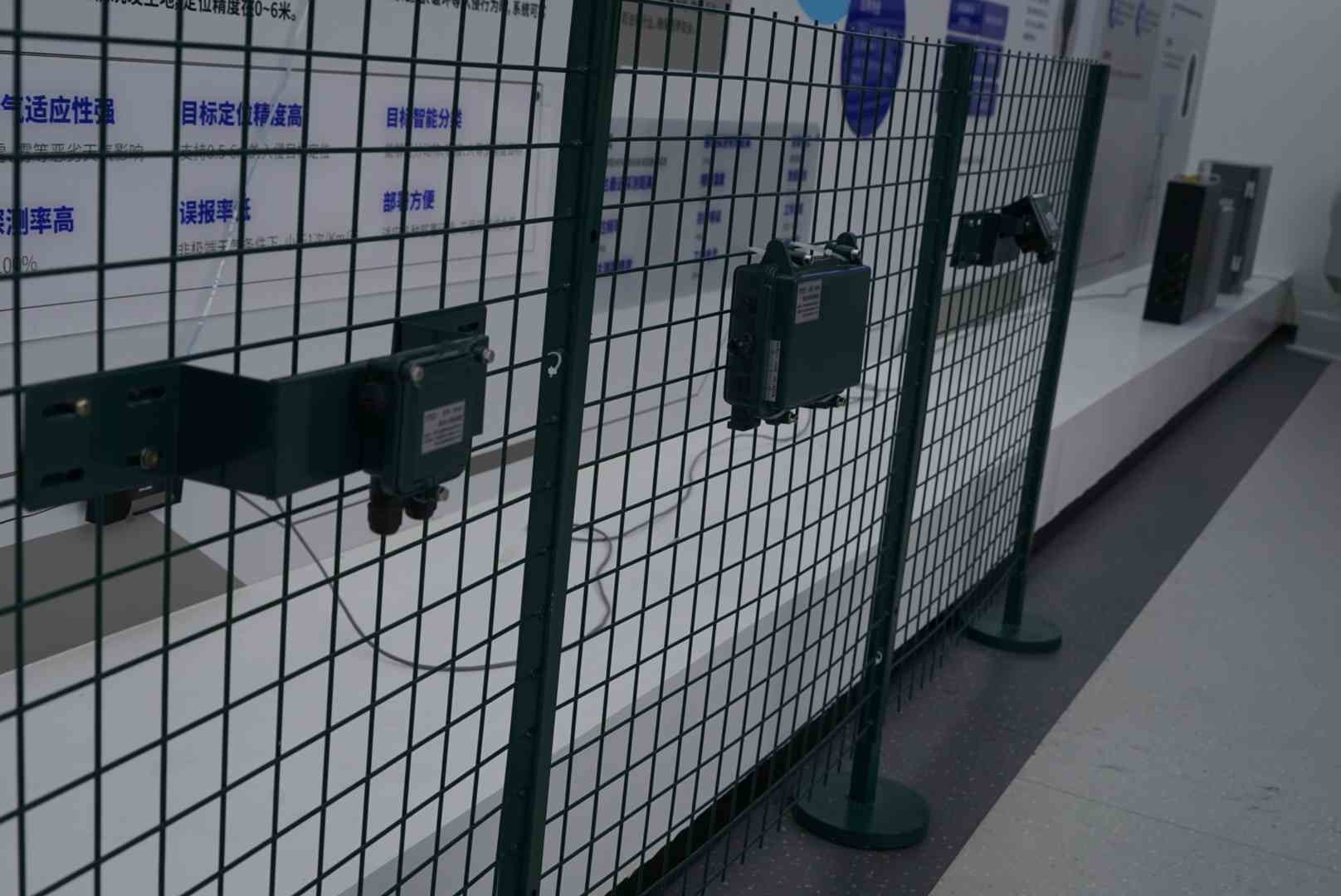

The detector is installed on the fence using a wall-mount method, with detectors connected to each other via an RS-485 bus and converging to the detection processing host. The system integrates microwave radar and MEMS vibration intrusion detection technologies, combining both active and passive detection methods, and is suitable for industries such as civil aviation, logistics, petroleum, electric power, tobacco, public security, and judicial authorities.
2, Functional highlight
① Long warning distance
② High positioning accuracy
③ Strong adaptability
④ Easy to install and calibrate
3, System Composition
① DP200T-1
Microwave Radar Early Warning Vibration Intrusion Detector
② DP200Z-1
Microwave Radar Vibration Intrusion Detection Master Unit
4, System Introduction
Perimeter intrusion prevention system is a technical measure to control the undisclosed management and secure perimeter area.
5, Management Platform
6, Specification
① DP200T-1
Microwave Radar Early Warning Vibration Intrusion Detector
| DP200T-1 Specification (● yes, ○ no) | ||
| Detection Method | Dual Fusion Detection of Microwave Radar Early Warning and MEMS Vibration Detection | ● |
| Maximum Detection Range of Microwave Radar | 10m | ● |
| Microwave Radar Frequency | 24GHz±10MHz | ● |
| Microwave Radar Range Measurement Accuracy | 10cm | ● |
| Effective Distance of Vibration Detection | 0-6m | ● |
| Relative Humidity | ≤95% | ● |
| Protection Level | IP68 | ● |
② DP200Z-1
Microwave Radar Vibration Intrusion Detection Master Unit
| DP200Z-1 Specification (● yes, ○ no) | ||
| Installation Method | Fence Wall Mount | ● |
| Data Communication | RS-485 | ● |
| Operating Temperature | -55℃ to +85℃ | ● |
| Operating Voltage | 24VDC | ● |
7, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
