Intelligence TDOA Integrated Detection and Jamming Drone Defense System with 360° Scanning

Name: Intelligence TDOA Integrated Detection and Jamming Drone Defense System with 360° Scanning
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200AB
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200AB
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Packaging Details:

54mm*74mm*40mm, 30KG

Supply Ability:

1000units per month

Highlight:

integrated drone detection and jamming

intelligence drone detection system

intelligence drone detection and jamming

Product Description

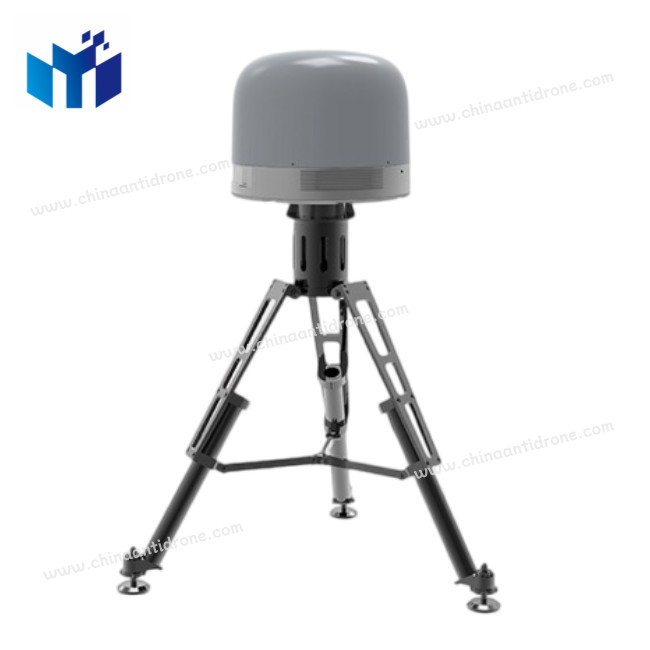

Integrated Drone Detection and Jamming System

This high-integration passive detection system provides comprehensive low-altitude protection through combined drone detection and countermeasure functions, ideal for VIP residences and rapid vehicle-mounted deployment scenarios.

Key Features

Integrated Design

High integration degree enabling complete target detection, anti-jamming, and interception capabilities in a single unit.

High Mobility

Suitable for vehicle-mounted and rapid deployment scenarios, supporting 4-station TDOA (Time Difference of Arrival) positioning.

Multi-Network Communication

Supports 4G/5G mobile communication, WAN, LAN, enabling wireless mesh networking with no wired requirements.

Unmanned Intelligence

Capable of automatic interference, operation in negative air pressure environments, and 24-hour continuous operation.

Modular Design

Quick replacement of components supports efficient maintenance and repair operations.

Technical Specifications

Parameter	Specification
Scanning Range	300MHz - 6GHz
Scanning Frequency	800MHz, 900MHz, 2.4G, 5.8G
Detection Range	≥ 7km
Network Capability	Modular, 4-station TDOA positioning
Identification	Serial Number
Jamming Frequency	900MHz, 2.4G, 5.8G, Signaling
Scanning Angle	Full 360°
Anti-Jamming Range	≥1km
Alarm Mode	Optical alarm, Short-range alarm, APP software alarm

After-Sales Service

Lifetime free model library upgrades, professional 24/7 online service, customizable colors and languages.

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging robust scientific research capabilities and industry-defining expertise, MYT technology pioneers advancements in national security through IoT and artificial intelligence technologies. Our focus lies in AIoT research and development, creating an independent AIoT cloud+edge computing system architecture that integrates heterogeneous perception information including electromagnetic, optoelectronic, visual, and location data for comprehensive three-dimensional defense against intrusion.

Our mission enables intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments, transitioning from passive to active defense strategies.

Certifications

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.

Partnership Portfolio

Our products are designed for various public safety scenarios and have long provided customized product services to military and public safety departments, earning an excellent reputation in practical operations.

Packaging and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of global regions.
