7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz

Name: 7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200A
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200A
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	20days
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Range:

≥7km

Positioning:

GPS(L1), GLONASS(L1), BDS(B1), Galileo(E1)

Frequency Bands:

800MHz, 900MHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz

Control Range:

500-1000m

Packaging Details:

54mm*74mm*40mm, 20KG

Supply Ability:

1000units per month

Highlight:

integrated directional drone jammer

7km fixed drone jammer

7km directional drone jammer

Product Description

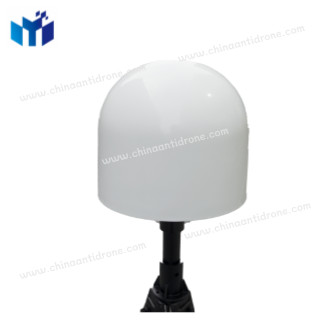

7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz

1, Product Introduction

This system combines wireless radio detection, digital electronic countermeasures, and navigation decoying functions. It features a highly integrated design that does not require external antennas, making it easy to install and implement. The device can operate in a wide temperature range and has IP66 protection, allowing 24/7 unattended operation even in night, fog, and adverse weather conditions.

The system continuously monitors the surrounding wireless signals according to the configured frequency bands. When a low-altitude drone target enters the protected area, it detects and identifies the suspicious communication links, providing information such as the target's operating frequency and distance. The control software then analyzes, evaluates, and triggers digital electronic countermeasures and navigation decoying signals to protect the area.

This is a fully passive, non-emitting detection system that does not generate any electromagnetic interference, ensuring green and safe long-term continuous operation. The electronic countermeasures use a fully digital design with precise frequency control and adjustable power, providing effective and controllable protection. The navigation decoying employs regenerated low-power (≤10dBm) navigation satellite signals to disrupt the navigation systems of intruding drones, preventing them from entering the protected airspace.

7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz 0

2, Specification

Detection Range	≥7km
Detection Sensitivity	≤-110dBm
Scan Coverage	360°
Frequency Bands	800MHz, 900MHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz
Decoying Range	1km (typical)
Positioning	GPS(L1), GLONASS(L1), BDS(B1), Galileo(E1)
Decoying Effectiveness	≤10dBm(10mW)
Control Range	500-1000m

3, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.

4, Company profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our mission is to enable intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments. By transitioning from passive to active defense strategies and fostering a paradigm shift from partial to comprehensive protection, we aim to elevate anti-intrusion security systems to new heights.

7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz 3

5, Certification Certificat

The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.

6, Partnership Portfolio

Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz 17

7, Paking and Delivery

Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.

7km 360° Integrated Directional Drone Jammer And Decoying Device 5.2GHz 5.8GHz 25
