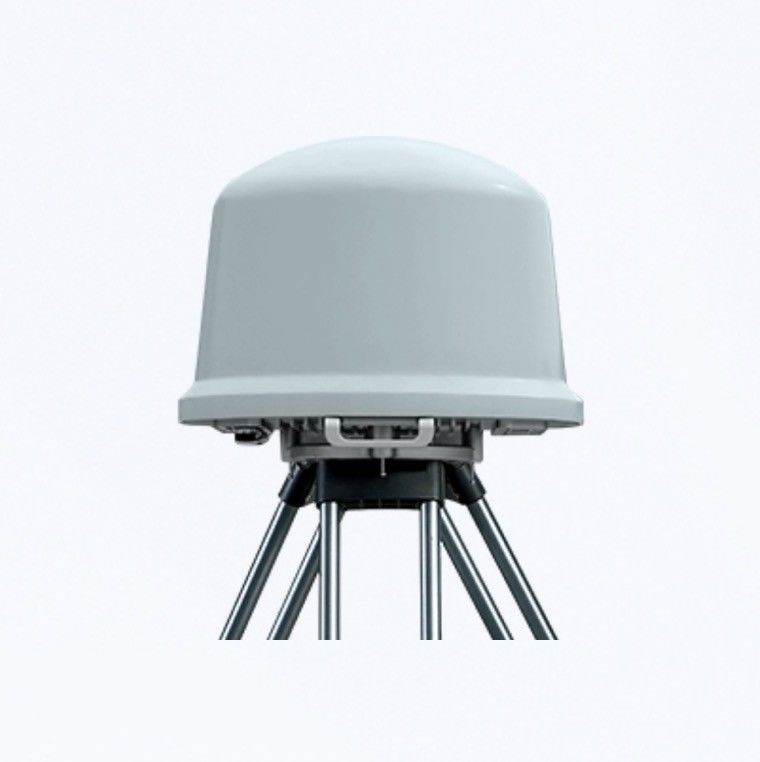

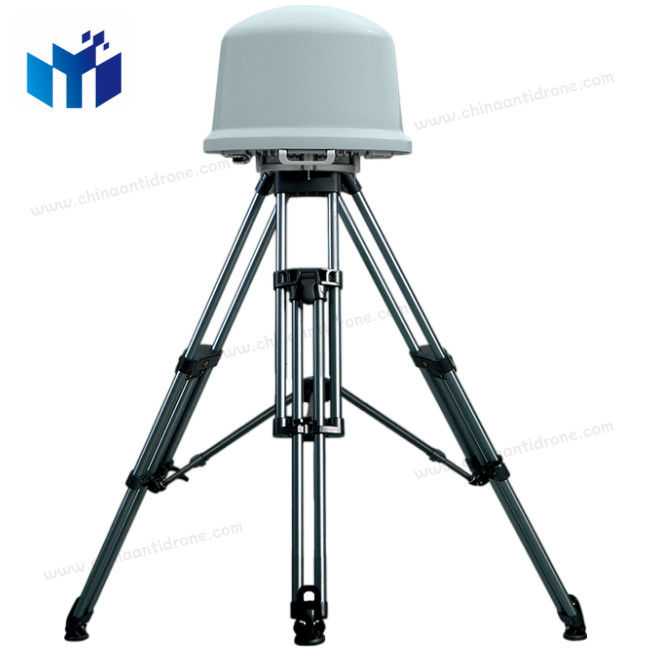

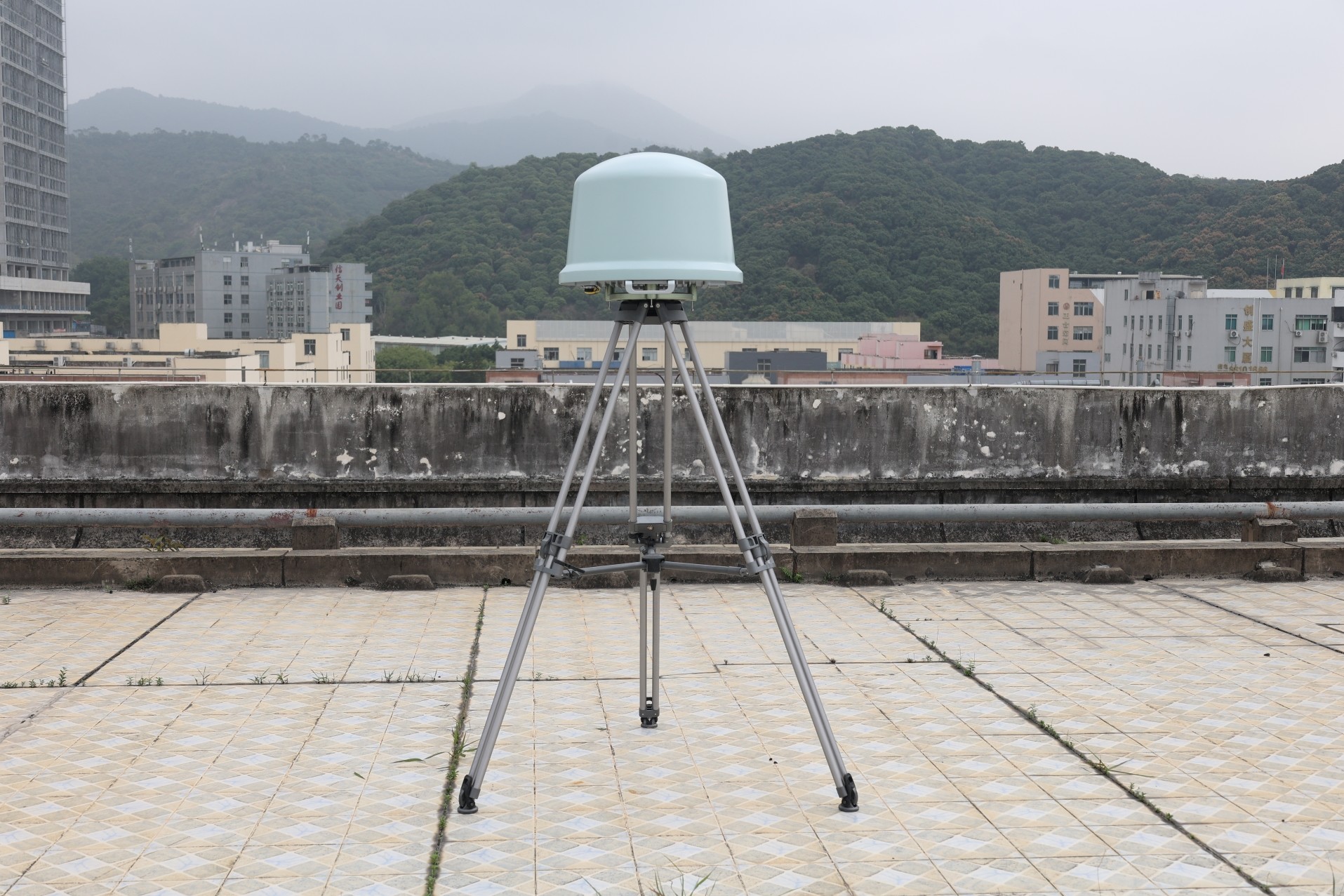

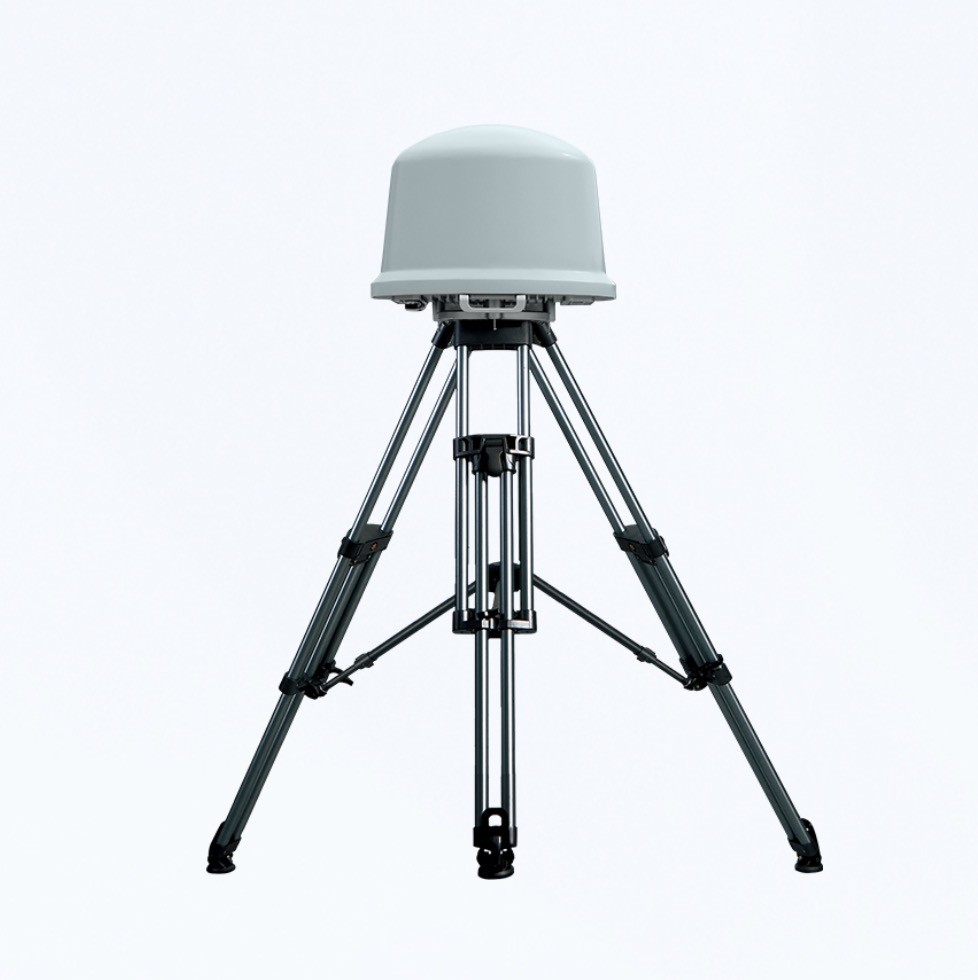

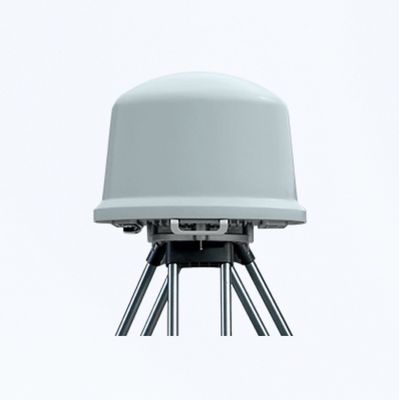

Fixed Drone Detection System
1,Product Introduction
This fixed drone detection system utilizes advanced passive detection technology to conduct 360-degree omnidirectional surveillance, identification, and direction finding on various types of drones (remotely controlled aircraft). It boasts an impressive detection range.
Leveraging a unique SDR architecture and spectrum AI recognition technology, the system allows customized configuration of the detection frequency band and provides multiple interfaces for integration with various devices. Key capabilities include ultra-long-range detection, single-unit positioning, precise model identification, and trajectory playback.
2, Functional highlight
① Passive Detection
Self-does not emit electromagnetic waves, relying on passive detection, difficult to be discovered, strong anti-electronic interference ability, and good concealment.
② Multi-band Detection
Based on SDR architecture design, supports multi-band detection of drones, and the frequency band can be customized.
③ Multi-model Identification
Can accurately identify more than 300 types of drone models, and can also automatically identify unknown drone models by their appearance.
④ Positioning and Tracking
Can real-time display the drone's position and flight trajectory, showing the drone's position, SN code, and other information, as well as its dynamic actions.
⑤ Multi-target Alert
Supports 24-hour automatic detection and warning, and can automatically alarm when a drone enters a restricted airspace.
⑥ Unattended
Can simultaneously support multi-target intrusion prevention (no less than 100 drones).
3, Specification
| Frequency Range | 30MHz - 6GHz |
| Signal Type | Detect non-authorized drone signals, uncrewed aerial vehicle control signals, and WiFi unauthorized signals |
| Detection Range | 7km10km (open environment), 3km5km (urban environment) |
| Detection Direction | 360° |
| Positioning Accuracy | 5m |
| Measurement Accuracy | 3RMS° |
| Protection Level | IP66 |
4, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
