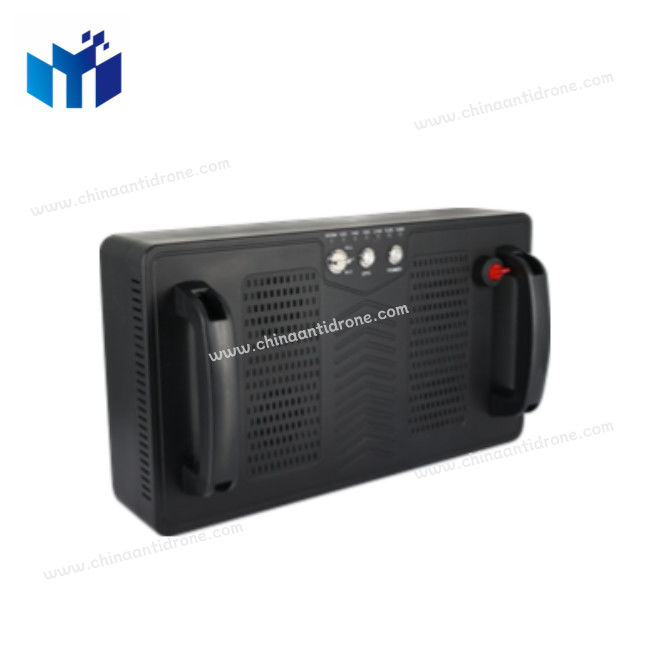

Portable Drone Countermeasure Shield
1,Product Introduction
Portable Drone Countermeasure Shield, based on SDR signal jamming technology, supports different frequency band mode configurations, can effectively block drone data/image transmission, remote control, navigation and other signals over 2.5 km distance, in order to achieve security protection for key areas, especially effective against various FPV drones. Overall flexible and portable, with IP54 level ultra-durable housing, heat-resistant and anti-corrosion, can be rapidly deployed in various scenarios, with a discreet appearance to avoid causing panic.
2, Functional highlight
Discreet Concealment
SDR High-Efficiency Jamming
Multi-Mode Rapid Switching
Investment Protection
IP54-Grade Durable and Rugged
3, Specification
| Weight | ≤4.9kg |
| Battery Type | Replaceable Battery Pack |
| Battery Life | ≥30 min (full power discharge) |
| Power | ≤450W |
| Protection Level | IP54 |
| Operating Temperature | -30°C to +45°C |
| Humidity | ≤93%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Jamming Frequency Bands | 400MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Jamming Signals | Unmanned aerial vehicle remote control, UAV data link, UAV navigation |
| Jamming Range | ≥2.5km (open environment) |
| Peak Transmit Power | >200W (configurable) |
| Dimensions | 440mm x 250mm x 150mm |
4, After-Sales service
Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.
5, Company profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our mission is to enable intelligent detection, behavior analysis, situation assessment, and precise response across all security facets within ground and low-altitude environments. By transitioning from passive to active defense strategies and fostering a paradigm shift from partial to comprehensive protection, we aim to elevate anti-intrusion security systems to new heights.
6, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
7, Partnership Portfolio
Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.
8, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
