Anti Drone System
Created with Pixso. Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device

Brand Name: MYT
Model Number: DR200-C
MOQ: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 10 work days
Payment Terms: TT, LC
Detail Information
Place of Origin:
China
Certification:
CNAS、CMA、CAL、ILAC-MRA
Weight:
150kg
Detection Distance:
≥10km
Interference Distance:
≥5km
Dimensions:
1000mm*2400mm(diameter Height)
Supply Ability:
1000units per month
Highlight:

5km drone jammer

,

5km anti drone system

Product Description

Fixed Drone Detection and Defense Equipment

Fixed Anti Drone System Device





1, Product Introduction

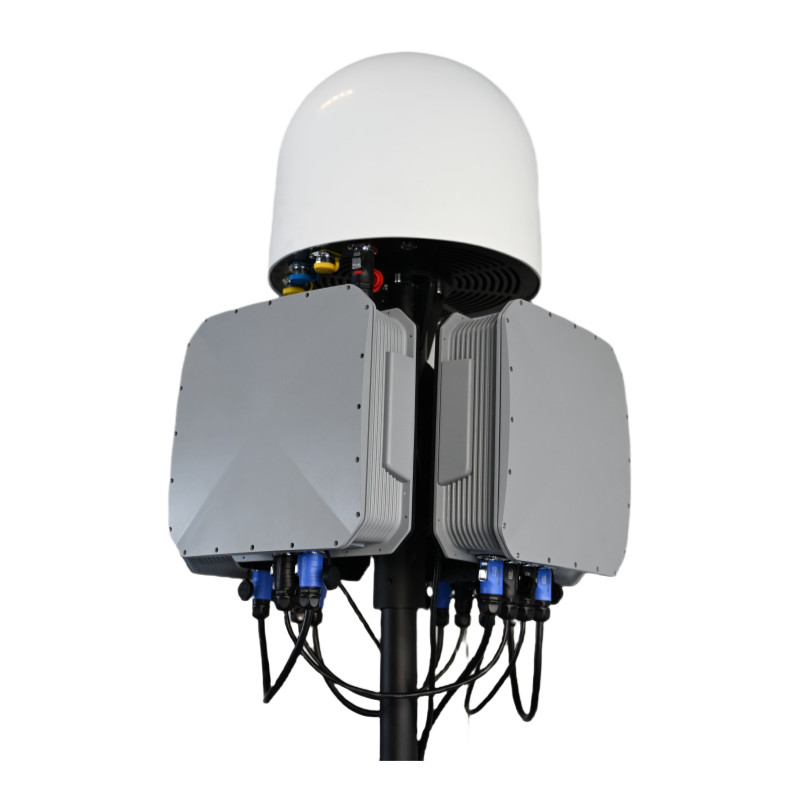

  The fixed DR200-C drone detection and jamming device consists of a drone detection system and a radio interference system, which can detect, identify, interfere with drones. It can make the drone hover, make an emergency landing or return, effectively protecting the safety of low-altitude airspace and preventing the drone from entering the defense zone. It has excellent detection and defense performance, long-distance working ability, no need for personnel on duty.

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 0

2Functional highlight



1) Detachable Design:

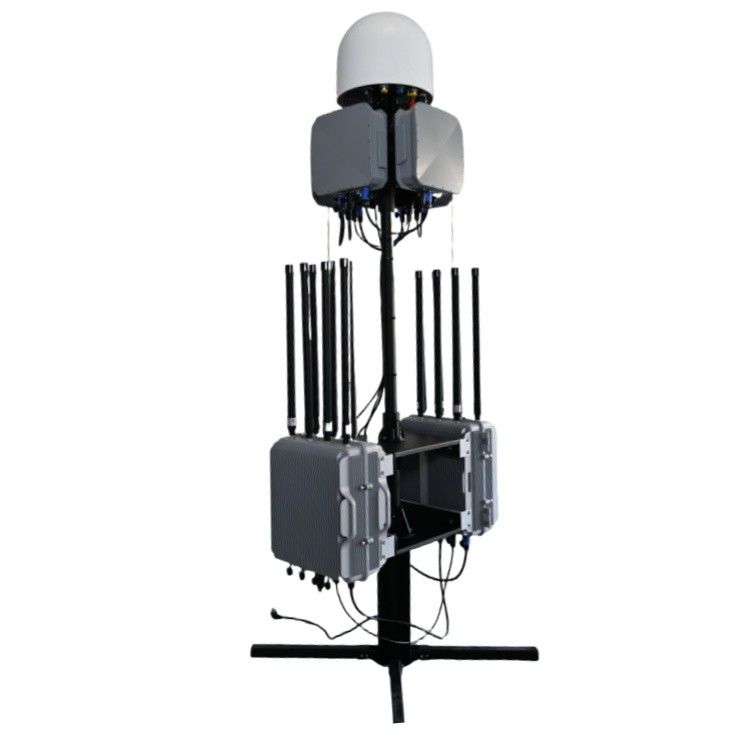

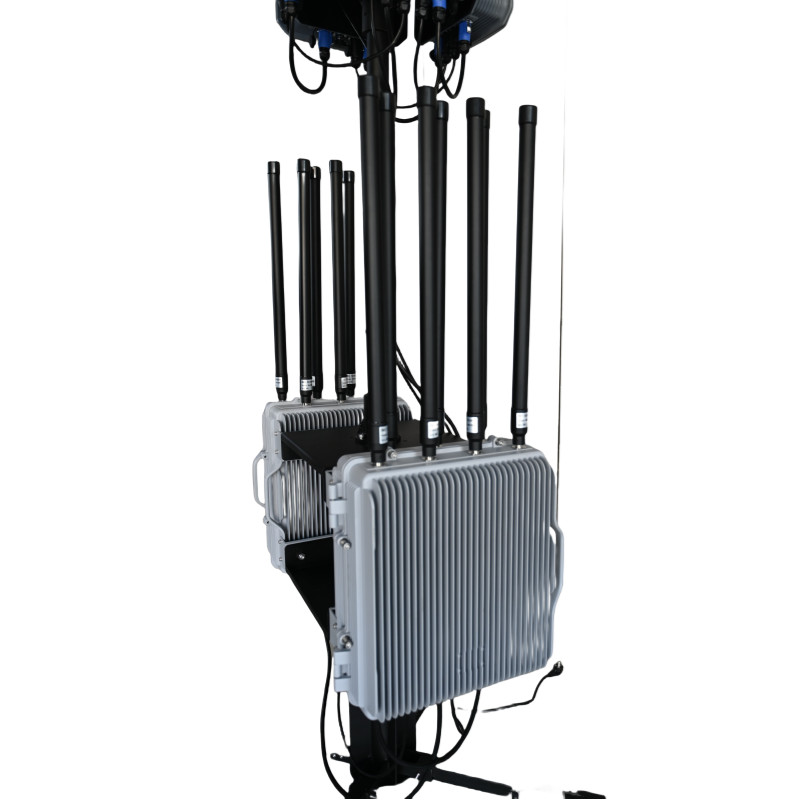

Detection and defense can be integrated or separated,with one detection device and N attack devices connected via a network.

2) FPV Strong Interference:

Default 13 interference frequencies,supports multi-frequency expansion.

3) Strong Expandability:

Expandable with integrated radar,optical,and navigation deception equipment.

4) Unmanned Guard:

Automatically connects to attack and defense areas when a drone is detected.

5) Precision Tracking:

Real-time tracking of drone trajectory,ensuring accurate and efficient countermeasures.

6) Military Grade:

Made of aviation aluminum alloy,fearless of high and low temperatures,strong environmental adaptability.

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 1Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 2



3, Specification

Technical Specifications

Detection

Range:70MHz-6GHz full frequency scanning,detection,display.

Detection Distance

≥10km(depending on conditions)

Interference Frequencies

410MHz-480MHz,650MHz-750MHz,750MHz-850MHz 850MHz-1080MHz,1080MHz-1200MHz,1200MHz-1340MHz,1340MHz-1500MHz,1560MHz-1620MHz,4000MHz-4300MHz,5950MHz-6200MHz,5100MHz-5300MHz,5700MHz-5950MHz,2450MHz-2600MHz (customizable)

Interference Distance

≥5km(depending on conditions)

Operating Temperature

(-40℃-+60℃)±2℃

Weight

≤150kg

Dimensions

1000mm*2400mm(diameterheight)





4, After-Sales service

Lifetime free model library upgrades, profesdional 24/7online service, customizable colors and languages.



5, Certification Certificate

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 3Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 4Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 5Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 6Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 7Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 8Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 9Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 10Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 11Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 12Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 13Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 14



6, Company profile

  Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 15Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 16Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 17Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 18Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 19Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 20



7, Partnership Portfolio

  Our products are designed for a variety of public safety scenarios and have long provided customized product services to the military and public safety departments, earning an excellent reputation in practical operations.

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 21



8, Paking and Delivery

  Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.

Fixed Drone Detection and Defense Equipment Fixed Anti Drone System Device 22
