Tandem Rotor Drone UAV with 7.5 km Flight Distance 5000 m Maximum Altitude and 28 Minutes Flight Time

Brand Name:	MYT
Model Number:	TR1
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Payment Terms:	TT,LC

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Control Distance:

5-10KM

Remote Distance:

7500 Meters

Number Of Axis:

4quad

Packing Measurement:

750mm*750mm*500mm

Power Sourc:

Electric

Wifi Frequency:

2.4GHz

Item Model Number:

Fly-more-kit

Dimensions:

11cm-30cm

Special Funtion:

This Drone Have Light,can Be Shinning

Original Contral:

China

Packaging Details:

750mm × 750mm × 500mm

Supply Ability:

1000units per month

Highlight:

Unmanned Aerial Vehicle

Product Description

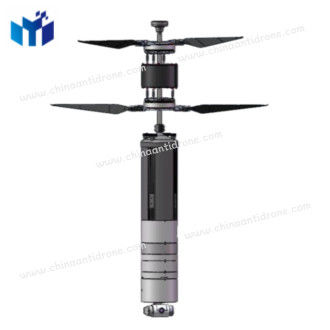

Drone Tandem Rotor Unmanned Aerial Vehicle TR UAV TR1

Advanced tandem rotor UAV system designed for professional applications with exceptional payload capacity and flight performance.

Product Overview

Technical Specifications

Specification	Details
Body Size	110mm × 110mm × 500mm
Deployment Size	750mm × 750mm × 500mm
Bare Machine Weight	3 kg
Payload Capacity	≥1.5kg (optical pod + payload)
Flight Mode	Vertical Take-off and Landing
System Operation	1 person
Operating Temperature	-20°C to 60°C
System Deployment Time	1 minute
System Withdrawal Time	1 minute
Battery Capacity	10000mAh - 16000mAh (1.5 - 1.75 kg)
Operating Voltage	24V
Flight Distance	7.5 km
Maximum Altitude	5000 m
Wind Resistance	6-8 level
Horizontal Flight Speed	25 m/s
Vertical Ascent Speed	7 m/s
Hovering Accuracy	<0.7 m (GPS mode)

Flight Performance

Payload Configuration	Flight Duration
No Load	28 minutes with 16000mAh battery + optical pod + AI module
1 kg Payload	28 minutes + 12 minutes with 10000mAh battery + optical pod + AI module
1.5 kg Payload	28 minutes + 20 minutes with 16000mAh battery + optical pod + AI module
3 kg Payload	28 minutes + 8 minutes with 16000mAh battery + optical pod + AI module
