Individual Security Radar XW/SR501C

Name: Individual Security Radar XW/SR501C
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: SR501C
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	SR501C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT, LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Parameters:

SR501C

Working System:

Phased Array System (Azimuth Phase Scanning)

Working Frequency:

C Band

Detection Range:

100m~1.5km(Pedestrain) 100m~3.0km (Vehicle)

Azimuth Coverage:

≥90

Elevation Coverage:

≥18°

Detection Speed:

0.5~30m/s

Azimuth Accuracy:

≤1.0°

Data Rate:

≥1Hz

Date Interface:

Wireless Transmission

Battery Capacity:

(supporting RJ45 Connection) 42AH (Single Battery)

Endurance:

≥4h (Normal Temperature; Single Battery)

Erect Time:

≤5min

Working Temperature:

-20~55C

Weight:

<18.0kg

Supply Ability:

1000units per month

Highlight:

5km drone jammer

1.5km drone jammer

5km anti drone system

Product Description

Individual Security Radar XW/SR501C

1, Product Introductio

Positioning and orientation

Real time display of location, orientation, and other information

Lightweight miniaturization, anti-interference

Effectively enhancing its mobility and convenience

Convenient and fast

Single soldier with strong mobility, can complete installation in

five minutes, long endurance, and replaceable batteries

Wireless transmission module

Remote control, easy to operate, not limited by the venue

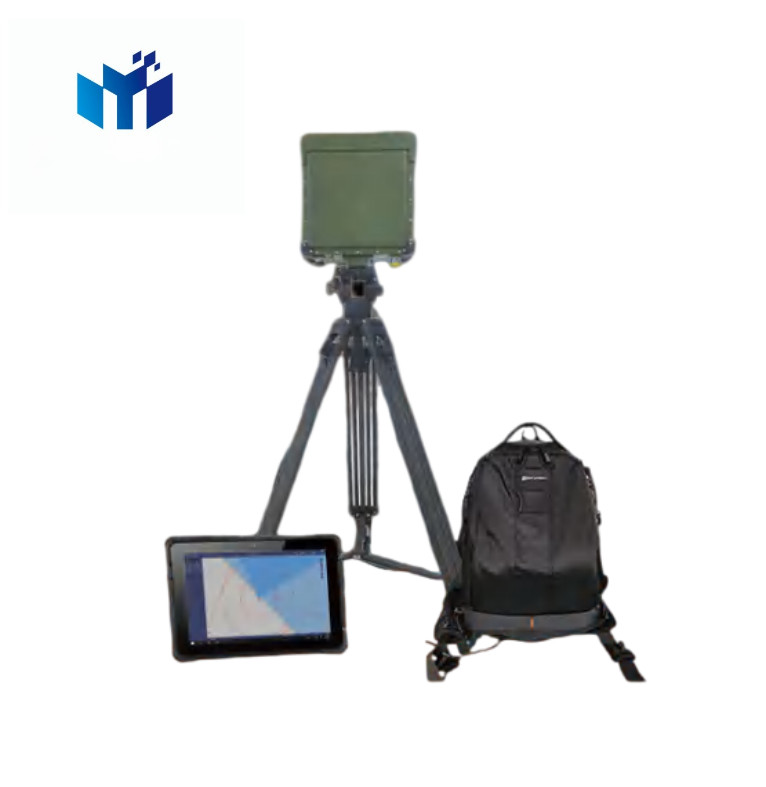

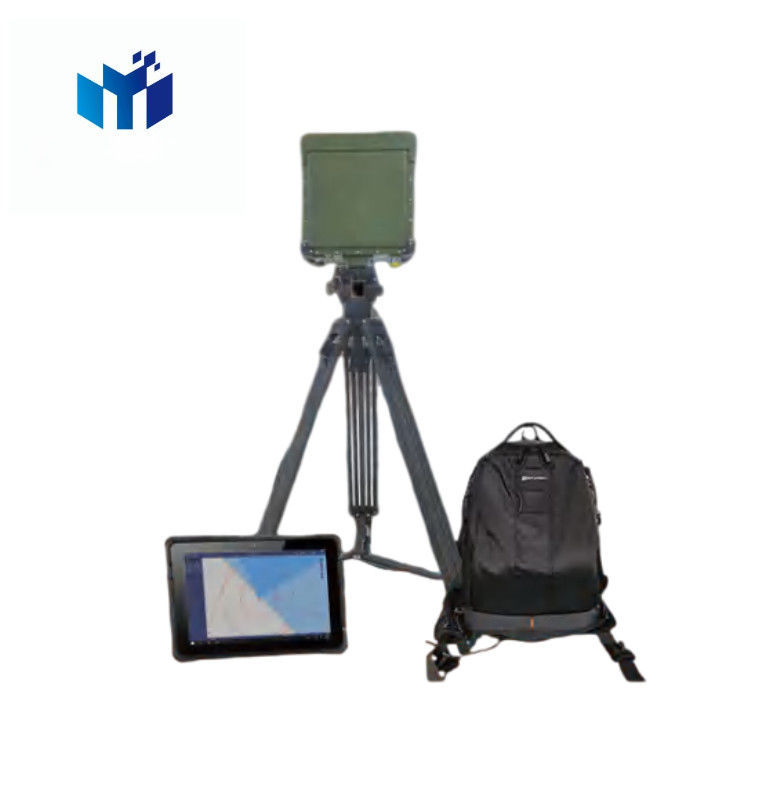

It is mainly composed of radar array + tripod + portable backpack. It adopts modular design, simple structure, convenient installation, no wiring, simple and fast erection.

The radar output target position and characteristic information to the supporting display and control system through wireless transmission module.

Terminal software is simple to operate, easy to learn and easy to use. Used for detection, warning and target indication of pedestrians and vehicles in border, airport, military base and other key areas.

2, Functional highlight

① High real-time and high precision

It can maintain high-precision tracking for long-distance detection targets, providing effective judgment basis for border defense soldiers.
② Strong adaptability to the environment

Possessing the ability to work 24/7 and adapt to harsh environments such as night, rain, snow, haze, and dust
③ High flexibility

Long range detection of targets, easy installation
④ DBF technology

DBF technology can improve anti-interference ability by transmitting multi beam technology
⑤ Phased array system

Adopting advanced active phased array system to improve radar detection effect and output target coordinate information
⑥ High cost-effectiveness

Through continuous improvement of the product, we ensure the detection effect while achieving a perfect combination of product reliability, usability, and economy

3, Specification

Parameters	SR501C
Working System	Phased array system (Azimuth phase scanning)
Working Frequency	C Band
Detection Range	100m~1.5km(Pedestrain) 100m~3.0km (Vehicle)
Azimuth Coverage	≥90
Elevation Coverage	≥18°
Detection Speed	0.5~30m/s
Azimuth Accuracy	≤1.0°
Data Rate	≥1Hz
Date Interface	Wireless Transmission
Battery Capacity	(supporting RJ45 connection) 42AH (Single battery)
Endurance	≥4h (Normal temperature; Single battery)
Erect Time	≤5min
Working Temperature	-20~55C
Weight	<18.0kg

4,Product dimension
Individual Security Radar XW/SR501C 0

6, Packing and Shipping

Packaging and Shipping for 6000X

We use the highest quality packaging materials to ensure that your 6000X arrive at their destination in perfect condition. All orders are shipped via UPS or FedEx with tracking numbers for easy tracking.

We take extra care to make sure all orders are securely packed and properly labeled. All packages are insured in case of any loss or damage during transit.

We strive to provide the fastest shipping possible. We usually process and ship orders within 24 hours of receiving them.

Individual Security Radar XW/SR501C 1
