MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR100AB |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 2 |
| Detection Mode: | Passive Detection | Detection Radius: | 5km |
|---|---|---|---|
| Size: | 800mm*600mm | Total Power: | 2300W |
| Detection Frequency: | 300MHz~6GHz | Jamming Distance: | 3KM |
| Jamming Frequency: | 60MHz-6GHz(Customized) | Weight: | 65KG |
| Highlight: | vehicle anti uav jammer,vehicle anti drone jammer,fpv anti uav jammer |
||

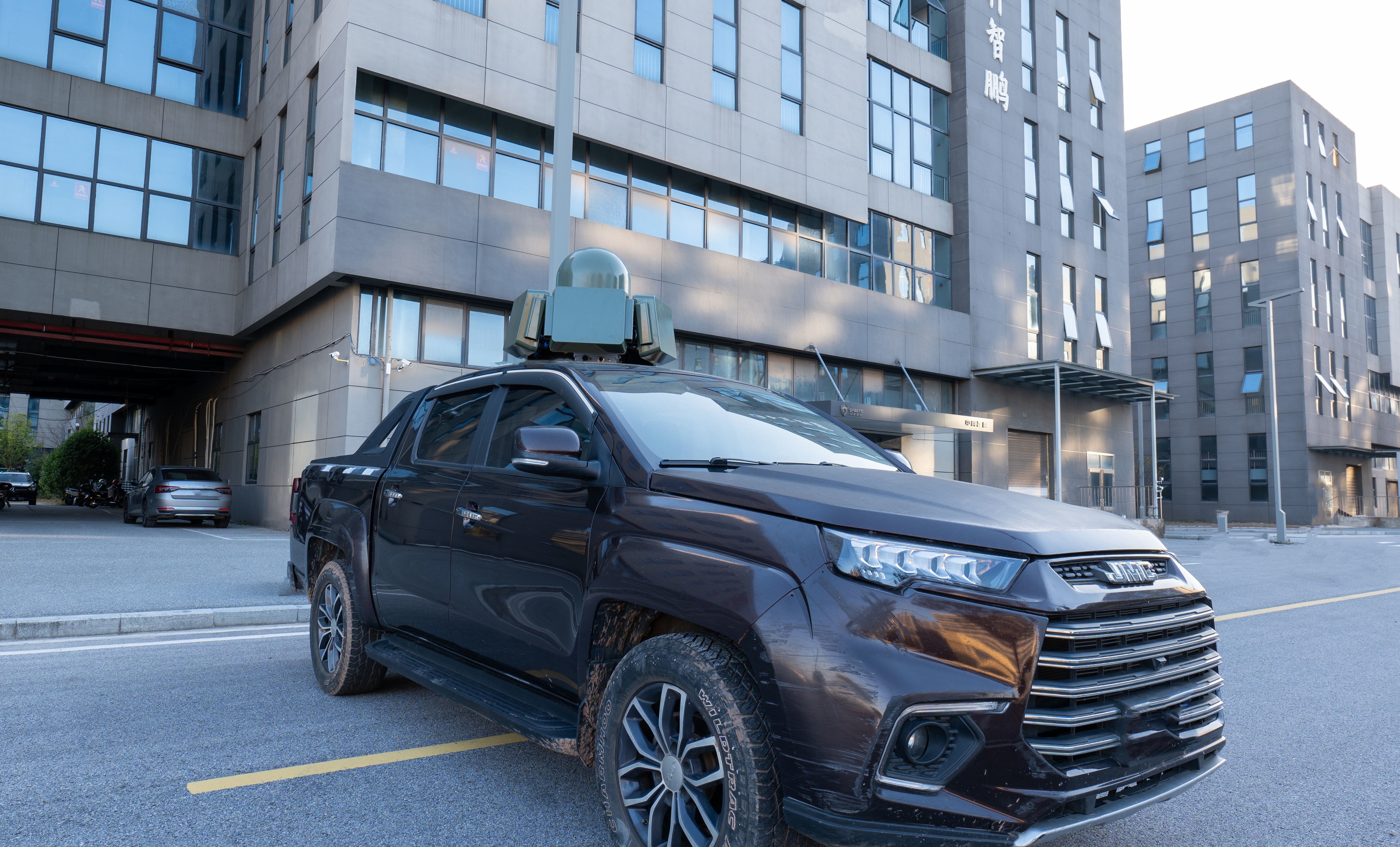

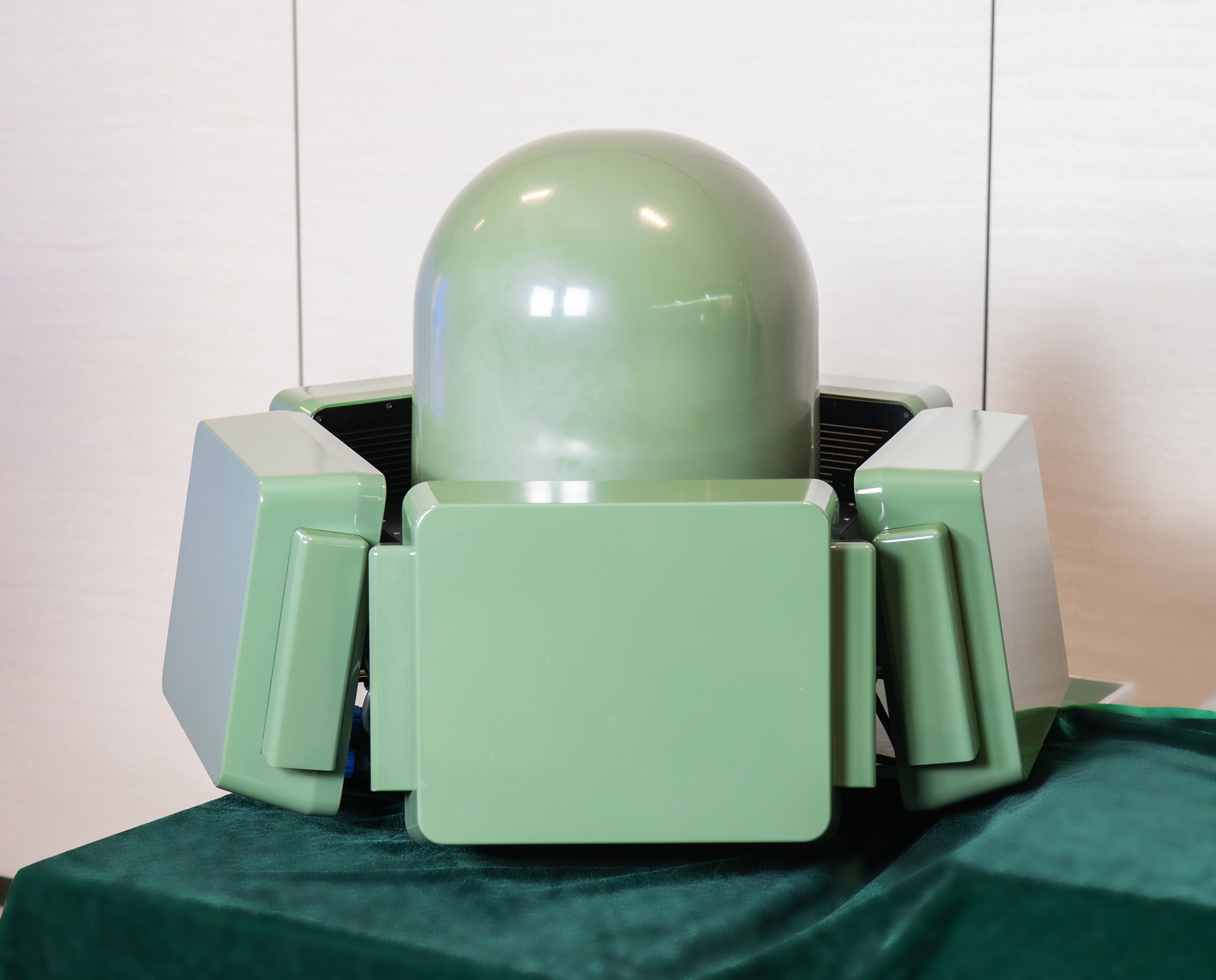

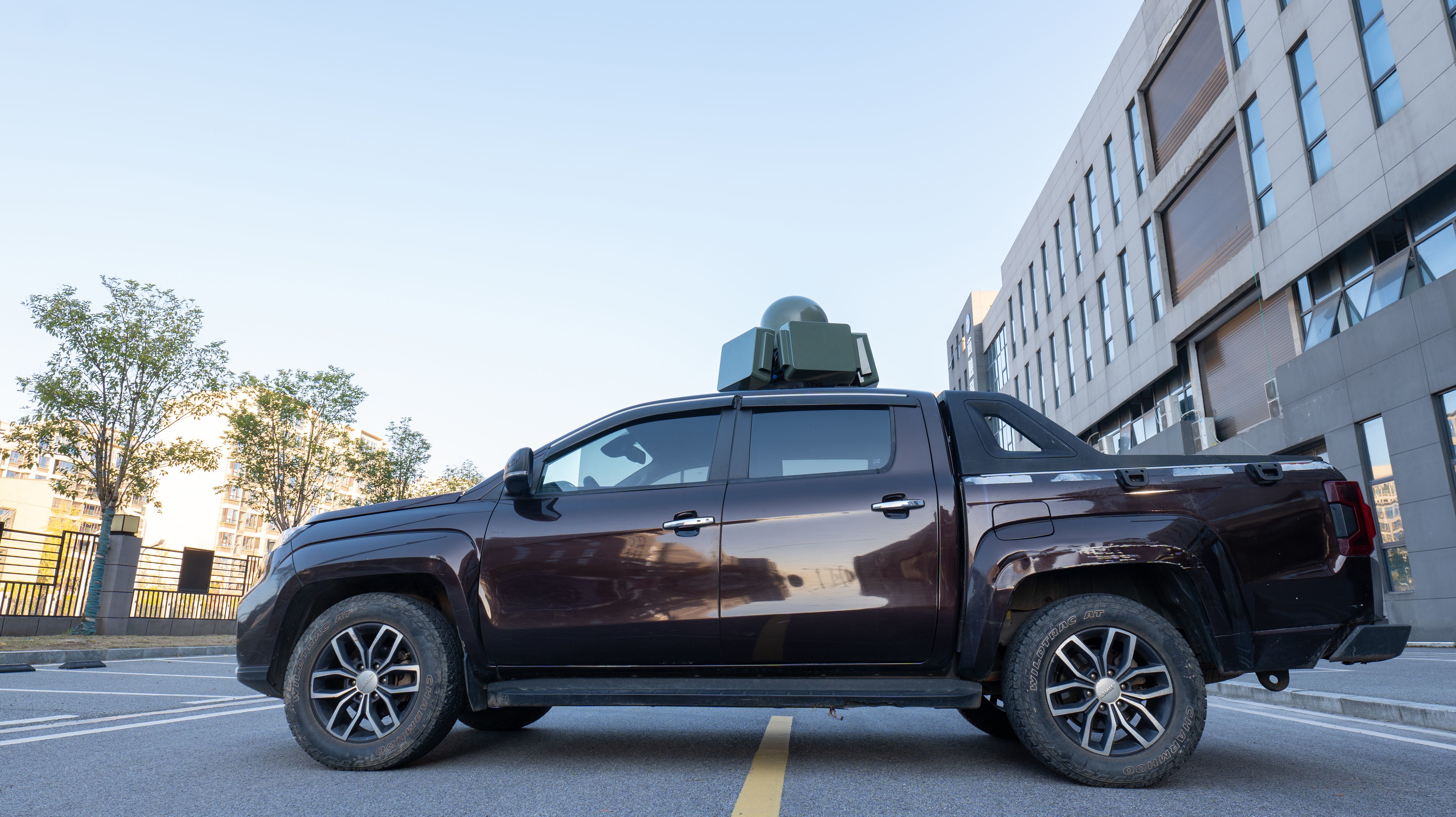

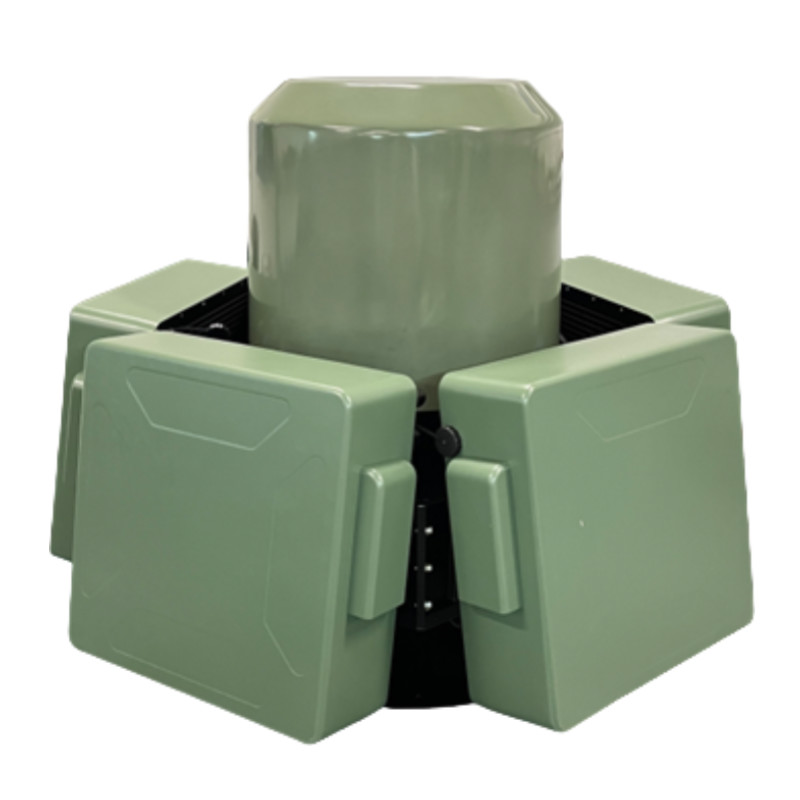

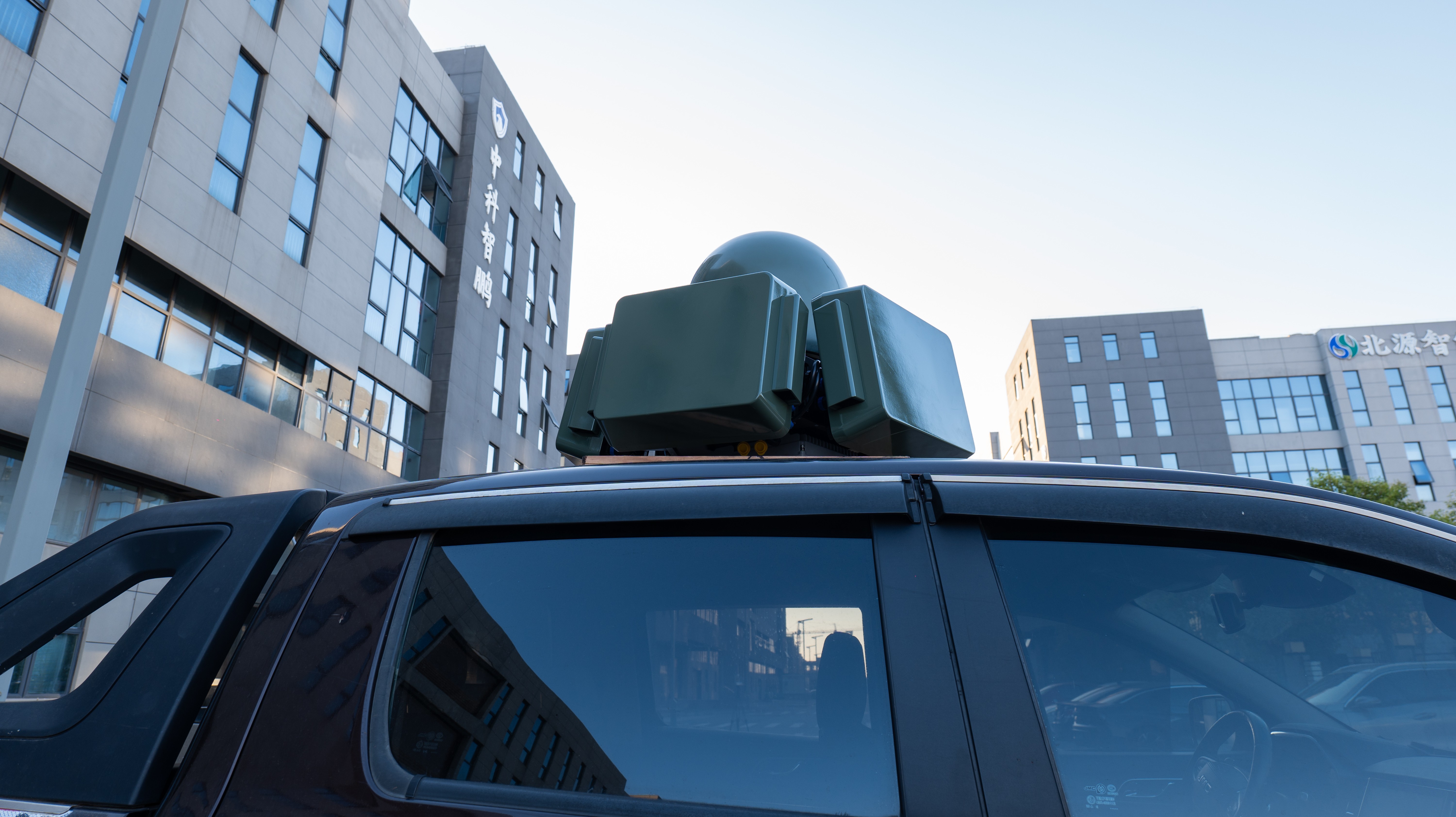

Drone Detection And Jamming On Vehicle Mounted Device Anti FPV UAV
1, Product Introduction
2, Functional highlight
1) 360° Full-Frequency Detection and Influence:Covers mainstream drone models, operates autonomously, and provides all-around,multi-angle detection and influence.
2) Structured Design:Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.
3) Strong Stability:Features a low wind resistance design to maintain stability and safety even at high speeds.
4) Blacklist/Whitelist:Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.
5) Strong Expandability:Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.
6) High-Grade Quality:Withstands extreme temperatures, offering strong environmental adaptability.
7) Customized Services:Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.
4,Product list
| Device Name | QT | Weight |
|---|---|---|
| Equipment main unit | 1 | 64.25 KG |
| Drone detection unit | 1 | 30 KG |
| Drone control and management system | 1 | |
| Power supply system | 1 | 1.55 KG |
| Shield-type influence | 5 | 6.85 KG |
| IPC or laptop | 1 | |
| Software | 1 | |
| Influence aviation case | 1 | 15.55 KG |
| Detection aviation case | 1 | 14.65 KG |
5, Specification
| DR1001 Specification (● yes, ○ no) | ||
| Color | White | ● |
| Working mode | Radio Detection and Interference | ● |
| Action object | UAV map transmission, flight control link, navigation signal | ● |
| Operating Frequency | 100MHz~6GHz | ● |
| Detection distance | ≥5km(Open and accessible areas) | ● |
| Number of simultaneous detections | ≥10(5 different manufacturers) | ● |
| Detection refresh time | ≤2s | ● |
| Power consumption | ≤50W | ● |
| Operating Frequency Band | (890~940)±10MH z (43±2)dBm ,(1550~1625)±10 MHz (40±2)dBm , (2400~2500)±10 MHz (40±2)dBm , (5700~5850)±10 MHz (40±2)dBm | ● |
| Counter distance | ≥2km | ● |
| Countermeasure Frequency band | 4 | ● |
| System power consumption | ≤1000W | ● |
| Size | φ*H:850mm*485mm | ● |
| Weight | ≤50kg | ● |
| Protection level | IP65 | ● |
| Working temperature | -20℃~55℃ | ● |
| Storage temperature | -60℃~125℃ | ● |
| System power supply | 220V AC | ● |
| System Interface | 100/1000M Ethernet | ● |
| Full working time | ≥1h | ● |
6, After-Sales service
1) We offer 24 hours service after sales
2) If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3) Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
This PI is applicable to the DDP shipping agreement.
7,Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
8, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
9, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
