MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR400B |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable on Quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units per month |
| Weight: | 183g | Size: | 199*75*40mm |
|---|---|---|---|
| Type: | Signal Detector | Identification Type: | Most Stream Type Brand Drones And FPV Drones |
| Detection Range: | 1.5KM-3KM | Detection Rsponse Time: | ≤3S |
| Charging Interface: | TYPE-C | Frequency Band: | 400MHz-6GHz |
| Orking Temperature: | -20℃~50℃ | ||
| Highlight: | 183g handheld drone detector,183g portable drone detector,6ghz handheld drone detector |
||

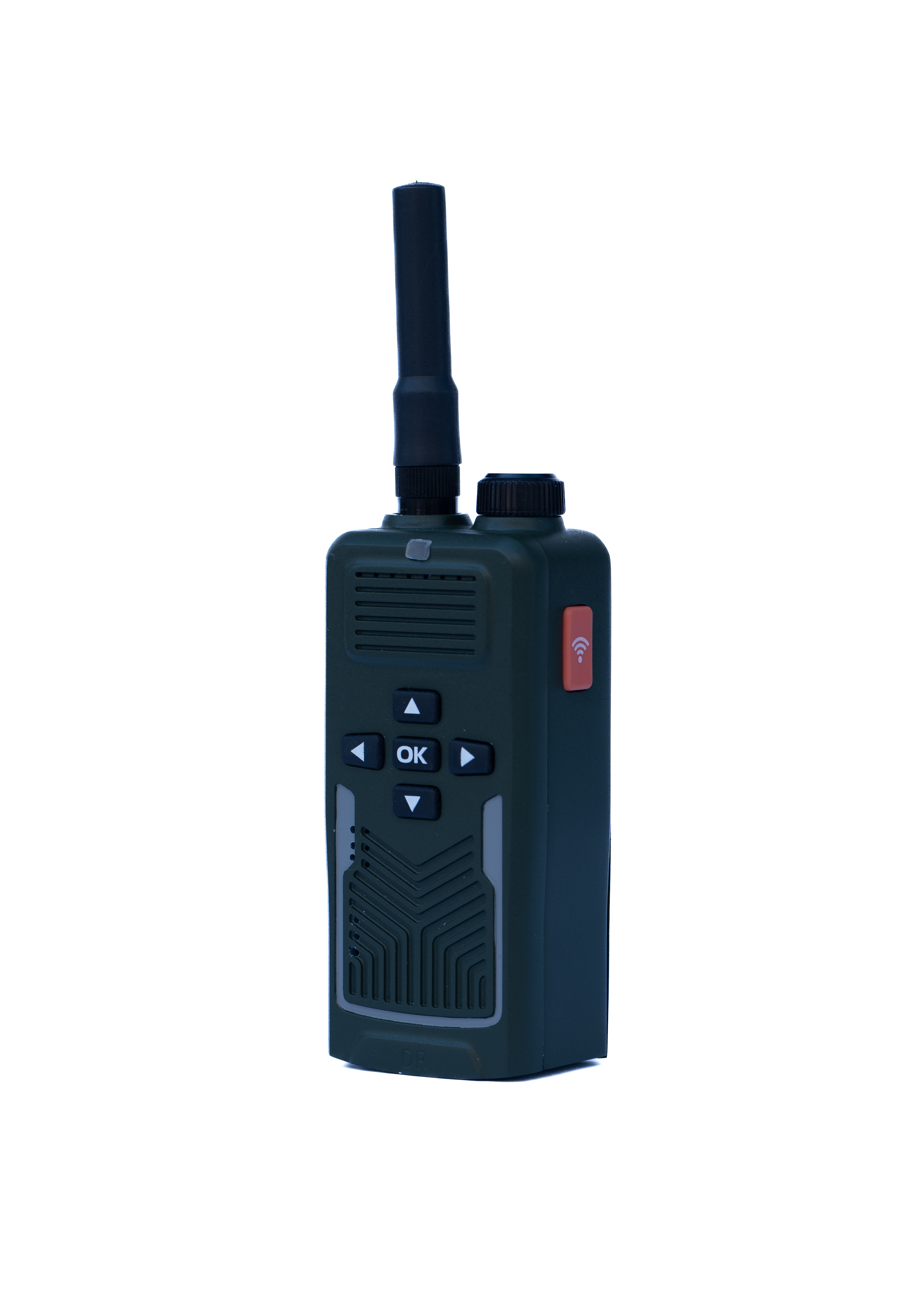

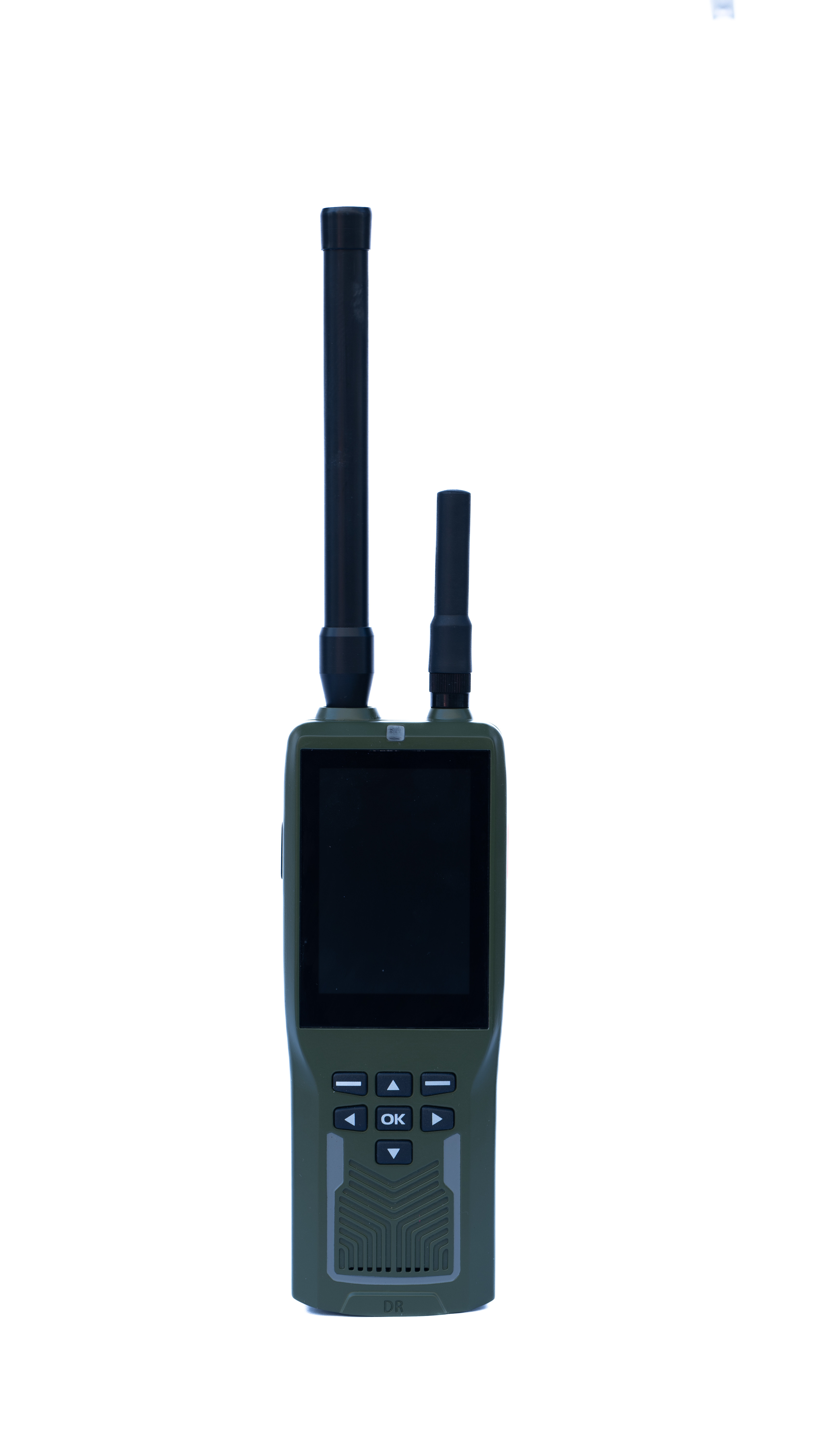

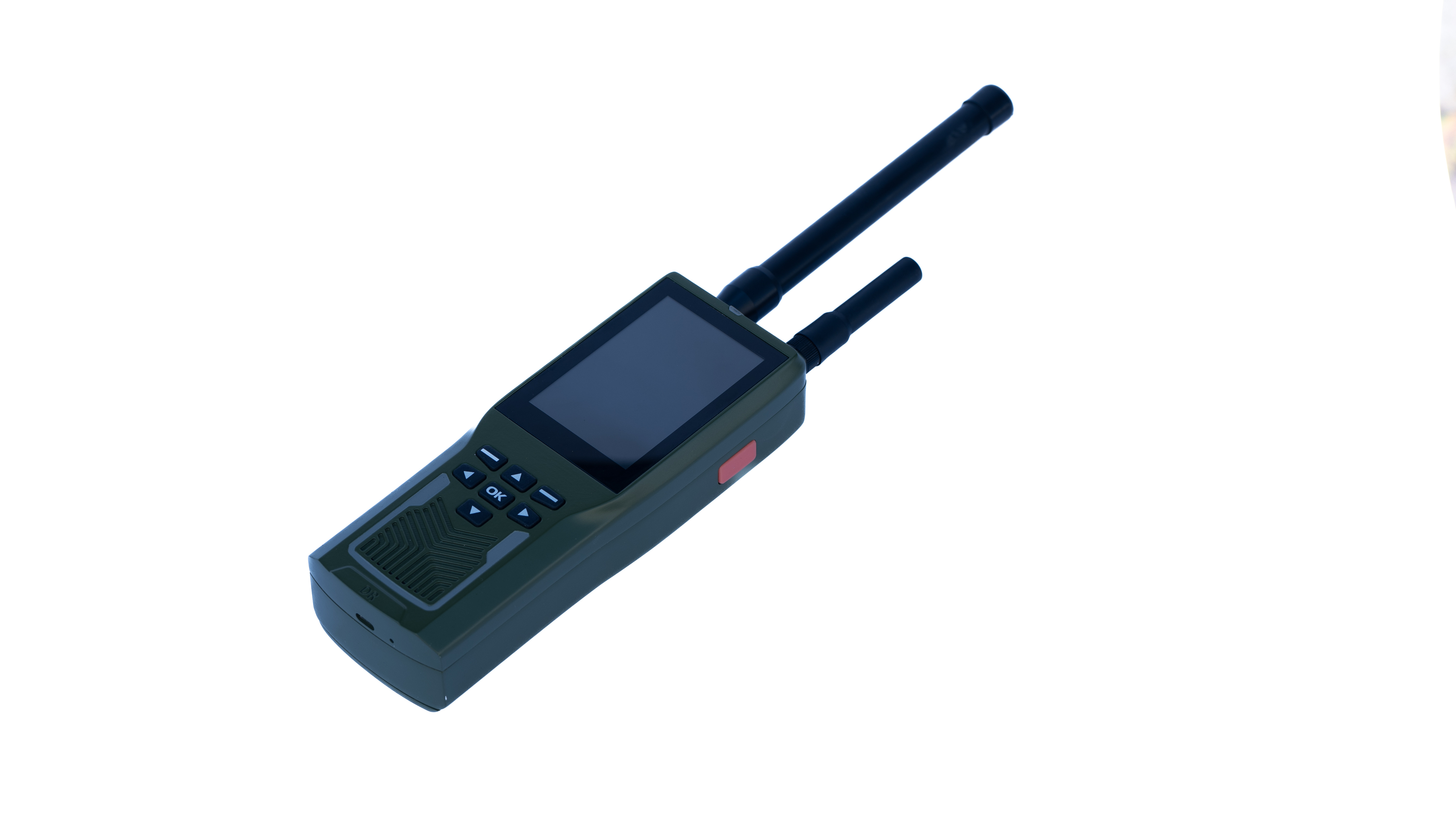

Handheld Drone Detector For Signal Detection Anti UAV FPV
1, Product Introduction
The Portable Drone Detection System, comprising a detection master device and a wristband information receiving terminal, integrates spectrum sensing technology and offers capabilities in reconnaissance, display
control, and team coordination. It is an effective device for detecting, identifying, and signaling alarms for various types of drones. The product utilizes low-power ultra-wideband digital receiving technology, signal detection algorithms, and drone identification algorithms, coupled with an external high-efficiency ultra-wideband antenna. It can accurately identify drones such as quadcopters, fixed-wing, DIY, and FPV in complex electromagnetic environments and triggers auditory, visual, and vibration alarms.

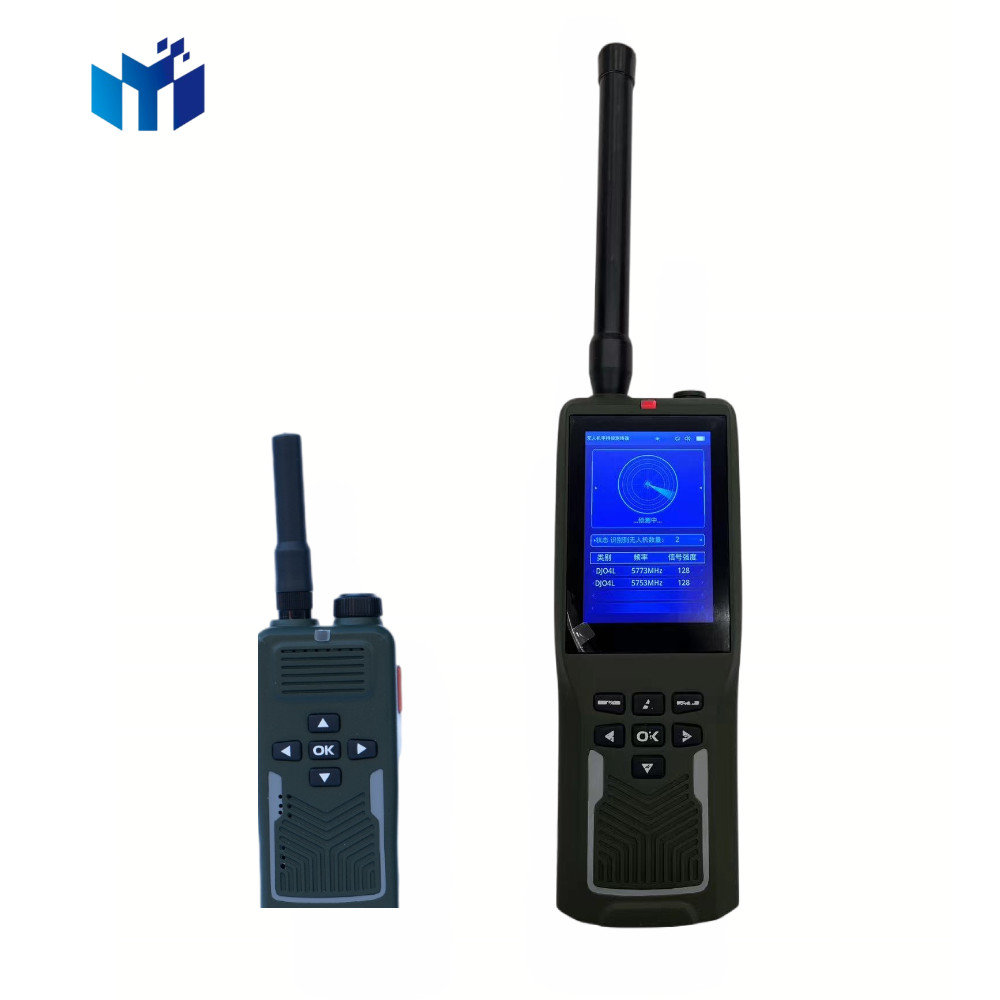

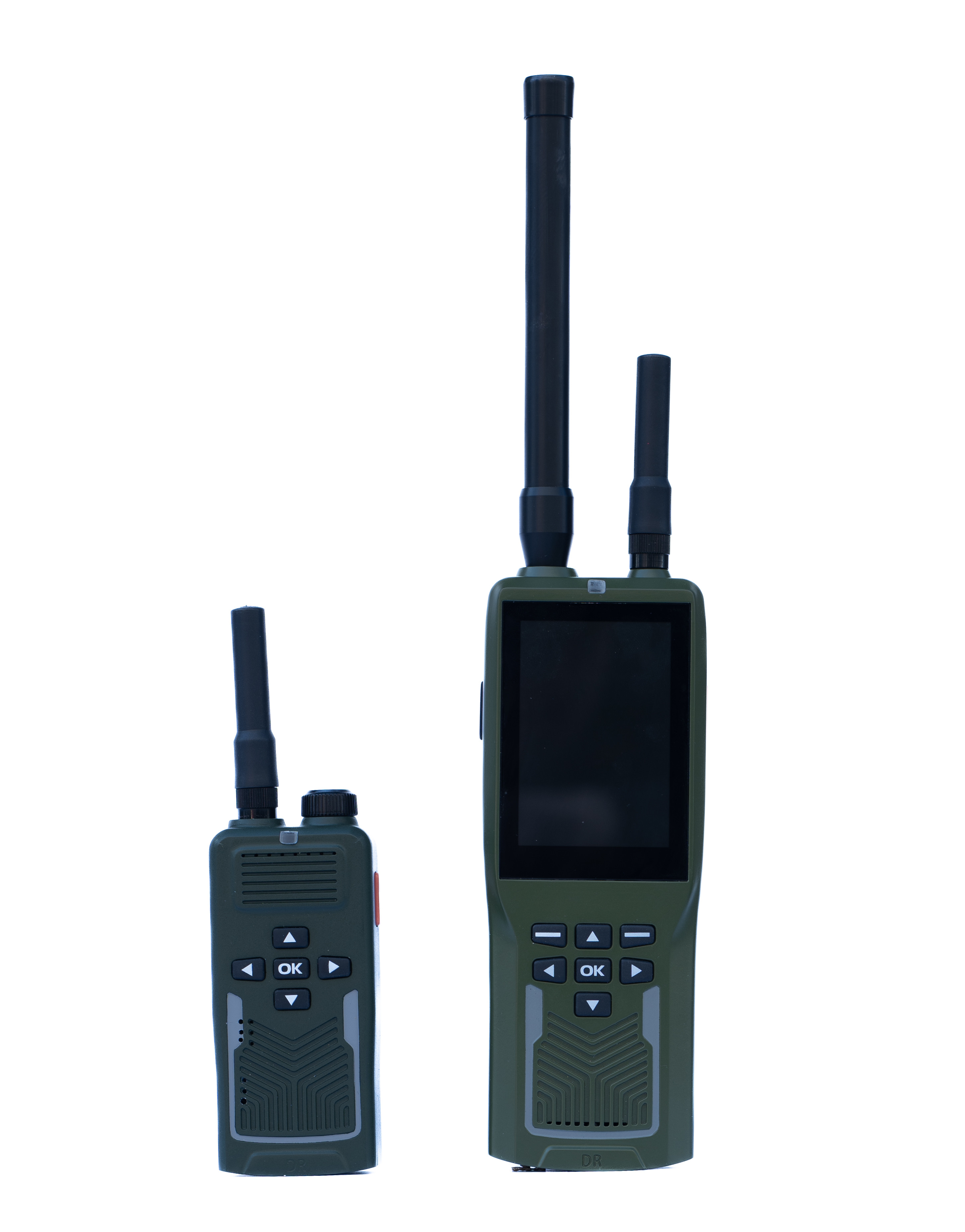

The equipment consists of a main detection unit and several data terminals. The DR400E data terminal is presented in the form of an electronic tablet, with a transmission distance of over 1 kilometer.
Test Objective:
To verify if the equipment has a drone detection range of over 3KM.
TIPS:The video transmission (VT) signal is emitted by the drone, and the drone controller serves as the receiving unit for the VT signal. To verify the authenticity of the video, it is necessary to place both the handheld detection device and the remote controller in the same video. The detected frequency range in the video is 5700MHz-5850MHz, which is a standard VT signal frequency band. Therefore, the drone controller does not emit signals.
2, Specification
| Idengtification Type | Most mainstream brand drones and FPV drones |
| Detection Frequency | Supports 400MHz-6GHz customized scanning,by default 400MHz,800MHz,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection Range | 3KM |
| Detection Response Time | ≤3S |
| Detection Principle | Spectrum feature identfication |
| Alarm method | Audio,vibration,light |
| Coummunication Distance | 1KM + |
| Intercom Distance | 3KM(open and unobstructed) |
| Battery life | Main device≥8 hours,auxiliary device≥12 hours |
| Working temperature | -20℃~+50℃ |
3, Business Partner
Afreican Parks Counter-UAV Strategic Partnership
4, After-Sales service
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
4, Company profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our signal jammers are now widely used across various industries, particularly for countermeasures against drones. We are continuously evolving our products based on actual conditions, and our research and development of jamming modules for drone countermeasures has always been at the forefront of the industry.
5, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
6, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
