Anti Drone System
Created with Pixso. High Power 2300W Anti Drone System with 5km Detection Radius and 60MHz-6GHz Jamming Frequency Vehicle Mounted Device

High Power 2300W Anti Drone System with 5km Detection Radius and 60MHz-6GHz Jamming Frequency Vehicle Mounted Device

Brand Name: MYT
Model Number: DR200AB
MOQ: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 10 work days
Payment Terms: TT,LC
Detail Information
Place of Origin:
China
Certification:
CNAS、CMA、CAL、ILAC-MRA
Jamming Frequency:
60MHz-6GHz(Customized)
Detection Radius:
5km
Total Power:
2300W
Detection Frequency:
300MHz~6GHz
Size:
800mm*600mm
Supply Ability:
1000units per month
Highlight:

vehicle mounted anti drone detector

,

vehicle mounted anti drone detection

,

5km anti drone detector

Product Description

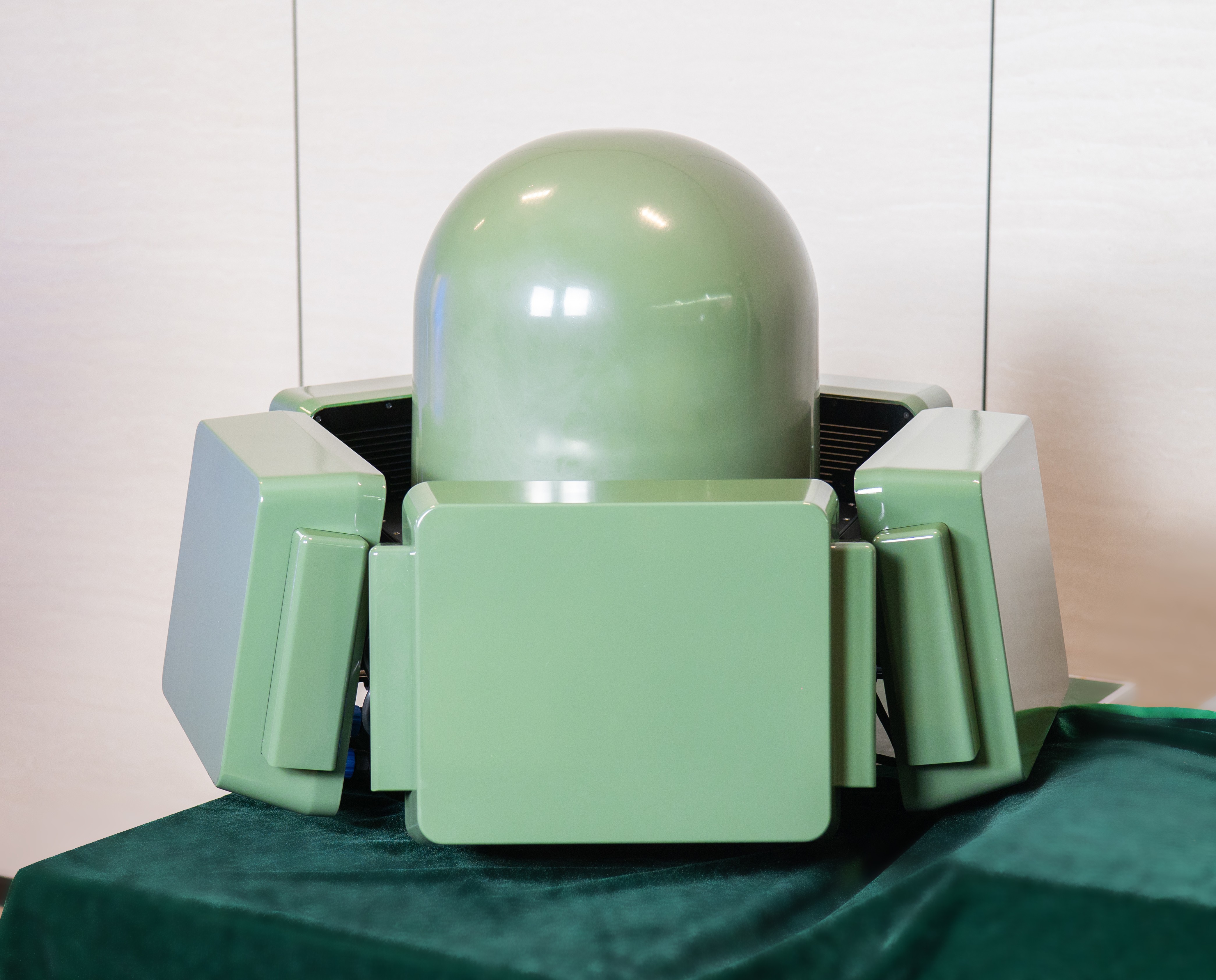

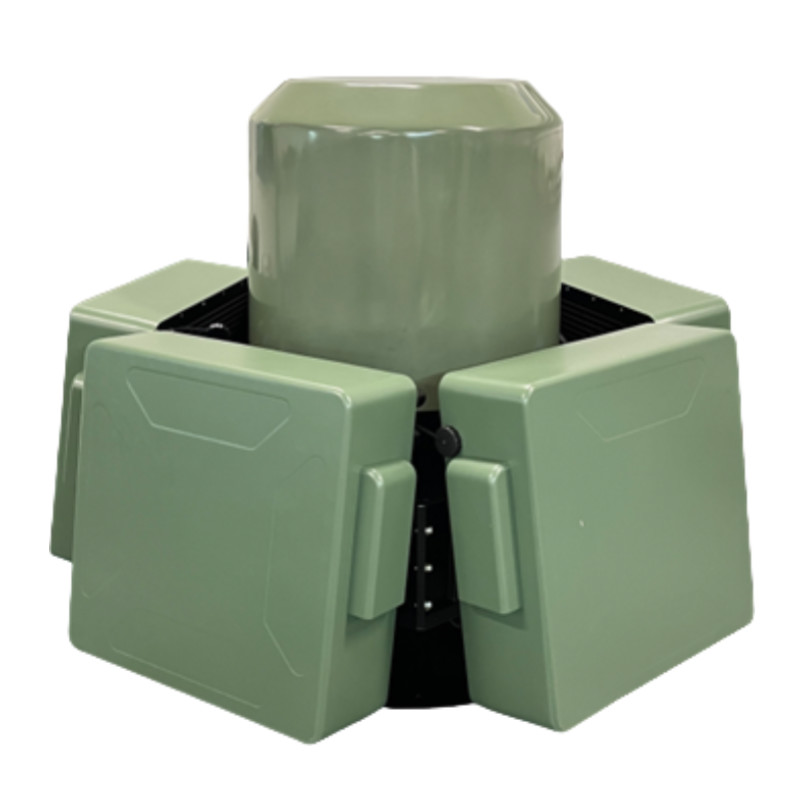

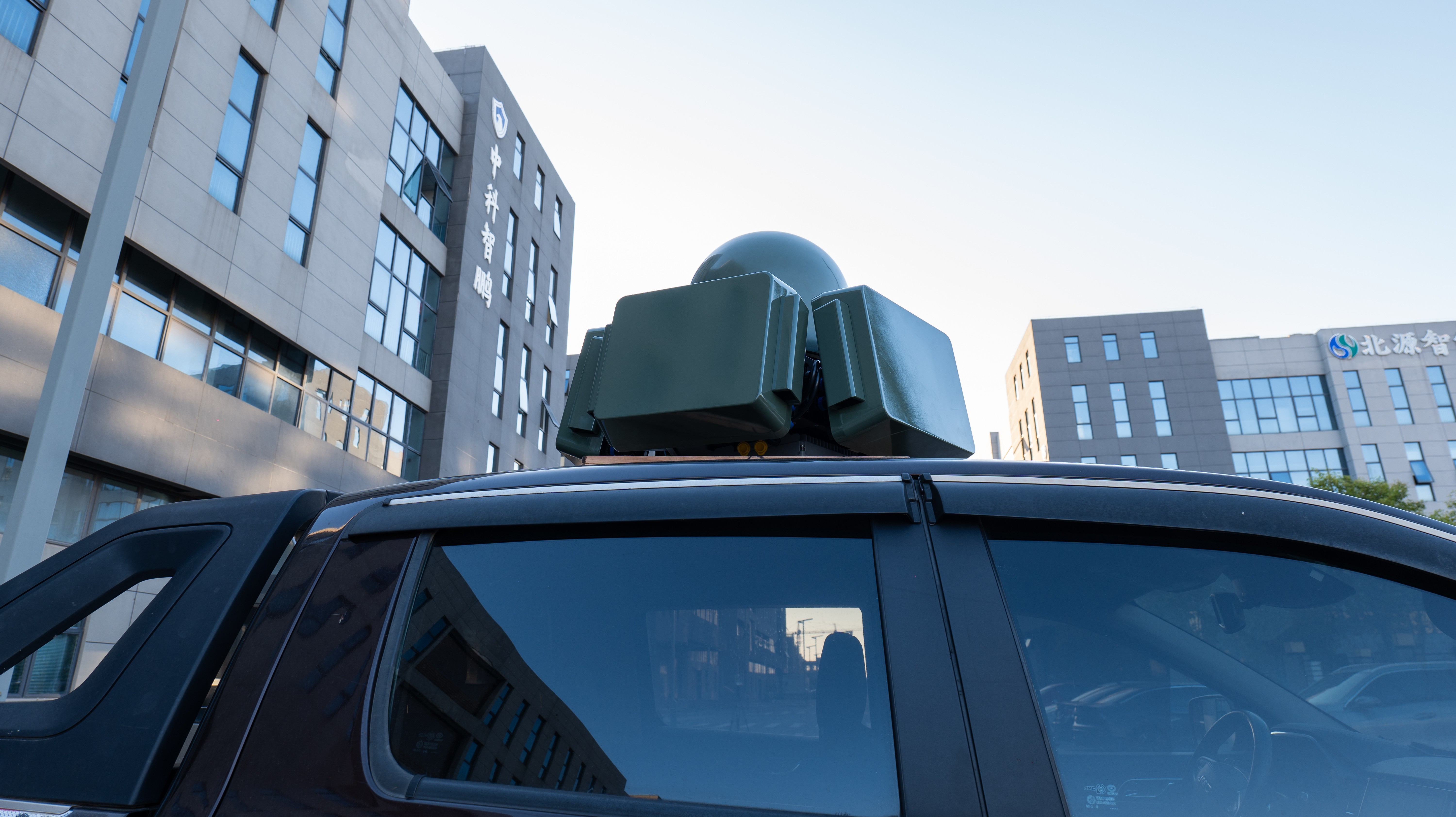

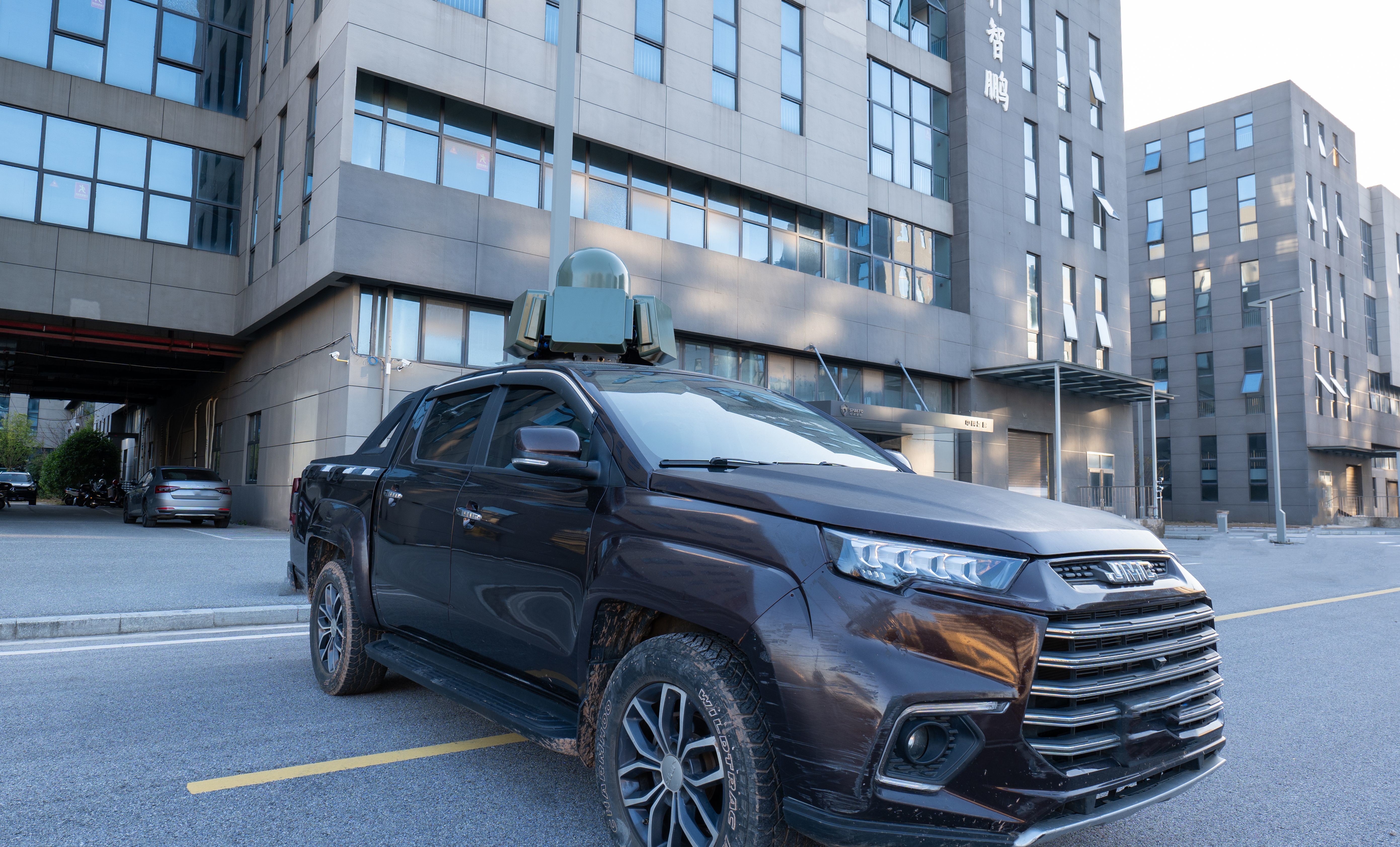

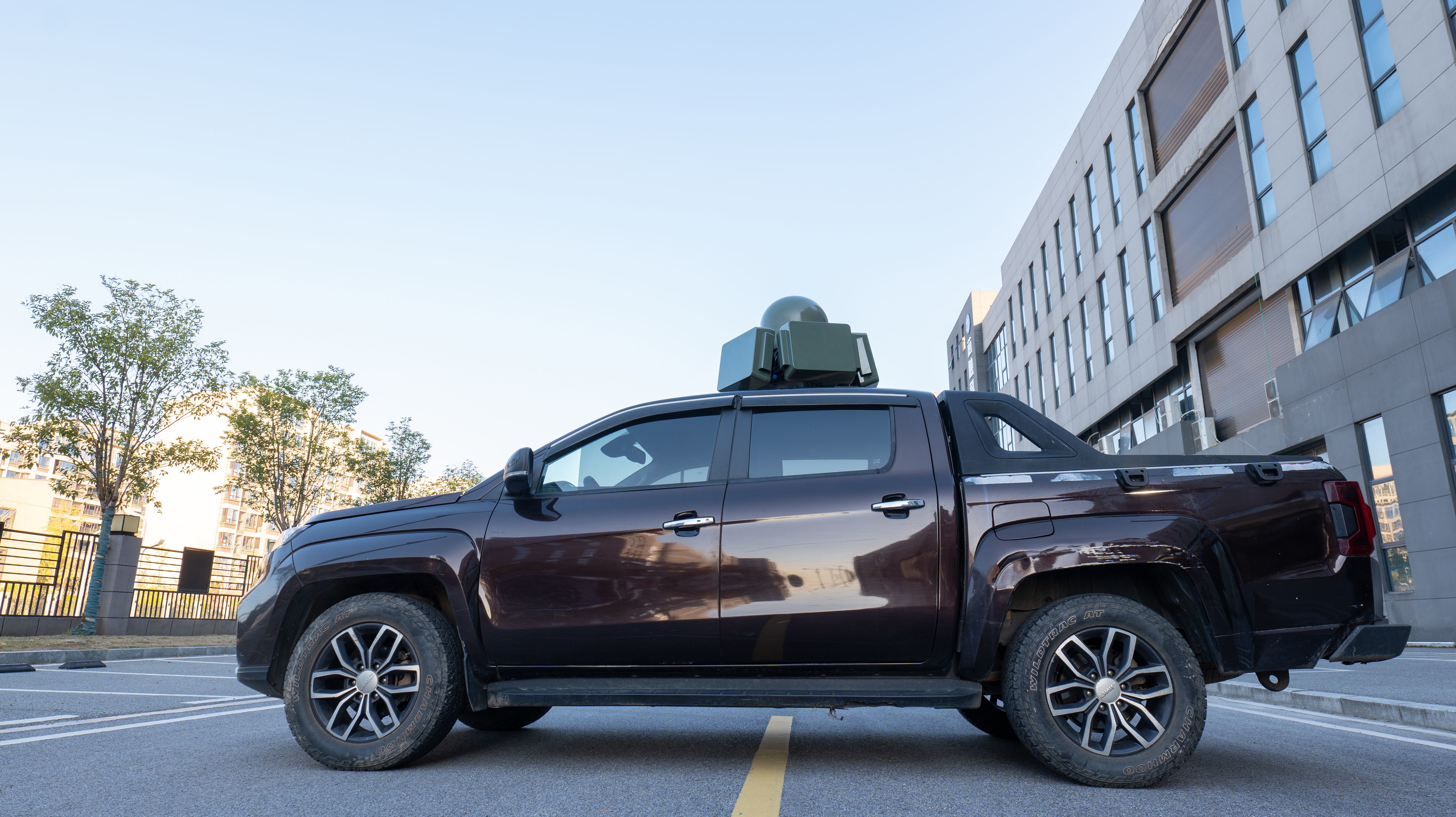

High Power Anti Drone Detection And Jamming Automatic System Vehicle Mounted Device
The vehicle-mounted integrated drone detection and countermeasure system is specifically developed to effectively identify and counteract potential drone threats. It incorporates advanced technologies including radio frequency detection, protocol decoding, and spectrum scanning to ensure comprehensive airspace monitoring and analysis. By analyzing unique drone signals, the system accurately detects and recognizes unauthorized drones, providing early warning and threat assessment.
To neutralize identified threats, the system utilizes sophisticated radio interference and jamming techniques that disrupt drone communication and navigation systems, preventing mission completion. Designed for robust low-altitude security protection within a 3km radius, the system maintains effectiveness even at high speeds up to 150 km/h, making it suitable for dynamic, fast-moving environments and providing continuous protection for convoys and critical assets.
High Power 2300W Anti Drone System with 5km Detection Radius and 60MHz-6GHz Jamming Frequency Vehicle Mounted Device 0
Functional Highlights
  • 360° Full-Frequency Detection and Influence: Covers mainstream drone models, operates autonomously, and provides all-around, multi-angle detection and influence
  • Structured Design: Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes
  • Strong Stability: Features low wind resistance design to maintain stability and safety even at high speeds
  • Blacklist/Whitelist: Allows one-click marking of black and white lists, with whitelisted drones not affected by interference
  • Strong Expandability: Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking
  • High-Grade Quality: Withstands extreme temperatures, offering strong environmental adaptability
  • Customized Services: Tailored intelligent solutions based on specific needs to provide optimal defense performance
Product List
Device Name QT Weight
Equipment main unit164.25 KG
Drone detection unit130 KG
Drone control and management system1
Power supply system11.55 KG
Shield-type influence56.85 KG
IPC or laptop1
Software1
Influence aviation case115.55 KG
Detection aviation case114.65 KG
Technical Specifications
Color:White
Working mode:Radio Detection and Interference
Action object:UAV map transmission, flight control link, navigation signal
Operating Frequency:100MHz~6GHz
Detection distance:≥5km (Open and accessible areas)
Number of simultaneous detections:≥10 (5 different manufacturers)
Detection refresh time:≤2s
Power consumption:≤50W
Counter distance:≥2km
Countermeasure Frequency band:4
System power consumption:≤1000W
Size:φ*H:850mm*485mm
Weight:≤50kg
Protection level:IP65
Working temperature:-20℃~55℃
Storage temperature:-60℃~125℃
System power supply:220V AC
System Interface:100/1000M Ethernet
Full working time:≥1h
After-Sales Service

We offer 24-hour after-sales service. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of problems.

Should you find the products unsatisfactory, kindly return them within 3 months from the date of dispatch. Upon receipt and inspection, if products are found to be free from damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship it to you.

This PI is applicable to the DDP shipping agreement.

Business Partner
Afreican Parks Counter-UAV Strategic Partnership
Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information—such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defense system against intrusion.

Our signal jammers are now widely used across various industries, particularly for countermeasures against drones. We are continuously evolving our products based on actual conditions, and our research and development of jamming modules for drone countermeasures has always been at the forefront of the industry.

Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
Packaging and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
