MYT technology: Global Intelligent Security Expert
| Place of Origin: | China |
|---|---|
| Brand Name: | MYT |
| Model Number: | DR100AB |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable on Quantity |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units per month |
| Product Size: | 800mm*600mm | Total Power: | 2300W |
|---|---|---|---|
| Detection Mode: | Passive Detection | Detection Radius: | 5km |
| Jamming Distance: | 3KM | Weight: | 65KG |
| Jamming Frequency: | 60MHz-6GHz(Customized) | ||
| Highlight: | vehicle anti uav jammer,vehicle anti drone jammer,3km anti uav jammer |
||

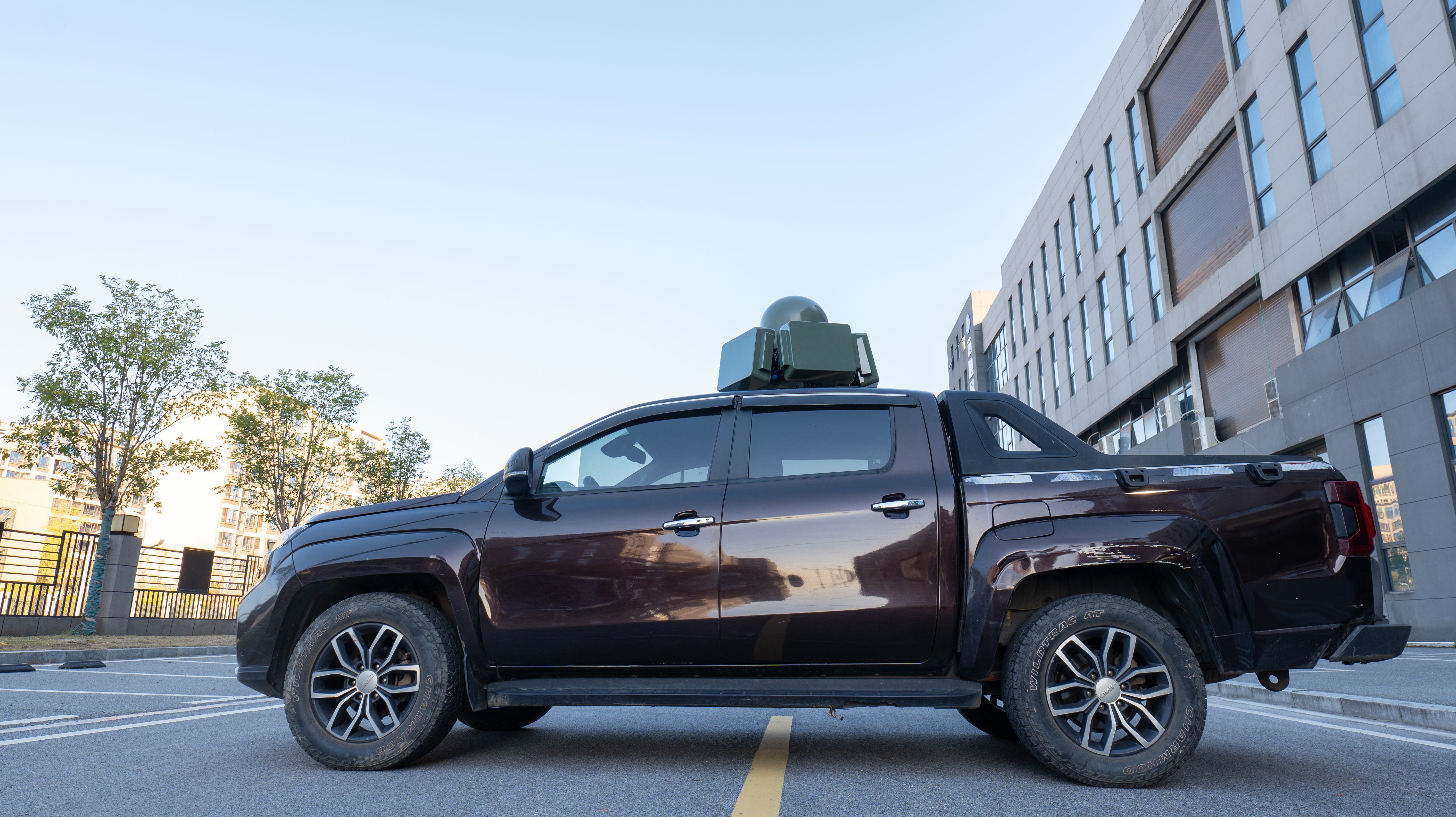

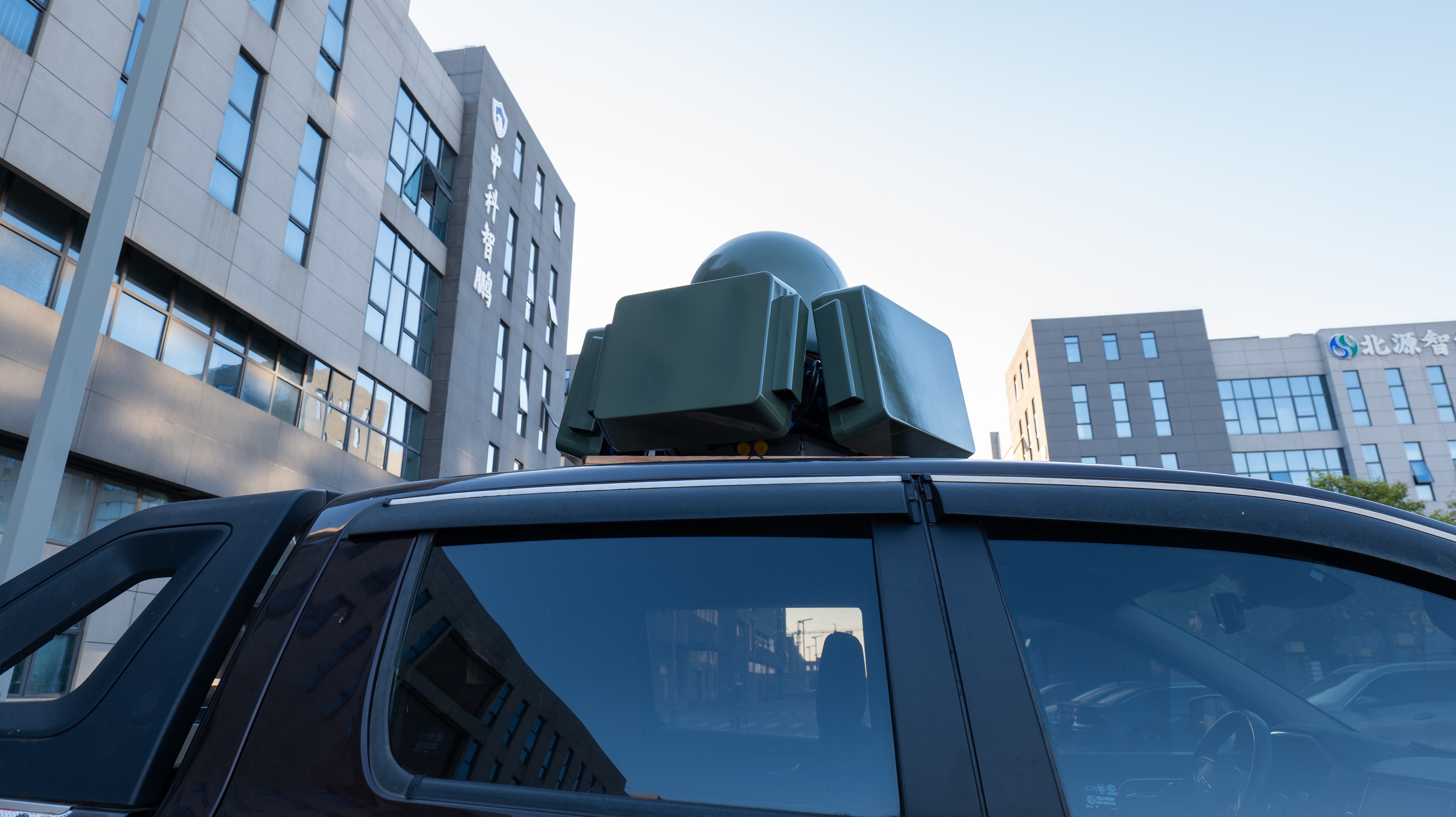

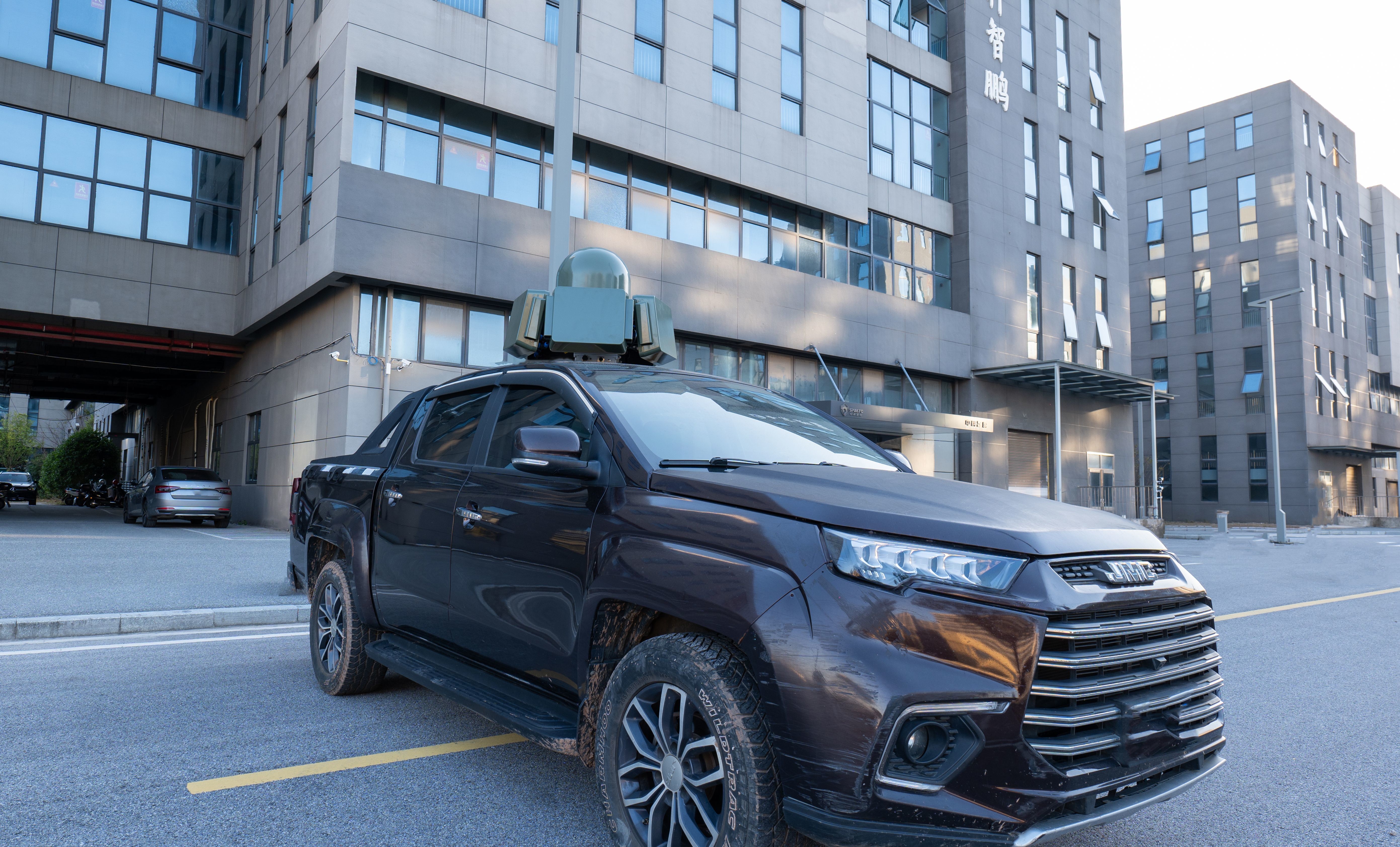

Detection And Jamming Drone Radio Frequency On Mobile Vehicle Automatic System
1, Product Introduction
As drone technology advances rapidly and becomes more prevalent, it has revealed significant potential in various fields, including aerial photography, agriculture, rescue missions, and security. However, this expansion has also led to growing safety concerns. Instances of unauthorized access, malicious surveillance, and breaches of privacy are increasingly common, posing serious risks to national security, public safety, and individual privacy. Consequently, there is an urgent need to develop efficient and advanced counter-drone technologies to safeguard airspace and maintain social stability.
2, Functional highlight
1) 360° Full-Frequency Detection and Influence:Covers mainstream drone models, operates autonomously, and provides all-around,multi-angle detection and influence.
2) Structured Design:Components are quickly detachable, supporting vehicle-mounted, fixed, and portable operational modes.
3) Strong Stability:Features a low wind resistance design to maintain stability and safety even at high speeds.
4) Blacklist/Whitelist:Allows one-click marking of black and white lists, with whitelisted drones not affected by interference.
5) Strong Expandability:Supports flexible deployment on various vehicle types, allowing for both standalone operation and multi-device networking.
6) High-Grade Quality:Withstands extreme temperatures, offering strong environmental adaptability.
7) Customized Services:Tailored intelligent solutions based on specific needs to provide clients with optimal defense performance.
4,Product list
| Device Name | QT | Weight |
|---|---|---|
| Equipment main unit | 1 | 64.25 KG |
| Drone detection unit | 1 | 30 KG |
| Drone control and management system | 1 | |
| Power supply system | 1 | 1.55 KG |
| Shield-type influence | 5 | 6.85 KG |
| IPC or laptop | 1 | |
| Software | 1 | |
| Influence aviation case | 1 | 15.55 KG |
| Detection aviation case | 1 | 14.65 KG |
5, Specification
| DR1001 Specification (● yes, ○ no) | ||
| Color | White | ● |
| Working mode | Radio Detection and Interference | ● |
| Action object | UAV map transmission, flight control link, navigation signal | ● |
| Operating Frequency | 100MHz~6GHz | ● |
| Detection distance | ≥5km(Open and accessible areas) | ● |
| Number of simultaneous detections | ≥10(5 different manufacturers) | ● |
| Detection refresh time | ≤2s | ● |
| Power consumption | ≤50W | ● |
| Operating Frequency Band | (890~940)±10MH z (43±2)dBm ,(1550~1625)±10 MHz (40±2)dBm , (2400~2500)±10 MHz (40±2)dBm , (5700~5850)±10 MHz (40±2)dBm | ● |
| Counter distance | ≥2km | ● |
| Countermeasure Frequency band | 4 | ● |
| System power consumption | ≤1000W | ● |
| Size | φ*H:850mm*485mm | ● |
| Weight | ≤50kg | ● |
| Protection level | IP65 | ● |
| Working temperature | -20℃~55℃ | ● |
| Storage temperature | -60℃~125℃ | ● |
| System power supply | 220V AC | ● |
| System Interface | 100/1000M Ethernet | ● |
| Full working time | ≥1h | ● |
6, After-Sales service
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
This PI is applicable to the DDP shipping agreement.
7,Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
4, Company profile
Chongqing Miao Yi Tang Technology Co., Ltd. is a cutting-edge enterprise forged through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.
Leveraging the robust scientific research capabilities of the Chinese Academy of Sciences and the industry-defining expertise of Sichuan University, MYT technology is dedicated to pioneering advancements in the national security domain through the application of Internet of Things and artificial intelligence technologies. Our focus lies in AIoT research and development, spearheading the creation of an independent AIoT cloud+edge computing system architecture. This breakthrough architecture facilitates the seamless integration of heterogeneous perception information-such as electromagnetic, optoelectronic, visual, and location data—culminating in a comprehensive three-dimensional defensesystem against intrusion.
Our signal jammers are now widely used across various industries, particularly for countermeasures against drones. We are continuously evolving our products based on actual conditions, and our research and development of jamming modules for drone countermeasures has always been at the forefront of the industry.
5, Certification Certificate
The product has obtained dual certification from the Ministry of Public Security and the National Security Center, and is capable of adapting to various severe incidents, possessing military-grade quality.
6, Paking and Delivery
Supports various logistics methods including shipping, air freight, water transport, and express delivery, covering logistics in 90% of the global regions.
