Military Grade Directional Drone Jammer with 10km Range and Fixed Detection Anti Drone System

Name: Military Grade Directional Drone Jammer with 10km Range and Fixed Detection Anti Drone System
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR200-C
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR200-C
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	10 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Jamming Range:

20m

Size:

163*85*43mm

Output Power:

5.6W

Application Area:

Meetingroom, Classroom, Churches, Banks, Cars, Etc.

Supply Ability:

1000units per month

Highlight:

Handheld Mobile Phone Jammer

20m Mobile Phone Jammer

8 Channel Mobile Phone Signal Jammer

Product Description

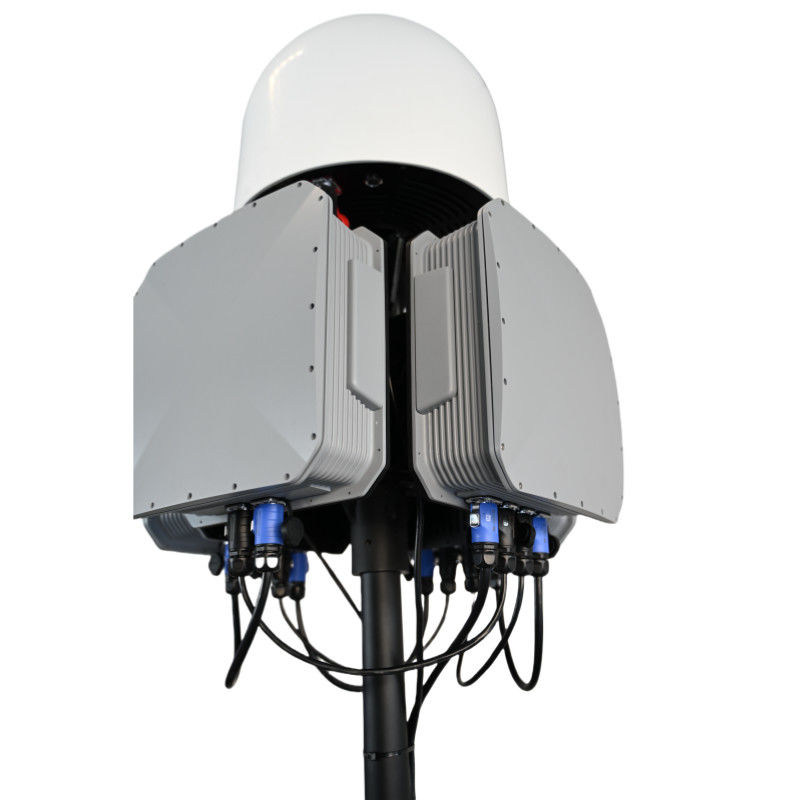

Directional Drone Jammer for Military Defense

Fixed Anti-Drone Detection and Jamming Device with 10km Range

Functional Overview

With the rapid advancement and widespread adoption of drone technology, unmanned aerial vehicles have demonstrated significant potential across various sectors including aerial photography, agriculture, rescue operations, and security. However, this technological progress has also introduced serious security challenges. Incidents involving illegal intrusions, malicious reconnaissance, and privacy violations are increasingly common, posing substantial threats to national security, public safety, and individual privacy. The development of advanced drone jamming technology has therefore become essential for maintaining airspace security and ensuring social stability.

Technical Specifications

Parameter	Specification
Detection Frequency Bands	70MHz-6GHz full frequency band scanning, detection and display
Key Detection Frequency Bands	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Distance	≥10km (dependent on working conditions)
Detection Range	Horizontal: 360° coverage Vertical: -90° to 90°
Detection Response Time	≤10 seconds from power-on to drone detection and reporting
Direction Finding Accuracy	≤±3° (RMS, under optimal conditions)
Detection Display	Distance, altitude, speed, position (GPS coordinates accurate to 1 meter), drone model, SN code, take-off point, return point, real-time trajectory
Jamming Distance	≥3km (dependent on working conditions)
Jamming Coverage	360° horizontal coverage
Jamming Frequency Bands	Omnidirectional: 410MHz-480MHz (50W), 650MHz-750MHz (50W), 750MHz-850MHz (50W), 850MHz-1080MHz (50W), 1080MHz-1200MHz (50W), 1200MHz-1340MHz (50W), 1340MHz-1500MHz (50W), 1560MHz-1620MHz (50W), 4000MHz-4300MHz (50W), 5950MHz-6200MHz (50W), 5100MHz-5300MHz (50W), 5700MHz-5950MHz (50W), 2450MHz-2600MHz (100W) Directional: 850MHz-1080MHz (50W), 240MHz-2450MHz (50W), 5750MHz-5850MHz (50W), 5100MHz-5200MHz (30W)
Jamming Response Time	≤7 seconds
Cloud Platform Features	Unattended and manual control with automated detection, identification, alerting, localization, and mitigation Blacklist and whitelist functionality High-definition GIS system with environmental and deployment information Log playback and statistical records for drone intrusion events GPS positioning with automatic north calibration Drone signal extraction and feature library management Device status monitoring (offline, standby, power-off, abnormal)
Omnidirectional Jamming Device (x2)	Weight: ≤31kg each Size: 520mm × 465mm × 275mm Main and secondary devices for comprehensive coverage
Directional Jamming Device (x4)	Weight: ≤5kg each Size: 320mm × 320mm × 110mm Four-sided configuration for targeted frequency band jamming
Detection Device	Weight: ≤15kg Size: 400mm diameter × 370mm height
Total System	Weight: ≤150kg Size: 1000mm diameter × 2400mm height
Operating Temperature	-40℃ to 60℃

Company Profile

Chongqing Miao Yi Tang Technology Co., Ltd. is an advanced enterprise established through collaboration between the Internet of Things Research and Development Center of the Chinese Academy of Sciences, Sichuan University Zhisheng Software Co., Ltd. (002253), and a dedicated founding team backed by a $12 million investment.

Leveraging the scientific research capabilities of the Chinese Academy of Sciences and the industry expertise of Sichuan University, MYT technology specializes in pioneering advancements in national security through Internet of Things and artificial intelligence technologies. Our focus includes AIoT research and development, creating an independent AIoT cloud+edge computing system architecture that integrates heterogeneous perception information—including electromagnetic, optoelectronic, visual, and location data—to establish comprehensive three-dimensional defense systems against intrusion.

Our signal jammers are widely deployed across various industries, particularly for counter-drone applications. We continuously evolve our products based on operational requirements, maintaining industry leadership in drone countermeasure jamming module development.

Certifications

This product has obtained dual certification from the Ministry of Public Security and the National Security Center, demonstrating military-grade quality and capability to adapt to various severe operational scenarios.

Packaging and Delivery

We support multiple logistics methods including shipping, air freight, water transport, and express delivery, providing comprehensive coverage to 90% of global regions.
