Anti Drone Jammer
Created with Pixso. Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection

Brand Name: MYT
Model Number: DR100-AB
MOQ: 1
Price: Pricing is negotiable based on order quantity
Delivery Time: 10 work days
Payment Terms: TT,LC
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CNAS、CMA、CAL、ILAC-MRA
Document:
Product Brochure PDF
Detection Mode:
Passive Detection
Detection Radius:
5km
Size:
800mm*600mm
Total Power:
2300W
Detection Frequency:
300MHz~6GHz
Jamming Distance:
3KM
Jamming Frequency:
60MHz-6GHz(Customized)
Weight:
65KG
Supply Ability:
1000units per month
Highlight:

vehicle anti uav jammer

,

vehicle anti drone jammer

,

3km anti uav jammer

Product Description

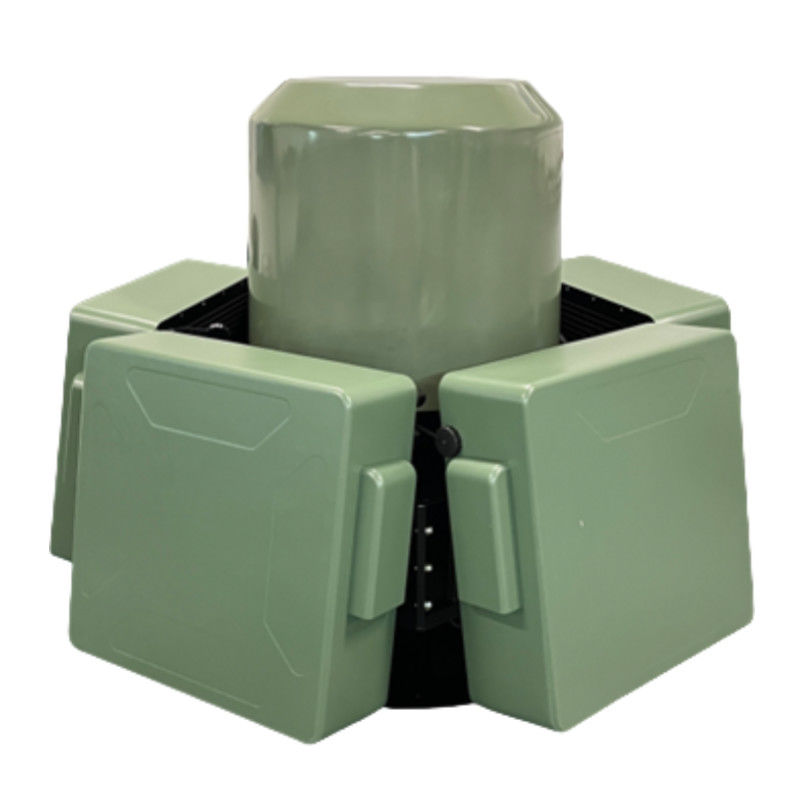

Vehicle-Mounted Anti-Drone System: Detection and Jamming Automatic Device
As drone technology rapidly advances and becomes widely adopted across various sectors including aerial photography, agriculture, rescue operations, and security, significant safety concerns have emerged. The increasing incidents of illegal intrusion, malicious reconnaissance, and privacy violations pose serious threats to national security, public safety, and personal privacy. Our advanced counter-drone technology provides an efficient solution to maintain airspace security and ensure social stability.
Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 0
Key Functional Features
  • 360° Full-Frequency Detection & Jamming: Comprehensive coverage of mainstream drone models with autonomous operation and multi-angle detection capabilities
  • Modular Structured Design: Quick-detach components supporting vehicle-mounted, fixed, and portable operational modes
  • Enhanced Stability: Low wind resistance design maintains operational integrity even at high speeds
  • Blacklist/Whitelist Management: One-click configuration with whitelisted drones remaining unaffected by interference
  • Scalable Expandability: Flexible deployment across various vehicle platforms with standalone or networked operation
  • High-Grade Durability: Extreme temperature resistance with superior environmental adaptability
  • Customized Solutions: Tailored intelligent defense systems optimized for specific client requirements
Complete System Components
Device Name Quantity Weight
Equipment Main Unit 1 64.25 KG
Drone Detection Unit 1 30 KG
Control & Management System 1 -
Power Supply System 1 1.55 KG
Shield-Type Influence Unit 5 6.85 KG
IPC or Laptop 1 -
Software 1 -
Influence Aviation Case 1 15.55 KG
Detection Aviation Case 1 14.65 KG
Technical Specifications
Color: White
Working Mode: Radio Detection & Interference
Target: UAV transmission, flight control, navigation signals
Operating Frequency: 100MHz~6GHz
Detection Range: ≥5km (open areas)
Simultaneous Detection: ≥10 drones (5 manufacturers)
Detection Refresh: ≤2 seconds
Power Consumption: ≤50W
Counter Range: ≥2km
Countermeasure Bands: 4 frequency bands
System Power: ≤1000W
Dimensions: φ×H: 850mm×485mm
Weight: ≤50kg
Protection Rating: IP65
Operating Temp: -20℃~55℃
Storage Temp: -60℃~125℃
Power Supply: 220V AC
Interface: 100/1000M Ethernet
Operating Time: ≥1 hour
Comprehensive After-Sales Support
  • 24/7 technical support and customer service
  • Online technical diagnostics for usage or quality issues
  • 3-month return policy from dispatch date for undamaged products
  • Full refund or product modification options available
  • DDP shipping agreement compliance
Strategic Business Partnership
Proud strategic partnership with African Parks for counter-UAV operations and security solutions.
Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 1 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 2 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 3 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 4 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 5 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 6 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 7 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 8
Official Certifications
Dual certification from Ministry of Public Security and National Security Center. Military-grade quality designed to handle various severe incidents and operational scenarios.
Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 9 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 10 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 11 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 12 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 13 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 14 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 15 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 16 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 17 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 18 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 19 Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 20
Packaging & Global Delivery
Comprehensive logistics solutions including shipping, air freight, water transport, and express delivery. Coverage extends to 90% of global regions with reliable and efficient distribution networks.
Vehicle Mounted Anti Drone Jammer with 5km Detection Radius 3KM Jamming Distance and 360° Full-Frequency Detection 21
