Military Grade Fixed Drone Detection and Jamming Device with 10km Detection and 5km Jamming Distance Anti Drone System

Military Grade Fixed Drone Detection and Jamming Device with 10km Detection and 5km Jamming Distance Anti Drone System

Brand Name:	MYT
Model Number:	DMJ22
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	5 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Detection Frequency Bands:

70MHz-6GHz

Detection Distance:

≥10km

Jamming Distance:

≥5km

Weight:

≤150kg

Supply Ability:

1000units per month

Highlight:

22 antennas mobile phone Jammer

Universal LTE WiFi Cell Phone Jammer

Mobile Phone Signal Jammer

Product Description

Fixed Drone Detection and Jamming Device

Military Grade Directional Drone Jammer with 10km detection range and 5km defense capability

Product Overview

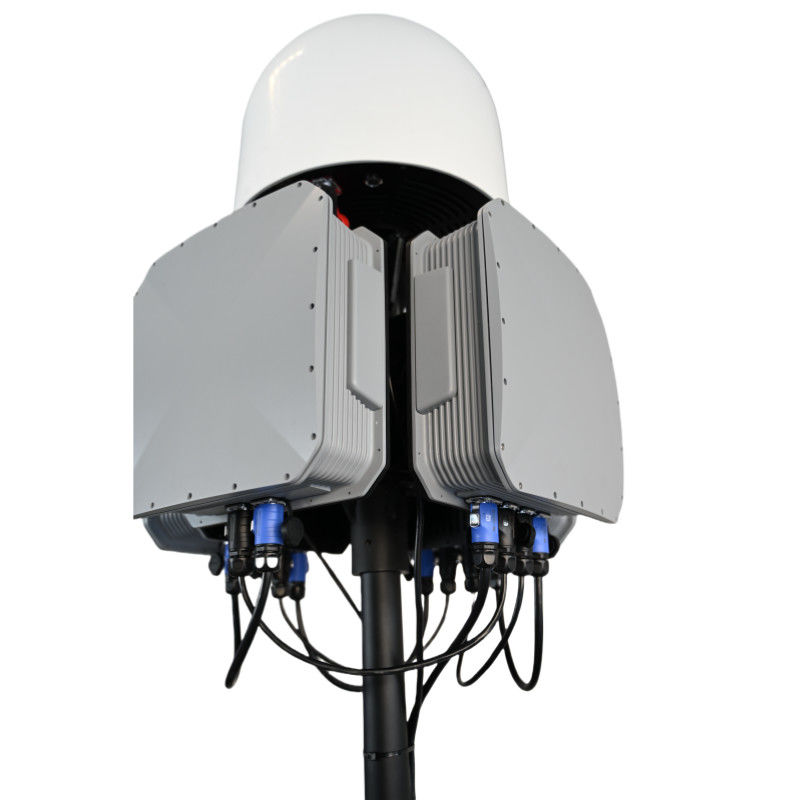

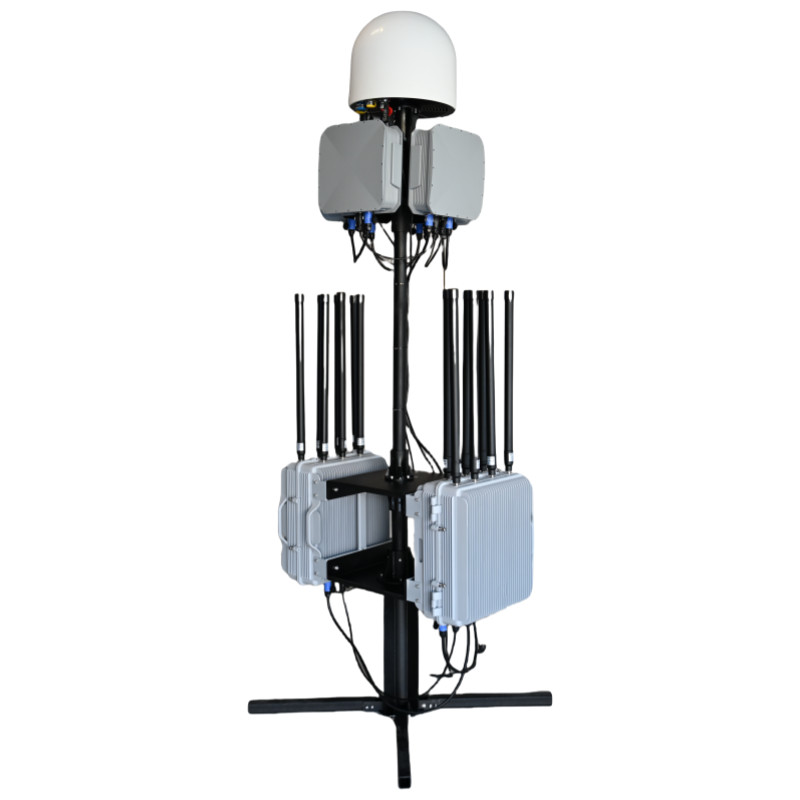

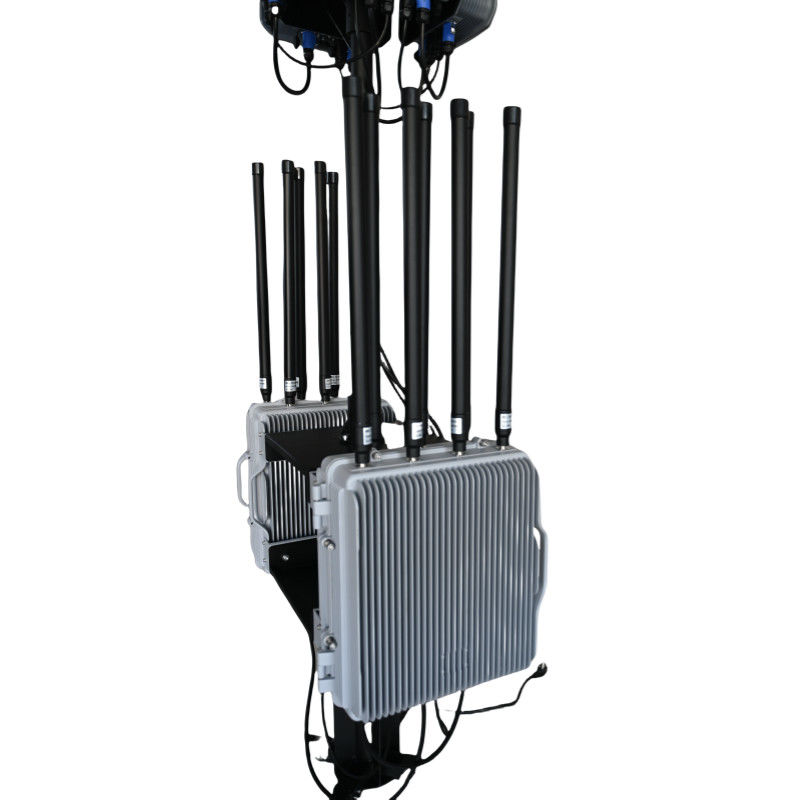

The DR200-C fixed drone detection and jamming system integrates advanced detection and radio interference technologies to identify, track, and neutralize unauthorized drones. This comprehensive anti-drone solution provides automated protection for secured airspace, forcing drones to hover, land, or return to their origin without requiring manual intervention.

Technical Specifications

Parameter	Specification
Detection Frequency Bands	70MHz-6GHz full frequency band scanning, detection and display
Key Detection Frequencies	800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Distance	≥10km (dependent on operating conditions)
Detection Range	360° horizontal coverage, -90° to 90° vertical range
Detection Response Time	≤10 seconds from power-on to drone detection and reporting
Direction Finding Accuracy	≤±3° (RMS, under optimal conditions)
Detection Display	Distance, altitude, speed, position coordinates, drone model, SN code, take-off/return points, real-time trajectory
Jamming Distance	≥3km (dependent on operating conditions)
Interference Coverage	360° horizontal jamming capability
Jamming Frequency Bands	Multiple omnidirectional and directional frequency bands from 410MHz to 6200MHz with power outputs from 30W to 100W
Jamming Response Time	≤7 seconds
System Weight	≤150kg total system weight
System Dimensions	Diameter 1000mm * height 2400mm
Operating Temperature	-40℃ to 60℃

Cloud Platform Features

Automated detection, identification, alerting, localization, and mitigation
Blacklist and whitelist management capabilities
High-definition GIS system with environmental and deployment mapping
Comprehensive logging with playback and statistical reporting
GPS positioning with automatic north calibration
Drone signal extraction and feature library management
Real-time device status monitoring (offline, standby, power, abnormal)

Production Process

Certifications

Company Profile

Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the Chinese Academy of Sciences AI Internet of Things Research Institute and collaborations with leading AI companies, we have developed advanced research laboratories and accumulated numerous technical patents.

Our products provide comprehensive unmanned automatic management solutions for defense and perimeter security, integrating AI anti-drone systems with AI unmanned vehicle patrol systems. These systems combine optoelectronics, radar, vibration detection, thermal imaging, facial recognition, and radio frequency management technologies to deliver 24/7 uninterrupted defense and warning capabilities.

Packaging and Delivery

We support multiple logistics methods including shipping, air freight, water transport, and express delivery, covering 90% of global regions with reliable transportation solutions.
