Handheld Drone Detector with 3KM Detection Range LoRa Communication and Removable Li Battery Anti-Drone System

Name: Handheld Drone Detector with 3KM Detection Range LoRa Communication and Removable Li Battery Anti-Drone System
Brand: Chongqing Miao Yi Tang Technology Co., Ltd.
SKU: DR400-E
Price: 100000.00 USD
Availability: InStock

Brand Name:	MYT
Model Number:	DR400-E
MOQ:	1
Price:	Pricing is negotiable based on order quantity
Delivery Time:	5 work days
Payment Terms:	TT,LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CNAS、CMA、CAL、ILAC-MRA

Document:

Product Brochure PDF

Identification Type:

Most Stream Type Brand Drones And FPV Drones

Size:

142mm*63mm*38mm

Detection Range:

3KM

Detection Rsponse Time:

≤3S

Charging Interface:

TYPE-C

Power Supply:

Removable Li Battery

Weight:

183g

Communication Distance:

1KM+

Working Temperature:

-20℃~50℃

Single Package Size:

35X30X14 Cm

Single Gross Weight:

2.070 Kg

Supply Ability:

1000units per month

Highlight:

team drone jammer

team anti drone system

1km drone jammer

Product Description

DR400-E Drone Detection and Team Communication System

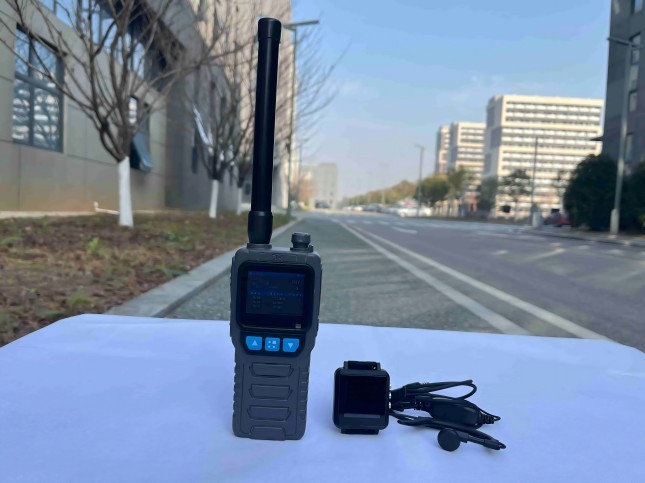

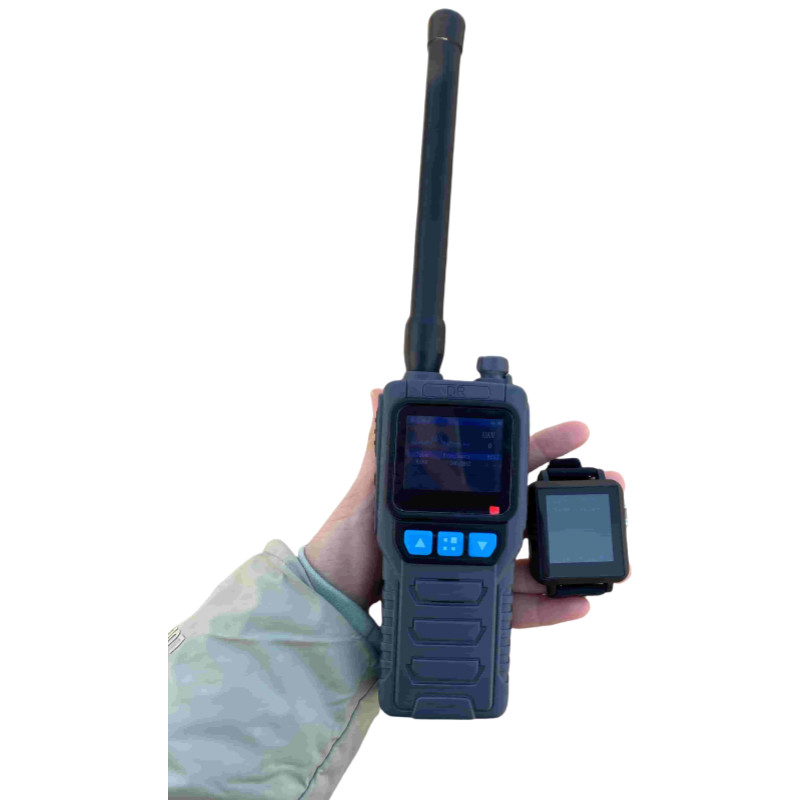

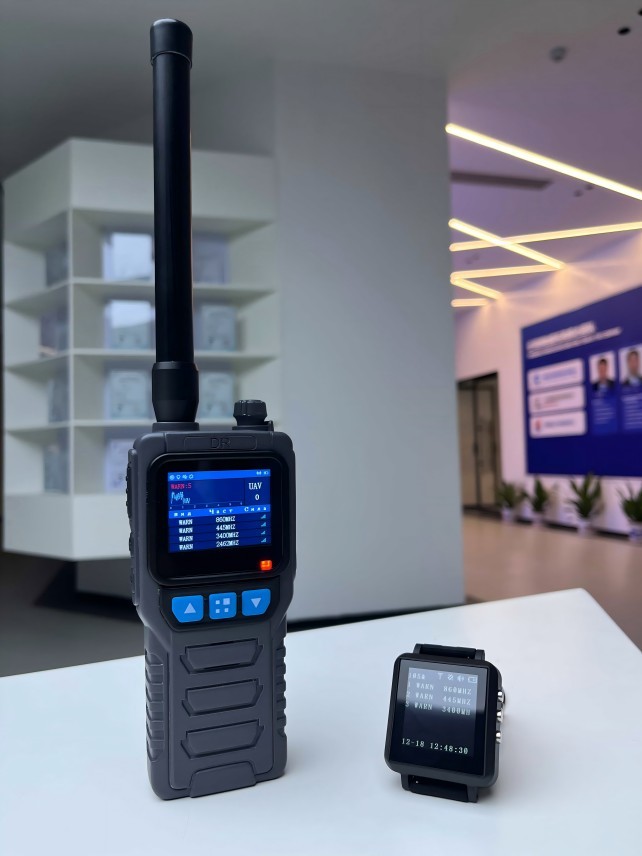

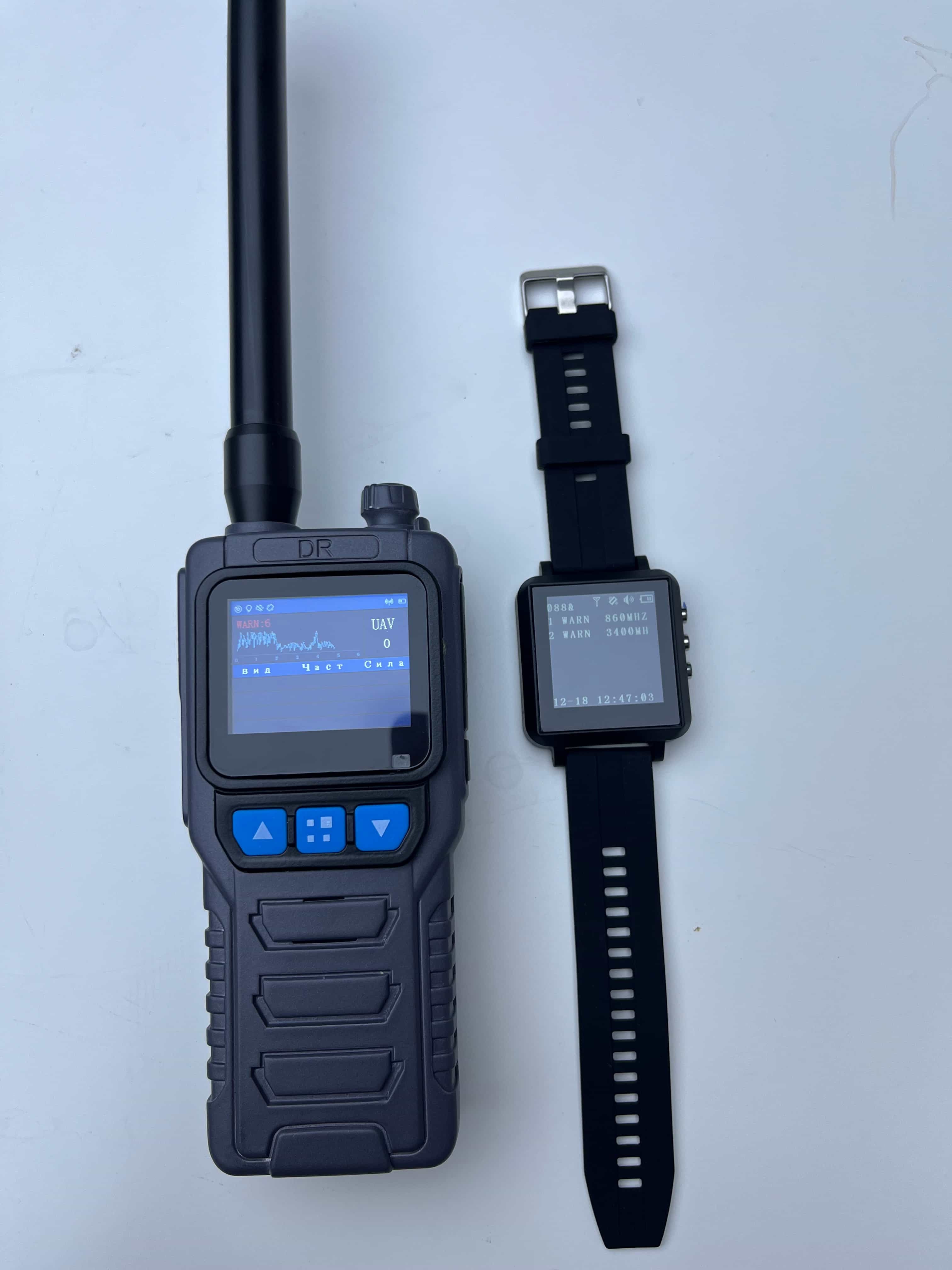

The DR400-E is a tactical drone detection and team collaboration system designed for counter-drone operations. It consists of a main detection unit with 3km range and multiple receiver alarm units in the form of electronic watches. When drones are detected, frequency data is transmitted to the watches via LoRa technology for immediate alerting.

The system offers multiple operational modes for different environments. It covers 260 types of aircraft video transmission frequency bands for precise drone identification, reducing false alarms in urban areas while providing full-spectrum detection in rural environments to prevent missed detections.

Utilizing low-power ultra-wideband digital reception technology with advanced signal detection algorithms and an external high-efficiency antenna, the system accurately identifies drones in complex electromagnetic environments. Auditory, visual, and vibration alerts ensure immediate notification of drone activity.

Key Features and Capabilities

Advanced detection of mainstream drones including DJI, Autel, Hubsan, FPV racing drones, and DIY drones
Broad frequency range: 70MHz to 6.2GHz with custom scanning capabilities
Default frequency coverage: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, and 5.8GHz
Detection radius: ≥1.5km in clear line-of-sight conditions
Wristband communication range: ≥500m in open environments
Rapid response: ≤3 seconds for 8 frequency bands, ≤5 seconds for 12 frequency bands
Detection principle: Spectrum scanning and spectrum feature recognition
Multiple alarm methods: Sound, vibration, and light indicators
2.0-inch wristband display for clear information access
Removable lithium battery power supply
Extended battery life: ≥6 hours (main unit), ≥12 hours (wristband)
Compact dimensions: 142mm * 63mm * 38mm (L*W*H)
Wide operating temperature: -20℃ to +50℃

Technical Specifications

Feature	Description
Detection Types	Mainstream drones (DJI, Autel, Hubsan), FPV racers, DIY drones
Frequency Range	70MHz to 6.2GHz (custom scanning supported)
Detection Radius	≥1.5km (line of sight, clean electromagnetic environment)
Wristband Communication Range	≥500m (open and unobstructed)
Detection Response Time	≤3s for 8 frequency bands; ≤5s for 12 frequency bands
Detection Principle	Spectrum scanning and spectrum feature recognition
Alarm Methods	Audible sound, vibration, and light
Screen Size	2.0 inches
Power Supply	Removable lithium battery
Battery Life	≥6 hours (main unit); ≥12 hours (wristband)
Device Dimensions	142mm * 63mm * 38mm (LWH)
Operating Temperature	-20℃ to +50℃

Testing Objective: Verify equipment has drone detection range exceeding 3km.
Detection Principle: Device detects video transmission signals emitted by drones.
Note: Video transmission signals are emitted by drones, not controllers. Detection frequency range of 5700MHz-5850MHz represents standard VT signal bands.

After-Sales Service

24-hour after-sales service support
Online technical support for usage and quality issues
3-month return policy from dispatch date for undamaged products
Full refund or product modification options available
DDP shipping agreement applicable

Business Partnerships

African Parks Counter-UAV Strategic Partnership

Certification and Compliance

Company Profile

Chongqing Miao Yitong Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple AI companies, the company maintains research laboratories and holds various technical patents.

Products are applied to unmanned automatic management solutions for defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These integrate optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management technologies for 24-hour uninterrupted defense systems that reduce costs, optimize resource allocation, and ensure safety.
