Long Range 3KM Drone Detector Portable For Tactical Early Warning Anti FPV
1, Product Introduction

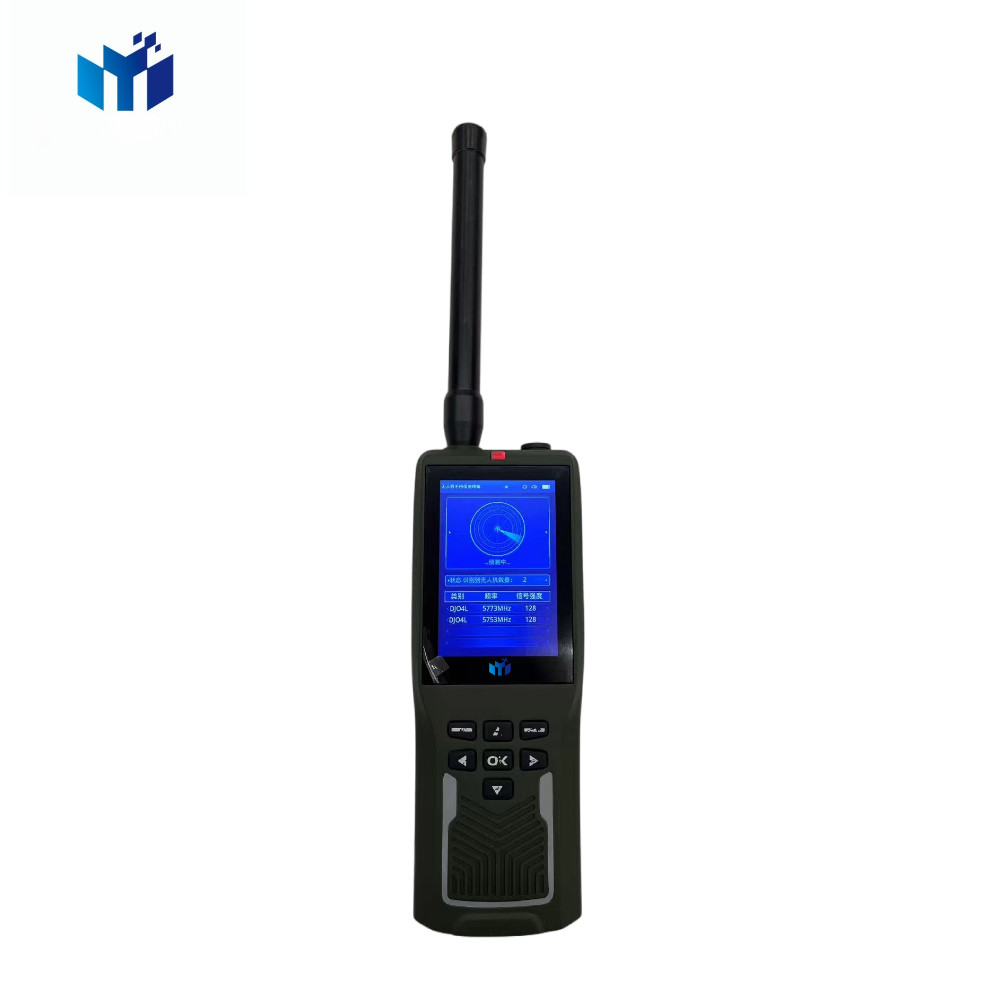

The DR400-A is a handheld portable anti-drone detection device. It can detect and issue early warnings by monitoring the video transmission frequency bands used by drones. This allows users to take preventive measures against incoming drones and coordinate with other countermeasures to achieve effective defense.
The DR400-A can be equipped with a data transmission module, allowing it to send data to a command center or other forms of command hubs. This facilitates team collaboration in anti-drone defense, enabling more effective coordination and response strategies.
Test Objective: To verify if the equipment has a drone detection range of over 3KM.Principle of the Device:The device detects the video transmission signals emitted by drones.
TIPS:The video transmission (VT) signal is emitted by the drone, and the drone controller serves as the receiving unit for the VT signal. To verify the authenticity of the video, it is necessary to place both the handheld detection device and the remote controller in the same video. The detected frequency range in the video is 5700MHz-5800MHz, which is a standard VT signal frequency band. Therefore, the drone controller does not emit signals
2, Feature
Dual-mode detection:Switching between spectrum power detection mode and spectrum characteristic matching detection mode
* Wide range of detection models:Accurately identify drones of mainstream brands such as DJI, Autel, and Hubsan, and most FPV and DIY drones, etc.
* Wide coverage of detection frequency bands:Full coverage of mainstream frequency bands 70MHz-6.2GHz, 8-12 key detection frequency bands;
* Super FPV early warning:Unique baseband signal analysis and identification technology, rapid early warning for all types of DIY and FPV drones;
* Low false alarm rate:Spectrum signal detection can reduce the false alarm rate and achieve extremely low false alarm rate in complex electromagnetic environments;
3, Specification
| Idengtification Type | Most mainstream brand drones and FPV drones |
| Detection Frequency | Supports 400MHz-6GHz customized scanning,by default 400MHz,800MHz,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection Range | 3KM |
| Detection Response Time | ≤3S |
| Detection Principle | Spectrum feature identfication |
| Alarm method | Audio,vibration,light |
| Intercom Distance | 3KM(open and unobstructed) |
| Battery life | Main device≥8 hours,auxiliary device≥12 hours |
| Working temperature | -20℃~+50℃ |

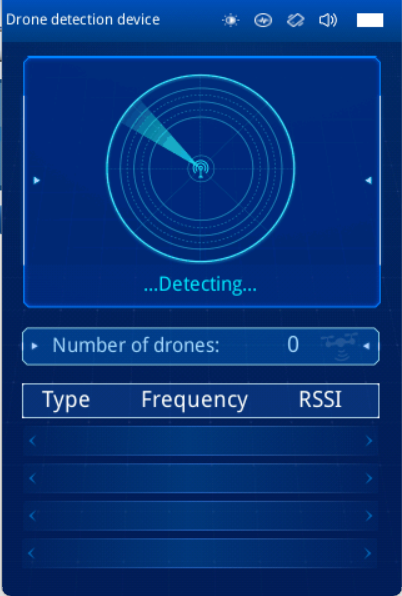

| Display Show Content | |
| Shows that the device is in detection status | Detection signal type |
| The icon is displayed when the red light alarm function is turned on, and the icon is not displayed when turned off. | Detection signal frequency |
| The icon is displayed when the frequency sweep function is turned on, and the icon is not displayed when turned off. | Detection signal strength |
| The icon is displayed when the vibration alarm function is turned on, and the icon is not displayed when turned off. | The icon is displayed when the sound alarm function is turned on, and the icon is not displayed when turned off. |
| Battery power display | Indicates the number of targets detected by the device |
4, After-Sales service
1. We offer 24 hours service after sales
2. If there are any usage or quality issues with the product, we provide online technical support to diagnose the cause of the problem.
3. Should you find the products unsatisfactory, kindly return it to us within a period of 3 months from the date of dispatch. Upon receipt and inspection, should the products be found to be free from any damage attributable to human factors, a full refund will be granted. Alternatively, we can engage in discussions to amend the product and subsequently reship the product to you.
5,Buesiness Partner
Afreican Parks Counter-UAV Strategic Partnership
6, Certification Certificate
7, Company profile
Chongqing Miao Yitang Technology Co., Ltd. is a specialized company engaged in anti-drone and unmanned intelligent defense management.
With the technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, the company has established research laboratories for AI unmanned field products, accumulating a variety of technical patents.
The company's products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate with multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, truly achieving a 24-hour uninterrupted anti-drone defense and ground perimeter defense warning system. This allows for cost savings for clients, reduction in human resource allocation, and ensures the safety of clients' lives and property. The outstanding security system has won the company an excellent reputation and created higher value for its partners.
